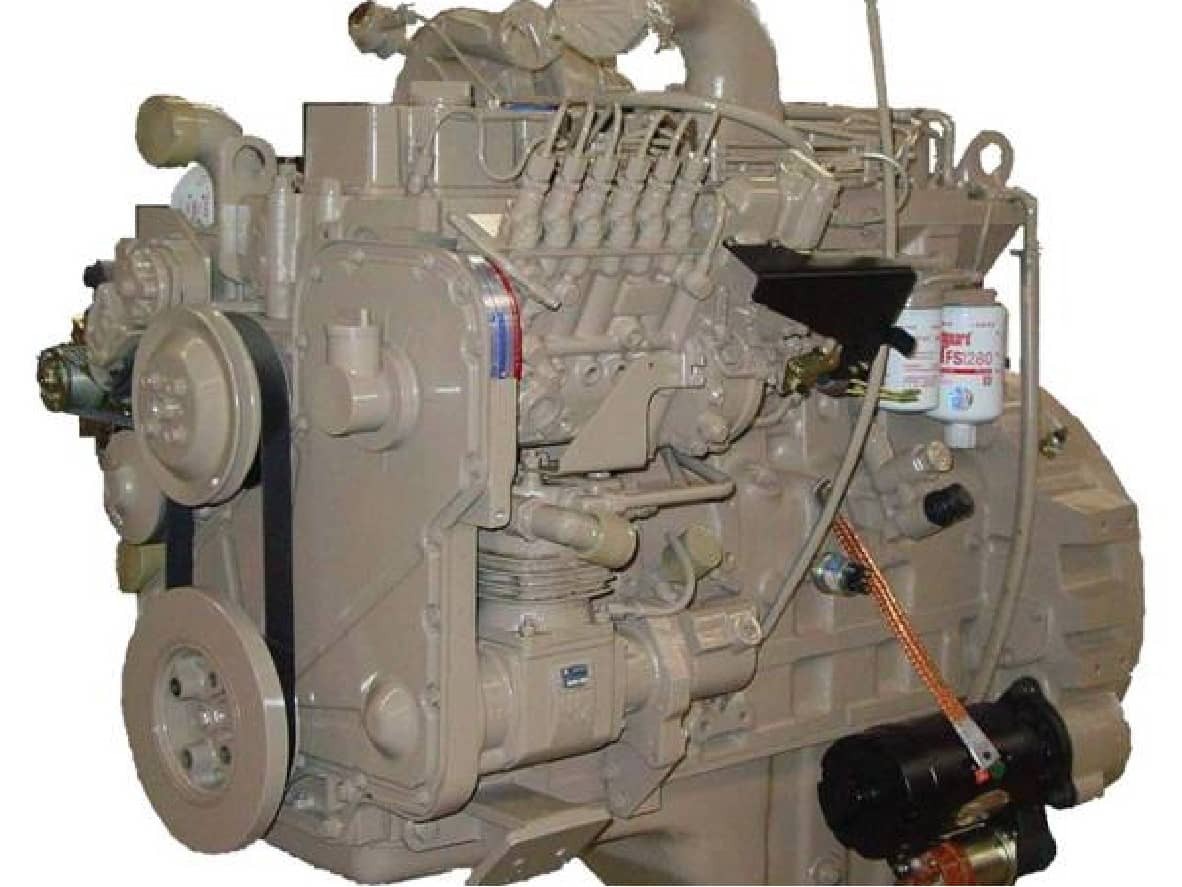

Dongfeng Cummins C325-20 Engine Assembly (325HP 8.3L DCEC)
The Dongfeng Cummins C325-20 represents the absolute peak of mechanical performance within the proven 6CT8.3 engine family. Engineered by Dongfeng Cummins Engine Co., Ltd. (DCEC), this 6-cylinder, 8.3-liter heavy-duty diesel engine produces 239 kW (325 HP) at 2200 RPM and 1175 Nm of torque. Designed primarily for heavy commercial vehicles, construction machinery repowers, and severe-duty transport, the C325-20 combines pure mechanical fuel injection simplicity with high power density, making it a preferred choice for markets requiring robust Euro II emission compliance without complex electronics.
At HekoPower, we specialize in exporting brand-new, original DCEC Cummins C325-20 complete engine assemblies. Every unit undergoes rigorous factory bench testing, ensuring direct drop-in compatibility, maximum uptime, and long-term durability for fleet operators and machinery rebuilders worldwide.
Tech Specs of Cummins C325-20
General Engine Data
Engine Model: Cummins C325-20
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 636 Kg
Overall Dimension: 1180mm*920mm*1280
Key Performance Data
Rated Power: 239 kW/325 HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1175 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 235 g/Kw.h
Max. No-load Governed Speed: 2500 rpm
Idle-Speed: 750±100 rpm
Max Continuous Running Altitude: 1830 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Air-Air Intercooled
Fuel System: BOSCH P7100 Pump
Compression Radio: 17.5:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Peak Mechanical Performance: The 325HP 6CT8.3 Benchmark
While lower power variants in the DCEC C-series lineup—such as the C260-20 or C300-20—target mid-range freight, the C325-20 is calibrated for severe loads and demanding grades. Achieving 325 horsepower from an 8.3-liter displacement requires precise fuel metering and thermal management. DCEC accomplishes this using a heavy-duty Bosch P7100 mechanical fuel injection pump coupled with an RQV-K governor, paired with a wastegated turbocharger and air-to-air intercooling (charge air cooling).
Operating entirely without an Electronic Control Unit (ECU), sensor arrays, or delicate wiring harnesses, the C325-20 thrives in harsh operating environments. It offers exceptional tolerance to varying diesel fuel qualities, simplified on-site troubleshooting, and significantly lower lifetime maintenance costs compared to common-rail electronic engines.
Technical Comparisons: Decoding Power, Displacement, and Emissions
Selecting the correct replacement engine requires understanding subtle mechanical differences between closely related Cummins models. Below, we break down key comparison points to help fleet managers choose the exact power unit required.
C325-20 vs. C300-20 (DCEC 6CT8.3 Platform)
Both the C325-20 and C300-20 share the identical 8.3-liter block casting, 114 × 135 mm cylinder dimensions, and mechanical Bosch fuel architecture. However, the C325-20 yields an additional 25 horsepower and a noticeable torque gain (1175 Nm vs. 1025 Nm). DCEC achieves this higher output through larger injector nozzle orifices, specific fuel pump delivery valves, and adjusted turbocharger boost pressure. Upgrading an existing heavy dump truck or logging vehicle from a C300-20 to a C325-20 delivers immediate improvements in steep-grade climbing capability without requiring engine bay modifications or alterations to the flywheel housing.
C325-20 (8.3L) vs. L325-20 (8.9L)
Buyers frequently confuse these two 325HP Euro II engines because they carry identical horsepower ratings. The crucial difference lies in engine displacement and physical footprint. The C325-20 utilizes the 8.3-liter 6CT block, whereas the DCEC L325-20 utilizes the larger 8.9-liter ISL/L-series block structure. While the L325-20 provides slightly higher peak torque (1230 Nm) due to its longer stroke, it is physically wider and heavier. If your chassis original equipment manufacturer (OEM) designed the engine cradle around an 8.3L footprint, installing the C325-20 avoids custom engine mount fabrication, driveshaft adjustments, and radiator shroud modifications.
Mechanical C325-20 vs. Electronic ISLe 340 (Euro II vs. Euro III)
Comparing the mechanical C325-20 to electronic platforms like the ISLe 340 highlights the trade-offs between regulatory emissions and operational field survival. Electronic engines require clean, low-sulfur fuel and specialized diagnostic tools to reset fault codes. The C325-20 relies purely on mechanical timing and governor pressure. For remote mining camps, construction sites, and cross-border transport where electrical diagnostics are unavailable and fuel quality fluctuates, the mechanical C325-20 remains the most reliable and field-serviceable power solution.
Real-World Application Scenarios: Heavy Duty Vehicles & Equipment
The DCEC Cummins C325-20 engine assembly is widely deployed across commercial automotive and industrial sectors where sustained high-torque output is mandatory.
Heavy Dump Trucks & Tippers
Widely installed as original equipment or drop-in repowers for Dongfeng Kinland (Tianlong), Shacman, Foton, and CAMC 6×4 and 8×4 tippers operating in mining, gravel haulage, and site preparation.
Long-Haul Freight Tractors
Provides dependable pulling power for heavy-duty tractor-trailers operating on challenging terrain, delivering steady cruising speeds at 2200 RPM.
Construction Equipment Repowering
Serves as an ideal replacement engine unit for large rotary drilling rigs, heavy crawler excavators, and 20-ton wheel loaders originally designed around mechanical 6CT8.3 powerplants.
Specialized Commercial Chassis
Commonly used in concrete mixer trucks, heavy recovery vehicles, and municipal fire tenders requiring dependable power takeoff (PTO) engagement and high low-end torque.
Field Maintenance, Installation & Replacement Guidelines
To ensure maximum service life and prevent premature component failure when installing a new Cummins C325-20 engine assembly, field technicians should follow these practical installation and service practices:
Fuel System & Mechanical Pump Setup
The Bosch P7100 mechanical fuel pump fitted on the C325-20 relies on precise static injection timing. During engine installation, verify that the fuel supply lines are thoroughly flushed to remove debris. Never tamper with the internal setting of the RQV-K governor or adjust pump delivery screws outside of a certified fuel injection test bench, as incorrect calibration can lead to excessive exhaust gas temperatures (EGT) or cylinder thermal overloading.
Cooling Package Requirements
Extracting 325 horsepower from an 8.3-liter displacement generates significant thermal energy. Ensure that the radiator core, fan clutch, and charge air cooler (CAC) are thoroughly cleaned and leak-tested prior to mating the new C325-20 assembly to the vehicle. A leaking intercooler will lead to rich fuel combustion, elevated smoke levels, and premature turbocharger failure.
Lube Oil & Filtration Standards
Always fill the engine with high-performance 15W-40 heavy-duty diesel oil API CH-4 or CI-4 grade. Pre-fill the spin-on oil filter and primary fuel filter/water separator with clean fluid prior to initial engine cranking to prevent dry bearing friction and air locks in the mechanical pump.
Common B2B Procurement Misconceptions
When sourcing replacement diesel engines online, purchasing managers and fleet buyers often fall trap to common industry misunderstandings.
Misconception 1: "Any 8.3L Cummins fuel pump can be installed on a C325-20."
Fact: Lower horsepower 6CT engines (such as 210HP or 240HP) often utilize lighter-duty fuel pumps (like the Stanadyne or smaller Bosch VE/A pumps). The C325-20 specifically requires the high-pressure Bosch P7100 mechanical pump to supply necessary fuel volume. Interchanging pumps will drastically reduce engine power.
Misconception 2: "All 325HP Cummins engines have identical flywheel housings."
Fact: Depending on whether the engine was configured for a truck chassis, generator drive, or industrial machinery, the flywheel housing can range from SAE #1 to SAE #2 sizes. When ordering from HekoPower, always provide your original engine serial number (ESN) or transmission model to verify housing match.
Misconception 3: "Mechanical engines lack efficiency compared to modern units."
Fact: When operated within its sweet spot (1300–1500 RPM), the C325-20 demonstrates exceptional specific fuel consumption (BSFC), competing closely with electronic engines while saving thousands of dollars in electronic sensor maintenance over its lifecycle.
Exploring the Complete Dongfeng Cummins C-Series Lineup
While the 325HP variant stands as the flagship high-output mechanical engine within the 8.3-liter family, Dongfeng Cummins manufactures a versatile range of C-series powerplants optimized for lighter transport, industrial machinery, and marine propulsion. Matching the exact engine specification code ensures your fleet achieves the correct balance of torque, fuel economy, and operational efficiency.
DCEC C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes C220-20, C230-20, C230-33, C240-20, C245-20, C245-33, C260-20, C260-33, C280-20, C280-33, C300-20, C300-33, C325-20.
Frequently Asked Questions (FAQ)
What is the exact output rating of the Cummins C325-20 engine?
The Dongfeng Cummins C325-20 produces a rated power output of 239 kW (325 horsepower) at 2200 RPM and generates a maximum torque of 1175 Nm in the 1300 to 1500 RPM range.
Is the Cummins C325-20 an electronic or mechanical engine?
The C325-20 is a fully mechanical diesel engine. It utilizes a mechanical Bosch P7100 fuel injection pump and requires no Electronic Control Unit (ECU) or complex electrical wiring to operate.
What is the difference between a Cummins C325-20 and an L325-20?
While both engines produce 325 horsepower, the C325-20 built by DCEC has an 8.3-liter displacement (114 × 135 mm bore/stroke). The L325-20 features an 8.9-liter displacement, resulting in a larger physical engine footprint and slightly higher torque output.
Can HekoPower supply complete, brand-new C325-20 engine assemblies?
Yes. HekoPower supplies 100% original, brand-new Dongfeng Cummins (DCEC) C325-20 complete engine assemblies, fully dressed with fuel system, turbocharger, water pump, and starter, ready for immediate installation.
