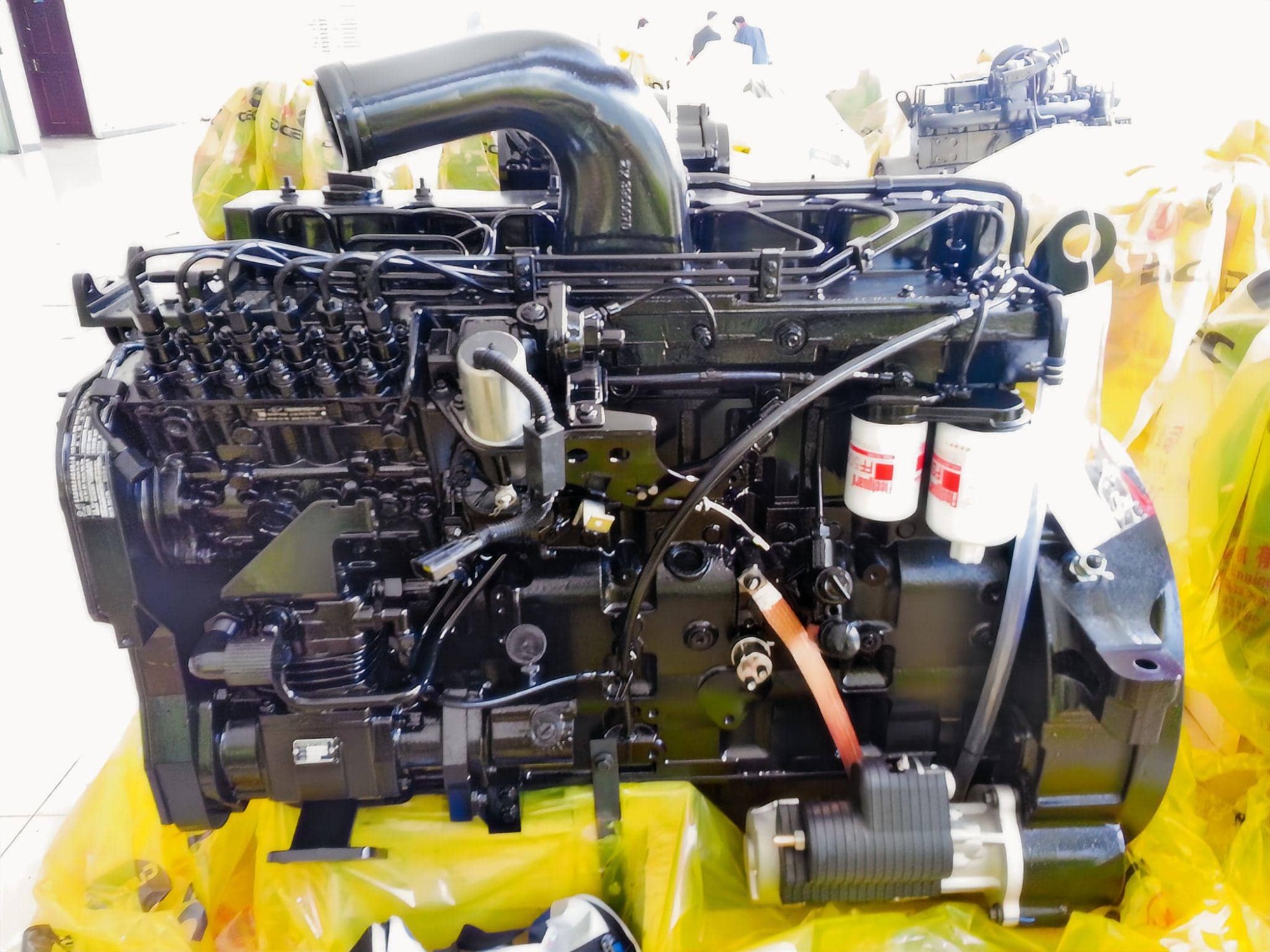

DCEC Cummins C280-33 Diesel Engine Assembly (8.3L 280HP Euro III)
HekoPower operates as a dedicated engine supplier. We understand that fleet operators cannot afford extended vehicle downtime. That is why we provide the Cummins C280-33 complete engine assembly ready for immediate deployment. The DCEC Cummins C280-33 Euro 3 truck engine stands out due to its straightforward mechanical design. Buyers seeking a Cummins 8.3 C280-33 diesel engine replacement often choose this specific unit for its extreme reliability. It functions as a robust Cummins C280-33 power pack 280hp for demanding environments. This Cummins C280-33 mechanical injection engine avoids fragile electronic sensors. It delivers consistent power in remote areas where diagnostic computers are unavailable.
Tech Specs of DCEC Cummins C280-33
General Engine Data
Engine Model: Cummins C280-33
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 635 Kg
Overall Dimension: 1180mm*920mm*1280
Key Performance Data
Rated Power: 206 kW/280 HP
Rated Speed: 2200 rpm
Max Torque/Speed: 410 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 242 g/Kw.h
Max. No-load Governed Speed: 2720 rpm
Idle-Speed: 800 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Air-Air Intercooled
Fuel System: Weifu PW2000 Pump/RQV-K Governor
Compression Radio: 17.5:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Technical Comparison: Cummins C280-33 vs Similar 8.3L Models
Buyers frequently request a Cummins C280-33 vs C260-33 heavy haul torque comparison before making a purchase. While both units share the exact same 8.3-liter displacement block, the C280-33 delivers higher peak torque much earlier in the rev range. This makes the C280-33 206kW engine significantly better suited for steep inclines and heavy loads than the C260-33. The C300-33 offers more horsepower, but the C280-33 operates at lower thermal temperatures, increasing engine longevity in hot climates.
Another common discussion involves the 6CTA8.3-C280 vs C280-33. The older Cummins 6CTA8.3-C280 engine was built on a Euro II platform. The newer Euro III C280-33 diesel engine introduces better emissions compliance while keeping a purely mechanical setup. If you are looking for a reliable 6CTA8.3-C280 replacement engine, upgrading to the C280-33 offers improved combustion efficiency. The broader Cummins C8.3 280HP diesel engine family provides multiple options, but the C280-33 remains the top choice for operators wanting a mechanical Euro 3 application.
Fuel and Air Systems: PW2000 Pump and Holset Turbo Matching
The specialized C280-33 PW2000 fuel system is a defining feature of this power plant. Reviewing the Cummins C280-33 Weifu PW2000 fuel injection pump specs shows it is built for rough, dusty conditions. The pump works seamlessly alongside a heavy-duty C280-33 RQV-K governor. Together, they create a highly responsive C280-33 mechanical fuel injection system. If you check the C280-33 fuel pump specifications, you will notice it tolerates varying international fuel qualities easily. Routine C280-33 diesel fuel system maintenance mainly involves timely fuel-water separator changes.
Air delivery relies entirely on a matched Cummins C280-33 turbocharger. The precise Cummins C280-33 Holset turbocharger matching provides optimum boost pressure at very low RPMs. This C280-33 turbocharged intercooled engine uses a highly efficient C280-33 air-air intercooler. The C280-33 intercooler system drastically reduces intake temperatures to increase oxygen density in the cylinders. The C280-33 turbocharger specifications outline its reliable wastegated design. Strict C280-33 turbocharger maintenance, specifically letting the engine idle before shutdown, extends its lifespan significantly.
Real Application Scenarios for the C280-33
This C280-33 mechanical diesel engine is engineered for specific, demanding chassis setups. It serves as the primary Cummins C280-33 engine for Dongfeng heavy commercial truck platforms worldwide. Fleet managers also consistently specify this 280hp Cummins Euro III diesel engine for construction dump truck operations. The high torque at low speeds prevents heavy tipper trucks from stalling on muddy construction sites. It is widely regarded as the absolute best Cummins C280-33 mechanical engine for low-maintenance fleets operating in remote mining and logging areas.
Cummins C280-33 Engine Replacement Guide and Maintenance Tips
When it is time to replace Cummins C280-33 engine components or the entire block, early preparation is key. Our C280-33 engine replacement guide helps clients plan their vehicle swaps efficiently. You must verify your Cummins C280-33 replacement compatibility using your existing CPL code prior to ordering. We supply the exact DCEC C280-33 engine CPL code and overhaul kit needed for in-frame rebuilds. We also offer comprehensive C280-33 engine replacement parts for smaller repairs.
Reviewing the Cummins 8.3 C280-33 dry weight and dimensions for engine swap procedures is critical for shop safety. The Cummins C280-33 engine weight and dimensions dictate the required shop lifting equipment. Make sure your truck chassis can easily accommodate the C280-33 replacement engine dimensions. As a direct C280-33 replacement engine for truck applications, it drops seamlessly into most standard 8.3L engine bays. Checking the detailed C280-33 engine replacement specifications ensures a smooth, trouble-free installation.
For ongoing maintenance, technicians should watch for common operational issues. Cummins C280-33 fuel system troubleshooting often points directly to clogged filters before ever needing a complete C280-33 fuel pump replacement. If operators report a sudden loss of pulling power, perform C280-33 high exhaust temperature troubleshooting immediately. High exhaust temperatures usually indicate a simple boost leak requiring a hose repair rather than an expensive C280-33 turbocharger replacement.
Common Misconceptions About the C280-33 Engine
A frequent misconception is that all 8.3-liter Cummins engines share the exact same internal parts. While a C280-33 replacement engine assembly looks similar to older Euro II models on the outside, the internal piston bowls and injector spray angles differ significantly. Another dangerous myth is that mechanics can increase power endlessly by modifying the mechanical fuel pump screw. Pushing the engine beyond the official C280-33 Euro III engine specifications without upgrading the radiator cooling capacity will quickly cause cylinder head overheating.
Comprehensive C-Series Engine Portfolio
Our customers rely on HekoPower to source the exact engine match for their specific commercial vehicle or heavy industrial equipment. We stock a comprehensive lineup to ensure you find the right balance of torque, fuel economy, and regional emissions compliance.
DCEC C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes C220-20, C230-20, C230-33, C240-20, C245-20, C245-33, C260-20, C260-33, C280-20, C280-33, C300-20, C300-33, C325-20.
FAQ – Cummins C280-33 Diesel Engine
What fuel pump does the Cummins C280-33 engine use?
The engine uses a highly reliable mechanical Weifu PW2000 fuel pump combined with an RQV-K governor. This avoids complex electronics while successfully meeting Euro 3 emission standards.
Is this a genuine DCEC engine?
Yes, we supply original and certified DCEC Cummins engines.
Can I replace a Cummins C280-33 mechanical pump with an electronic one?
No. The engine block, gear housing, and cylinder head are specifically machined for the Cummins C280-33 PW2000 fuel pump setup. Converting to a common rail system is not viable.
Can I use the C280-33 to replace an older 6CTA8.3 engine?
Yes. It is a very common upgrade path. You simply need to verify your existing flywheel housing size and front engine mounts to ensure a direct mechanical fit.
