Details

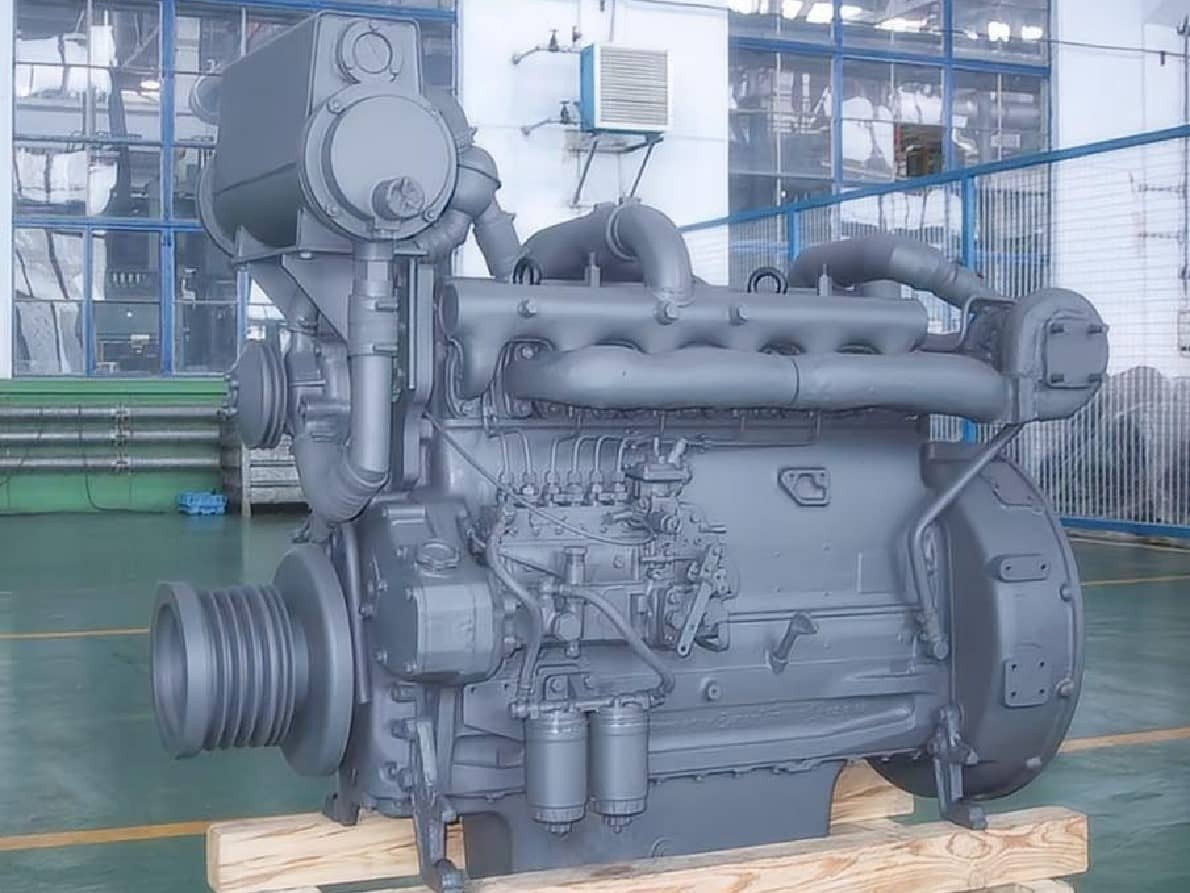

Deutz TBD226B-6IID Vehicle Diesel Engine (155kW / 210HP)
Finding the right powertrain for a commercial fleet requires balancing fuel efficiency with raw durability. As a leading Deutz vehicle engine supplier, HekoPower provides the complete Deutz TBD226B-6IID complete engine assembly for heavy-duty transit applications.
This specific model is a 6.23L, inline 6 diesel engine tuned to deliver 155 kW (210 HP) at 2300 rpm. With a robust 105 x 120 mm bore and stroke, the TBD226B-6IID turbocharged aftercooled engine is engineered specifically for vehicles requiring consistent, mid-range torque output under Euro II emission standards. Whether you are building a new commercial chassis or seeking a reliable Deutz TBD226B-6IID replacement engine, this unit offers exceptional lifecycle value.
Tech Specs of Deutz TBD226B-6IID
General Engine Data
Engine Model: Deutz TBD226B-6IID
Type: 6 Cylinders, in Line
Displacement: 6.23 L
Bore * Stroke: 105 * 120
Key Performance Data
Adversed Power/Speed: 155 kW/2300 rpm
Max. Torque/Speed: 750 N.m @ 1400-1600 rpm
Idle Speed: 750 ± 50 rpm
Min. Fuel Consumption @ Full-load: 196 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Aftercooled
Ignition Sequence: 1-5-3-6-2-4
Flywheel Casing: SAE1, SAE3
Real Application Scenarios for the TBD226B-6IID
The Deutz 226B vehicle diesel engine family is versatile, but the TBD226B-6IID is intentionally calibrated for specific commercial transit profiles. With a peak output of 750 Nm, this Deutz TBD226B-6IID engine for commercial bus and truck applications thrives in stop-and-go environments.
When operating as a Deutz TBD226B-6IID bus diesel engine, the 155kW power rating provides smooth acceleration for 8 to 10-meter city buses without over-consuming fuel. The inline 6 cylinder engine design ensures minimized vibration, keeping passenger comfort high during urban transit routes.
Alternatively, when utilized as a TBD226B-6IID coach engine or a regional truck engine, the turbocharged and aftercooled system ensures the engine maintains optimal operating temperatures even on steep inclines. Fleet managers frequently choose the 210HP Deutz vehicle engine to power medium-duty logistics trucks that demand reliable daily operation over long distances.
Technical Comparisons: TBD226B-6IID vs Other 226B Models
A common challenge for buyers is deciding between the different variations of the Deutz 226B 6-cylinder diesel engine. Understanding the difference between the TBD226B-6IID and 6IIC, or comparing the TBD226B-6IID vs TBD226B-6IIB, comes down to understanding your specific payload and chassis requirements.
When comparing the Deutz 226B-6IID vs 226B-6IIC, the primary distinction is the power output and fuel injection calibration. The TBD226B-6IID is rated at 155kW (210HP), whereas the TBD226B-6IIC pushes a higher 176kW rating.
In a direct 226B 155kW vs 176kW diesel engine comparison, the 155kW TBD226B-6IID offers a more conservative fuel consumption rate. This makes the "D" variant the superior choice for standard urban buses and medium-weight delivery trucks where maximum fuel economy outweighs the need for extreme top-end power. Conversely, the 176kW "C" variant is typically reserved for heavier coaches or construction material transport trucks.
Similarly, when evaluating the TBD226B-6IID vs TBD226B-6IIB, buyers will find that the 6IID model incorporates advanced aftercooling technology alongside its turbocharger. This TBD226B-6IID turbocharged aftercooled engine manages heat dispersion much more effectively than older configurations, leading to longer intervals between major overhauls.
Common Misconceptions: The Weichai Deutz Partnership
One of the most frequent questions we receive as a Deutz 226B engine supplier relates to the origin of the manufacturing. Many buyers assume that all Deutz engines must be imported directly from Germany.
In reality, this specific motor is a Weichai OEM Deutz TBD226B-6IID water-cooled diesel engine. Deutz AG and Weichai Power formed a highly successful joint venture to manufacture the 226B series. This means the Deutz TBD226B-6IID engine assembly you purchase is built using authentic German engineering blueprints, manufactured in state-of-the-art Weichai facilities.
This partnership ensures that the TBD226B-6IID Euro II engine delivers world-class durability while remaining highly cost-effective for fleet maintenance. It also guarantees that Deutz 226B-6IID engine replacement parts and maintenance manuals are globally accessible and standardized.
Maintenance and Engine Replacement Tips
To maximize the lifespan of your TBD226B-6IID 6.23L diesel engine, proactive maintenance is non-negotiable. The inline 6 architecture makes routine servicing relatively straightforward, even within the compact confines of a commercial bus engine bay.
Fleet technicians should pay close attention to the TBD226B-6IID fuel consumption rate and torque curve. A sudden drop in torque or an unexplained increase in fuel usage usually indicates that the fuel injectors require calibration or that the air intake on the turbocharged aftercooled system is obstructed.
If you are managing an aging fleet, you will eventually face a rebuild-versus-replace decision. Because labor costs for full engine rebuilds have risen significantly, opting for a complete TBD226B-6IID engine replacement for a bus or truck is often the more economical choice.
Dropping in a brand-new TBD226B-6IID complete engine assembly drastically reduces vehicle downtime. When you replace a Deutz TBD226B-6IID engine entirely, you eliminate the risk of hidden internal wear on the 105 x 120 mm cylinder blocks that a basic rebuild might miss. HekoPower provides comprehensive support to ensure your replacement diesel engine integrates seamlessly with your existing Euro II chassis.
Explore More from the Deutz 226B Vehicle Engine Series
As a dedicated TBD226B-6IID diesel engine supplier, HekoPower understands that a single fleet may operate various vehicle sizes requiring different horsepower ratings. While the 155kW / 210 HP configuration is ideal for mid-sized transit, your heavier commercial vehicles might demand a different output from the same reliable engine family. To accommodate diverse commercial truck and coach requirements, we supply the complete range of configurations within this proven platform.
The engines for truck mainly include Deutz TBD226B-3II, Deutz TBD226B-4II, Deutz TBD226B-4IIA, Deutz TBD226B-4IIC, Deutz TBD226B-6IIA, Deutz TBD226B-6IIB, Deutz TBD226B-6IIC.
The engines for coach mainly include TBD226B-4IIA, TBD226B-6IIC, TBD226B-6IID.
The engines for bus mainly include TBD226B-4IIA, TBD226B-6IIC, TBD226B-6IID.
Frequently Asked Questions (FAQs)
What is the ideal application for the 155kW Deutz bus engine?
The TBD226B-6IID 155 kW diesel engine is optimized for 8-10 meter city transit buses, regional passenger coaches, and medium-duty commercial transport trucks. Its 750 Nm torque rating provides excellent low-end power for stop-and-go driving.
Is it difficult to find a TBD226B-6IID replacement for a 226B engine?
Not at all. The Weichai Deutz 226B series diesel engine features a highly standardized block design. The TBD226B-6IID replacement engine mounts easily into existing vehicle chassis originally designed for the 226B family, making powertrain upgrades highly efficient.
Where can I find Deutz TBD226B-6IID technical specifications and dimensions?
Detailed performance data, including standard dimensions and the TBD226B-6IID 2300 rpm engine operating parameters, are located in the technical table on this page. For highly specific chassis integration manuals, you can contact our engineering support team directly.
How can I check the current TBD226B-6IID engine price?
Because shipping logistics and volume discounts vary, we provide custom quotes for our B2B clients. Whether you need a single TBD226B-6IID engine assembly for sale to repair a downed truck, or you are looking for a wholesale engine partner for fleet manufacturing, contact HekoPower today for accurate, up-to-date pricing.
