Details

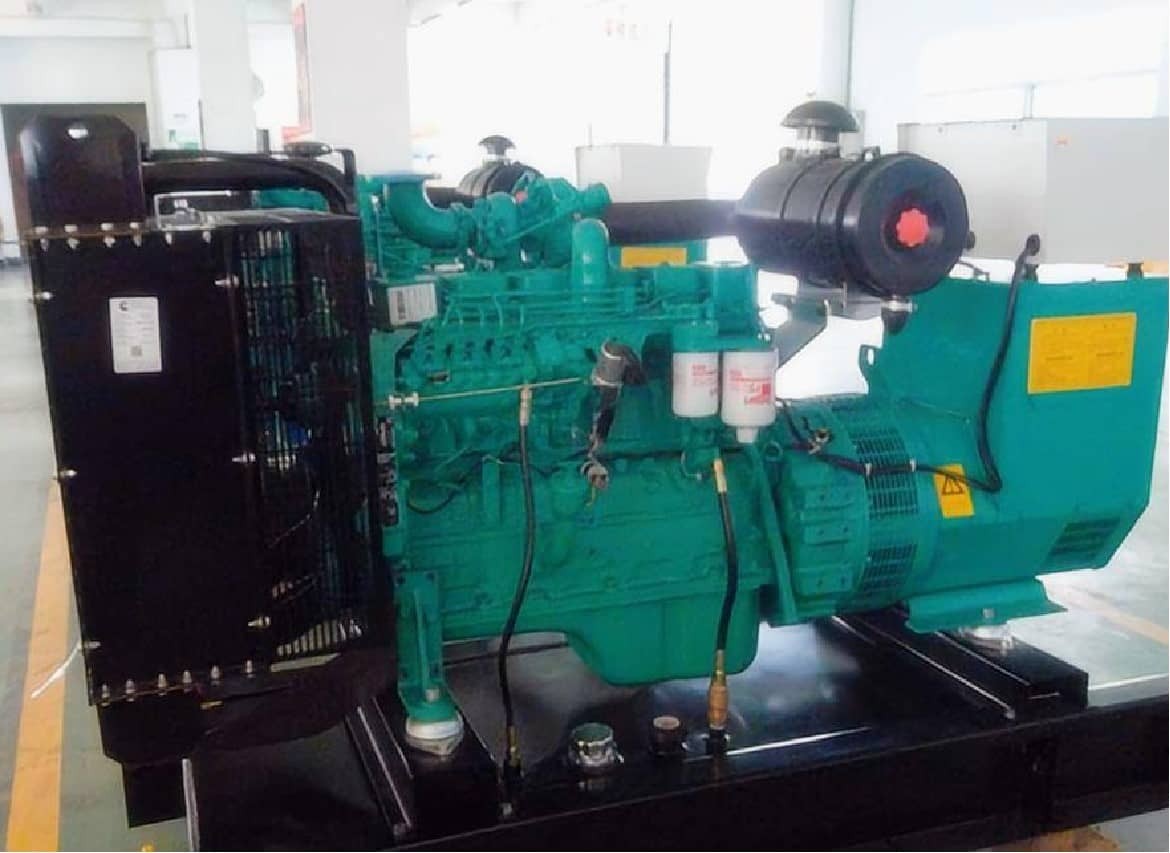

Cummins 6BTAA5.9-G2 120kW Generator Engine
The DCEC Cummins 6BTAA5.9-G2 is a specialized 6-cylinder 5.9L diesel engine engineered exclusively for high-demand power generation. Manufactured by Dongfeng Cummins Engine Co., Ltd. (DCEC), this unit is globally recognized for its exceptional load acceptance, compact footprint, and mechanical reliability. Delivering a robust 120kW prime power and 130kW standby output at 1500 RPM, it is the premier choice for assembling heavy-duty 150kVA diesel generator sets.
As a leading Cummins 6BTAA5.9-G2 supplier and exporter, HekoPower provides this genuine Cummins B5.9-G series engine configuration to global OEM assemblers, mining operators, and industrial facilities requiring uncompromising continuous or backup power. Every Cummins 6BTAA5.9-G2 complete engine we supply arrives rigorously tested, ensuring immediate integration into your 50Hz generator engine applications.
Tech Specs of Cummins 6BTAA5.9-G2
General Engine Data
Engine Model: Cummins 6BTAA5.9-G2-120kw
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight: 411 Kg
Overall Dimension: 1110mm*750mm*988mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 120 kW/161 HP, 130 kW/174 HP
Rated Power/Standby Power(1800 rpm): 132 kW/177 HP, 145 kW/194 HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption @ Running: ≤ 244 g/kW.hr
Torque @Rated/Standby Power: 764/828 N.m @ 1500 rpm
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC PB Pump/GAC Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Governor Type: Electronic, Regulation 1%-5%
Compression Ratio: 17.5:1
Technical Comparisons: 6BTAA5.9-G2 vs 6BTA5.9-G2
A common sourcing challenge for genset manufacturers is navigating the specific nomenclature within the Cummins B5.9 G series engine comparison. The primary difference between the 6BTAA5.9-G2 and the closely related 6BTA5.9-G2 lies entirely within the thermal management and aspiration systems.
While both platforms share the core 5.9L block, the "AA" designation in the 6BTAA5.9-G2 indicates that the engine is turbocharged and charge air cooled using an air-to-air intercooler system. In contrast, the standard "A" in the 6BTA5.9-G2 indicates a jacket water aftercooled system. The air-to-air intercooler on the 6BTAA5.9-G2 dramatically reduces intake manifold temperatures, increasing oxygen density before combustion. This enhanced thermal efficiency allows the 6BTAA5.9-G2 to achieve a higher mechanical output of 120 kW at 1500 RPM, compared to the lower thresholds of water-aftercooled or naturally aspirated variants like the 6BT5.9-G2.
Furthermore, when evaluating the 6BTAA5.9-G2 vs 6BTAA5.9-G12, the distinction shifts toward the fuel injection calibrations and specific power bands required by regional emission standards and alternator matching. The G2 configuration is specifically tuned for optimal 6BTAA5.9-G2 fuel consumption—averaging approximately 208 g/kW.h at full prime load—while utilizing a precisely calibrated BYC PB pump paired with a GAC governor. This mechanical injection system with electronic governing ensures the transient response remains within strict ISO 8528 G3 class parameters, critical for sensitive electronic loads.
Real Application Scenarios for the 5.9L Cummins G-Drive Engine
The operational versatility of the Cummins 6BTAA5.9-G2 engine makes it a foundational component across diverse power generation environments. Its primary application is serving as the driving force for a 150kVA generator. When integrated into a canopy or sound-attenuated enclosure, this 120kW Cummins engine for diesel generator sets provides essential prime power for remote construction sites, telecommunication towers, and off-grid mining camps where utility grids are inaccessible.
In industrial backup power scenarios, the exact 6BTAA5.9-G2 prime power and standby power ratings dictate its deployment. Facilities such as hospitals, data centers, and manufacturing plants rely on the 130kW standby capacity to instantly bridge the gap during municipal power failures. Because the unit features an electronic governor and fuel pump configuration, it responds to load steps almost instantaneously, preventing voltage dips that could damage sensitive operational hardware.
While predominantly deployed as a 120kW 1500RPM Cummins engine for 50Hz gensets, the platform is equally capable in 60Hz markets. By adjusting the governor to 1800 RPM, the Cummins 6BTAA5.9-G2 132kW 1800RPM configuration is achieved, pushing standby capabilities up to 145kW. This dual-frequency flexibility allows international procurement managers to standardize their fleet on a single 6 cylinder 5.9L Cummins engine footprint while servicing global clients.
Maintenance, Spare Parts, and Replacement Tips
Maximizing the lifecycle of your DCEC 6BTAA5.9-G2 120kW 1500RPM diesel engine requires strict adherence to OEM maintenance schedules and the exclusive use of genuine Cummins B5.9-G2 replacement parts. The most critical maintenance variable is fluid hygiene. Because the 6BTAA5.9-G2 BYC PB pump operates under immense pressure tolerances, contaminated diesel will rapidly erode the internal plungers and barrels. Operators must ensure primary and secondary fuel filters are replaced every 250 operating hours to protect the mechanical injection architecture.
When managing a fleet of 161HP Cummins generator engines, sourcing reliable 6BTAA5.9-G2 spare parts is crucial to minimizing downtime. Common wear items that require monitoring include the 6BTAA5.9-G2 water pump, which should be inspected for weep hole leaks during routine coolant flushes, and the 6BTAA5.9-G2 turbocharger, which demands clean, high-grade lubrication to prevent bearing failure at high rotational speeds.
In scenarios involving catastrophic failure or end-of-life cycles on older gensets, installing a Cummins 6BTAA5.9-G2 complete engine assembly is often more cost-effective than attempting a piecemeal rebuild. HekoPower operates as a direct DCEC 6BTAA5.9-G2 engine supplier, providing clients with brand-new, factory-tested 6BTAA5.9-G2 genuine replacement engines. Whether you require a single 6BTAA5.9-G2 cylinder head, a comprehensive 6BTAA5.9-G2 overhaul kit, or are inquiring about the current Cummins 6BTAA5.9-G2 wholesale price for container-load shipments, our technical sales team ensures rapid lead times and accurate part matching.
Common Misconceptions
A prevalent misconception during the genset sizing phase is that a 120kW Cummins generator engine will yield 120kW of electrical output. In reality, 120kW represents the gross mechanical power at the engine flywheel. When factoring in alternator efficiency losses and parasitic loads from the cooling fan, the net electrical output for a 120kW / 150kVA Cummins water-cooled engine setup is lower. Engineering teams must account for these mechanical-to-electrical conversion losses when specifying the Cummins 6BTAA5.9-G2 for generator set integration to avoid under-sizing the backup power system.
Cummins B5.9-G Series Variations
As you evaluate the specific engine dimensions and 6BTAA5.9-G2 engine weight for your custom canopy designs, it is important to recognize how this specific model fits within the broader Dongfeng Cummins lineup. The 5.9L platform offers a spectrum of aspiration technologies and output ratings designed to meet varying environmental constraints and budget requirements. Understanding these variations ensures you select the exact block configuration for your specific power demands.
Cummins B5.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-G1-86kw, 6BT5.9-G2-86kw, 6BTA5.9-G2-106kw, 6BTAA5.9-G2-120kw, 6BTAA5.9-G12-140kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
What is the exact difference between a standard 6BTA5.9 and the 6BTAA5.9-G2?
The primary difference lies in the cooling configuration. The standard 6BTA utilizes a turbocharger with water-to-air cooling (jacket water intercooled), whereas the 6BTAA5.9-G2 features a more efficient air-to-air aftercooling system. The "G2" designation means it is factory-configured specifically as a G-Drive engine optimized for electrical generator applications running at fixed synchronous speeds.
Can I run this engine at 1800RPM for 60Hz power generation markets?
Yes. While the engine is highly optimized as a 6BTAA5.9-G2 1500RPM diesel engine producing 120kW prime power for 50Hz grids, it can be adjusted to run at 1800RPM for 60Hz regions. At 1800RPM, the standby output capacity increases to approximately 132kW, making it highly versatile for North American and select South American power markets.
What governor type is standard on the DCEC Cummins 6BTAA5.9-G2?
This model is equipped with a highly responsive 6BTAA5.9-G2 GAC governor. This electronic governing system is specifically integrated to provide steady-state speed regulation of ≤3%, which is a strict requirement for synchronizing multiple gensets and protecting sensitive industrial equipment from frequency fluctuations.
How do I verify that I am buying an original DCEC Cummins 6BTAA5.9-G2 engine?
Every genuine engine assembly shipped from the HekoPower warehouse features a prominent metal data plate stamped by Dongfeng Cummins Engine Co. This plate includes a unique 8-digit engine serial number (ESN). You can verify this number through the official Cummins global service system to confirm manufacture date, factory configuration, and warranty eligibility.
Can the 6BTAA5.9-G2 run continuously at 130kW?
No. The 6BTAA5.9-G2 130kW standby rating is strictly for emergency backup scenarios during a utility power outage. Running the engine continuously at the standby rating will cause severe thermal overloading. For continuous, 24/7 operation without hour limits, the load must not exceed the 120kW prime power rating.
