Details

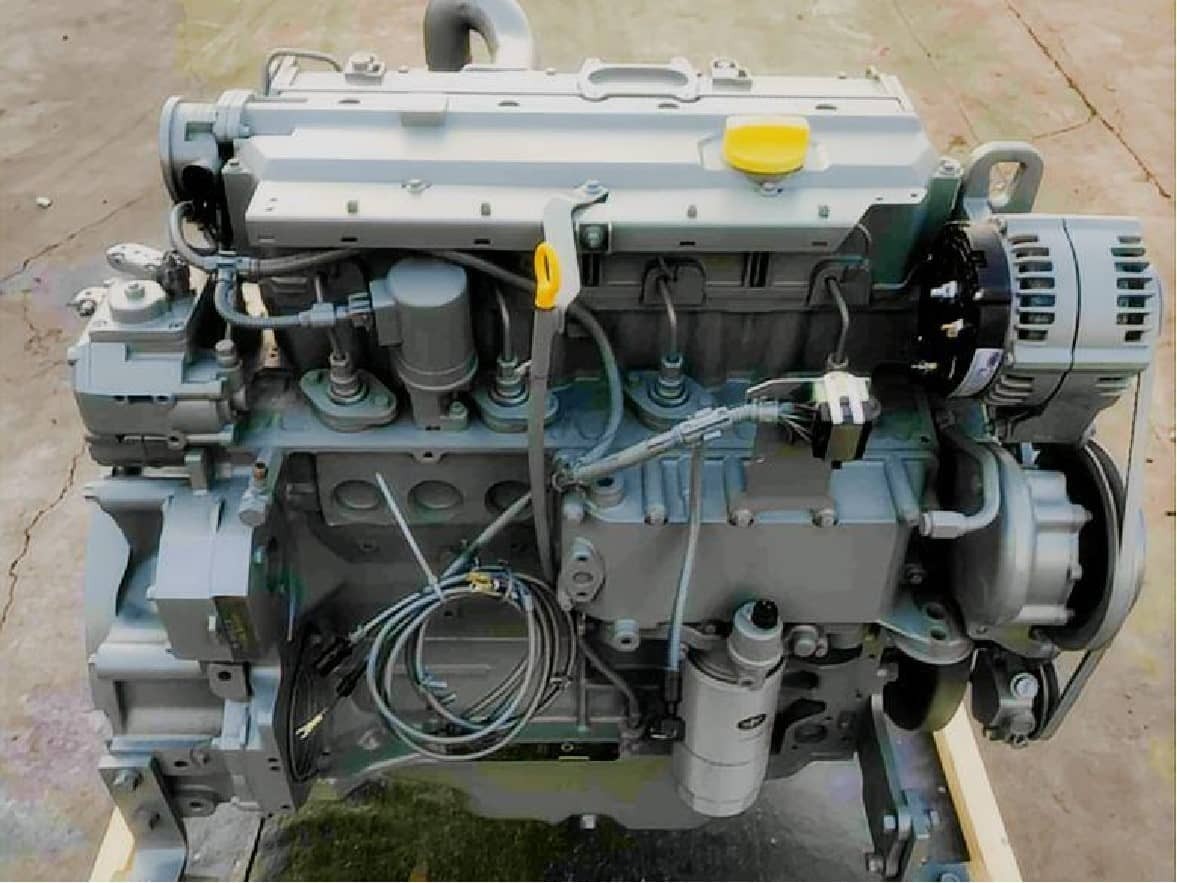

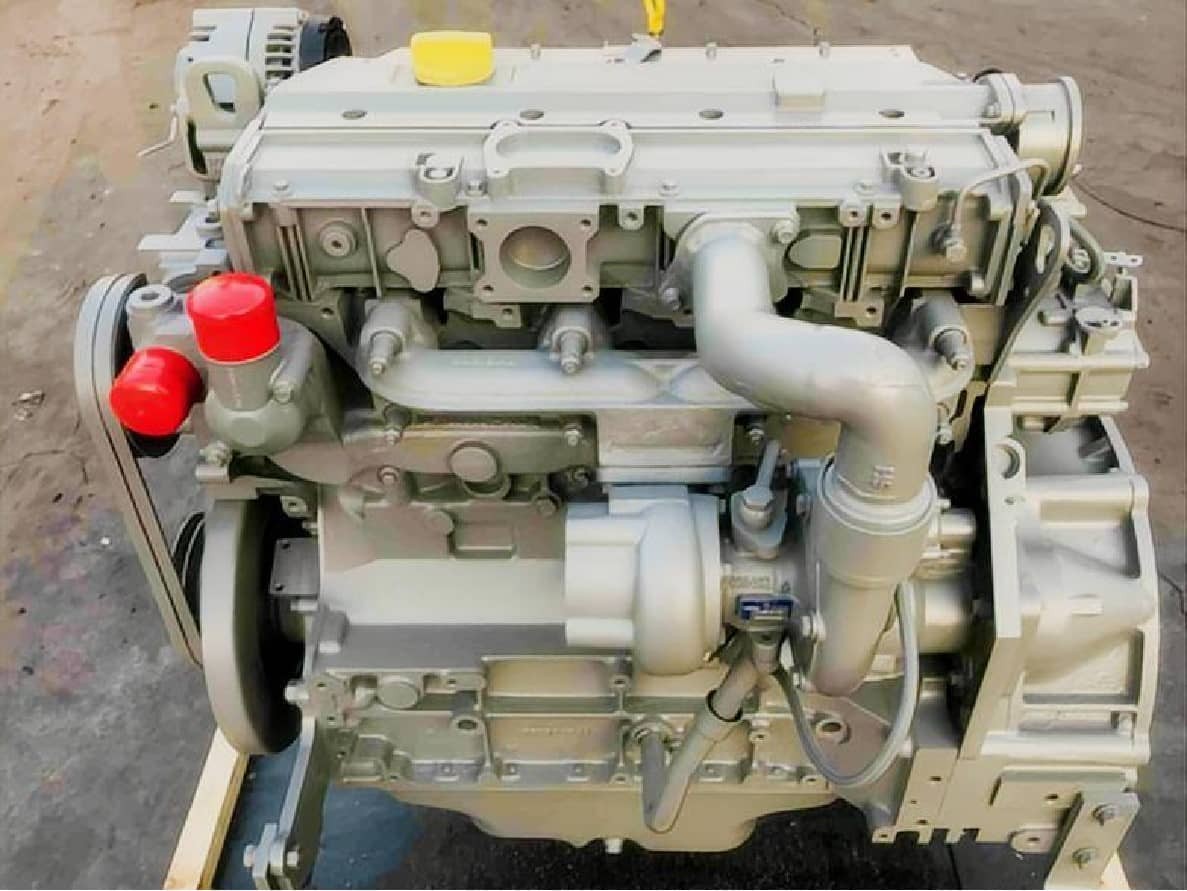

Dalian Deutz BF6M1013FC 233kW Construction Diesel Engine
When heavy machinery demands consistent, unyielding power, the Deutz BF6M1013FC 233kW engine stands out as a definitive solution. Manufactured to rigorous standards, this 6-cylinder, 7.15L diesel engine delivers 313 HP to drive demanding construction equipment. Heavy earthmoving machinery requires power delivery that does not falter under sudden load spikes. Operating at a rated 2300 RPM, this specific Dalian Deutz construction diesel engine configuration provides the necessary hydraulic pump matching required for modern excavators, bulldozers, and cranes. As a dedicated engine supplier, HekoPower provides this complete engine assembly to help fleet managers and repair facilities minimize machinery downtime and restore peak operational efficiency.
Tech Specs of Deutz BF6M1013FC 233kW Construction Diesel Engine
General Engine Data
Engine Model: Deutz BF6M1013FC-233KW
Type: 6 Cylinders in Line
Displacement: 7.15 L
Bore * Stroke: 108 * 130
Overall Dimension: 1158mm*760mm*845mm
Net Weight: 572 Kg
Key Performance Data
Rated Power: 233 kW/313HP
Max. Torque/Speed: 572 N.m @ 1400 rpm
Rated Speed: 2300 rpm
Specific Fuel Consumption: 204 g/kW.h
Mean Piston Speed: 9.97 m/s
Minimum Idle Speed: 650 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Direct Injection Pump in Line
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17.5:1
Governor Type: Mechanical Governor, EMR Optional
Technical Comparisons in the Heavy Equipment Sector
Understanding the precise differences between the BF6M1013FC and other Deutz variants is critical for procurement. Many buyers confuse the BF6M1013FC with the BF6M1013EC model. The fundamental difference between the BF6M1013FC and BF6M1013EC lies in their cooling capacities, turbocharger mapping, and ultimate power output. The FC variant pushes 233kW (313 HP) specifically tuned for the high-stress, variable loads of heavy construction machinery. The EC variant is typically mapped for slightly different load profiles and often features distinct charge-air cooling layouts that may not align with high-capacity excavator engine bays.
Another frequent comparison is the BF6M1013FC 233kW versus the BF6M1013CP 190kW engine. The jump from 190kW to 233kW is not merely a software or fuel pump adjustment. The FC configuration utilizes reinforced internal components, higher capacity cooling galleries, and uprated injector nozzles to safely manage the additional thermal load generated by the extra 43 kilowatts of power.
Buyers also frequently evaluate the BF6M1013FC against the BFM2012 construction engine series. While the BFM2012 is a highly capable engine, it features a smaller displacement footprint. The 7.15L volume of the BF6M1013FC offers superior mass and rotational inertia. This makes the FC a much more appropriate complete replacement engine for heavy-duty earthmoving equipment where sudden hydraulic stalls would otherwise choke a smaller displacement block.
Real Application Scenarios and Machinery Integration
The engineering profile of this Dalian Deutz 7.15L engine dictates its ideal working environments. It is primarily sought after as a Deutz BF6M1013FC excavator replacement engine. Excavators operating in mining, quarrying, or large-scale urban development require engines that can run continuously at high RPMs to power massive hydraulic circuits.
Beyond excavators, this 313HP Deutz construction diesel engine frequently powers heavy road rollers and bulldozers. Road compaction equipment requires sustained, vibration-heavy operation. The reinforced block of the BF1013FC absorbs harmonic vibrations without compromising internal bearing longevity. Similarly, when utilized as a crane engine, the precise throttle response of the direct injection system allows crane operators to make micro-adjustments to heavy suspended loads. HekoPower supplies these engines to ensure construction firms can repower their existing high-value chassis rather than purchasing entirely new heavy equipment.
Addressing Common Misconceptions
A prevailing misconception in the heavy machinery repair sector is that any BFM1013 series engine can be dropped into any corresponding equipment chassis. This is incorrect. The oil pan configuration, turbocharger mounting angle, and flywheel housing vary drastically between industrial, marine, and construction applications. Attempting to install a standard generator-spec engine into an excavator will result in oil starvation during steep angle operation. The BF6M1013FC construction engine specifications are explicitly designed for extreme off-axis operation, ensuring the oil pump maintains suction regardless of the equipment's physical orientation.
Another misconception involves engine rebuilding versus complete replacement. Some fleet mechanics attempt to rebuild severely overheated engines. However, heavy equipment engines that have suffered structural heat damage often experience micro-warping in the cylinder head or main bearing journals. Purchasing a Deutz BF6M1013FC complete engine assembly from a wholesale supplier like HekoPower is often more cost-effective. It eliminates the labor costs of a complex teardown and guarantees factory-spec tolerances across all moving parts.
Maintenance and Engine Replacement Directives
Maximizing the lifespan of a Deutz BF6M1013FC 233kW replacement engine requires strict adherence to fluid maintenance schedules. The high operating pressures of the Euro II direct injection system demand pristine diesel fuel. Operators must replace primary and secondary fuel filters according to strict hourly intervals to prevent premature injector wear.
Cooling system maintenance is equally critical. The charge-air cooler and radiator fins must be blown out regularly, especially when the engine is operating in high-dust environments like earthmoving or demolition sites. When the time comes for a complete swap, HekoPower advises replacing the engine mounts and inspecting the hydraulic pump coupling splines. Installing a brand new 313HP heavy machinery engine onto worn vibration isolators can lead to premature failure of the external engine accessories.
BFM1013 Series Exploration
While the BF6M1013FC delivers exceptional power at 233kW, your specific fleet equipment might require a different configuration within the same engine family. Different chassis layouts, hydraulic demands, and operational environments require precise engine matching. To accommodate diverse industrial, commercial, and construction requirements, HekoPower provides access to the broader lineup of this engine family.
Deutz BFM1013-Construction Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes BF4M1013C-115 kW, BF4M1013EC-118KW, BF4M1013FC-129KW, BF6M1013C-170KW, BF6M1013EC-174KW, BF6M1013CP-190KW, BF6M1013ECP-195KW, BF6M1013FC-233KW.
Frequently Asked Questions (FAQ)
What is the standard delivery configuration for the BF6M1013FC from HekoPower?
We supply the Deutz BF6M1013FC as a complete engine assembly. This generally includes the cylinder block, cylinder head, fuel injection pump, turbocharger, water pump, and standard manifolds. It arrives ready for integration, minimizing your workshop labor.
Is this engine suitable for high-altitude construction projects?
Yes. The turbocharged design of the BF6M1013FC compensates for lower air density at higher elevations. However, we recommend consulting with the HekoPower technical team to discuss specific fuel pump calibrations if your equipment will operate permanently above 2,500 meters.
How does HekoPower handle wholesale and export inquiries?
As a dedicated engine exporter and wholesale supplier, we manage the entire logistics chain. We provide customized quotes based on order volume, assist with international freight forwarding, and ensure all export documentation for the Dalian Deutz BF6M1013FC is processed accurately.
Can I replace my older BF6M1013EC with this FC model?
While both belong to the same core engine block family, upgrading from the EC to the 233kW FC model requires verifying your equipment's cooling capacity and hydraulic pump torque limits. The FC generates significantly more power and heat, meaning your existing radiator and drivetrain must be capable of handling the increased output.
