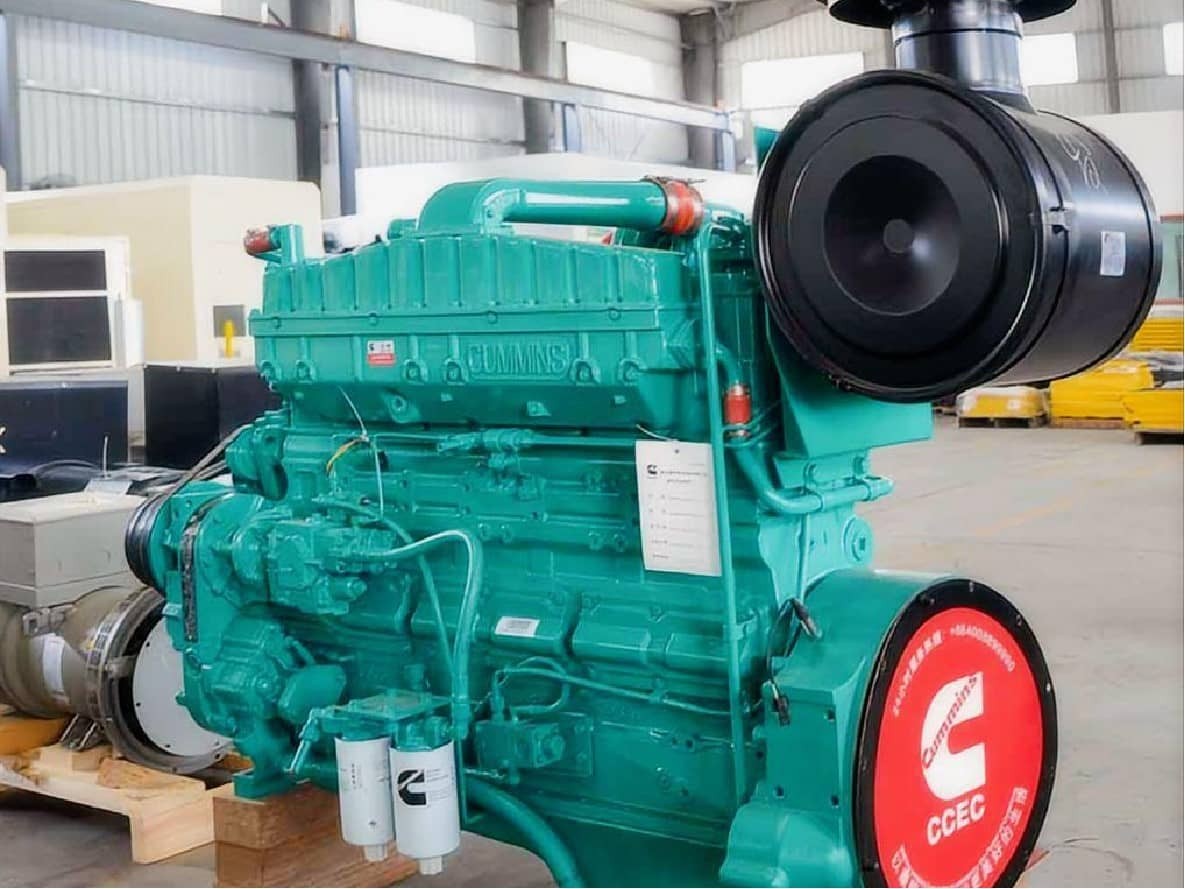

Genuine Cummins NTA855-G4 Generator Drive Engine
Sourcing a reliable powertrain for industrial power generation requires matching precise operational realities with verified equipment engineering. As a direct industrial engine supplier, HekoPower provides the original CCEC Cummins NTA855-G4 diesel engine assembly to generator packagers, construction firms, and critical engineering infrastructure networks worldwide. This heavy-duty 14L mechanical power unit serves as an international benchmark for global 1500 rpm 50Hz electrical power generation systems.
Tech Specs of Cummins NTA855-G4 Generator Drive Engine
General Engine Data
Engine Model: Cummins NTA855-G4
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 14 L
Bore * Stroke: 140 * 152
Net Weight: 1410 Kg
Overall Dimension: 2055mm*990mm*1535mm
Key Performance Data
Rated Power/Standby Output: 317 kW/425HP, 351 kW/470HP
Torque @Rated/Standby Output: 2018/2235 N.m @ 1500 rpm
Rated Speed: 1800 rpm
Low Idle Speed: 575-675 rpm
Fuel Consumption @ Rated Power: 75 L/Kw.h
More Technical Data
Fuel System: Cummins PT Pump, Direct Injection
Aspiration: Turbocharged & Aftercooled
Electrical System (Starter Motor/Alternator): 24V/900A
Governor Type: Mechanical Control
Compression Ratio: 14:1
Lowest Starting Temp (Without auxiliary system): -12℃
Coolant Volume (Engine Only): 20.8 L
Cooling Method: Water Cooled
Technical Architecture & Industrial Comparisons
NTA855-G4 vs NTA855-G2: Critical Differences in Crankshaft Design
Procurement managers often struggle to see why two engines with the same physical footprint command different price points. While both the G2 and G4 variations share the classic Cummins 855 series generator engine displacement block, their internal metallurgy defines their output variance.
The higher-output Cummins NTA855-G4 industrial generator engine features a specialized, nitro-carburized forged steel crankshaft with adapted fillet profiles. This metallurgical hardening enables the G4 variant to withstand the intense torsional pressures generated during continuous 365 kVA prime power operations without risking micro-fractures.
Furthermore, the G4 incorporates high-capacity gallery-cooled pistons. An upgraded internal oil pump forces pressurized lubrication directly through cooling galleries beneath the piston crown, effectively mitigating thermal stress. This targeted thermal protection allows the G4 to maintain reliable standby power margins where a standard G2 engine would face excessive component wear.
Cummins NTA855-G4 Fuel Consumption Chart at 75% Prime Load
Fuel efficiency dictates the true operational lifecycle cost of any backup or primary generator system. The mechanical Pressure-Time (PT) direct injection fuel system on the Cummins NTA855-G4 G-Drive engine optimizes fuel atomization directly based on physical engine load parameters.
- 100% Standby Power Rating: Burns roughly 88 Liters per hour (L/h).
- 100% Prime Power Rating: Consumes approximately 79 Liters per hour (L/h).
- 75% Prime Power Load: Reaches an efficiency sweet spot at 60 Liters per hour (L/h).
- 50% Prime Power Load: Drops down to about 42 Liters per hour (L/h).
Operating your system continuously at a 75% prime load profile offers the most balanced thermal cycle for this 14L engine configuration. Maintaining operations within this range keeps cylinder temperatures high enough to prevent wet stacking—the dangerous accumulation of unburnt fuel in the exhaust manifold—while optimizing your fluid cost per kilowatt-hour.
Altitude and Temperature Derating Calculator Metrics
Standard performance datasheets published across typical trade portals describe engine behavior assuming sea-level conditions at 25°C. When deploying industrial power equipment in remote high-altitude mines or arid regions, thin air directly reduces combustion efficiency.
The Cummins NTA855-G4 diesel engine tackles air density loss via an optimized turbocharger and jacket-water aftercooling system. Even with these standard protections, field installations above 1,500 meters (roughly 4,920 feet) require accurate power derating.
The physical calculation requires subtracting 3.5% of total engine capacity for every additional 300 meters gained above that altitude threshold. Additionally, hot environments require an extra 1% derating for every 5°C rise above an ambient baseline of 40°C. Working with a dedicated provider like HekoPower helps ensure your final generator footprint compensates for these real-world environmental restrictions before installation begins.
Lifecycle Maintenance & Component Replacement Guides
PT Direct Injection Fuel System Maintenance for NTA855-G4 Units
A core engineering advantage of the brand new Cummins NTA855-G4 engine assembly is its complete independence from delicate electronic control modules (ECUs). The purely mechanical PT direct injection fuel system uses a camshaft-actuated injection layout that easily tolerates varying fuel qualities found in developing regions.

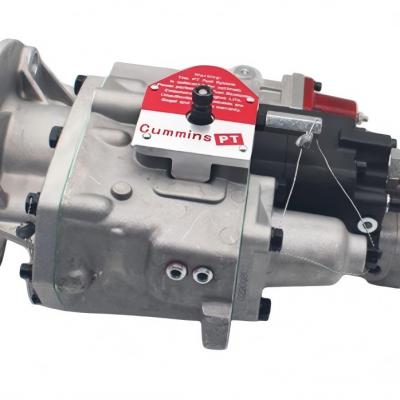

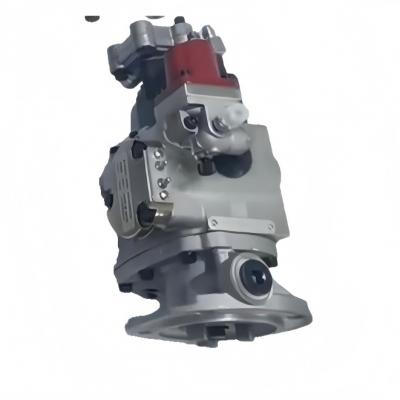

Regular maintenance ensures this mechanical assembly stays reliable. Field operators should pull and clean the internal magnetic screen located within the main PT pump housing every 250 operational hours.
If you notice intermittent hunting or unstable engine speeds during testing, verify the incoming fuel line restriction parameters before swapping expensive components. Tiny micro-fissures in suction lines frequently draw air into the fuel stream, creating symptoms that look like pump failure but are actually simple plumbing issues.
Preventive Replacement of Wet Cylinder Liners
The heavy-duty Cummins generator drive diesel engine employs replaceable wet cylinder liners that sit in direct contact with the surrounding engine coolant. During the rapid combustion cycle, high-frequency piston vibrations cause localized low-pressure zones along the outside of the liner wall, creating microscopic vapor bubbles.
When these bubbles collapse under intense pressure, they erode metal from the liner wall—a destructive process known as cavitation pitting. To avoid catastrophic failure from coolant leaking into the oil sump, maintenance crews must monitor Supplemental Coolant Additive (SCA) levels at every 250-hour oil service interval. When performing a major mid-life overhaul, always replace worn components with genuine CCEC parts featuring upgraded anti-cavitation surface treatments to maximize engine life.
Real Application Scenarios & Critical Infrastructure
Data Center Generator and Emergency Power Engine Rules
Data center electrical architectures cannot tolerate utility grid drops without putting active servers at risk. The Cummins NTA855-G4 emergency power engine is explicitly built for rapid load-acceptance, making it an excellent choice for tier-compliant backup power systems.
When paired with a constant-circulation jacket water heater, the NTA855-G4 engine assembly keeps its internal block oil fluid at 40°C. This pre-warmed state ensures instant oil pressure and immediate metal expansion stabilization upon startup. As a result, the standby engine can accept a 100% single-step block load and stabilize electrical frequency within 10 seconds of an initial grid failure signal.
Rugged Power Solutions for Mining, Construction, and Hospital Environments
Beyond clean enclosure installations, this 14L platform runs reliably across challenging remote sites:
- Hospital Operations: Delivers essential safety compliance by pairing seamlessly with automated transfer switches (ATS) to protect operating rooms from sudden voltage sags.
- Remote Mining & Construction Sites: Heavy dust, abrasive grit, and rough transport conditions demand a rugged, physical powertrain. The heavy-duty engine casing and dual-stage air filtration elements shield internal combustion components from airborne silica, keeping the engine running in brutal field conditions.
HekoPower Logistics, Quality Control & Factory Delivery Protocols
Direct CCEC China Wholesale Pricing and Lead Time Management
As an independent, established engine supplier, HekoPower bypasses multi-tier brokerage channels to deliver original Chongqing Cummins NTA855-G4 wholesale pricing directly to international buyers. By managing stock locations across primary deep-water export ports, we slash standard production lead times.

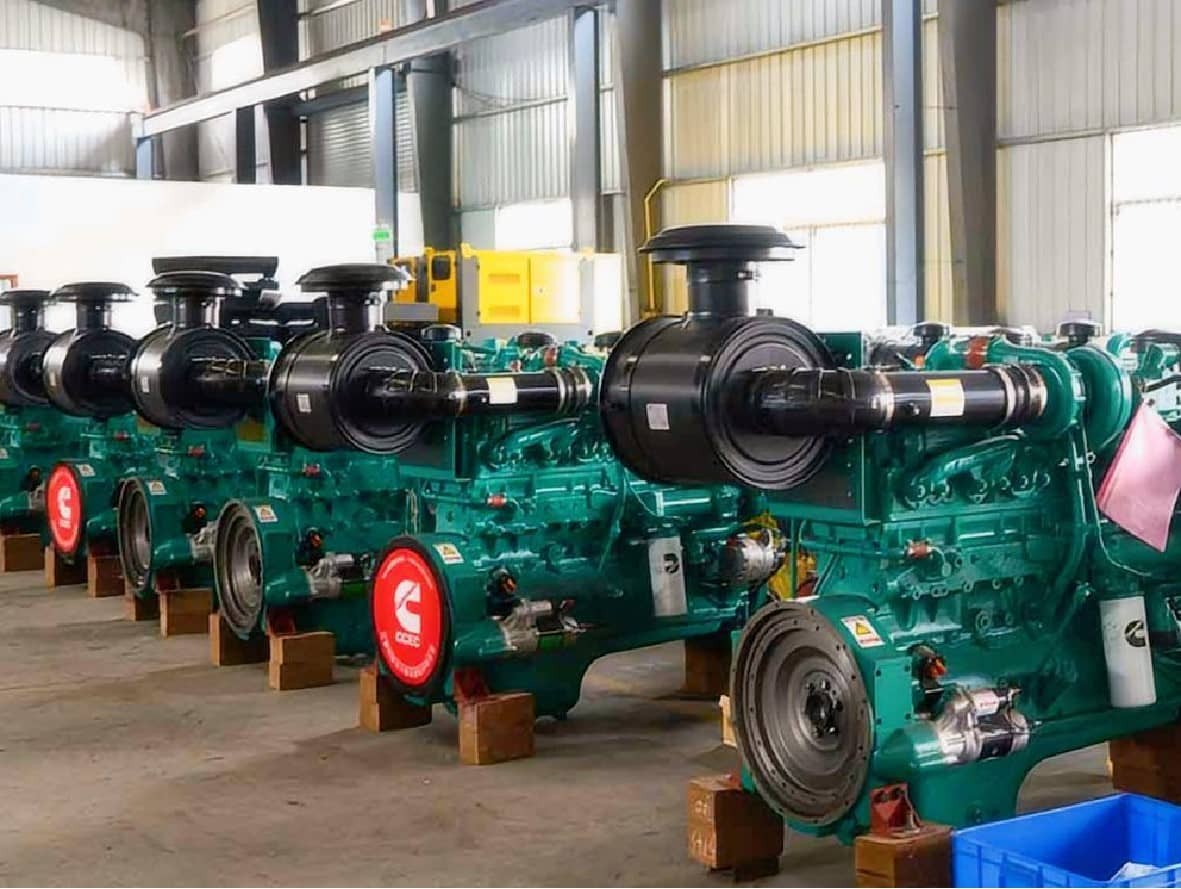

Every single complete engine assembly undergoes thorough dyno-testing before clearing our shipping docks. All export units are treated with internal preservation oils, wrapped in thick protective film, and bolted into heavy-duty export-grade IPPC wooden crates to protect the mechanical components from ocean moisture and rough freight handling.
Global Warranty Networks, Installation Guides, and Service Access
Every original Cummins NTA855-G4 for diesel generator sets shipped by HekoPower includes the official factory installation guide, a full layout service manual, and an authorized spare parts directory.
Because these engines are built under certified ISO 9001:2015 production processes at the CCEC factory, they qualify for global Cummins warranty coverage. This means your regional field engineers can easily source replacement gaskets, injectors, and filters through local distribution networks, protecting your project from lengthy downtime.
Cummins N855-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NT855-G, NT855-GA, NT855-G1, NT855-G1A, NT855-G1B, NTA855-G2, NTA855-G2A, NTA855-G3, NTA855-G4, NTA855-G7, NTA855-G7A.
Frequently Asked Questions
Is my Cummins NTA855-G4 engine genuine CCEC or a third-party copy?
Every original unit carries a stainless-steel data plate stamped directly by Chongqing Cummins Engine Co., Ltd. (CCEC). This plate contains a unique Engine Serial Number (ESN). HekoPower recommends verifying this individual ESN through the official online Cummins QuickServe network to confirm its manufacture date, factory build sheet specs, and global warranty eligibility.
What alternator options match the NTA855-G4 dimensions?
The engine features a standard SAE 1 flywheel housing configuration designed for 14-inch flywheel connections. This allows easy integration with double-bearing or single-bearing industrial alternators. It pairs perfectly with industry-standard models like the Stamford S4L1D-E41 or Leroy Somer TAL-A46-H to construct a dependable 350-365 kVA diesel generator set.
What are the exact dimensions and weight for freight forwarding quotes?
The dry weight of a bare NTA855-G4 engine assembly is approximately 1,300 kg (2,866 lbs). When configured with a factory cooling radiator assembly, the total dry weight increases to roughly 1,410 kg. Standard physical dimensions for crate booking scale out to 1300 mm in length, 950 mm in width, and 1350 mm in height.
How does HekoPower handle spare parts supply long term?
We maintain regular warehouse availability for all major high-wear service components for the 855 series block. From top gasket kits and wet liners to replacement oil pumps and PT injection nozzles, our logistics department can ship critical maintenance components internationally via fast air freight to support your ongoing operations.
