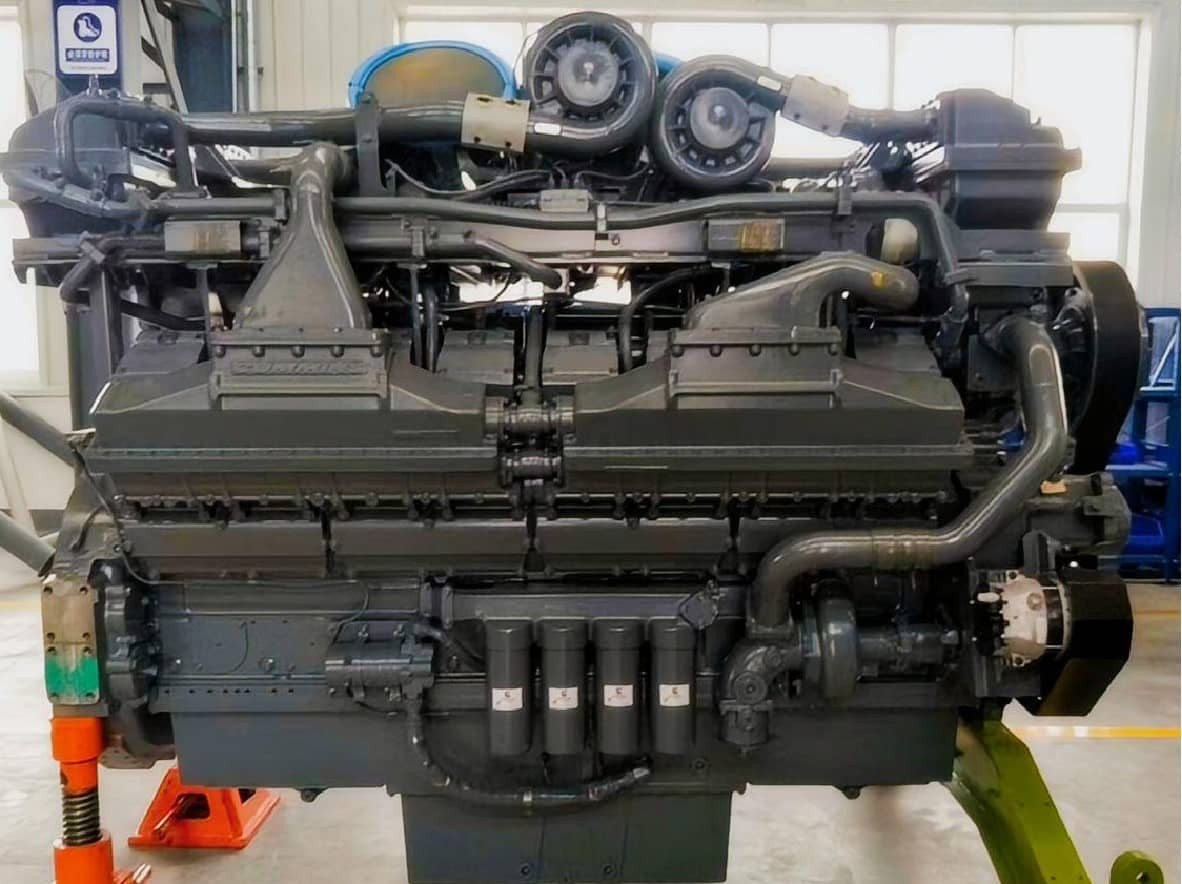

Genuine Cummins QSK38-C Engine Assembly for Heavy Construction and Mining Equipment
The Cummins QSK38-C Industrial Engine is one of the most advanced high-horsepower diesel engines developed by Chongqing Cummins (CCEC) for demanding construction, mining and industrial applications. As an electronically controlled V12 engine with a displacement of 37.7 litres, the QSK38-C combines high power density, excellent fuel efficiency and reliable long-term operation under severe working conditions.
At HekoPower, we supply genuine Cummins QSK38-C engine assemblies manufactured by CCEC. Every complete engine is suitable for OEM replacement projects, fleet maintenance and new equipment integration. Our engineering team also assists customers with engine selection, export documentation, packaging and logistics to ensure that each engine arrives ready for installation.
Unlike many online product pages that only list specifications, this guide explains how the QSK38-C differs from earlier Cummins platforms, where it performs best and what users should consider before purchasing a replacement engine.
Tech Specs of Cummins QSK38-C
General Engine Data
Engine Model: Cummins QSK38-C
Type: 12 Cylinders in Line, V Type
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Overall Dimension: N/A
Net Weight (with flywheel & alternator): 4510 Kg
Key Performance Data
Rated Power: 810 kW/1086HP
Rated Speed: 1800 rpm
Peak Torque/Speed: 4869 N.m @ 1350 rpm
Fuel Consumption @ Rated Power: 214g/Kw.h @ 1800 rpm
Engine type: Electronic Control
More Technical Data
Emission Certification: U.S. EPA Tier 2
Aspiration: Turbocharged Aftercooled
Fuel System: Cummins MCRS
Compression Ratio: 15.0:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling System Type: 2 Pump-2 Loop
Why the Cummins QSK38-C Industrial Engine Dominates Heavy Equipment
The QSK38 series represents a significant shift in high-horsepower engineering. While older platforms struggled to maintain fuel efficiency at peak torque, this 37.7L V12 monster utilizes precise electronic engine management to optimize combustion every microsecond.
Cummins QSK38-C 1086HP Diesel Engine Power Architecture
The core structure of this engine relies on a robust V12 layout. With a displacement of 37.7L, it natively balances massive rotational inertia with high-end thermal efficiency. The platform scales across multiple configurations, notably the high-demand Cummins QSK38-C 1086HP Diesel Engine and the max-output QSK38-C1200 1200 HP engine specifications.
The MCRS Fuel System and Electronic Control Diesel Engine Technology
The primary technological leap in this engine is the Cummins QSK38-C MCRS Fuel System (Modular Common Rail System). Older high-horsepower engines used mechanical injectors that sprayed fuel based entirely on engine speed.
The MCRS design decouples injection pressure from engine RPM. By maintaining high fuel pressure across the entire operating range, this electronic control diesel engine ensures clean combustion, less cylinder soot accumulation, and immediate throttle response when an excavator digs into dense rock or a haul truck climbs a steep incline.
Cummins QSK38-C EPA Tier 2 Engine Environmental Compliance
Operating globally means meeting strict job site emissions standards without sacrificing horsepower. This platform achieves Cummins QSK38-C EPA Tier 2 Engine certification purely through advanced in-cylinder combustion management.
It requires no complex, high-maintenance exhaust aftertreatment systems. This design simplicity keeps your remote operation efficient, eliminating the need to source or stock Diesel Exhaust Fluid (DEF) out in the field.
Real Application Scenarios: Cummins QSK38-C Mining Equipment Engine
This engine is built exclusively for ultra-heavy duty environments. It acts as the primary powertrain across several key industrial sectors.
Cummins QSK38-C for Mining Trucks and Haulers
In open-pit mining, haul trucks run continuously for 20 hours a day. The QSK38-C replacement engine for mining trucks is a preferred choice for operators running 100-ton to 150-ton class vehicles. The engine’s continuous torque delivery allows loaded trucks to maintain constant speed up steep pit ramps without triggering transmission overheating.
Cummins QSK38-C for Hydraulic Shovels and Large Excavators
For heavy earthmoving tasks, you will find this engine acting as the core powerhouse for a Cummins QSK38 excavator engine swap. Large tracked excavators demand massive hydraulic flow. The Cummins QSK38-C 1800RPM Industrial Engine configuration matches flawlessly with heavy triple-pump hydraulic systems, keeping bucket cycle times low and productivity high.
Cummins QSK38-C for Oilfield Equipment and Water Pump Drives
Beyond earthmoving, this platform serves as a reliable Cummins QSK38-C for oilfield equipment, powering high-pressure fracturing pumps, mud pumps, and deep-well drilling rigs. It is also configured as a dedicated Cummins QSK38-C for water pump drive systems in massive agricultural irrigation networks and emergency dewatering operations inside deep mines.
Technical Comparison: Electronic QSK38 vs Mechanical KTA38
If you are currently running an older fleet, you are likely deciding between replacing an aging unit or upgrading your equipment entirely. This comparison outlines why the QSK38-C is the modern industry benchmark.
Cummins QSK38-C vs KTA38 Engineering Layout
The KTA38 is an industry legend, but its mechanical fuel system limits its efficiency. The newer QSK38-C uses the same footprint but incorporates an upgraded block, stronger cylinder heads, and advanced electronic sensors that monitor oil pressure, coolant temperature, and fuel trim in real time.
QSK38-C Advantages over KTA38 in Fuel Efficiency
Because the MCRS injects fuel at pressures exceeding 1600 bar even at low idle, the QSK38-C advantages over KTA38 include an approximate 5% to 8% reduction in hourly fuel consumption under matched heavy load cycles. Over a standard 6000-hour mining operational year, this fuel variance saves thousands of dollars per machine.
The Ultimate Cummins QSK38-C Upgrade Solution
Choosing this engine provides the best replacement for KTA38 engine units because Chongqing Cummins specifically designed the physical exterior dimensions to match old installation frames. This careful design creates a smooth Cummins QSK38-C upgrade solution that minimizes custom fabrication work in your maintenance shop.
Maintenance, Installation, and Troubleshooting Tips
- Pre-Lubrication Priority: Always run an external pre-lubrication cycle before starting a newly installed or long-stored QSK38-C engine to prevent dry bearings.
- Fuel Filtration Rigor: The common rail system demands ultra-clean fuel. Use 2-micron stage water separators to avoid premature injector wear.
- Sensor Calibration: If you encounter intermittent power drops, check the harness connectors on the electronic control module before replacing physical parts.
- Cooling System Flushing: Clean the radiator cores every 1000 operating hours when working in dusty mining environments to prevent thermal scaling.
Procurement Guide: Cummins QSK38-C Supplier China
Purchasing a genuine Cummins QSK38-C assembly from an international market requires clear logistical planning. HekoPower eliminates guesswork by managing the sourcing and delivery process clearly.
Cummins QSK38-C Price and Factory Sourcing
We quote an uninflated, direct Cummins QSK38-C factory price by working straight with the CCEC manufacturing facility. This approach bypasses secondary trading brokers, allowing us to pass the savings directly to you.
Cummins QSK38-C Lead Time and Shipping Packing
Heavy industrial machinery requires careful logistics. The standard Cummins QSK38-C lead time typically spans 20 to 45 days, depending on specific custom factory testing and classification society approvals.
For transport safety, every original CCEC Cummins QSK38-C leaves our warehouse secured inside a heavy-duty, anti-moisture vacuum-sealed fumigated wooden export crate. This custom packaging protects sensitive electronic control units from salty ocean air during long-distance maritime transit.
Cummins k38-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-C925, KTA38-C1050, KTA38-C1100, KTA38-C1200, KTA38-C1400, QSK38-C.
Frequently Asked Questions
What are the exact QSK38 V12 37.7L engine dimensions and weight?
The bare engine assembly averages roughly 4,500 kilograms (9,920 lbs) dry. Physical dimensions generally measure 2,200 mm in length, 1,450 mm in width, and 1,750 mm in height.
Is this a complete Cummins QSK38-C industrial power pack?
Yes. We can deliver this as a standalone bare block or configured as a turnkey Cummins QSK38-C industrial power pack complete with a mounted cooling radiator, air intake filters, structural base frame, and a digital monitoring control panel.
How do I verify this is an original Cummins QSK38-C exporter assembly?
Every engine assembly we supply features a unique metal data plate from Chongqing Cummins. This plate displays the genuine engine serial number (ESN), which can be verified directly through the global Cummins QuickServe system.
How can my business request a formal quotation?
Simply contact our sales team with your exact machinery model and required power configuration. We will generate a comprehensive QSK38-C industrial engine price quotation within 24 business hours, including sea freight options to your destination port.
