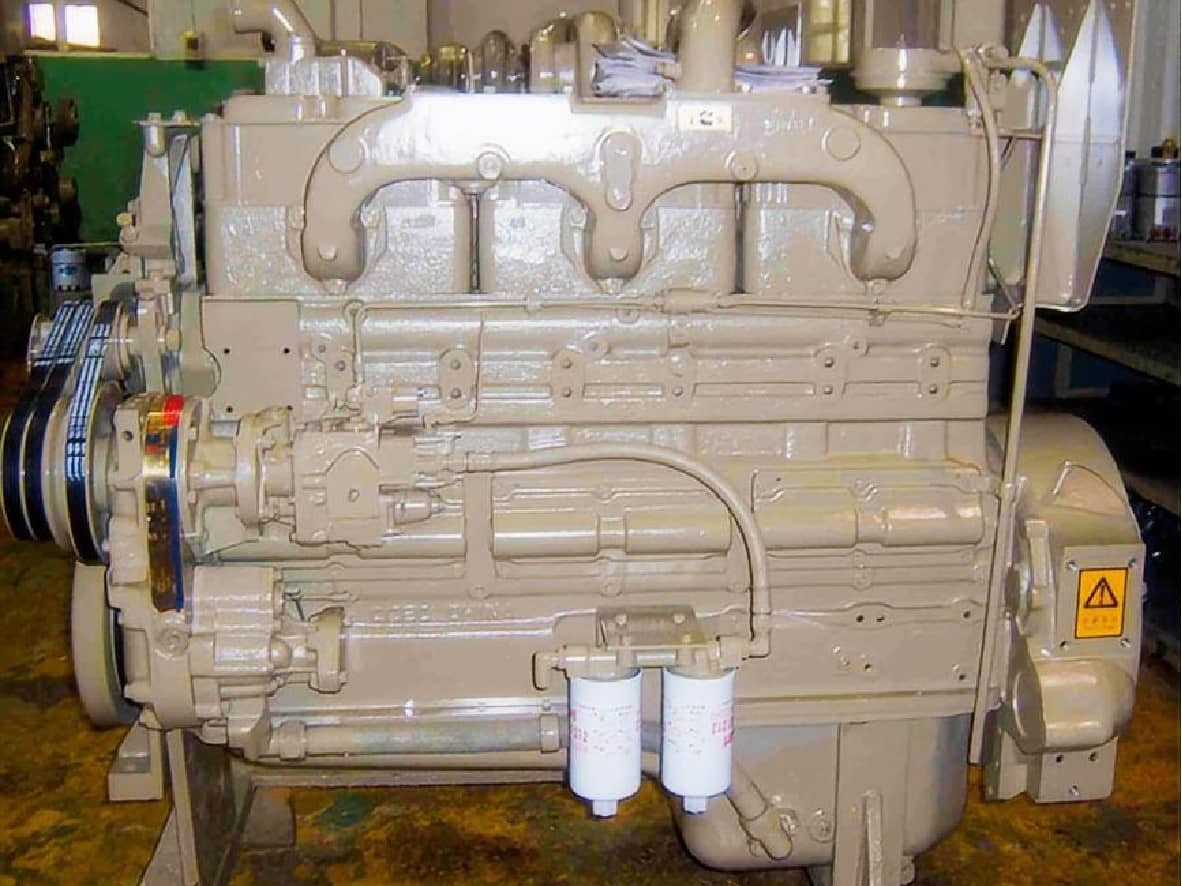

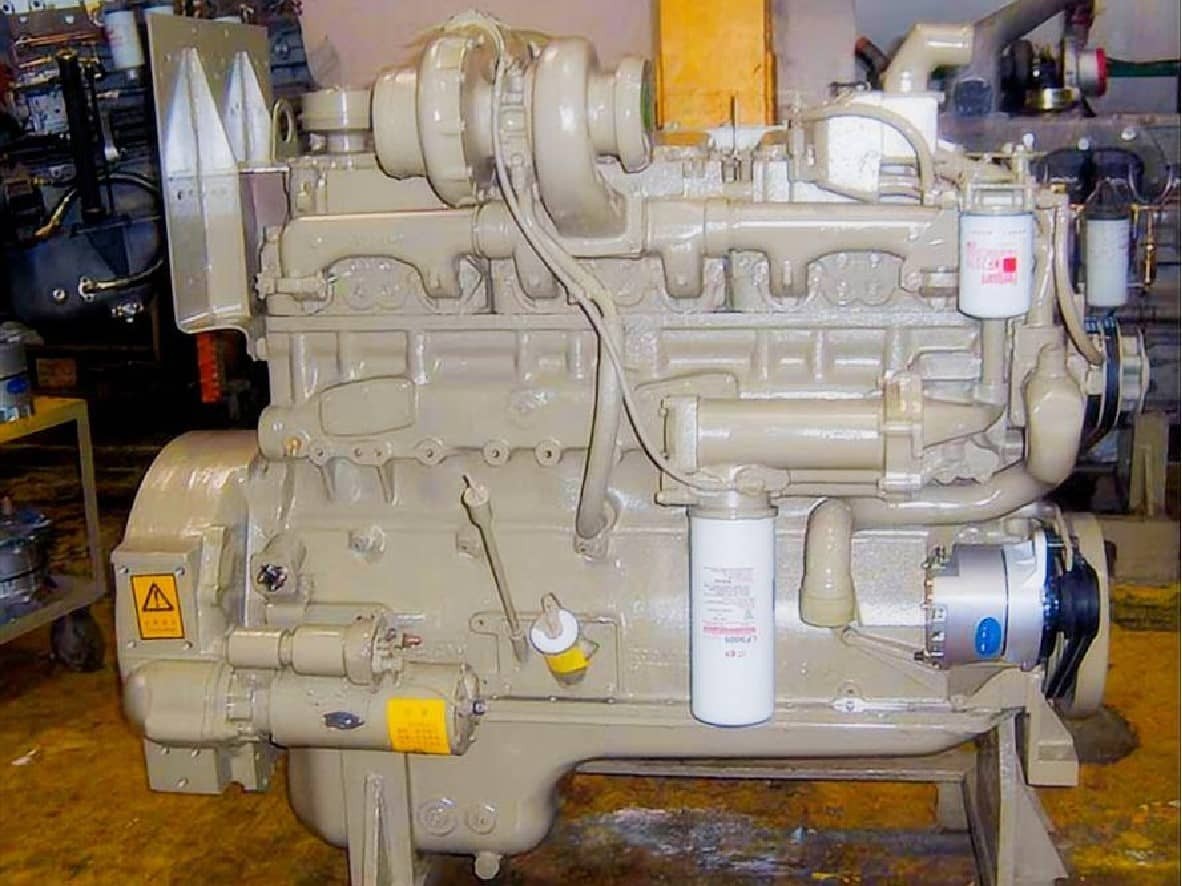

Original CCEC Cummins NT855-G Generator Engine (205kW / 1500RPM)
Finding a reliable 205kW Cummins G-Drive engine requires sourcing from a supplier that understands the exact technical demands of your power project. The CCEC Cummins NT855-G Engine is a legendary 14L 6-cylinder generator engine built specifically for continuous, heavy-duty power generation. Operating at a steady 1500 RPM for 50Hz power systems, this model delivers a highly stable 205kW prime power rating, with the capability to push to a 225kW standby engine threshold when emergency loads demand it.
As a dedicated wholesale supplier for CCEC Cummins NT855-G 205kW units, HekoPower provides the complete Cummins NT855-G complete engine assembly. Whether you are building a new genset from the ground up or require a direct Cummins NT855-G replacement engine for an aging facility, this specific 140x152 engine bore and stroke configuration offers unmatched durability.
Tech Specs of Cummins NT855-G
General Engine Data
Engine Model: Cummins NT855-G
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 14 L
Bore * Stroke: 140 * 152
Net Weight: 1380 Kg
Overall Dimension: 1980mm*900mm*1600mm
Key Performance Data
Rated Power/Standby Output: 205 kW/275HP, 225 kW/302HP
Rated Speed: 1500 rpm
Low Idle Speed: 575-650 rpm
Fuel Consumption: 49 L/Kw.h
Torque @Rated/Standby Output: 1305/1433 N.m @ 1500 rpm
More Technical Data
Fuel System: Cummins PT Pump, Direct Injection
Aspiration: Turbocharged
Electrical System (Starter Motor/Alternator): 24V/900A
Governor Type: Mechanical Control
Compression Ratio: 15:1
Lowest Starting Temp (Without auxiliary system): -12℃
Coolant Volume (Engine Only): 20.8 L
Cooling Method: Water Cooled
Real-World Application Scenarios for the NT855-G
The NT855-G 1500RPM generator engine is not a light-duty commercial motor. It is engineered for environments where failure is not an option. We frequently supply the NT855-G engine for commercial standby power in large healthcare facilities, data centers, and manufacturing plants. Because it features a highly reliable Cummins NT855-G mechanical governor engine design, it excels in harsh environments where electronic control modules might fail due to dust, extreme heat, or moisture.
Our clients often integrate this exact NT855-G engine for 275kVA generator builds. It is particularly popular as an NT855-G engine for mining generator applications and remote power generation sites. In off-grid scenarios, the lack of complex electronics means field mechanics can service the engine using standard hand tools. Additionally, its robust block design makes the Cummins NT855-G engine for rental generator sets a top choice, as rental equipment is routinely subjected to varying load capacities and unpredictable operational environments.
Technical Comparisons: NT855-G vs. Other Series Models
A frequent challenge buyers face is choosing the correct model within the 14L diesel engine family. We regularly help procurement teams understand the Cummins NT855-G generator engine comparison to ensure they order the correct CPL (Control Parts List).
When looking at the difference between NT855-G and NTA855-G1, the distinction comes down to aspiration and cooling. The NT855-G is a turbocharged diesel engine. It forces compressed air into the cylinders to increase power output. However, the NT855-G vs NTA855-G1 generator engine debate changes when you introduce the "A" in NTA, which stands for aftercooled. The NTA855-G1 pushes the compressed air through an aftercooler before it enters the engine, lowering the intake temperature and allowing for a higher density of oxygen. This results in a higher power output for the G1, but the standard NT855-G remains the preferred choice for buyers who want fewer cooling components and a simpler overall footprint.
Another common inquiry is the NT855-G 205kW vs NT855-GA 231kW. While both are built on the same 14-liter block, the GA configuration is calibrated to deliver a higher power threshold. If your facility strictly requires a 205kW prime power engine, the standard NT855-G is more cost-effective. Upgrading to the GA is only necessary if your continuous load requirements edge closer to the 230kW mark.
Expert Maintenance and Parts Replacement Guide
Maintaining a NT855-G 50Hz generator drive engine is straightforward, provided you follow the official Cummins NT855-G maintenance schedule. The standout feature of this engine is the classic Cummins NT855-G PT fuel system. Unlike modern common-rail systems, the PT (Pressure-Time) system uses a low-pressure gear pump to deliver fuel to the injectors, which then create the high injection pressure mechanically via the camshaft.
Proper NT855-G PT pump maintenance is critical. You must ensure the fuel lines remain completely free of air leaks. Regular NT855-G fuel filter replacement prevents debris from scoring the PT pump gears. If you notice a sudden spike in your Cummins NT855-G fuel consumption per hour at full load, the first step is to check the fuel filter, followed by scheduling a professional NT855-G valve adjustment.
Over time, mechanical wear requires comprehensive servicing. HekoPower supplies genuine Cummins NT855-G engine parts and assembly components directly from the factory. Whether you need routine NT855-G injector maintenance, NT855-G turbocharger maintenance, or you are planning a full rebuild and require a complete NT855-G overhaul kit, always refer to your specific NT855-G parts catalog based on your engine serial number. Using aftermarket parts on a high-compression Cummins NT855-G direct injection engine often leads to premature cylinder wear. We ensure our clients receive the correct NT855-G overhaul parts matched to their exact serial data.
Common Misconceptions About the NT855-G G-Drive Engine
There is a common misconception regarding engine identification codes. Buyers often search for highly specific factory identifiers, such as CCEC NT855-G D092473DX02 or NT855-G CPL CQ123. It is important to understand that these codes relate to specific factory builds and emission tunings at the time of manufacture. If you are looking for an original NT855-G generator motor to replace an older unit, your new engine may have a different CPL number while still being a perfect drop-in replacement. Always provide us with your current NT855-G engine configuration number so our engineers can cross-reference the exact performance specifications.
Another misunderstanding involves the NT855-G C-167E performance curve. Some operators assume that running the engine well below its rated load will save fuel and preserve the engine. In reality, running this NT855-G 275HP diesel engine at a very low load for extended periods can cause "wet stacking," where unburned fuel accumulates in the exhaust system. This engine is designed to work hard; it performs best when loaded close to its prime rating.
Explore the Complete NT855 Series
As a leading CCEC NT855-G engine supplier and trusted Cummins NT855-G export supplier, HekoPower understands that power requirements vary wildly from project to project. While the NT855-G 205kW diesel generator engine is a highly versatile unit, your specific power node might require a slightly different configuration. We stock the entire N-series family to ensure you get the exact prime or standby rating your facility demands.
Cummins N855-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NT855-G, NT855-GA, NT855-G1, NT855-G1A, NT855-G1B, NTA855-G2, NTA855-G2A, NTA855-G3, NTA855-G4, NTA855-G7, NTA855-G7A.
Frequently Asked Questions (FAQ)
Is this an original CCEC NT855-G engine?
Yes. Every Cummins NT855-G engine for sale through HekoPower is a 100% genuine Cummins NT855-G generator engine manufactured by the Chongqing Cummins Engine Company (CCEC). We provide official factory documentation and serial numbers that can be verified directly through Cummins' global warranty system.
Can I use this NT855-G 275HP generator drive engine for a 60Hz system?
The specifications detailed on this page are optimized for an NT855-G 1500RPM genset engine operating on a 50Hz grid. If your region requires 60Hz (which requires the engine to run at 1800 RPM), please notify us during your inquiry. We will provide the corresponding performance curves and configuration numbers for the 60Hz variant.
What is the difference between Chongqing Cummins (CCEC) and Dongfeng Cummins (DCEC) for the NT855 engine?
The NT855 engine series is manufactured exclusively by Chongqing Cummins Engine Co., Ltd. (CCEC) in China. Dongfeng Cummins (DCEC) produces smaller automotive and industrial engine series, such as the B, C, and L series. Any supplier listing a DCEC NT855 engine is displaying inaccurate technical information.
Can the Cummins NT855-G engine run on biodiesel blends?
Yes, the mechanical PT fuel system can accommodate low-percentage biodiesel blends up to B20, provided the fuel meets international ASTM D6751 specifications. However, using biodiesel requires shorter fuel filter replacement intervals because it can loosen fuel tank sediments.
What is included in a complete Cummins NT855-G generator engine assembly from HekoPower?
Our complete engine assembly includes the core cylinder block, cylinder head, crankshaft, camshaft, turbocharger, PT fuel injection pump, water pump, oil cooler, starter motor, and charging alternator. We can also include an attached cooling radiator panel depending on your installation needs.
