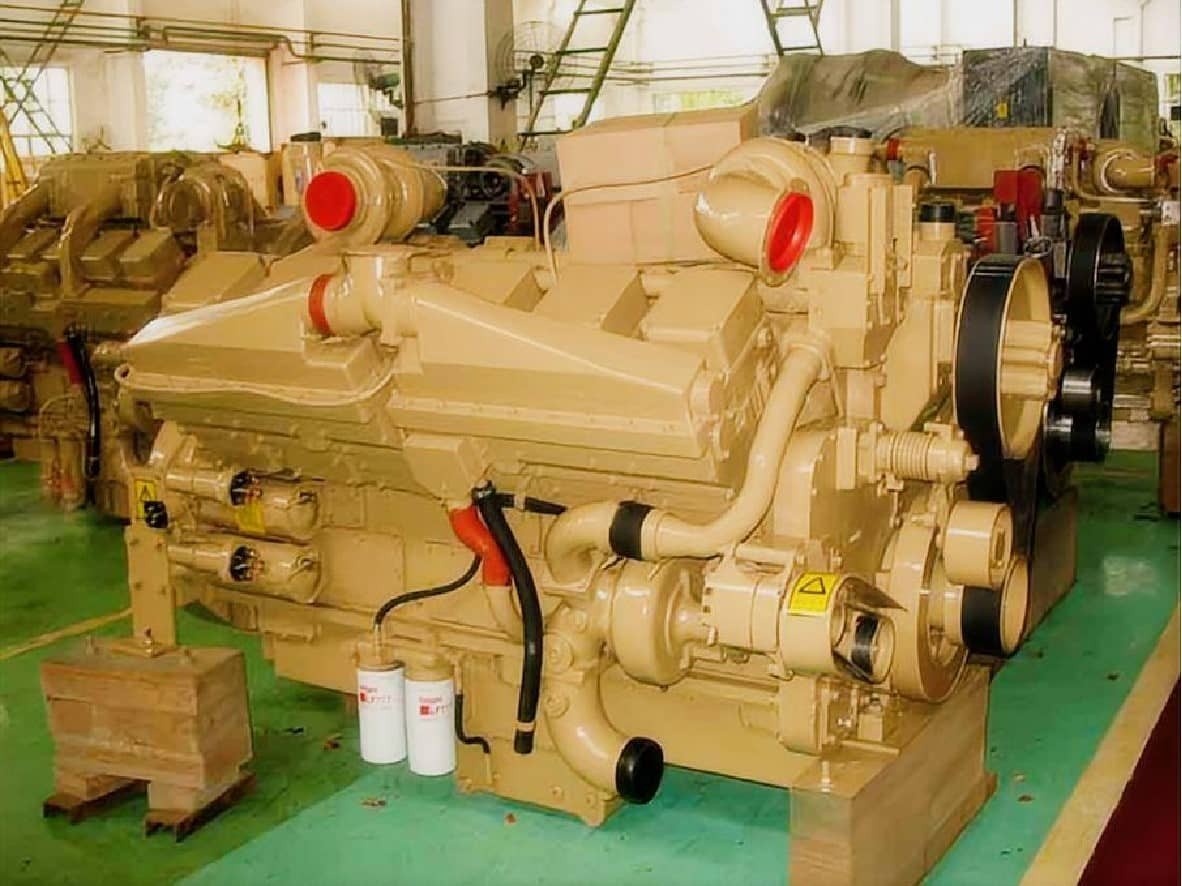

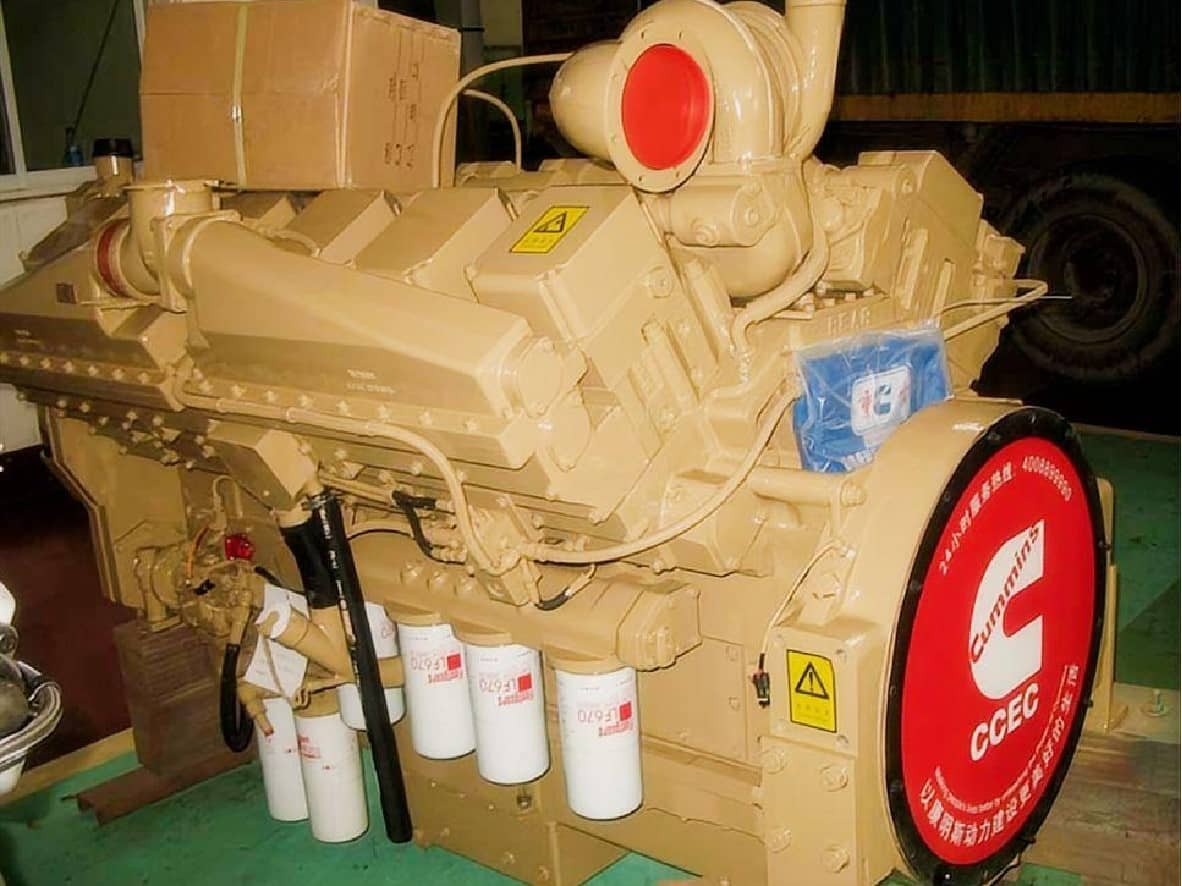

Chongqing Cummins (CCEC) KTA38-G5 Engine: 880 kW Prime Power for 1100 kVA Generators
When heavy industries require uncompromising power generation, the CCEC Cummins KTA38-G5 engine 880kW stands out as the industry benchmark for reliability. As a premier CCEC KTA38-G5 engine supplier, HekoPower provides this robust 37.8L V12 engine to global manufacturers and engineering firms assembling high-capacity power systems. Designed specifically as a Cummins KTA38-G5 generator drive engine, this unit delivers exceptional transient response and block-loading capabilities, making it the preferred choice for mission-critical power grids, mining operations, and commercial standby facilities.
The KTA38-G5 complete engine represents the pinnacle of mechanical engine design, offering a straightforward architecture that thrives in harsh environments where electronic controls might face challenges. Before exploring the deep technical metrics of the Cummins 38L V12 KTA38 G5 engine assembly, it is helpful to understand its place within our broader product ecosystem. This series mainly includes a variety of specialized models tailored to different power outputs, frequency requirements, and specific application demands, ensuring that power generation assemblers can find the precise displacement and rating required for their unique projects.
Tech Specs of Cummins KTA38-G5 880kW
General Engine Data
Engine Model: Cummins KTA38-G5-880KW
Type: 12 Cylinders, 60° V Type, 4 Stroke Diesel
Displacement: 37.8 L
Bore * Stroke: 159 * 159
Net Weight: 3959 Kg
Overall Dimension: 2341mm*1360mm*1653mm
Key Performance Data
Rated Power, Standby Output: 880 kW/1180HP, 970 kW/1300HP
Rated Speed: 1500 rpm
Low Idle Speed: 725-775 rpm
Fuel Consumption @ Rated Power: 209 L/Kw.h
Continuous Output/Speed: 656 kW/880HP @ 1500 rpm
More Technical Data
Engine Exhaust Manifold: Optional for Wet Exhaust manifold Heat exchanger
Aspiration: Turbocharged/Intercooled
Compression Radio: 13.9:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control, ≤ 5%
Engineering Superiority of the Cummins KTA38-G5 880 kW Engine
At the core of this machine is a heavy-duty 159 x 159 mm diesel engine block, engineered for longevity and sustained performance. Operating at a fixed 1500 RPM, the KTA38-G5 generator engine 50 Hz configuration is perfectly tuned to support alternating current production without the need for complex reduction gearing. Under the KTA38-G5 CPL 1543 build specification (and associated drawing numbers like CCEC KTA38-G5 D233031DX02), this engine produces a formidable Cummins KTA38-G5 1180 HP engine output at prime power, translating to 880 mechanical kilowatts.
Depending on the operational setup, facility managers often utilize the KTA38-G5 656 kW continuous power engine rating for uninterrupted baseload power. Conversely, for emergency backup scenarios, the engine safely scales up to become a Cummins KTA38-G5 970 kW standby engine (equivalent to a KTA38-G5 1300 HP standby engine). This operational flexibility is why the genuine Cummins KTA38-G5 engine is so frequently requested for global infrastructure projects. HekoPower ensures that every KTA38-G5 engine export package includes rigorous factory testing to verify these output metrics, guaranteeing that the original CCEC KTA38-G5 engine you receive performs exactly to factory specifications.
Technical Comparisons: KTA38-G5 vs. Alternative Generator Drives
A common challenge for procurement teams is selecting the correct model within the K38 family. While they share the same physical footprint, the internal tuning and aspiration systems vary significantly.
KTA38-G5 vs KTA38-G2, KTA38-G2A, and KTA38-G4
When comparing the KTA38-G5 vs KTA38-G2 or KTA38-G2A, the primary differentiator is the power output and turbocharger configuration. The G2 series typically supports smaller 800 kVA generators, whereas the KTA38-G5 1100 kVA prime diesel engine is engineered for higher load demands. Furthermore, examining the KTA38-G5 1500 RPM vs KTA38-G4 1800 RPM reveals a frequency distinction; the G5 is optimized for 50 Hz global markets, whereas the G4 is tuned for 60 Hz operations commonly found in the Americas.
KTA38-G5 880 kW vs KTA38-G9A 1195 kW
For facilities weighing the KTA38-G5 vs KTA38-G9A, the decision comes down to raw capacity. The KTA38-G5 880 kW vs KTA38-G9A 1195 kW comparison highlights a massive jump in mechanical output. The G9A utilizes a more aggressive dual-stage aftercooling system to achieve nearly 1200 kW of prime power, making it suitable for 1500 kVA setups. However, for a standard KTA38-G5 1000 kVA generator or a KTA38-G5 1109 kVA standby generator, the G5 remains the most cost-effective and perfectly matched prime mover.
KTA38-G5 PT Pump vs QSK38 MCRS Fuel System
A critical engineering choice involves the KTA38-G5 vs QSK38-G5 fuel system. The KTA38-G5 utilizes the proven Cummins KTA38-G5 PT fuel pump and Holset turbocharger specs, a purely mechanical system known for exceptional durability and ease of field repair. In contrast, the QSK38 MCRS (Modular Common Rail System) relies on high-pressure electronic fuel injection. While the QSK38 offers slightly tighter emissions control, the mechanical KTA38-G5 PT pump vs QSK38 MCRS debate usually favors the KTA38 for remote mining, marine, and extreme-climate industrial sites where electronic diagnostics are difficult to source.
Real Application Scenarios for the KTA38-G5 G-Drive Engine
The KTA38-G5 engine assembly is not just a piece of hardware; it is the heartbeat of critical infrastructure. HekoPower frequently supplies this unit as a CCEC KTA38-G5 engine replacement for 1000kva generator set overhauls.
Industrial Standby and Prime Generator Builds
When constructing a KTA38-G5 diesel engine for industrial standby generator build, packagers rely on the engine's ability to accept a full step-load within seconds. The KTA38-G5 generator sizing guidelines perfectly align it as the ultimate KTA38-G5 engine for 1000 kVA generator applications, providing a comfortable buffer for transient voltage dips. In prime continuous operations, it acts as a highly stable KTA38-G5 1014 kVA prime generator drive, offering uninterrupted power to remote drilling rigs, rock crushers, and offshore platforms.
Understanding Fuel Economics and Heat Rejection
Operational expenditure is heavily dictated by fuel efficiency. Based on the KTA38-G5 FR-6140 performance curve and the KTA38-G5 FR-6141 performance curve, operators can precisely model their costs. The Cummins KTA38-G5 fuel consumption rate at 100 prime load is highly competitive for a mechanical V12. Specifically, the KTA38-G5 fuel consumption 209 L/h represents the absolute peak draw at 100% prime load. Looking at the broader KTA38-G5 diesel fuel consumption chart, the engine becomes remarkably efficient at partial loads. The KTA38-G5 fuel consumption at 75% load drops to approximately 161 liters per hour, and the KTA38-G5 fuel consumption at 50% load further reduces to just 113 liters per hour. These KTA38-G5 prime fuel consumption figures, alongside its excellent KTA38-G5 BSFC (Brake Specific Fuel Consumption), make it highly economical for varying baseloads.
To maintain these efficiencies, managing KTA38-G5 heat rejection and cooling system requirements is paramount. Generator builders must size their radiators accurately to handle the substantial heat dissipated by the jacket water and charge air coolers, ensuring the engine never de-rates due to thermal overload.
Maintenance, Overhaul, and Parts Replacement Tips
Even the most robust KTA38-G5 G-Drive engine requires strict maintenance to hit its multi-thousand-hour lifecycle targets. As a dedicated KTA38-G5 generator engine supplier, HekoPower provides comprehensive support for KTA38-G5 engine parts and KTA38-G5 maintenance parts.
When sourcing a KTA38-G5 replacement engine or planning a complete KTA38-G5 engine overhaul, verifying the CCEC KTA38-G5 engine serial number verification and warranty status is your first line of defense against counterfeit equipment. Always cross-reference your KTA38-G5 CPL 1543 parts list.
During a major service interval, technicians should pay close attention to the fuel delivery system. The KTA38-G5 injector and PT fuel pump require precise calibration on a test bench to ensure atomization remains optimal. Wear in the KTA38-G5 turbocharger bearings can lead to oil blow-by and reduced boost pressure, directly impacting the KTA38-G5 fuel consumption curve. By utilizing genuine KTA38-G5 overhaul parts, operators ensure their KTA38-G5 replacement diesel engine performs identically to a factory-new unit. For clients looking to purchase, the KTA38-G5 diesel engine price fluctuates based on global material costs, but HekoPower remains committed to providing an accurate KTA38-G5 engine quotation, complete Cummins KTA38-G5 engine unit price and lead time details, and a transparent KTA38-G5 engine lead time schedule.
Frequently Asked Questions (FAQs) and Common Misconceptions
Does running the engine at 1500 RPM instead of 1800 RPM damage the engine?
A common misconception is that a diesel engine must run at maximum speed to prevent carbon buildup. The KTA38-G5 880kW 1500rpm generator engine specifications dictate that it is explicitly governed to run at 1500 RPM to produce 50 Hz power. Running it consistently at this rated speed under proper load is exactly what it was designed for; it will not cause premature wear.
Is standby fuel consumption drastically different from prime?
Many operators misread the data sheets regarding KTA38-G5 standby fuel consumption. While the engine burns slightly more fuel when pushed to its 970 kW standby rating (around 228 L/h), standby events are meant to be rare and brief. Over the lifespan of the engine, the average fuel draw will closely align with the KTA38-G5 fuel consumption at 50% load or 75% load, as generators rarely run at maximum output constantly.
Can I just use any K38 series engine for my 1000kVA generator?
No. Another frequent error is assuming all 38-liter blocks are interchangeable. A KTA38-G2 simply does not have the air handling or fuel mapping to handle a 1000 kVA load step. You must specify the KTA38-G5 engine assembly to ensure your alternator is correctly matched to the mechanical horsepower curve.
Whether you are seeking a Cummins KTA38-G5 engine for sale for a new facility or require an original CCEC Cummins KTA38-G5 engine export supplier for a fleet upgrade, HekoPower possesses the technical inventory and engineering background to support your power demands.
Cummins K38-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-G-560KW, KTA38-G1-634KW, KTA38-G2-664KW, KTA38-G2A-813KW, KTA38-G2B-711KW, KTA38-G5-880KW, KTA38-G9A-1195KW, KT38-G-679KW, KTA38-G2-809KW, KTA38-G2A-915KW, KTA38-G4-1007KW.
