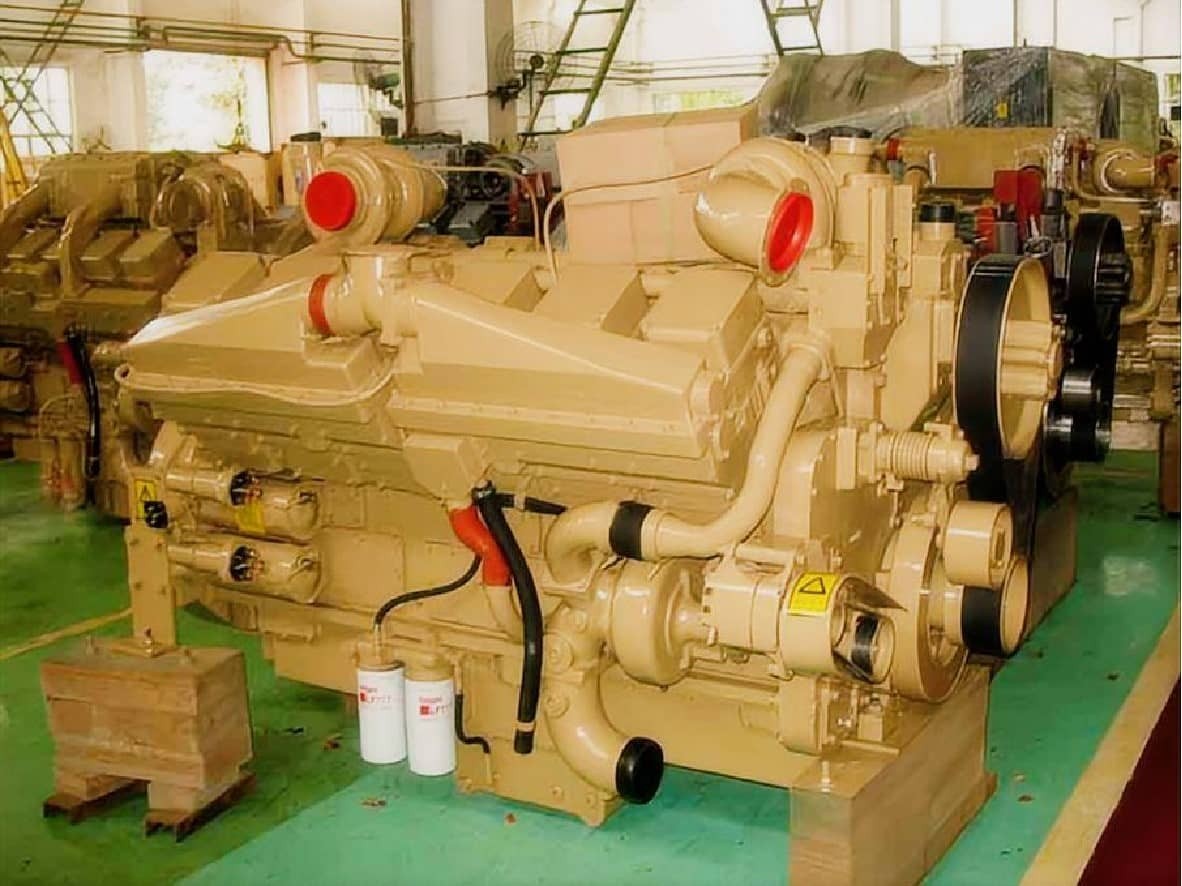

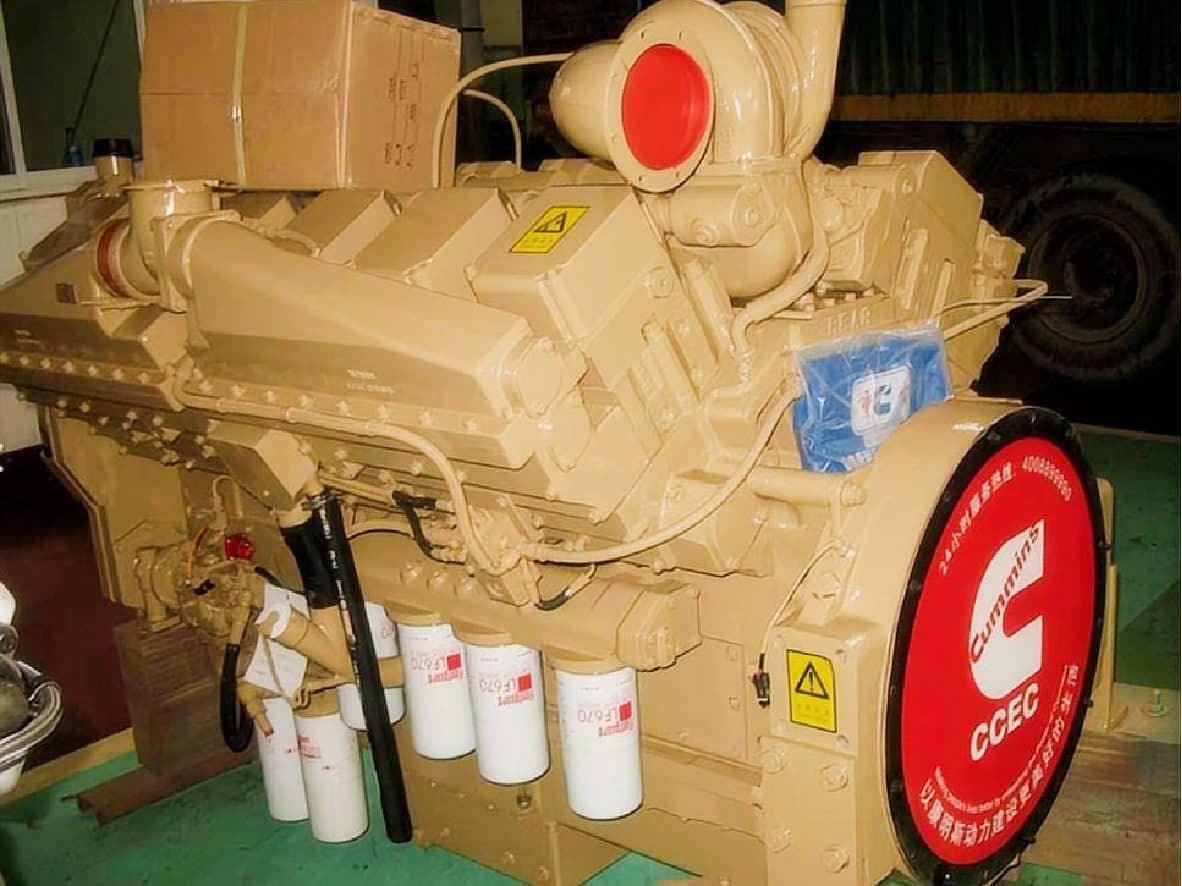

CCEC Cummins KTA38-G1: The 634kW Workhorse for Industrial Generators
When sizing a heavy-duty prime power solution for continuous industrial use, the CCEC Cummins KTA38-G1 stands as an industry benchmark. Engineered at the Chongqing Cummins Engine Co. (CCEC), this 38-liter, 12-cylinder V-type diesel generator engine is specifically tuned to deliver a continuous 634kW (850HP) prime power at 1500RPM, with a standby power reserve of 701kW.
Unlike highly electronic modern engines that require complex diagnostic software, the KTA38-G1 relies on the legendary Cummins PT (Pressure-Time) fuel system and a mechanical governor. This makes it highly resilient in harsh environments and significantly easier to service in remote mining sites, power plants, and industrial complexes where 50Hz generator sets are required.
Tech Specs of Cummins KTA38-G1 634KW
General Engine Data
Engine Model: Cummins KTA38-G1-634KW
Type: 12 Cylinders, 60° V Type, 4 Stroke Diesel
Displacement: 37.8 L
Bore * Stroke: 159 * 159
Net Weight: 3954 Kg
Overall Dimension: 2341mm*1360mm*1653mm
Key Performance Data
Rated Power, Standby Output: 634 kW/862HP, 701 kW/953HP
Rated Speed: 1500 rpm
Low Idle Speed: 725-775 rpm
Fuel Consumption @ Rated Power: 154 L/Kw.h
More Technical Data
Engine Exhaust Manifold: Optional for Wet Exhaust manifold Heat exchanger
Aspiration: Turbocharged/Intercooled
Compression Radio: 14.5:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control, ≤ 5%
KTA38-G1 Technical Comparisons and Configurations
Selecting the correct model from the KT38-G series is critical for generator matching. Many buyers struggle to choose between the KTA38-G1, the KTA38-G2, and earlier iterations.
KTA38-G1 vs. KTA38-G2
The primary difference lies in the power output and tuning. While the KTA38-G1 provides 634kW prime power at 1500RPM, the KTA38-G2 is tuned slightly higher to deliver 664kW prime under the same 50Hz conditions. The structural core (bore and stroke of 159x159mm, displacement of 37.8L) is identical, but the PT fuel pump calibration and turbocharger matching allow the G2 to extract slightly more power. If your alternator requires exactly 800kVA prime, the G1 is the ideal cost-effective match.
KTA38-G1 1500RPM vs 1800RPM
The KTA38-G1 is optimized for 1500RPM (50Hz) power generation. Operating this specific configuration at 1800RPM to achieve 60Hz without changing the governor weights and recalibrating the PT fuel pump will result in poor fuel economy and excessive wear. Always ensure your engine is factory-configured for your target frequency.
KTA38-G1 vs. KT38-G
The "A" in KTA indicates "Aftercooled." The older KT38-G is purely turbocharged, whereas the KTA38-G1 features a turbocharged, water-to-air aftercooled system. This aftercooling lowers intake manifold temperatures, creating denser air for a higher compression ratio (14.5:1), vastly improving the KTA38-G1 fuel consumption per hour over its predecessor.
Real Application Scenarios for the 634kW Engine
Because of its massive 38L displacement and heavy cast-iron block, the KTA38-G1 is not meant for light-duty standby use. It is engineered for heavy, continuous load acceptance.
- Continuous Power for 50Hz Power Plants: In regions with unstable utility grids, the KTA38-G1 thrives as a base-load prime power engine, running continuously without power deration up to 1,500 meters altitude.
- Data Center Standby Power: When utility power fails, data centers require engines that can take a 100% block load instantly. The mechanical PT fuel system allows the KTA38-G1 to meet ISO 8528 G3 transient response standards, making it an ideal engine for data center standby power (at its 701kW standby rating).
- Commercial and Hospital Backup Generators: For life-safety applications, the reliability of a mechanical fuel system over a common-rail electronic system means the KTA38-G1 is immune to EMPs and less susceptible to complex sensor failures.
Maintenance and Engine Identification
Maintaining the KTA38-G1 is straightforward, provided maintenance personnel understand the unique characteristics of the PT system.
KTA38-G1 PT Fuel System Maintenance
The Cummins PT fuel pump does not time the injection; the camshaft controls the timing. Therefore, regular valve and injector lash adjustments (overhead set) are the most critical maintenance tasks to maintain the engine's optimal fuel consumption rate (which runs approximately 162 L/hr at 100% prime load).
Turbocharger and Cooling System Specs
The KTA38-G1 cooling system requires a massive coolant capacity. When matching a radiator, ensure it can handle the heat rejection of a 701kW standby load. Coolant chemistry must be strictly maintained using DCA4 chemical additives to prevent cylinder liner cavitation—a common oversight that leads to premature KTA38-G1 engine overhaul requirements.
How to Identify a Cummins KTA38-G1 Engine
To ensure you are receiving a genuine CCEC KTA38-G1 634kW engine rather than a modified older model, always check the CPL (Control Parts List) number on the engine data plate. The CPL dictates the exact fuel pump calibration, injector part numbers, and turbocharger matched to that engine block. Common CPLs for this series verify its factory 1500RPM rating.
- Note: If you are purchasing replacement parts or a rebuild kit for the KTA38-G1, you must provide your engine serial number (ESN) and CPL to your supplier, as piston bowl designs and injector flow rates vary between the G1, G1-A, and G2 variants.
Whether you are packaging a new 50Hz generator set or looking for a direct KTA38-G1 replacement engine, sourcing the exact right model is just the first step. The broader K-series family offers various power nodes to fit specific alternator requirements.
Cummins K38-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-G-560KW, KTA38-G1-634KW, KTA38-G2-664KW, KTA38-G2A-813KW, KTA38-G2B-711KW, KTA38-G5-880KW, KTA38-G9A-1195KW, KT38-G-679KW, KTA38-G2-809KW, KTA38-G2A-915KW, KTA38-G4-1007KW.
Frequently Asked Questions (FAQ)
What is the fuel consumption of the Cummins KTA38-G1?
Fuel consumption scales linearly with the electrical load. At 100% prime power output (634kW / 1500RPM), the KTA38-G1 consumes approximately 162 Liters per hour. At a 50% load, consumption drops to roughly 91 Liters per hour.
What are the KTA38-G1 dimensions and dry weight?
As a bare engine (excluding the radiator and alternator), the KTA38-G1 has a dry weight of approximately 3,954 kg. Its overall dimensions are roughly 2341mm (Length) x 1360mm (Width) x 1653mm (Height), requiring robust structural skids for generator packaging.
How is the CCEC KTA38-G1 packaged for export?
As an experienced KTA38-G1 engine exporter, HekoPower secures the engine in heavy-duty, fumigated wooden cases designed for maritime shipping. The standard HS code used for customs clearance of diesel generator engines in this power class is 840890.
Can I use the 634kW prime power rating continuously?
Yes. Prime power is defined as being available for an unlimited number of hours per year in a variable load application, with a 10% overload capability available for 1 hour every 12 hours of operation. The 701kW standby power rating is strictly for emergency utility power outages with no overload available.
