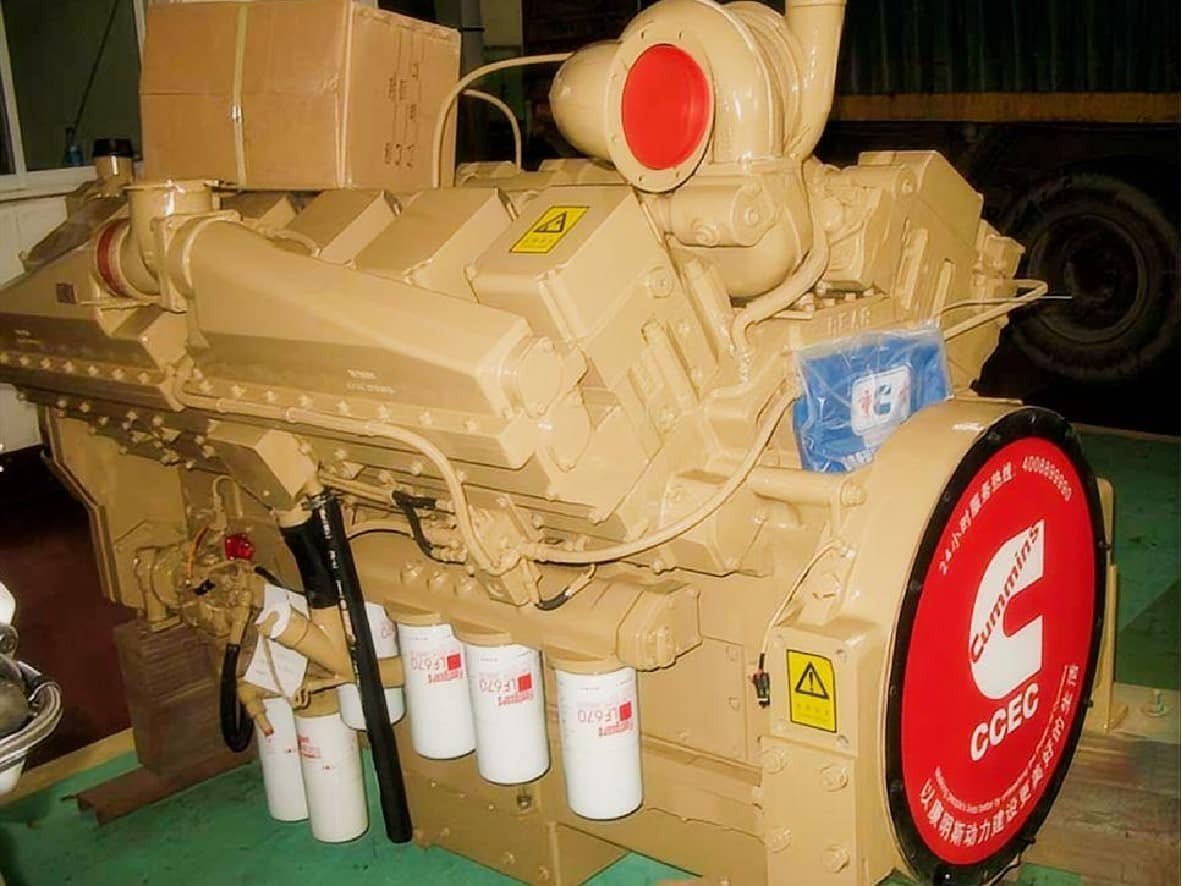

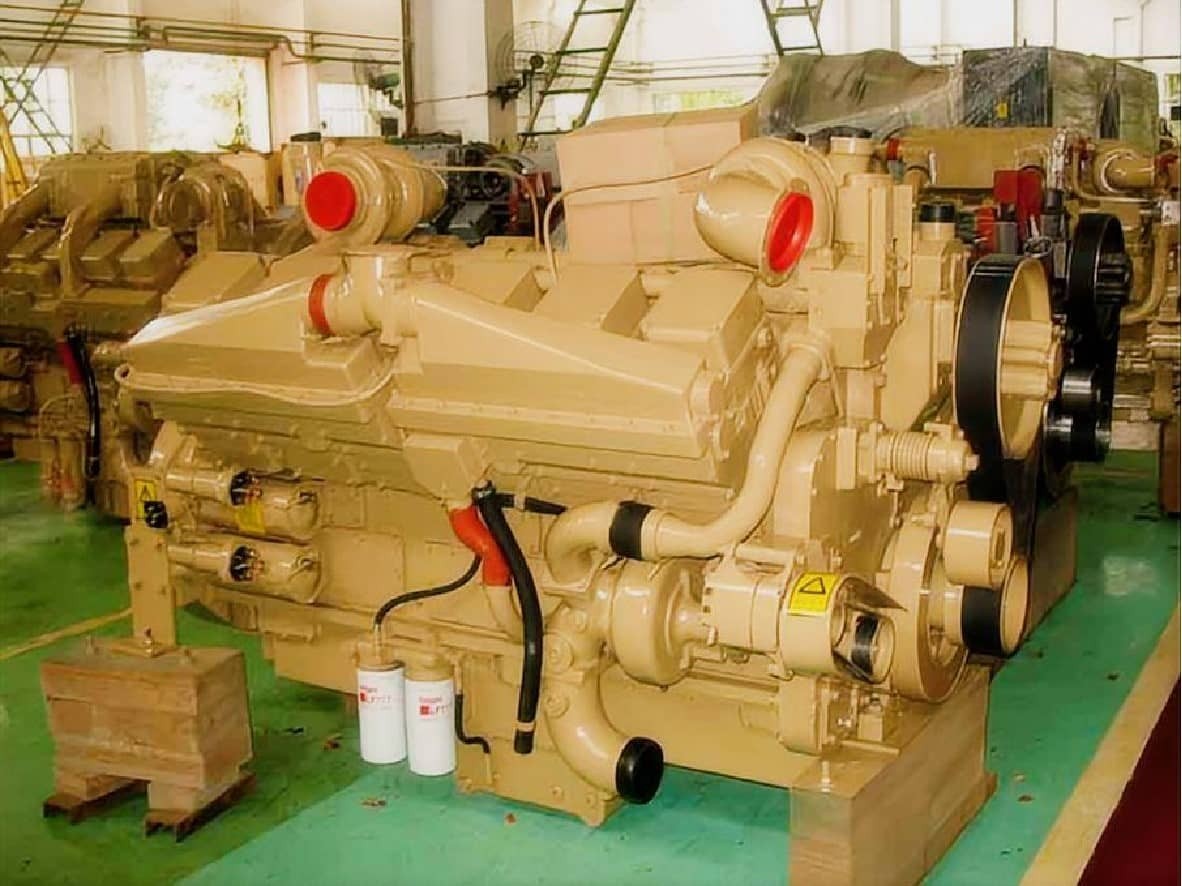

CCEC Cummins KTA38-G2A Generator Engine: Technical Specifications & Integration Guide
The Cummins KTA38-G2A is a 38-liter, 12-cylinder V-type diesel engine built by Chongqing Cummins Engine Co., Ltd. (CCEC). Designed as a heavy-duty G-Drive power unit, it delivers 915 kW (1226 BHP) at 1800 RPM for 60Hz prime applications (rated for 1000kVA–1250kVA generator sets) and 813 kW (1090 BHP) at 1500 RPM for 50Hz operations.
At HekoPower, we supply original CCEC Cummins KTA38-G2A engines, replacement long blocks, and genuine spare parts directly to global engineering firms, generator set assemblers, and plant operators.
Tech Specs of Cummins KTA38-G2A Generator Engine
General Engine Data
Engine Model: Cummins KTA38-G2A-915KW
Type: 12 Cylinders, 60° V Type, 4 Stroke Diesel
Displacement: 37.8 L
Bore * Stroke: 159 * 159
Net Weight: 3954 Kg
Overall Dimension: 2341mm*1360mm*1653mm
Key Performance Data
Rated Power, Standby Output: 915 kW/1227HP, 1007 kW/1350HP
Rated Speed: 1800 rpm
Low Idle Speed: 725-775 rpm
Fuel Consumption @ Rated Power: 225 L/Kw.h
More Technical Data
Engine Exhaust Manifold: Optional for Wet Exhaust manifold Heat exchanger
Aspiration: Turbocharged/Intercooled
Compression Radio: 14.5:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control, ≤ 5%
Engineering Deep Dive: PT Fuel System & Holset Turbocharging
Most commercial listings summarize the KTA38-G2A with basic bullet points. To help power engineers evaluate performance under severe conditions, we examine the mechanical systems that keep this engine running reliably.

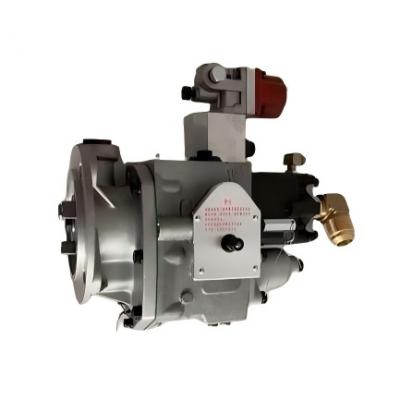

Cummins PT (Pressure-Time) Injection Dynamics
Unlike delicate common-rail electronic injection systems that require ultra-refined fuel, the mechanical Cummins PT fuel system relies on a simple principle: the amount of fuel injected into the cylinder is directly proportional to the fuel pressure and the time allowed for injection.
- High Camshaft-Driven Injection Pressure: The camshaft generates high mechanical pressure inside the unit injector, atomizing heavy diesel fuel for clean combustion.
- Step Timing Control (STC): The STC system adjusts injection timing based on load requirements. Under light loads, it advances timing to reduce cold smoke and unburned hydrocarbons. Under heavy load, it retards timing to control peak cylinder pressures and thermal strain.
- Fuel Quality Tolerance: Mechanical PT pumps handle variable fuel quality in remote mining sites or offshore installations far better than high-pressure electronic systems, avoiding sudden injector failures.
Match-Paired Holset Turbocharging & Aftercooling
The KTA38-G2A uses twin Holset turbochargers configured with jacket-water or air-to-air aftercooling (AA cooling).
- Charge Air Density: Cooling compressed intake air before it reaches the 12 cylinders increases air density. This allows complete fuel burn at 100% continuous rated loads.
- Altitude Derating Reserve: The matched turbocharger profiles supply excess air volume, allowing the engine to maintain its prime rating at higher altitudes and ambient temperatures before requiring derating.
Technical Comparisons Within the Cummins KTA38 Series
A common challenge for buyers browsing engine catalogs is understanding the exact differences between various models in the same family. The Cummins KTA38 series generator engine lineup includes multiple variants such as the G1, G2, G2A, G3, and G4. Many competitor websites fail to explain these distinctions, causing confusion for procurement teams.
The KTA38-G2A is not just a generic KTA38. The "A" designation typically points to an updated aftercooling configuration and specific fuel pump calibration designed to optimize the engine specifically for 60Hz (1800 RPM) operation. While a standard KTA38-G2 might be tuned for 50Hz (1500 RPM) base loads, the KTA38-G2A generator engine utilizes the CQ609 Control Parts List (CPL). This specific CPL alters the injector flow rates and turbocharger wastegate settings. Therefore, if your project requires a Cummins 915kW generator engine running specifically at 1800RPM, the G2A is the mechanically correct choice over the G3 or G4, which are mapped for different load profiles and alternator pairings.
Real Application Scenarios
The 38-liter V12 footprint offers the mechanical durability needed for tough operating environments:
- Remote Mining & Quarries: Drives continuous 1000kVA prime power gensets exposed to heavy dust, high ambient heat, and frequent load spikes from crushing machinery.
- Marine Auxiliary Power: Used as an auxiliary generator engine on commercial vessels and offshore platforms due to its high power density and reliable mechanical governor controls.
- Critical Emergency Backup: Selected for hospital facilities, data centers, and water treatment plants requiring rapid load acceptance and steady output.
Maintenance, Overhaul & Replacement Practical Tips
Daily & Scheduled Maintenance Rules
- Coolant System Care: Always maintain a Supplemental Coolant Additive (SCA) concentration between 0.3 and 0.8 units/gal, or use fully formulated coolant to prevent cylinder liner cavitation pitting.
- Lube Oil Specifications: Use high-quality 15W-40 oil. The engine oil capacity ranges between 87 liters (low) and 114 liters (high pan). Replace filters every 250 to 500 operating hours depending on fuel sulfur levels.
- PT Pump Calibration: Check fuel supply pressure and governor adjustment settings during regular servicing to avoid over-fueling, which causes high exhaust temperatures and premature turbocharger damage.
Overhaul vs. Replacement: Making the Right Call
When an engine nears 20,000 operating hours, fleet operators must choose between an in-frame overhaul, a complete workshop rebuild, or sourcing a brand-new original CCEC replacement unit.
- In-Frame Overhaul: Replacing cylinder kits, main bearings, and reconditioning heads works well if the crankshaft and engine block are crack-free and within standard machining tolerances.
- Complete Unit Replacement: If the engine suffered a spun bearing, cracked block, or catastrophic rod failure, repairing individual parts is rarely cost-effective. Replacing the unit with a complete G-Drive engine from HekoPower restores full factory specs and warranty coverage without extended downtime.
Why Source Your CCEC Cummins Engine from HekoPower?
HekoPower is a direct supplier and exporter of genuine Chongqing Cummins (CCEC) diesel engines and original spare parts.
- Guaranteed Authenticity: Every KTA38-G2A engine supplied by HekoPower carries a unique CCEC engine serial number (ESN), verifiable through official Cummins global databases.
- Pre-Shipment Testing: All G-Drive units undergo pre-delivery load bank testing to verify oil pressure, fuel consumption, and governor response prior to export packing.
- Export-Grade Packaging: Engines are wrapped in anti-rust barrier film and mounted in heavy-duty wooden crates designed for ocean freight.
- Spare Parts Support: HekoPower maintains ready stock for maintenance consumables, rebuild kits, and PT fuel pump assemblies for global dispatch.
Cummins K38-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-G-560KW, KTA38-G1-634KW, KTA38-G2-664KW, KTA38-G2A-813KW, KTA38-G2B-711KW, KTA38-G5-880KW, KTA38-G9A-1195KW, KT38-G-679KW, KTA38-G2-809KW, KTA38-G2A-915KW, KTA38-G4-1007KW.
Frequently Asked Questions
What is the exact fuel consumption rate for the KTA38-G2A at 1800 RPM?
At 1800 RPM (60Hz prime power, 915 kW output), average fuel consumption is approximately 225 L/h at 100% prime load. At standby power (1007 kW), consumption rises to roughly 247 L/h. Actual usage varies based on ambient conditions, load cycles, and fuel density.
How do I verify my Cummins engine is a genuine CCEC product?
Every genuine CCEC engine carries a stainless steel dataplates on the gear housing and engine block. Check that the Control Parts List (CPL) number—typically CPL CQ609 or C-621-D for the KTA38-G2A—and unique Engine Serial Number (ESN) match CCEC factory production records. HekoPower provides traceable origin documentation for every engine shipped.
Can a 1500 RPM KTA38-G2A engine be converted to run at 1800 RPM?
The KTA38-G2A architecture supports dual-frequency operation (50Hz at 1500 RPM delivering 813kW vs 60Hz at 1800 RPM delivering 915kW). Converting speed requires recalibrating or swapping the PT fuel pump governor button, adjusting injection timing, and verifying radiator airflow parameters to match the higher output.
What is the typical lead time and warranty for replacement engines from HekoPower?
Standard CCEC units in our inventory ship within 7 to 15 business days following technical inspection and dyno testing. Complete engines include a standard factory warranty covering 12 months or 1,500 running hours.
Can this engine be converted from 60Hz to 50Hz operation?
While the KTA38-G2A engine CPL CQ609 is factory-optimized for 60Hz (1800RPM), the governor can be mechanically adjusted to operate at 50Hz (1500RPM). However, dropping the engine speed will alter the prime power output and airflow dynamics. If your primary requirement is a 50Hz prime application, our engineering team will guide you toward the correct alternative CPL within the KTA38 family to ensure maximum efficiency.
