Details

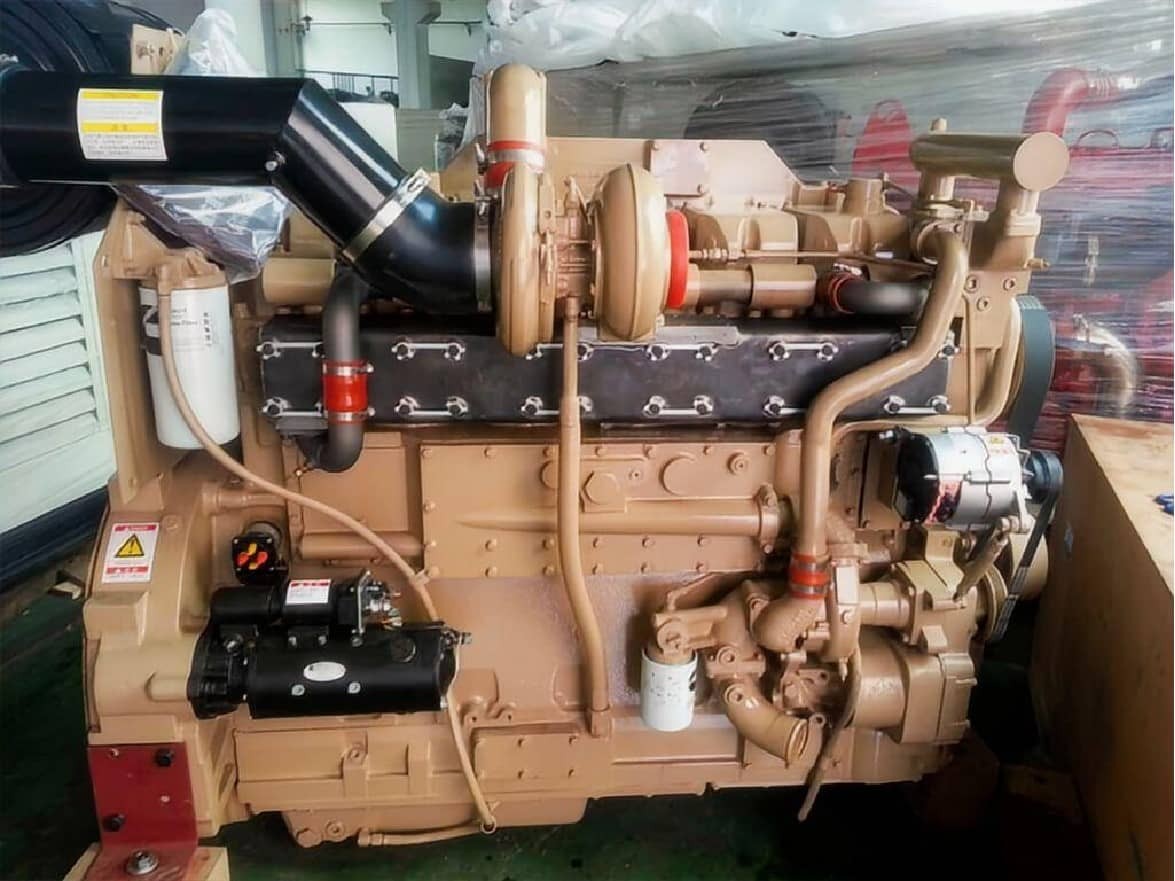

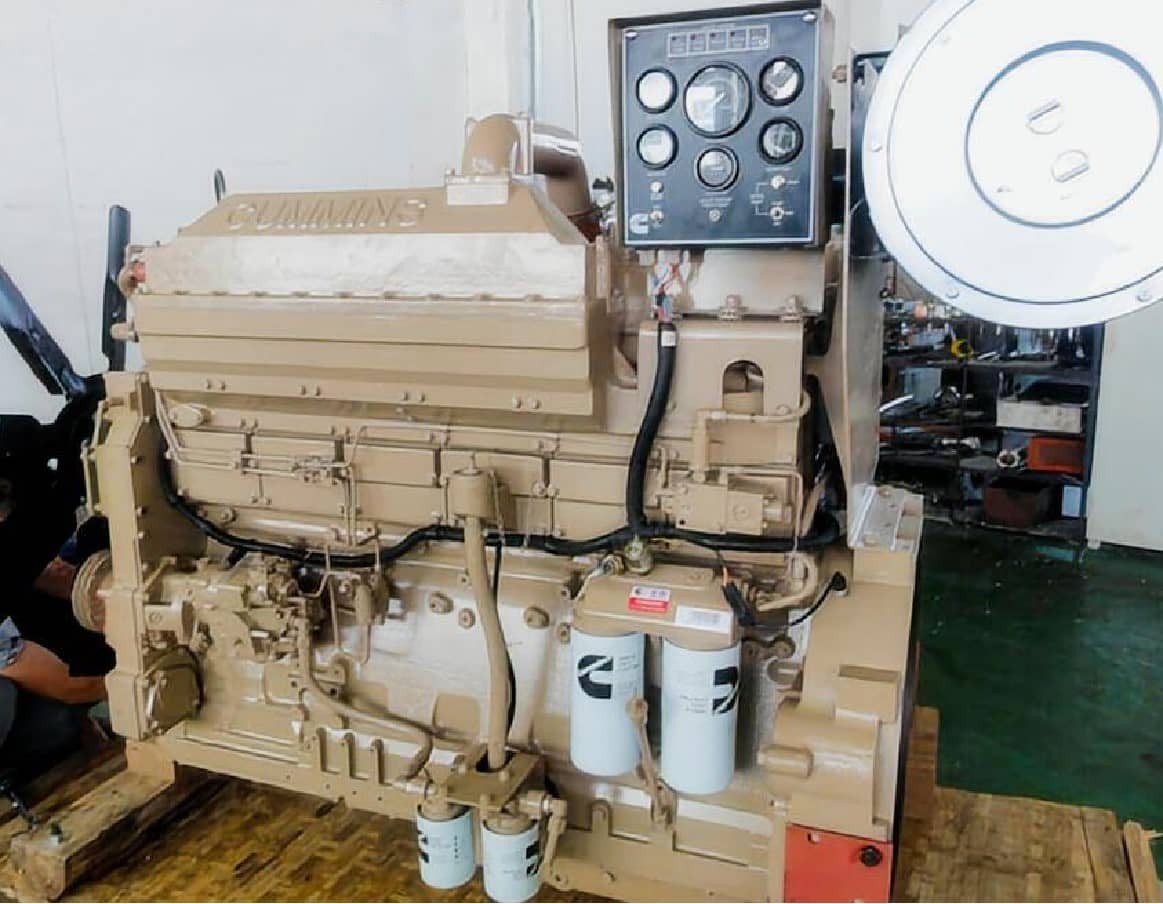

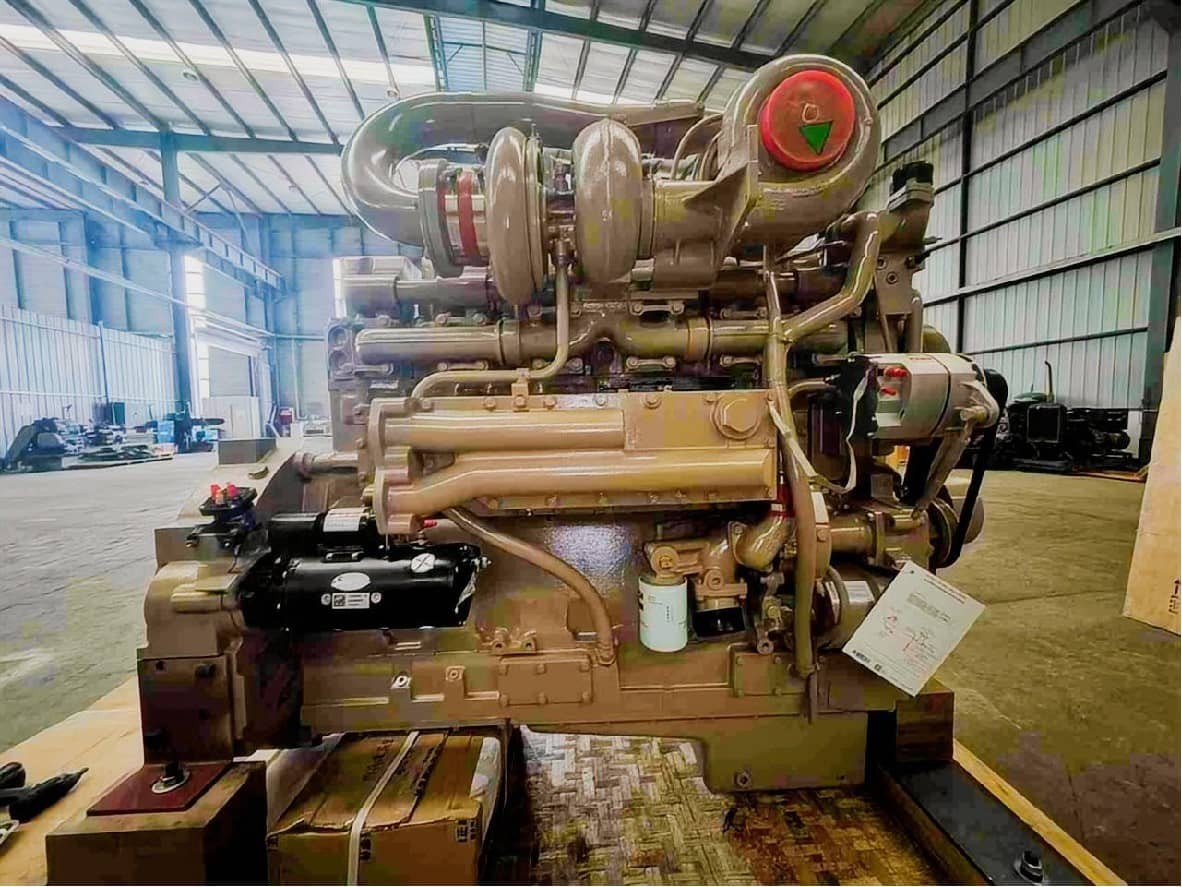

Cummins KTA19-P600 Industrial & Pump Engine Assembly (600HP)
When heavy industry demands unrelenting mechanical power, the Cummins KTA19-P600 stands as a proven benchmark. Manufactured by the Chongqing Cummins Engine Company (CCEC), this heavy-duty diesel engine delivers a rated output of 448kW (600HP) at 1500 to 1800 RPM. As a dedicated Cummins KTA19 engine supplier, HekoPower provides complete engine assemblies tailored for high-demand applications, including water pump power packs, mining equipment, oilfield machinery, and marine propulsion systems.
Unlike lighter commercial variants, the KTA19-P600 is built for continuous, brutal workloads. It operates on a fully mechanical platform, meaning it avoids the complex electronic sensors that frequently fail in severe environments like dusty mining pits or damp marine engine rooms. We supply the original Cummins KTA19-P600 engine assembly directly from the factory, ensuring our global clients receive genuine equipment ready for immediate deployment.
Tech Specs of Cummins KTA19-P600
General Engine Data
Engine Model: Cummins KTA19-P600
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Overall Dimension: 2150mm*966mm*1704mm
Net Weight (with flywheel & alternator): 1699 Kg
Key Performance Data
Rated Power: 448 kW/600HP
Rated Speed: 1500/1800 rpm
Continuous Output/Rated Speed: 351 kW/470HP @1800 rpm
Max Torque/Speed: 2374 N.m @ 1751 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
Max. Continuous Running Altitude: 2000 m
Idle Speed: 625 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Ratio: 13.9:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 30 L
Real Application Scenarios
The versatility of the Cummins K19 industrial power engine allows it to serve multiple sectors. HekoPower customizes the physical setup, including flywheels and cooling arrays, based on your exact end-use.
High-Capacity Water Pump Power Packs
The KTA19-P600 pump engine is primarily deployed in municipal water management, flood control, and large-scale agricultural irrigation. When configured as a Cummins KTA19-P600 water pump power pack, the engine provides the massive low-end torque required to drive large centrifugal pumps. It maintains stable RPMs during sudden pressure drops, preventing stall conditions when moving thousands of gallons per minute against heavy head pressure.
Heavy Construction and Mining Equipment
Mining and earthmoving operations subject machinery to extreme mechanical stress. The Cummins KTA19 engine for mining equipment and industrial excavators is favored because of its mechanical governor. When an excavator hits a dense rock vein, the mechanical governor instantly adjusts fuel delivery to maintain RPM without the split-second lag sometimes seen in early electronic control modules. HekoPower frequently supplies the Cummins KTA19-P600 replacement engine for aging construction machinery, minimizing downtime for fleet operators.
Oilfield Equipment and Rig Power
In the oil and gas sector, reliability is non-negotiable. The Cummins KTA19-P600 for oilfield equipment is frequently used to power mud pumps, drawworks, and mobile drilling rigs. The engine's ability to operate in extreme ambient temperatures—from freezing tundra to desert heat—makes it a staple in remote extraction sites where electrical grid power is unavailable.
Commercial Marine Propulsion
While highly regarded as an industrial land-based unit, specific modifications allow the KTA19-P600 marine propulsion engine to drive tugboats, fishing trawlers, and heavy cargo vessels. Paired with an Advance HC400 marine transmission, the engine delivers consistent, reliable thrust. Its fluid cooling system and robust oil cooler maintain safe operating temperatures even during continuous 24-hour voyages across turbulent waters.
Technical Comparisons in the Heavy-Duty Market
Buyers often weigh the Cummins KTA19-P600 against other models in the Cummins lineup or competitor brands. Understanding these differences is crucial for procurement and fleet standardization.
KTA19-P600 vs. QSK19
The QSK19 is the modernized, electronic sibling of the KTA19. While the QSK19 offers slightly better emissions compliance and detailed digital diagnostics, the KTA19-P600 mechanical diesel engine wins decisively on field serviceability. If a fuel injector clogs at a remote oilfield in Africa or South America, a mechanic can service the KTA19's PT fuel system with basic hand tools. The QSK19 requires specialized diagnostic laptops and electronic part replacements. For extreme remote operations, the mechanical KTA19 remains the preferred choice.
KTA19-P600 vs. NTA855
Both are legendary CCEC products, but they serve different scale requirements. The NTA855 typically maxes out around 373kW (500HP). When an industrial application crosses the 400kW threshold, upgrading to the KTA19-P600 industrial power solution provides a larger 18.9L displacement compared to the 14L NTA855. This means the KTA19 operates under significantly less internal stress at 600HP than a smaller block pushed to its absolute limits, resulting in longer intervals between overhauls and cooler operating temperatures.
Maintenance and Replacement Tips
Maximizing the lifespan of a heavy-duty diesel engine requires strict adherence to maintenance schedules. HekoPower acts as a reliable Cummins KTA19-P600 engine supplier that provides complete lifecycle support, well beyond the initial point of sale.
Servicing the PT Fuel System
The most critical component on this engine is the PT fuel pump. Operators must ensure fuel filters are changed exactly at the 250-hour mark. Contaminated diesel is the primary cause of poor performance and premature wear. We highly recommend draining the water separator daily before startup. If you experience unexpected power loss, always check the PT pump actuator and fuel line pressure before assuming internal mechanical failure.
Coolant and Thermal Management
Never run straight water in the cooling system. The Cummins KTA19-P600 cooling system requires a 50/50 mix of high-quality water and heavy-duty antifreeze formulated with Supplemental Coolant Additives (SCA). These specific additives prevent cylinder liner pitting—a destructive phenomenon where imploding coolant bubbles slowly erode the cast iron liners from the outside in. Operators should test the coolant chemistry every 500 hours using standard test strips.
Preparing for a Major Overhaul
A well-maintained KTA19 can easily exceed 20,000 hours before requiring a major teardown. When that time comes, HekoPower provides comprehensive Cummins KTA19-P600 genuine spare parts support. Avoid mixing aftermarket and genuine parts during a Cummins KTA19-P600 engine overhaul. Differences in piston metallurgy, main bearing tolerances, or turbocharger balancing between aftermarket brands can lead to catastrophic failure under full load. Always insist on original CCEC replacement components.
Common Misconceptions About the KTA19 Series
Misconception: Mechanical engines are inefficient fuel guzzlers compared to modern electronics.
Reality: While they do not have the micro-adjustments of Common Rail systems, the KTA19-P600 fuel consumption is heavily optimized by its Step Timing Control (STC). This system mechanically advances or retards fuel injection timing based on load, resulting in excellent fuel economy for an 18.9L engine without the fragility of electronic sensors.
Misconception: You cannot buy brand new KTA19 engines anymore; everything on the market is rebuilt.
Reality: While they are phased out of on-highway commercial trucks in some regions due to strict emissions, the Chongqing Cummins (CCEC) joint venture continues to manufacture the original Cummins KTA19-P600 engine assembly for global industrial, marine, and pump markets. HekoPower guarantees factory-tested, brand-new blocks directly from the assembly line.
Cummins k19-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-C450, KTA19-C525, KTA19-C600, KTAA19-C700, KTTA19-C700, KTA19-P450, KTA19-P500, KTA19-P600, KTA19-P680, KTA19-P700, KTA19-P750.
Frequently Asked Questions
What is the original Cummins KTA19-P600 engine price?
Pricing fluctuates based on raw material costs, currency exchange rates, and your specific technical configurations (such as adding heavy-duty radiators or marine gearboxes). As a Chongqing Cummins wholesale supplier, HekoPower offers highly competitive B2B rates. Please contact our technical sales team with your exact specifications for a formal, itemized quote.
What is the standard Cummins KTA19-P600 delivery time?
For standard bare engine configurations, our typical factory lead time is 15 to 30 working days to prepare the unit for freight. As a reliable partner for Cummins KTA19-P600 engine export from China, we handle all heavy-freight logistics, crating, and customs documentation to ensure fast worldwide delivery to your port of choice.
Do you supply the Cummins KTA19-P600 spare parts list and service manual?
Yes. Every new engine purchased through HekoPower includes the official operation documentation and service schedules. We also maintain a vast inventory of KTA19-P600 genuine parts and accessories, ensuring our clients have immediate access to replacement filters, injectors, cylinder heads, and turbochargers long after the initial purchase.
Can I buy the engine fully configured as a power pack?
Absolutely. We specialize in supplying the Cummins KTA19-P600 ready to ship as a complete, drop-in power pack. Whether you need an industrial skid with a radiator, fan, and PTO clutch for a water pump, or a marine setup with remote controllers and coupling, our engineering team builds and tests the complete package before it leaves our facility.
