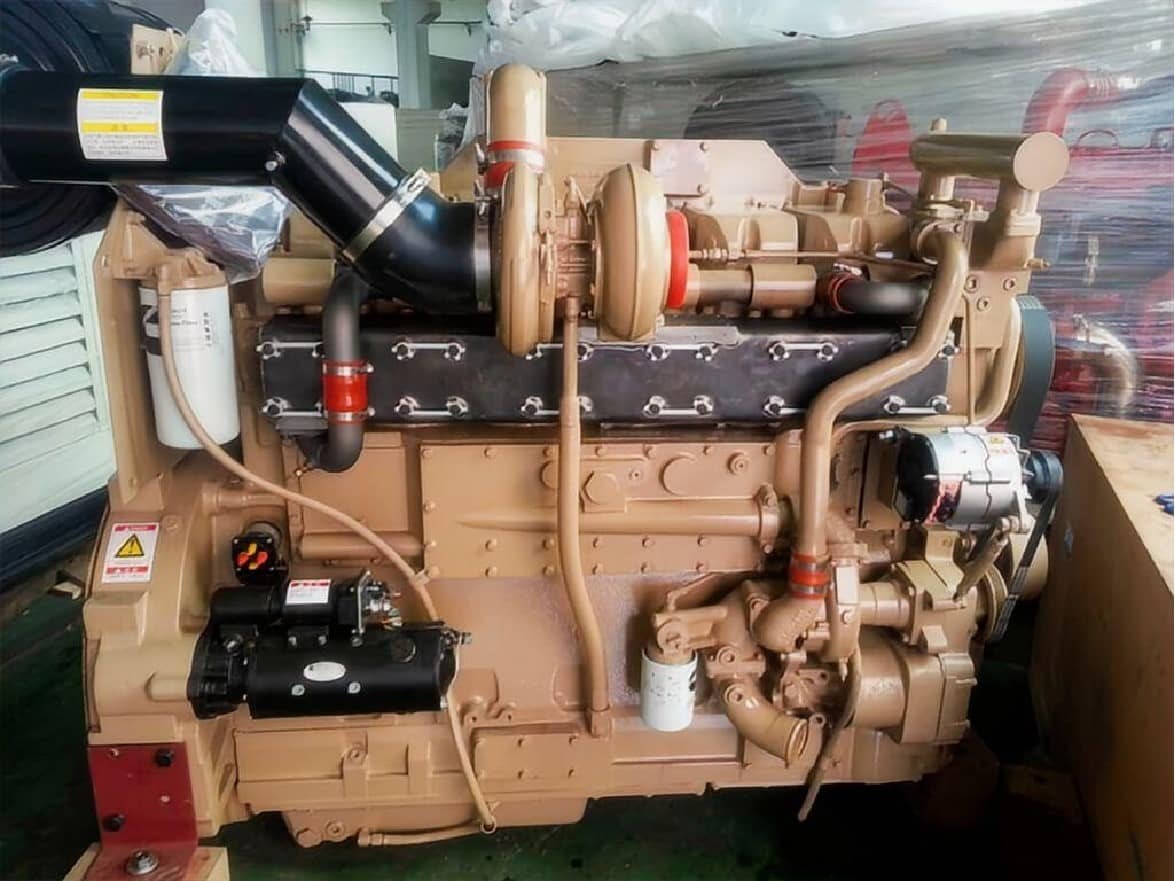

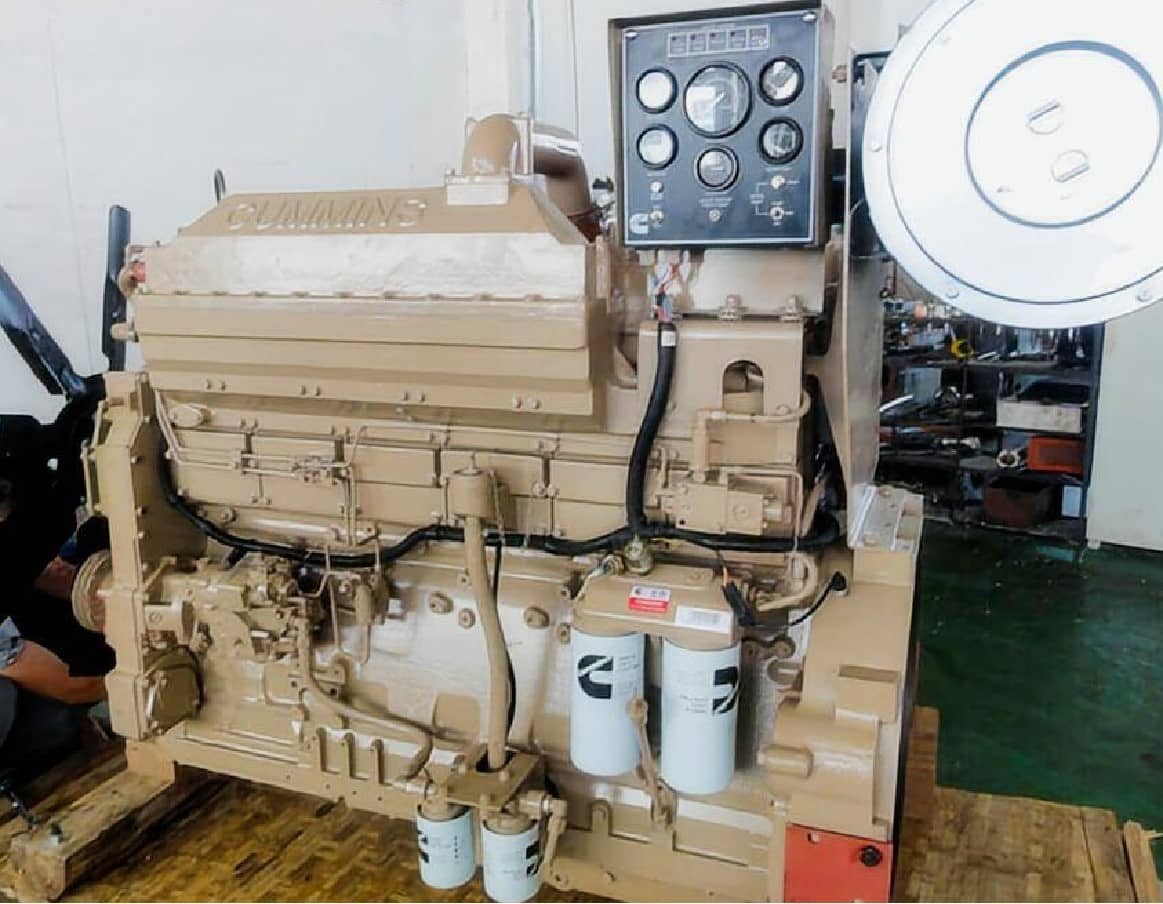

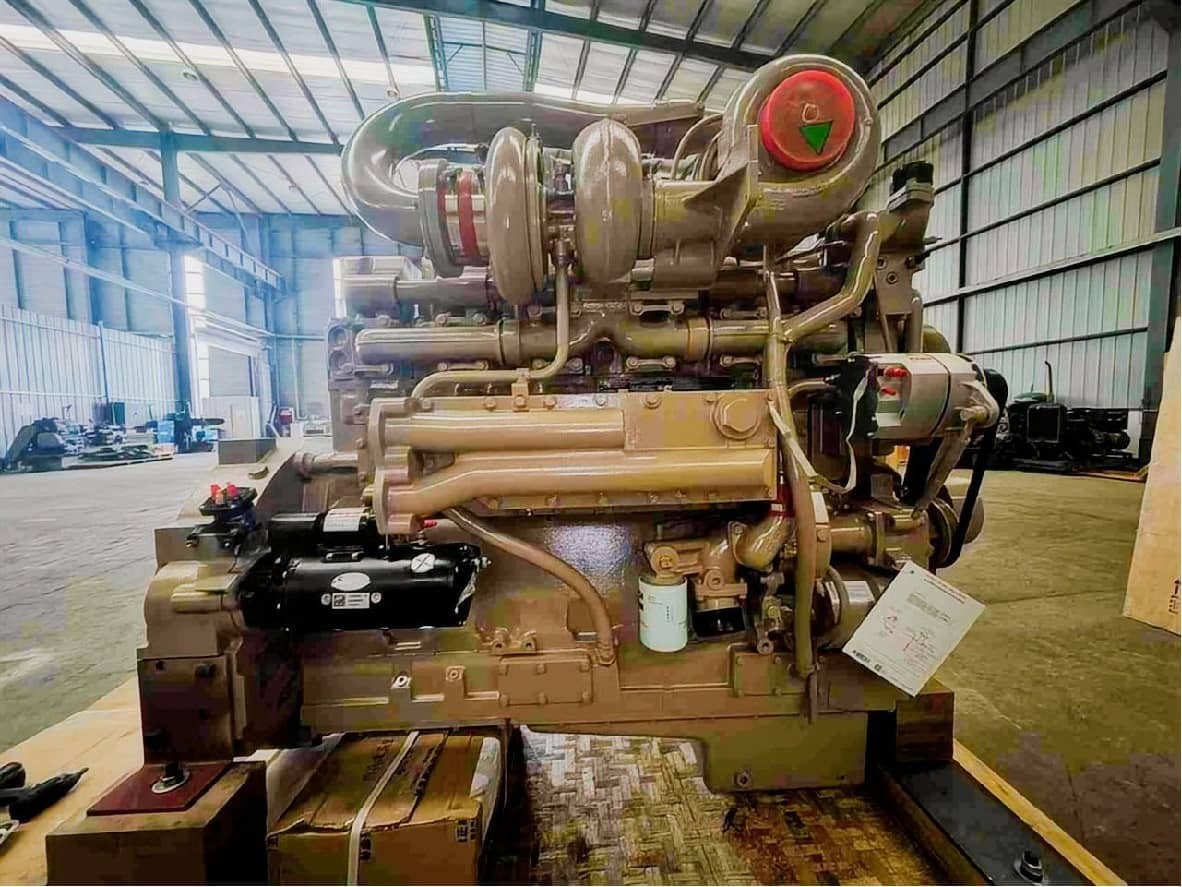

Cummins KTA19-P500 Engine: 500HP Chongqing CCEC Industrial Power Solution
The Cummins KTA19-P500 engine is a heavy-duty 19L inline 6-cylinder diesel engine designed for industrial and pump drive applications. As part of the proven K19 series, this model delivers 371kW (500HP) reliable output, making it an ideal solution for high-demand environments such as fire pump systems, irrigation projects, and mining dewatering operations.
As a professional supplier, HekoPower provides genuine CCEC (Chongqing Cummins) KTA19-P500 engines, ensuring stable performance, fast delivery, and global support services.
Tech Specs of Cummins KTA19-P500 Engine
General Engine Data
Engine Model: Cummins KTA19-P500
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Overall Dimension: 2150mm*966mm*1704mm
Net Weight (with flywheel & alternator): 1699 Kg
Key Performance Data
Rated Power: 371 kW/500HP
Rated Speed: 1500/1800 rpm
Max Torque/Speed: 1978 N.m @ 1575 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Ratio: 15.5:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 30 L
Why Choose the KTA19-P500 for Industrial Pump Applications?
The KTA19-P500 is not just a generic diesel engine; it is engineered for the rigorous demands of industrial pump drive scenarios. While many competitors offer similar horsepower ratings, the Cummins KTA19-P500 stands out due to its specific calibration for constant load variations found in fire fighting pump and mining dewatering pump systems.
High Torque at Low RPM
With a maximum torque of 1978 N.m @ 1575 rpm, this heavy-duty pump engine 500HP ensures rapid response times critical for high-pressure water pump units.
Mechanical Reliability
Featuring the robust Cummins PT fuel system working principle, the KTA19-P500 eliminates complex electronics, making it the ideal replacement engine for CAT 3406 industrial applications in remote locations like oil and gas fields.
Versatility
From agricultural water pump and concrete mixer applications to national defence and railway power packs, this 19L diesel engine adapts to diverse environments, capable of operating at altitudes up to 2000m with simple adjustments.
Application Scenarios of KTA19-P500 Engine
Fire Pump Systems
The Cummins KTA19-P500 diesel engine is suitable for fire fighting pump systems, offering stable output under emergency conditions and supporting NFPA-related project requirements.
Industrial Water Pump Units
It is commonly used in:
- High-pressure water transfer systems
- Irrigation pump stations
- Flood control and municipal drainage
Mining and Oilfield Applications
This model is ideal for:
- Mining dewatering pumps
- Oilfield drilling rigs
- Heavy-duty continuous operation scenarios
Selection Guide: KTA19-P500 vs. KTA19-P525 and P600
Choosing the right power output is critical for operational efficiency.
- KTA19-P500 vs KTA19-P525: While both share the 19L block, the P525 offers a slight power boost for heavier loads.
- Difference between Cummins KTA19-P500 and KTA19-P600: The P600 is tuned for maximum output, but the P500 offers a better fuel consumption of KTA19-P500 engine per hour for continuous steady-state operation.
- KTA19-P500 vs KTA19-G3: The "P" series is a mechanical drive for pumps/industrial tools, whereas the "G" series is optimized for generator sets.
Why Choose HekoPower CCEC KTA19-P500
Genuine Supply and Quality Assurance
HekoPower supplies original CCEC Cummins engines, ensuring:
- Factory-tested quality
- Complete engine assembly availability
- Global export standards
Flexible Commercial Terms
We support:
- Competitive wholesale pricing
- Payment terms (T/T, L/C)
- Fast delivery (typically 7–25 days depending on stock)
After-Sales Support
- 12-month warranty
- Spare parts supply
- Technical consultation
Cummins k19-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-C450, KTA19-C525, KTA19-C600, KTAA19-C700, KTTA19-C700, KTA19-P450, KTA19-P500, KTA19-P600, KTA19-P680, KTA19-P700, KTA19-P750.
