Details

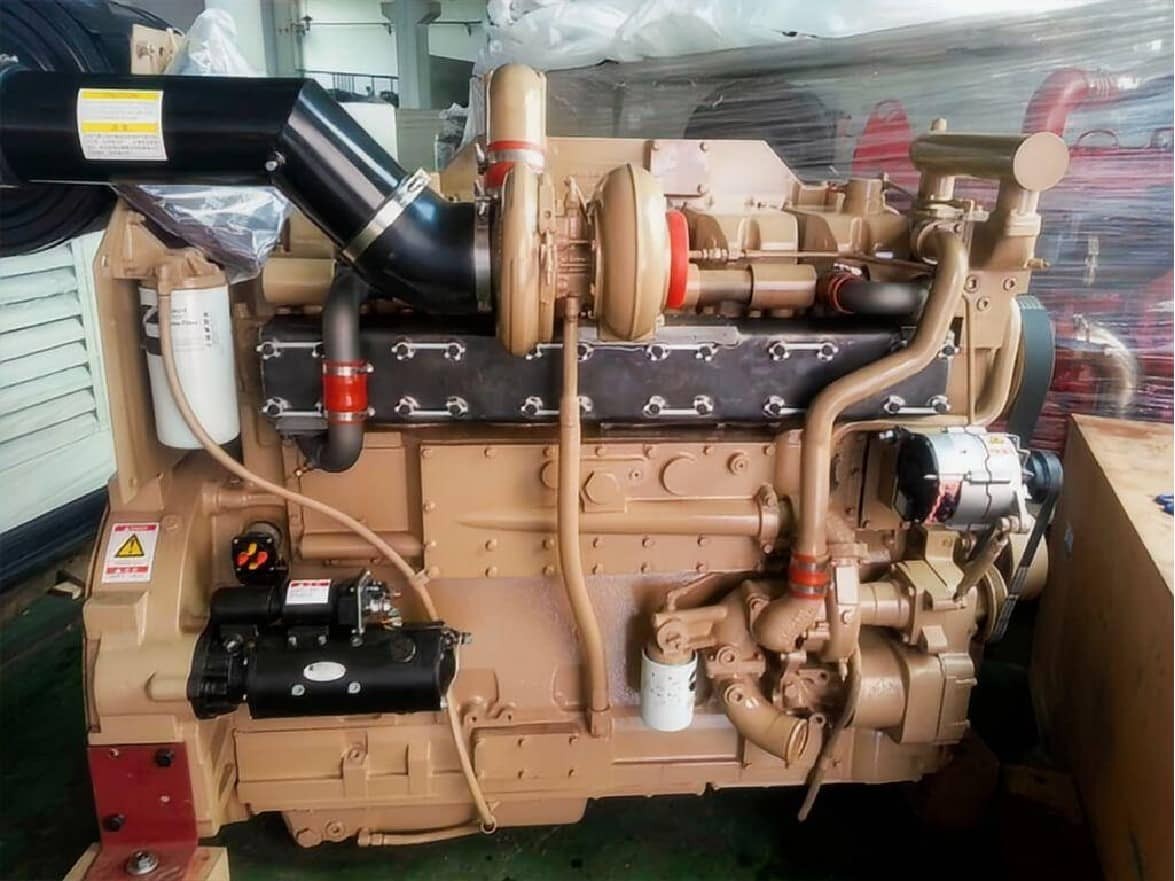

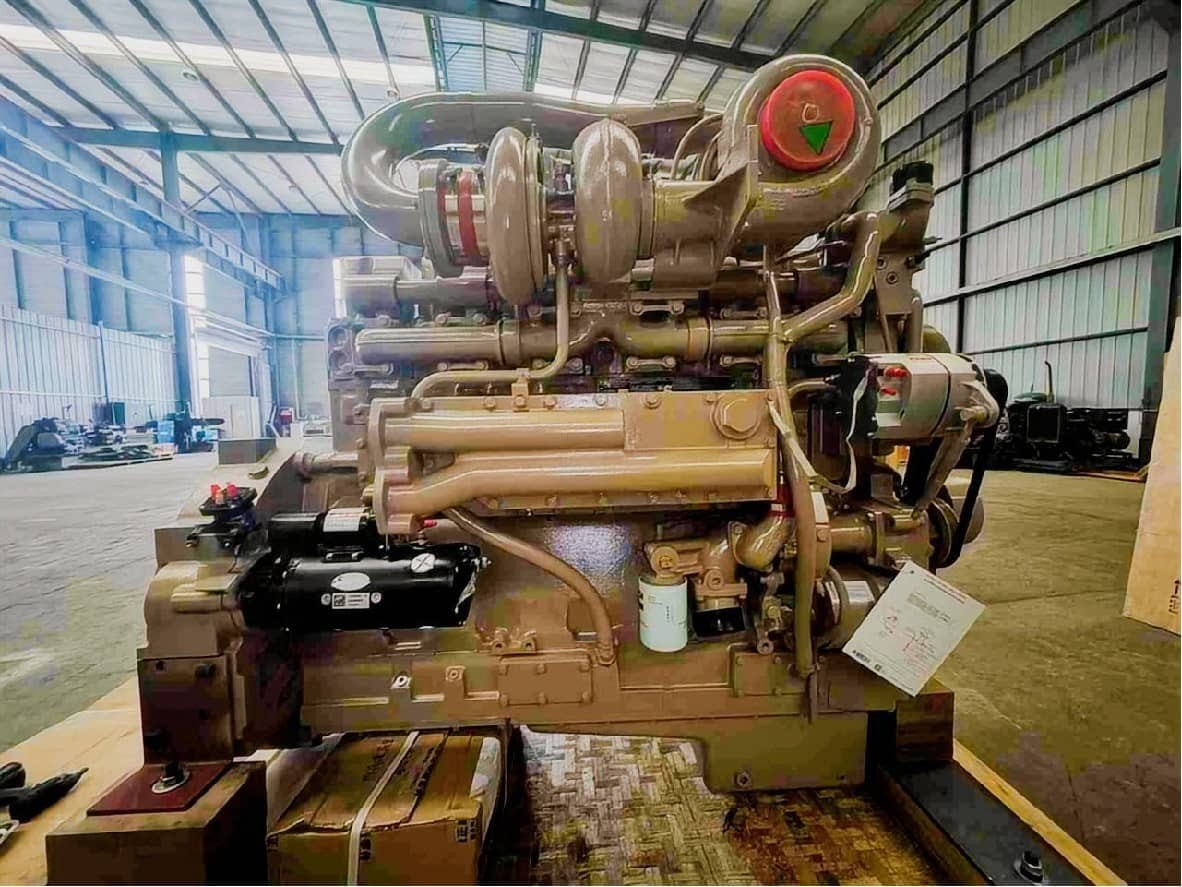

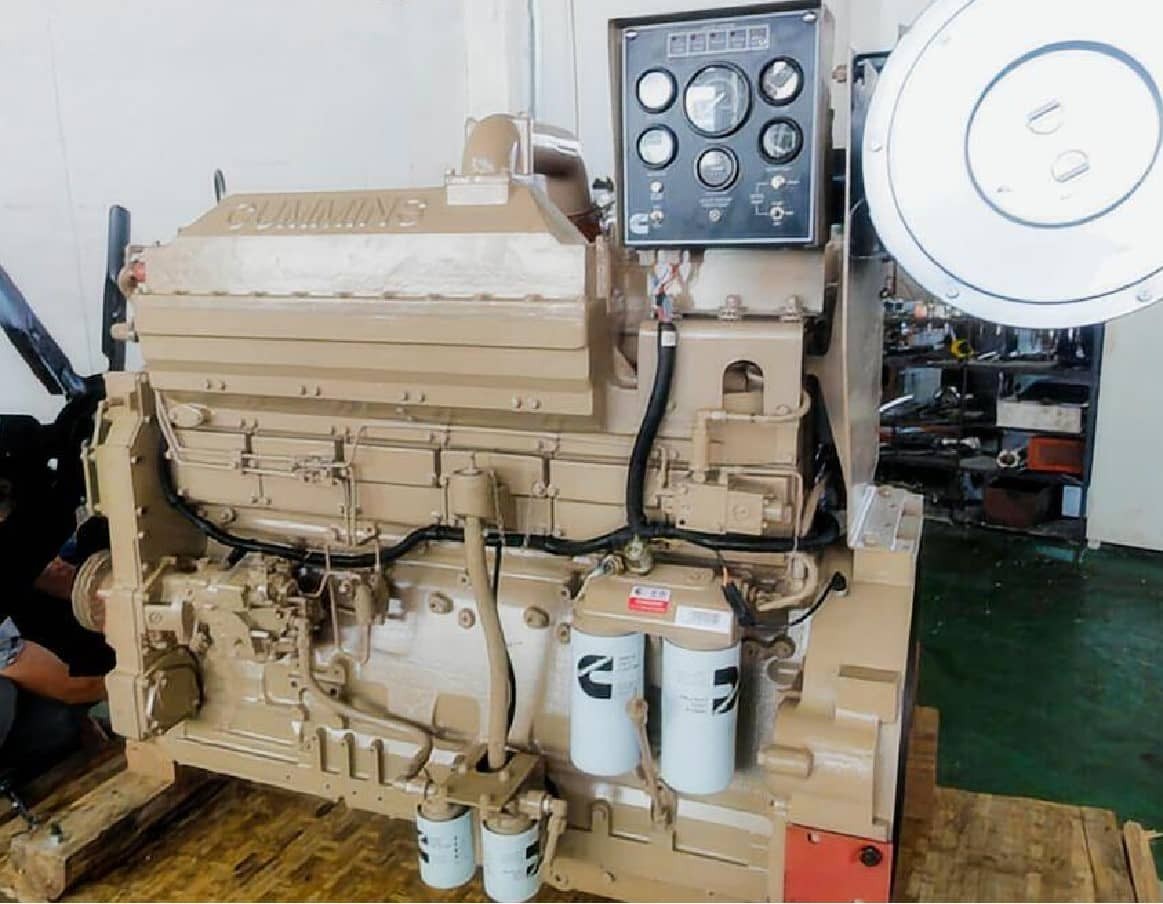

Authentic CCEC Cummins KTA19-C600 Heavy Construction Engine
When heavy industry demands unrelenting power without the fragility of complex electronics, the Cummins KTA19-C600 construction engine assembly stands as the ultimate solution. Manufactured by the renowned Chongqing Cummins Engine Company (CCEC), this heavy-duty 19-liter inline six-cylinder diesel engine is engineered specifically for the most punishing off-highway environments. As a direct, trusted supplier, HekoPower provides the genuine Chongqing Cummins K19-C 448kW industrial power unit directly to global mining operators, heavy construction firms, and equipment manufacturers. Getting an original CCEC KTA19-C600 replacement engine means securing a massive leap in operational reliability. We supply the KTA19-C600 D193029CX02 complete engine thoroughly inspected, perfectly calibrated, and ready to drop into your high-capacity machinery, ensuring your operations never miss a shift.
Tech Specs of CCEC Cummins KTA19-C600
General Engine Data
Engine Model: Cummins KTA19-C600
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Overall Dimension: 2150mm*966mm*1704mm
Net Weight (with flywheel & alternator): 1699 Kg
Key Performance Data
Rated Power: 448 kW/600HP
Rated Speed: 2100 rpm
Max Torque/Speed: 2237 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Ratio: 15.5:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 30 L
Distinctive Technical Capabilities and Comparisons
Analyzing the engineering behind the Cummins KTA19-C600 reveals why it remains a foundational pillar in heavy industry, sharply contrasting with modern, hyper-electronic common-rail engines. Where newer platforms rely on sensitive sensors and delicate wiring harnesses that frequently fail in high-dust, high-vibration environments, this engine utilizes a purely mechanical PT-STC (Pressure-Time Step Timing Control) fuel system. This KTA19-C600 PT-STC fuel system engine specification ensures that field technicians can perform maintenance and adjustments with basic hand tools rather than proprietary diagnostic laptops.
When comparing this specific CPL 0447 engine to its lower-output K19 siblings, the differences are profound. Governed by the aggressive Cummins 600HP C-4129-C performance curve diesel engine mapping, it produces a peak output of 448kW (600HP) at 2100 RPM. More importantly for heavy hauling, it generates a staggering maximum torque of 2237 Nm at a low 1500 rpm. This low-end grunt is achieved through a perfectly square 159 x 159 mm engine bore and stroke configuration, allowing for immense cylinder expansion without excessive piston speed. Combined with a 15.5:1 compression ratio and a highly efficient turbocharged and water-air intercooled aspiration system, the KTA19-C600 Euro II diesel engine delivers a robust continuous output of 351kW (470HP). It manages this immense mechanical and thermal load through compulsive cold-cut articulated pistons, providing a level of structural integrity that allows this Cummins KTA19 19L engine to rival much larger displacement marine blocks.
Proven Real-World Application Scenarios
Dominating the Mining Sector with BelAZ
The true proving ground for the Cummins KTA19-C600 mining engine is deep within open-pit operations. It is the primary driving force behind some of the toughest hauling vehicles on earth, most notably serving as the standard KTA19-C600 engine for BelAZ 75473, 75450, and 75453 dump trucks. These massive vehicles execute repeated loaded haul cycles, climbing steep inclines out of mine shafts while carrying maximum payloads. The continuous 351kW continuous power rating ensures the truck does not bog down on aggressive grades, while the mechanical PT fuel system ignores the suffocating dust that chokes modern electronic sensors. For fleet managers, securing a reliable Cummins KTA19-C600 replacement engine for BelAZ trucks is critical to maintaining profitability, as the robust block geometry prevents catastrophic thermal failure during continuous high-load mining engine operations.
Supplying Torque for Excavators, Drilling Rigs, and Crushers
Beyond hauling, the KTA19-C600 heavy construction machinery engine is the backbone of stationary and tracked extraction equipment. When performing a Cummins KTA19-C600 engine replacement for a rotary drilling rig, operators immediately notice the responsiveness of the mechanical governor. As the drill bit suddenly hits a dense layer of subterranean bedrock, the mechanical injection system instantly commands more fuel to maintain the 2100 RPM engine speed, preventing the drill from stalling. Similarly, utilizing a CCEC KTA19 C600 engine repower for a mining excavator or a heavy rock crusher guarantees that the equipment can withstand continuous, violent vibrations. A Cummins 600 HP 2100 RPM engine for a heavy rock crusher must endure brutal, sudden load spikes, and the KTA19-C600 absorbs these mechanical shocks easily thanks to its high-strength cast iron block and heavily reinforced crankshaft thrust bearings.
Vital Maintenance and Overhaul Replacement Guidelines
Keeping this massive Cummins KTA19-C600 600HP engine operational requires strict adherence to fluid maintenance and component inspection. The engine block itself features a generous 30-liter internal cooling system capacity. Monitoring this KTA19-C600 coolant capacity and ensuring the water-air intercooler remains free of mineral scale is vital to preventing overheating causes during prolonged 470HP continuous output cycles. Regular KTA19-C600 PT pump maintenance and precise PT fuel system adjustment dictate the overall fuel efficiency and power delivery.
When an engine reaches the end of its operational lifecycle, HekoPower offers options tailored to your specific repair strategy. Buyers must decide between a KTA19-C600 bare engine block vs a full construction power unit. A bare block is ideal for a cost-effective rebuild where the existing flywheel housing, starter, and exhaust manifolds are still intact. Conversely, purchasing a KTA19-C600 complete power unit provides a true plug-and-play solution. Our complete power packages eliminate downtime associated with transferring old accessories and guarantee perfect KTA19-C600 SAE housing compatibility right out of the crate. We also supply all necessary KTA19-C600 overhaul parts, including high-grade wet liner maintenance kits and authentic gasket sets to ensure your rebuild lasts.
Dispelling Common Operational Misconceptions
A frequent and costly mistake made by heavy machinery operators involves misdiagnosing power loss. When a KTA19-C600 BelAZ dump truck engine begins to lose power on a haul road, inexperienced technicians often assume the wet liners are worn out and quote a massive CCEC KTA19-C600 overhaul replacement engine price. In reality, the engine is likely perfectly fine. In heavy dust environments, a severely restricted air filter or a drop in PT pump output pressure will drastically cut horsepower long before internal wear occurs. Always check intake restriction indicators and fuel flow first.
Another major misconception involves altitude. If you relocate a machine equipped with a KTA19-C600 19L diesel engine to a high-altitude mining site, it will lose power and run rich. This is not an engine failure; the mechanical PT pump simply does not know the air is thinner. A quick recalibration of the fuel system restores proper air-fuel ratios. Finally, do not mistake high oil consumption for failed piston rings right away. Before tearing down the block, inspect the KTA19-C600 turbocharger maintenance history. Blown turbocharger oil seals are a common byproduct of sustained heavy loading and cause massive oil burn. Replacing a turbo is a swift, component-level fix that saves thousands of dollars compared to an unnecessary full engine overhaul.
Seamless Integration within the K19 Family
While the KTA19-C600 stands as the premier 600-horsepower mechanical solution for the world's most demanding environments, the versatility of the K19 block allows it to be adapted for a wide variety of industrial needs. HekoPower provides comprehensive engine solutions across the entire displacement range, ensuring that whether you need lower horsepower for continuous stationary pumping or a different configuration entirely, the exact specification is available. We invite you to explore the broader capabilities of this legendary engine family to find the perfect match for your specialized equipment.
Cummins k19-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-C450, KTA19-C525, KTA19-C600, KTAA19-C700, KTTA19-C700, KTA19-P450, KTA19-P500, KTA19-P600, KTA19-P680, KTA19-P700, KTA19-P750.
Frequently Asked Questions (FAQ)
What is the fuel efficiency of this engine under working conditions?
Despite its massive displacement, the engine is surprisingly efficient. The KTA19-C600 fuel consumption at rated load hovers around an impressive 210g/kWh fuel consumption rate. This efficiency scales well; the KTA19-C600 fuel consumption at partial load remains highly economical thanks to the direct injection mechanics and symmetrical combustion chambers that ensure thorough fuel atomization.
Can the KTA19-C600 replace a KTA19-C525?
Yes, they are physically compatible in many housings, but the C600 has different turbocharging and fuel settings to achieve the higher 600HP output. Always check your SAE housing compatibility.
What are the physical dimensions and electrical requirements for installation?
The original CCEC Cummins KTA19-C600 engine dimensions and wet weight are significant considerations for repowers. It features a wet weight of approximately 1699 kg and requires substantial mounting hardware to manage the extreme torque output. Regarding the electrical configuration, the system utilizes a standard KTA19-C600 12V or 24V electrical system, though heavy construction variants overwhelmingly utilize a robust 24V KTA19-C600 starter voltage to guarantee reliable cold cranking in freezing, remote environments.
How does HekoPower handle the fulfillment of these large power units?
As a dedicated KTA19-C600 genuine engine supplier, we prioritize secure logistics. The typical KTA19-C600 engine lead time is optimized for rapid deployment. Every unit is secured using heavy-duty export sea packaging to protect the critical components from moisture and physical impact during global transit. Whether you need a single KTA19-C600 engine assembly for sale or are inquiring about a KTA19-C600 wholesale price for a fleet-wide refit, our logistics team ensures it arrives ready to work.
