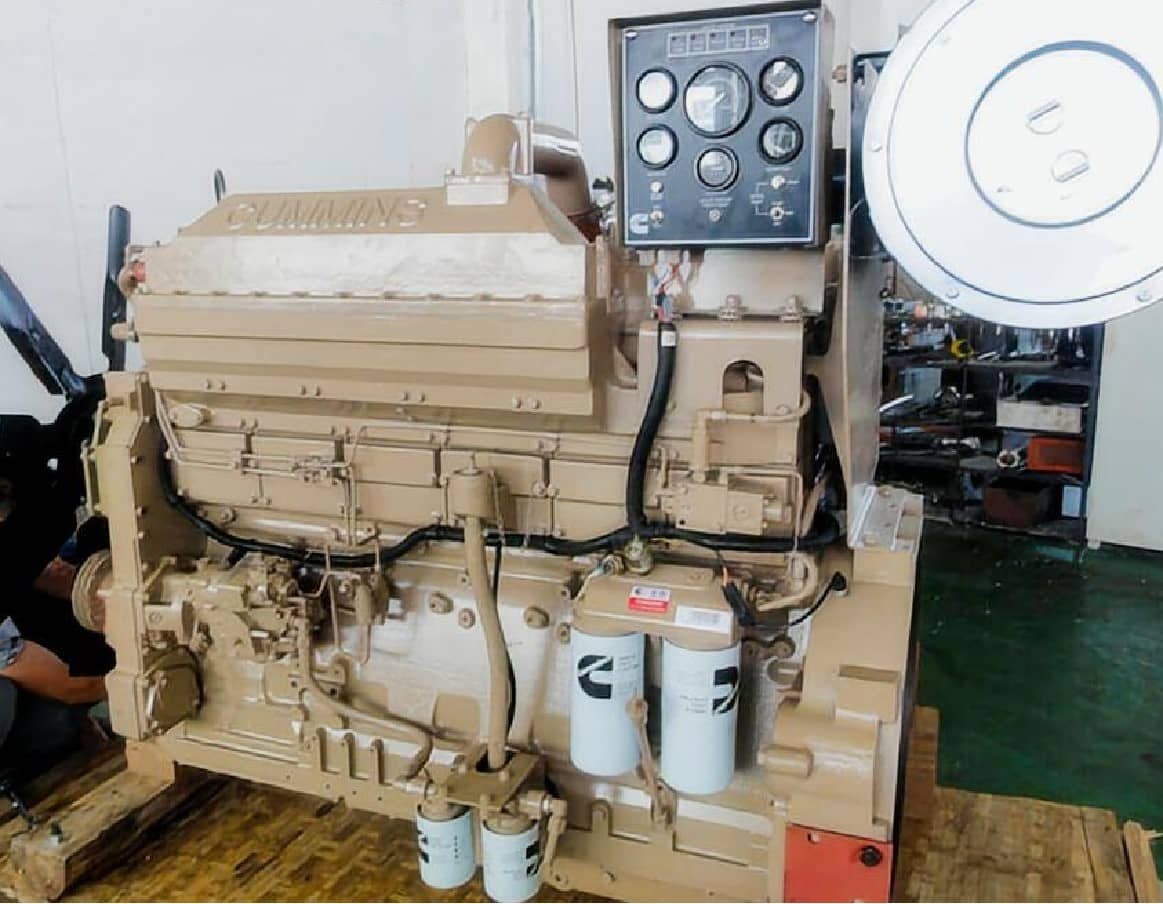

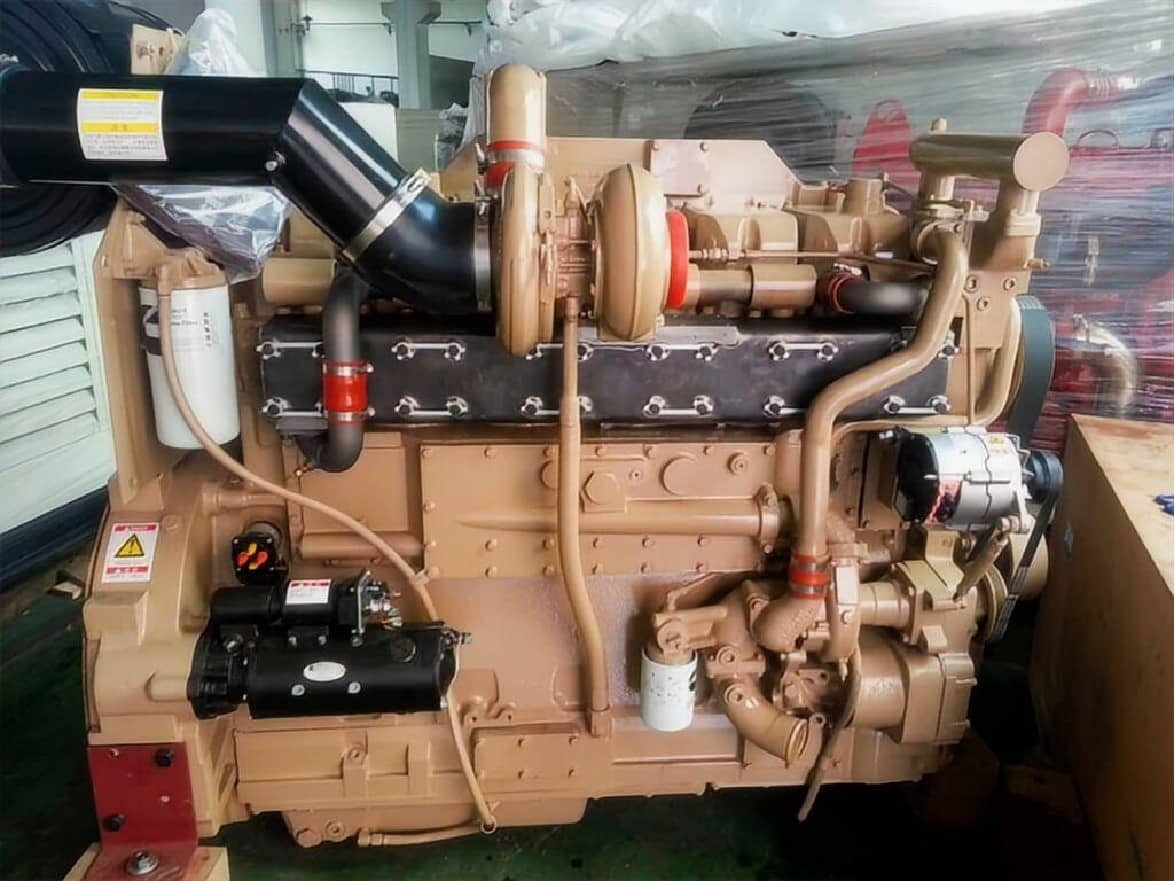

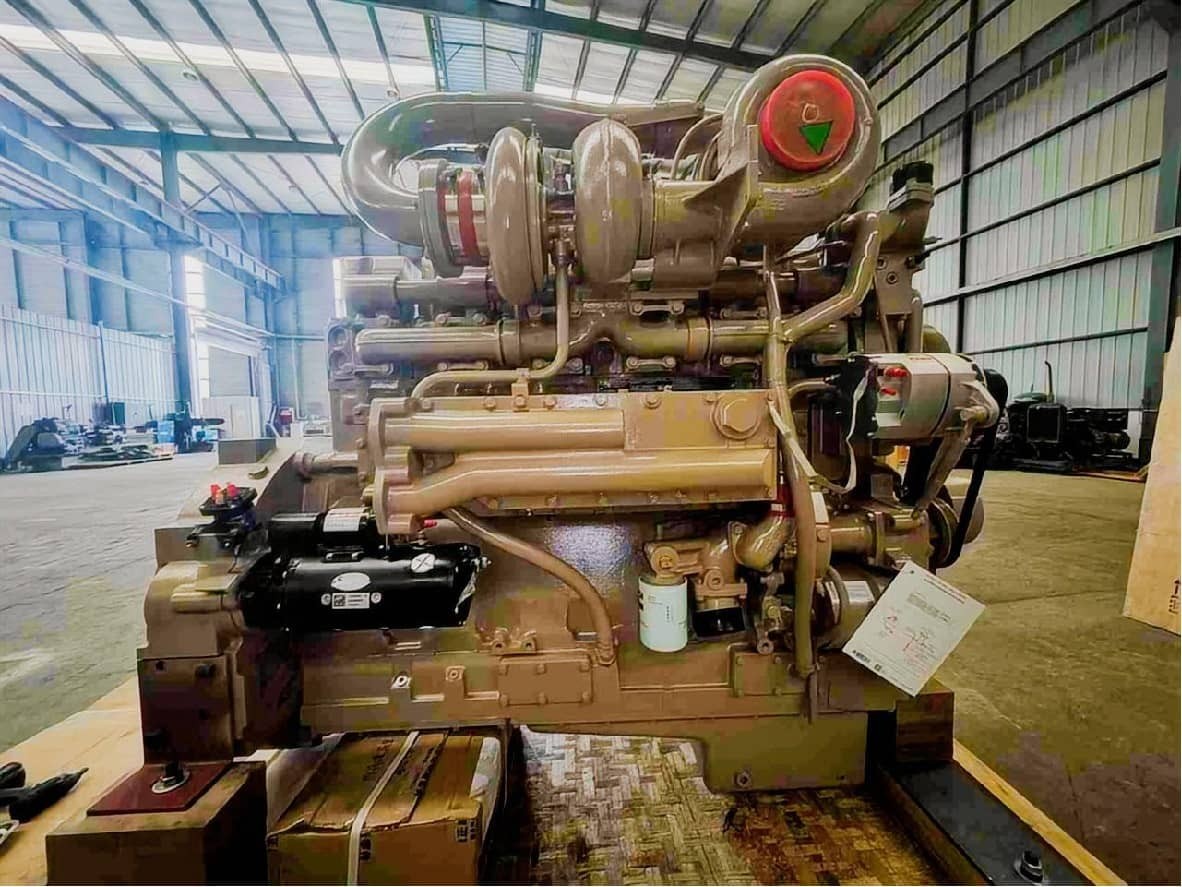

CCEC Cummins KTA19-C525 Replacement Engine: 392kW Heavy-Duty Assembly
When your heavy machinery faces catastrophic engine failure or severe loss of compression, finding a reliable drop-in solution is critical to minimizing downtime. HekoPower is a trusted CCEC KTA19-C525 engine supplier, providing brand new, authentic engine assemblies direct from the Chongqing Cummins facility.
The Cummins KTA19-C525 engine delivers 525 HP and 392 kW of raw mechanical power. Built specifically for harsh environments, this 19 liter diesel engine is not a generic vehicle motor. It is a purpose-built industrial powerplant. With a dry weight of 1,699 kg and a robust 6-cylinder in-line cast iron block, this Euro II Cummins KTA19-C525 industrial engine is engineered for maximum durability under continuous heavy loads.
Tech Specs of Cummins KTA19-C525
General Engine Data
Engine Model: Cummins KTA19-C525
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Overall Dimension: 2150mm*966mm*1704mm
Net Weight (with flywheel & alternator): 1699 Kg
Key Performance Data
Rated Power: 392 kW/525HP
Rated Speed: 2100 rpm
Continuous Output/Rated Speed: 318 kW/426HP @1800 rpm
Max Torque/Speed: 1870 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Ratio: 15.5:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 30 L
Real-World Application Scenarios
Most suppliers simply list every possible vehicle a motor could fit into. However, understanding the exact power curve of the Cummins KTA19-C525 construction engine is crucial for proper machinery matching.
This specific 525 HP Cummins construction engine excels in high-resistance applications. For example, it is a highly sought-after Cummins KTA19-C525 replacement engine for heavy-duty excavators in the 50-to-70-ton class. The engine’s ability to generate immense torque at lower RPMs allows excavator hydraulics to operate smoothly without stalling when breaking hard rock.
Similarly, this motor is an ideal 392kW diesel engine power pack for rotary drilling rigs. Drilling equipment requires sustained power output over long shifts. The KTA19-C525 max torque output for continuous running sits at a massive 1870 N.m at just 1500 RPM. This low-end grunt prevents drill bits from binding. We also frequently supply this model to clients upgrading to Cummins KTA19-C525 for marine and construction pumps, as well as for those needing a reliable Cummins KTA19-C525 wheel loader engine for severe mining environments.
KTA19-C525 Engine Selection Guide: Technical Comparisons
Clients often ask our engineers which Cummins KTA19 engine for construction equipment they should select. Choosing the wrong horsepower rating can lead to either sluggish performance or excessive fuel burn.
KTA19-C525 vs KTA19-C450
The KTA19-C450 produces 450 horsepower. It is a highly capable motor, but it often struggles in heavy mining applications. If your equipment operates at high altitudes (up to 2000 meters) or handles dense material like wet clay or iron ore, the C450 will strain. The KTA19-C525 offers the necessary 75 HP overhead, preventing overheating and reducing internal component stress during peak load spikes.
KTA19-C525 vs KTA19-C600
Alternatively, the KTA19-C600 delivers 600 horsepower. While tempting, installing a C600 into an excavator designed for a 500 HP class motor can actually damage your hydraulic pumps and transmission due to excess torque. The KTA19-C525 525 HP strikes the perfect balance for mid-to-large construction equipment, offering massive power without destroying OEM drivetrain components.
Maintenance, Flushing, and Replacement Guide
Protecting your investment requires strict adherence to maintenance protocols. The Cummins KTA19-C525 turbocharged intercooled engine utilizes removable wet cylinder liners, which makes rebuilding the engine highly accessible. However, cooling system maintenance is where most operators fail.
KTA19-C525 Engine Cooling Fluid Capacity and Flushing Guide
This engine features a water-cooled system with an engine cooling fluid volume of 30 liters. Because the engine utilizes wet liners, cavitation (the formation of tiny bubbles that eat away at the metal) is a serious risk if the coolant is neglected. You must flush the 30-liter system completely every 2,000 operating hours. When replacing the fluid, always use heavy-duty coolant pre-charged with Supplemental Coolant Additives (SCAs) to coat and protect the wet liners.
How to Replace the Cummins KTA19-C525 Engine
KTA19-C525 engine replacement compatibility is generally straightforward for older machinery currently running K-series engines. Because the overall dimensions remain a standard 2150mm x 966mm x 1704mm, it acts as a direct KTA19-C525 repower engine. Ensure your engine mounts are inspected before dropping the 1,699 kg assembly into the chassis. Always verify that your existing 24V or 12V electrical system aligns with the starter motor supplied with your new block.
Common Misconceptions About the K19-C Series
A widespread misconception is that a turbocharged engine cannot handle immediate shutdowns. While the Cummins KTA19-C525 is a heavily turbocharged and intercooled engine, operators often shut the machine off immediately after heavy use. This starves the turbo bearings of oil while they are still spinning at thousands of RPMs. Always allow the engine to idle for three to five minutes before shutting down. This allows the exhaust gas-driven turbocharger mounted at the top of the engine to cool down and decelerate safely.
Cummins k19-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-C450, KTA19-C525, KTA19-C600, KTAA19-C700, KTTA19-C700, KTA19-P450, KTA19-P500, KTA19-P600, KTA19-P680, KTA19-P700, KTA19-P750.
Frequently Asked Questions (FAQs)
Are you a genuine Cummins KTA19-C525 replacement engine supplier?
Yes. HekoPower provides original Cummins KTA19-C525 engines for sale, manufactured directly by the Chongqing Cummins Engine Plant (CCEC). We do not sell remanufactured knock-offs.
What is the OEM Cummins KTA19-C525 engine lead time and international shipping process?
For an original new Cummins KTA19-C525 engine, our standard lead time is around 15 business days. As a dedicated Cummins KTA19-C525 engine exporter, we handle all export crating, documentation, and international freight logistics to ensure your powerpack arrives safely at your port.
How can I get the Cummins KTA19-C525 wholesale price?
Because shipping costs and currency exchange rates fluctuate, we provide custom quotes. Contact our sales team with your destination port and quantity requirements, and we will provide a comprehensive KTA19-C525 525 HP engine price breakdown.
What does the Chongqing Cummins (CCEC) KTA19-C525 warranty cover?
Every new CCEC KTA19-C525 engine comes with a standard 12-month global warranty. This covers all major components, including the cylinder block, crankshaft, and genuine engine parts, ensuring total peace of mind for your fleet.
