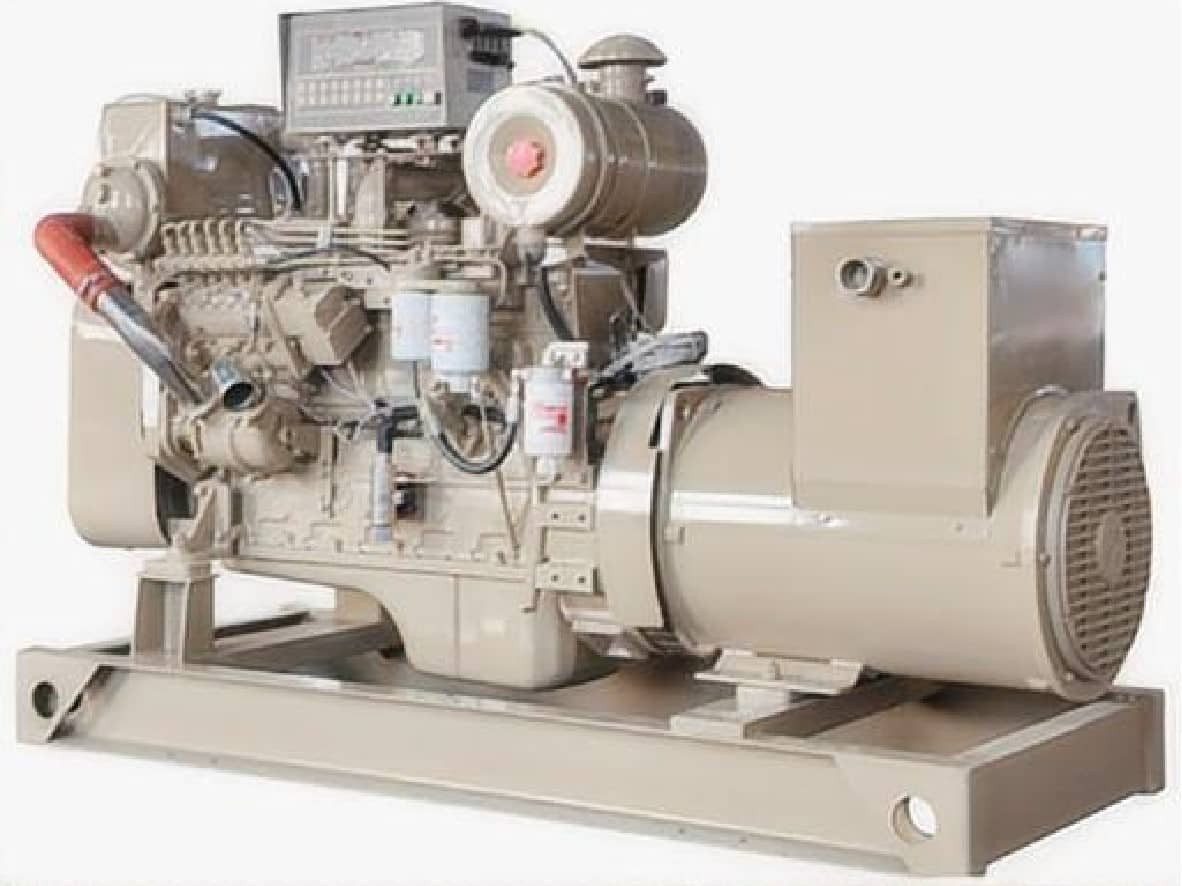

Genuine Cummins 6LTAA8.9-GM200 Marine Auxiliary Engine
The Dongfeng Cummins (DCEC) 6LTAA8.9-GM200 complete engine assembly is a heavy-duty, 8.9-liter turbocharged marine diesel engine. As a dedicated Cummins marine auxiliary engine supplier, HekoPower provides this exact model to shipyards, fleet operators, and commercial vessel maintenance teams worldwide.
The engine delivers 200kW of prime power at a steady 1500 RPM. This specific power node makes it the ideal prime mover for 50Hz marine generators. Featuring a robust 114x145 mm bore and stroke, the engine block is engineered for continuous daily operation. It also provides a reliable 220kW standby power rating to handle sudden electrical load spikes during critical offshore operations. We supply the original Cummins 6LTAA8.9-GM200 as a complete factory unit, ensuring full compatibility with your existing engine room infrastructure.
Tech Specs of Cummins 6LTAA8.9-GM200
General Engine Data
Engine Model: Cummins 6LTAA8.9-GM200
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight (with flywheel & alternator): 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Engine Configuration No.: D563014MX03
Key Performance Data
Rated Power/Standby Power: 200 kW/268HP, 220 kW/295HP
Rated Speed: 1500 rpm
Continuous Output/Speed: 175 kW/235HP @ 1500 rpm
Low Idle Speed: 1000±50 rpm
Fuel Consumption (Running Speed): ≤ 231 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Charge Air Cooled
Fuel System: BYC P7100 Pump/GAC R801 Governor
Compression Ratio: 16.6:1
Starting Method: Electrical/Air Start (12V/24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Ignition Order: 1-5-3-6-2-4
Technical Comparison: Cummins 6LTAA8.9-GM200 vs GM215
We frequently field questions regarding the exact mechanical differences between the 6LTAA8.9-GM200 and the closely related GM215. A common mistake in the marine industry is assuming these two 8.9L marine auxiliary engines are simply interchangeable. They share the same cast-iron cylinder block and displacement. However, their internal fuel delivery dynamics and targeted operational speeds are distinctly different.
Operational Speed and Electrical Frequency Matching
The Cummins 6LTAA8.9-GM200 is engineered exclusively for 50Hz marine generator sets. It operates at a fixed governed speed of 1500 RPM. This lower rotational speed provides a massive advantage in longevity. It significantly reduces linear piston ring wear inside the cylinder liners. It also keeps specific fuel consumption extremely low during continuous, long-haul duty cycles.
The 6LTAA8.9-GM215 operates at 1800 RPM to generate 60Hz electrical power. The higher rotational speed generates more parasitic friction and increases overall thermal load on the cooling system. You must match the engine to the specific alternator frequency of your vessel.
Governor Calibration and Fuel Delivery Dynamics
Because the operational speeds differ, the fuel injection hardware must also differ. The 6LTAA8.9-GM200 requires a specialized BYC P7100 fuel injection pump. This mechanical pump works seamlessly with an electronic GAC governor. Together, they manage precise fuel delivery. This setup maintains strict frequency regulation. It responds immediately to sudden load additions on the vessel's electrical grid without causing a voltage drop.
The GM215 utilizes entirely different internal plunger timing inside its fuel pump. The internal delivery valves are calibrated for higher volumetric fuel flow rates to support the 1800 RPM speed. Operating a GM200 at 1800 RPM without recalibrating the entire fuel injection system will severely disrupt the torque curve. It will also push exhaust gas temperatures past safe operational boundaries.
Real Application Scenarios in Marine Environments
Commercial marine environments demand uncompromising reliability. The 6LTAA8.9-GM200 marine genset configuration is highly adaptable. It serves several demanding heavy-duty applications across the maritime sector.
Commercial Fishing Vessel Generators
Ocean-going trawlers and purse seiners frequently select this 268HP marine engine for their onboard power needs. These vessels require highly stable electricity to run large refrigeration compressors and heavy hydraulic net winches. The high low-end torque handling of the 8.9L block prevents severe voltage drops when these heavy inductive loads engage simultaneously. The engine provides steady 50Hz power even under harsh pitching and rolling conditions at sea.
Cargo Ship and Offshore Vessel Power
Space is a premium commodity inside the engine rooms of cargo ships and offshore supply vessels. The compact overall dimensions of the Cummins L8.9-GM series allow for multi-genset installations inside cramped quarters. Crew members can still easily access the cooling system and oil filters for routine service. Furthermore, this 200kW Cummins marine engine carries essential CCS/IMO certification. This compliance is mandatory for international commercial shipping and offshore oil platform support vessels.
Marine Emergency Generator Integration
Emergency power is a critical safety requirement. Ship auxiliary generators must start immediately during a catastrophic main power failure. The 6LTAA8.9-GM200 serves as a highly dependable marine emergency generator driver. HekoPower supplies this engine with specialized dual starting capabilities. A primary 24V electric starter motor is paired with a secondary spring-actuated or pneumatic starter. This redundant setup satisfies strict maritime safety standards for emergency backup power.
Maintenance Requirements and Engine Replacement Tips
Strict adherence to maintenance schedules ensures optimal fuel consumption and extends the lifecycle of the engine block. Sourcing genuine DCEC 6LTAA8.9-GM200 spare parts from an authorized exporter is the first step in any successful maintenance program.
Identifying the Correct Engine Configuration Number
Proper engine identification is critical when ordering a complete replacement engine or major spare parts. You must locate the engine configuration number. For this specific 200kW model, the standard configuration code is D563014MX03. You will find this alphanumeric code stamped directly onto the DCEC dataplate riveted to the engine block. Matching this exact configuration ensures your new parts align perfectly with your existing flywheel housing. It also guarantees compatibility with your current marine alternator matching setup.
Servicing the Cooling and Fuel Systems
The cooling system demands strict, routine attention. This engine utilizes a turbocharged air-to-air intercooling system alongside a raw water heat exchanger. You should inspect the intercooler core regularly for salt accumulation. Salt buildup drastically degrades thermal efficiency. It restricts airflow and raises your intake manifold temperatures above allowable OEM limits. We recommend back-flushing the raw water side of the heat exchanger annually to remove marine growth and internal scaling.
Fuel system maintenance is equally unforgiving. The BYC P7100 fuel pump requires highly filtered, water-free diesel to protect its internal plungers from scoring. Operators must drain the primary fuel-water separators daily. You should replace the secondary fuel filters every 250 operating hours. Ignoring these installation and maintenance requirements will lead to premature pump failure, excessive smoke, and poor combustion.
Exploring the Cummins L8.9-GM Series Auxiliary Engine Family
Understanding the specific capabilities of the 6LTAA8.9-GM200 helps in selecting the exact power node for your vessel. However, marine power requirements vary significantly depending on the size of the ship and its onboard electrical load profile. Sometimes a 200kW prime rating is not quite enough for your specific alternator matching requirements. Other times, you may realize you actually need a dedicated 60Hz power supply.
To accommodate these varying maritime demands, DCEC manufactures a complete lineup of auxiliary power solutions based on this same highly reliable 8.9-liter block architecture. HekoPower provides global access to the entire range of configurations to ensure your vessel gets the exact power output and frequency it needs.
Cummins L8.9-GM Series, Marine Auxilliary Diesel Engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-GM200, 6LTAA8.9-GM215. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions & Common Technical Misconceptions
Our technical sales team encounters several common misconceptions about this specific DCEC marine engine. Addressing these issues upfront helps buyers make informed engineering decisions.
Can I run the 6LTAA8.9-GM200 at 1800 RPM for a 60Hz generator?
Many buyers ask if they can manually turn up the GAC governor on a 6LTAA8.9-GM200 to reach 1800 RPM. They often want to avoid purchasing a dedicated 60Hz engine. This practice is strongly discouraged. As detailed in our technical comparison, the injection pump timing is fixed specifically for 1500 RPM operation. Forcing the engine to run at 1800 RPM under a heavy electrical load causes incorrect fuel atomization. It leads to severe localized overheating and completely voids the manufacturer warranty.
Is the exhaust manifold water-cooled out of the box?
Buyers often assume every marine engine ships standard with a water-cooled exhaust manifold. This is a costly misconception. Standard factory production for the 6LTAA8.9-GM200 features a dry-type exhaust manifold and a dry turbocharger housing. If your engine room requires strict surface temperature limits to meet passenger vessel safety regulations, modifications are necessary. HekoPower can supply custom water-cooled exhaust retrofit parts prior to shipment.
How does this marine engine differ from industrial 8.9L models?
Some customers ask if they can simply use a cheaper automotive or industrial 8.9L engine block for marine generator use. While the core cylinder dimensions are identical, industrial engines lack critical marine-grade hardware. The genuine Cummins 6LTAA8.9-GM200 includes marine-specific flywheel housings. It features specialized deep-sump oil pans designed to maintain oil pressure during severe vessel list and trim. It also includes seawater pumps and mandatory marine classification society documentation. You cannot simply drop a truck engine into a ship's hull and expect it to survive a corrosive marine environment.
