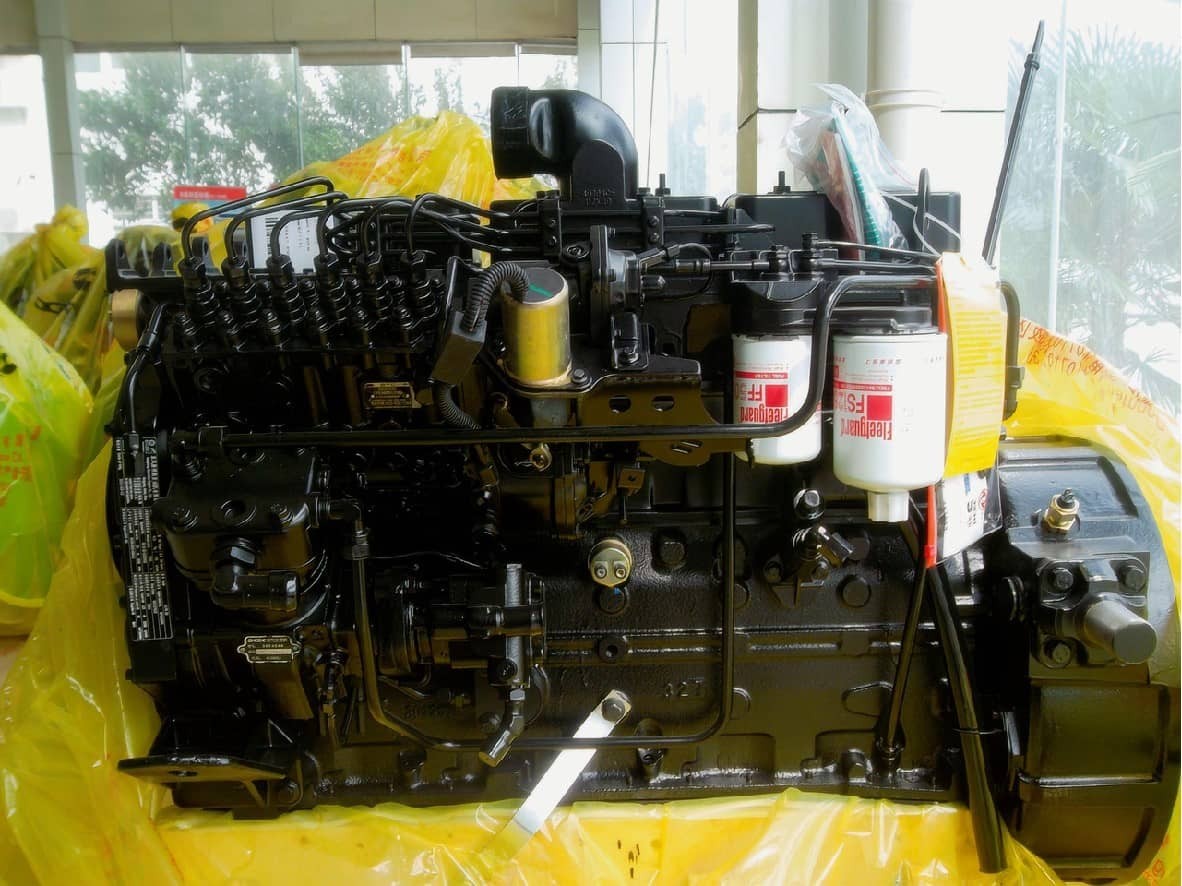

Cummins B180-33 Vehicle Diesel Engine (5.9L, 132kW)
The Dongfeng Cummins B180-33 is a 5.9-liter, 6-cylinder in-line diesel engine designed for commercial vehicle platforms. Engineered by DCEC, this turbocharged and charge-air-cooled power unit produces 132kW (180HP) at 2500 RPM and generates 610 Nm of peak torque at 1500 RPM. Built with a heavy-duty mechanical fuel system, the B180-33 balances raw mechanical reliability with low operating costs.
As a direct export supplier of genuine DCEC engine assemblies, HekoPower provides factory-new B180-33 units configured for commercial fleet repowering, truck replacements, and bus applications worldwide.
Tech Specs of Cummins B180-33
General Engine Data
Engine Model: Cummins B180-33
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 413 Kg
Overall Dimension: 1026mm*699mm*912mm
Key Performance Data
Rated Power: 132 kW/180HP
Rated Speed: 2500 rpm
Max Torque/Speed: 610 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 248 g/Kw.h
Max. No-load Governed Speed: 2850 rpm
Idle-Speed: 750 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.0 L
Technical Comparisons: B180-33 vs. Neighboring Models
Choosing the right 5.9L engine configuration requires understanding subtle mechanical differences across the DCEC B-Series lineup.
B180-33 vs. B170-33
While both engines utilize the classic 5.9-liter 6-cylinder block with a 102 x 120 mm bore and stroke, the B180-33 delivers a higher power output of 132kW compared to the 125kW (170HP) rating of the B170-33. The B180-33 provides an extra 50 Nm of torque, topping out at 610 Nm. This added rotational force gives medium-duty cargo trucks better gradeability under heavy payloads without increasing fuel consumption.
B180-33 vs. B190-33
The B190-33 pushes the 5.9L mechanical block to 140kW (190HP) and 650 Nm of torque. However, the B180-33 remains the preferred choice for fleet managers operating in high-ambient-temperature regions. By operating at a slightly lower thermal load than the 190HP variant, the B180-33 extends cylinder head and turbocharger lifespan while placing less strain on standard manual transmissions.
B180-33 vs. ISDe 180 (Mechanical vs. Electronic Common Rail)
The key distinction between the B180-33 and the ISDe 180 lies in the fuel system architecture. The B180-33 features a fully mechanical fuel system driven by a Wuxi Weifu inline injection pump, meeting Euro III emission standards without electronic sensors. In contrast, the ISDe 180 relies on high-pressure common rail (HPCR) electronic injection. For export markets where fuel quality varies or diagnostic equipment is scarce, the mechanical B180-33 offers far superior durability and easier field servicing.
Real Application Scenarios for the B180-33 Engine
The 180HP Cummins B180-33 engine is tailored for medium-duty commercial transport where dependable torque and simple mechanics are required.
Medium-Duty Commercial Cargo Trucks
The B180-33 is widely used as a primary propulsion unit for 10-ton to 15-ton regional distribution trucks, including popular Dongfeng vehicle chassis. Its 610 Nm torque curve delivers responsive acceleration from stoplights while holding highway cruising speeds efficiently at 1500–1800 RPM.
City Buses and Regional Coaches
Passenger transport vehicles measuring 8 to 10 meters in length benefit from the compact footprint of the 5.9L 6-cylinder design. The smooth power delivery of the turbocharged intercooled setup keeps cabin noise low while maintaining steady torque under frequent start-stop passenger routes.
Special Commercial Vehicles
Muni-duty vehicles such as water tankers, sanitation trucks, and small fire appliances rely on the B180-33 engine for dual-duty work. The engine powers both the drive axle and auxiliary PTO systems efficiently without requiring complex electronic governor recalibrations.
Maintenance, Inspection, and Replacement Tips
Proper inspection protocols ensure seamless engine replacement and long-term operating life for your B180-33 power unit.
Identifying Your Engine CPL and Nameplate
Before ordering a replacement diesel engine, locate the metal nameplate riveted to the rocker cover or side of the gear housing. Record the Control Parts List (CPL) number and engine serial number (ESN). The CPL defines specific internal components, including turbocharger geometry, flywheel housing bolt patterns, and fuel pump calibration. Match these numbers to guarantee drop-in compatibility.
Checking Transmission and Flywheel Housing Compatibility
The B180-33 engine is commonly supplied with standard SAE #2 or SAE #3 flywheel housings. Verify the bellhousing size, flywheel depth, and starter motor voltage (12V vs. 24V) on your existing vehicle harness. Aligning these physical specifications prior to installation eliminates the need for custom adapter plates or clutch modifications.
Servicing the Wuxi Weifu Mechanical Fuel System
The mechanical inline fuel pump manufactured by Wuxi Weifu requires clean fuel supply line purging during installation. Always pre-fill primary fuel filters with clean diesel, prime the hand primer pump, and bleed air from the fuel injectors before initial startup. Regular fuel filter replacements every 250 operating hours protect the mechanical pump elements from water contamination and abrasive wear.
Common Misconceptions About the Cummins B180-33
Avoiding common technical errors saves downtime and prevents costly ordering mistakes.
Misconception 1: B180-33 and ISDe 180 Parts Are Fully Interchangeable
Many buyers assume all 180HP Cummins 5.9L engines use identical components. While cylinder blocks and crankshafts share similar dimensions, the B180-33 uses mechanical fuel lines, mechanical injectors, and standard cable throttle linkages. It cannot accept ISDe common rail wiring harnesses or electronic control modules (ECUs).
Misconception 2: Horsepower Alone Guarantees Engine Fitment
Ordering a replacement unit solely based on the "180HP" specification often leads to installation mismatch. Minor differences in oil pan configuration (front sump vs. rear sump), fan hub height, and exhaust elbow angles vary between truck and bus applications. Always verify CPL data with your supplier.
Misconception 3: Mechanical Fuel Pumps Require Electronic Tuning
The Wuxi Weifu pump on the B180-33 regulates fuel delivery using internal mechanical governor weights and boost pressure signals. No laptop diagnostics or ECU flashing are required to adjust engine idle or govern maximum engine speed.
Internal Series Navigation & Related Models
Finding the ideal powertrain match for your commercial fleet requires comparing options across the entire Cummins B-Series engine lineup. Whether you need lower horsepower ratings for light delivery trucks or higher torque output for heavy hauling, HekoPower supplies full complete engine assemblies and replacement parts.
DCEC B Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes B125-33, B140-33, B160-33, B170-33, B180-33, B190-33, B210-33.
FAQ – Cummins B180-33 Engine
What is the exact displacement and power output of the Cummins B180-33?
The Cummins B180-33 has a displacement of 5.9 liters across 6 inline cylinders. It delivers a rated power output of 132kW (180 horsepower) at 2500 RPM and maximum torque of 610 Nm at 1500 RPM.
Can I replace a B170-33 engine with a B180-33 engine?
Yes. The B180-33 shares identical external mounting dimensions, 5.9L block structure, and mechanical connections with the B170-33. Upgrading to the B180-33 provides an extra 10HP and 50 Nm of torque without requiring chassis modifications.
What fuel injection pump is fitted on the DCEC B180-33 engine?
The B180-33 model uses a heavy-duty mechanical fuel pump, typically manufactured by Wuxi Weifu, calibrated specifically for Euro III emission standards and 132kW power output.
What is the standard export shipping lead time for a B180-33 replacement engine?
HekoPower maintains regular inventory of genuine DCEC engine assemblies. Standard dispatch time for complete B180-33 units packaged in export-grade wooden crates is approximately 10 business days.
