Details

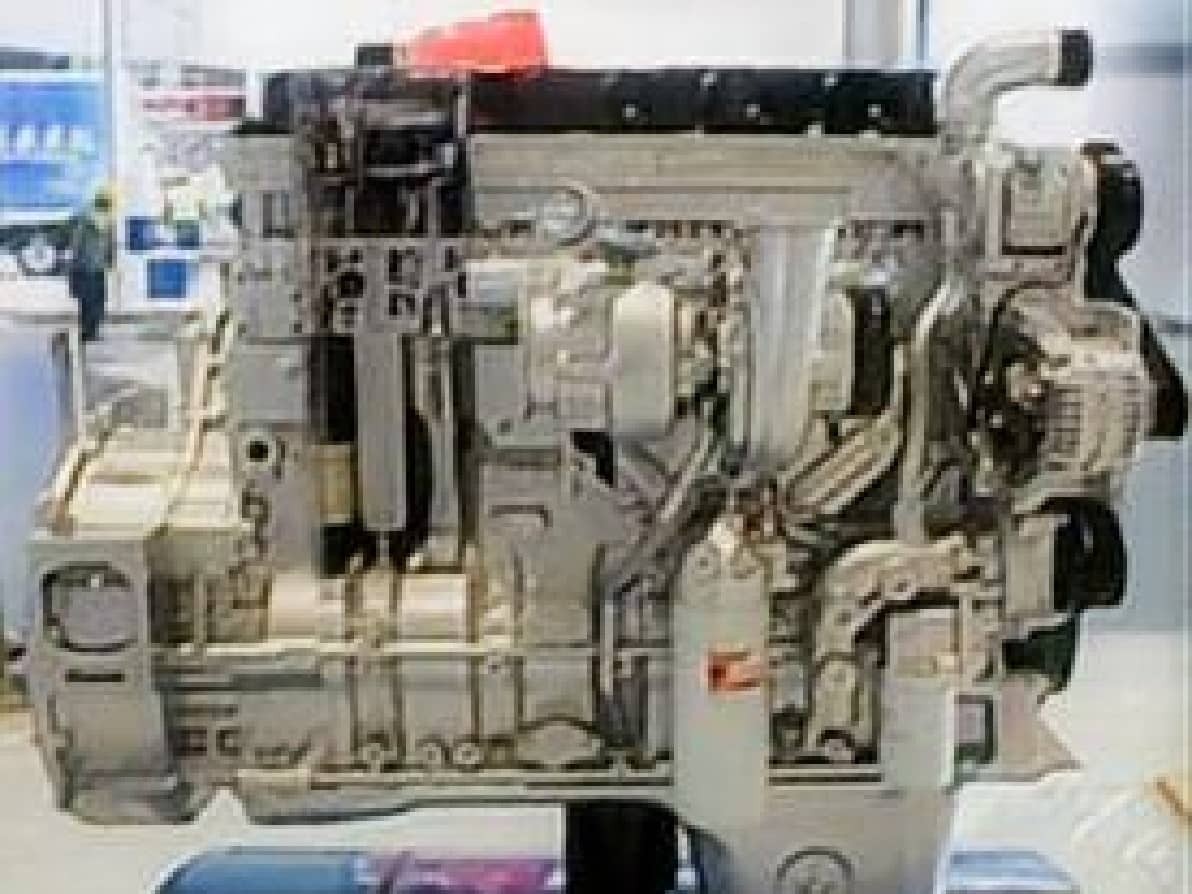

Genuine Cummins ISZ525-40 Engine Assembly
HekoPower is a trusted global supplier of the Cummins ISZ525-40 engine. Manufactured by the Dongfeng Cummins Engine Company (DCEC), this 13-liter power plant is engineered specifically for heavy-duty commercial vehicles. Delivering 392 kW (525 HP) at 2100 RPM, it represents the ideal balance of high torque, operational durability, and fuel efficiency for long-haul highway trucks.
As a dedicated Cummins ISZ525-40 engine exporter, we provide fully dressed, genuine DCEC ISZ525-40 engine assemblies to fleet operators and wholesale distributors worldwide. Each Cummins ISZ 13L engine assembly we supply is factory-tested and ready for integration into your commercial vehicle power pack.
Tech Specs of Cummins ISZ525-40
General Engine Data
Engine Model: Cummins ISZ525-40
Type: 6 Cylinders in Line
Displacement: 13 L
Bore * Stroke: 130 * 163
Net Weight (with flywheel & alternator): 1195 Kg
Overall Dimension: 1389mm*1016mm*1233mm
Key Performance Data
Rated Power: 392 kW/525 HP
Rated Speed: 2100 rpm
Idle Speed: 600-800 rpm
Max. Altitude For Continuous Running: 5200 m
orque/Rated Speed: 1782 N.m @ 2100 rpm
Max. Torque/Speed: 2508 N.m @ 1200 rpm
Max. No-Load Speed: 2300 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins XPI Fuel System/ECM
Compression Radio: 17:1
Electrical System (Starter Motor/Alternator): 24V (900A)
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Technical Comparisons for Heavy Duty Diesel Engines
Choosing the right displacement is critical for fleet efficiency. When evaluating the Cummins 13L truck engine, buyers often compare it against smaller 11-liter platforms or larger 15-liter alternatives. The 13-liter ISZ platform holds a distinct advantage in the middle ground.
Compared to an 11-liter engine pushed to deliver over 500 horsepower, the Cummins ISZ525-40 392kW engine operates with far less mechanical stress. An 11-liter block must maintain higher RPMs to generate equivalent power on steep grades. The ISZ525-40, however, produces a massive 2508 Nm torque at lower engine speeds. This allows drivers to maintain highway cruising speeds without frequent downshifting, reducing wear on both the engine and the transmission.
When placed against a 15-liter engine, the primary advantage of the DCEC ISZ13 truck engine lies in its physical footprint. The Cummins ISZ525-40 engine weight and overall engine dimensions are significantly lower than a 15-liter block. For long haul transport, this weight reduction allows operators to maximize their legal payload capacity. You gain the pulling power of a 525 HP Cummins truck engine without the chassis penalty of a heavier power plant.
Real Application Scenarios
The Cummins ISZ525-40 heavy duty diesel engine is deployed globally across highly demanding transport sectors. Its high structural integrity makes it suitable for extreme duty cycles where continuous operation is mandatory.
Long Haul and Highway Transport
The primary application for this unit is as an ISZ525-40 long haul truck engine. It is widely installed in heavy tractor-trailers handling cross-country freight. The 2100 RPM Cummins ISZ engine rating allows these commercial vehicles to achieve excellent fuel economy during sustained highway cruising.
Heavy Haulage and Mining
Beyond the highway, this unit serves as a highly capable Cummins ISZ525 engine for heavy haulage. When moving oversized loads or pulling side-tipping trailers out of quarry sites, breakaway power is essential. The low-end torque provided by this 13 liter diesel engine ensures mining trucks can navigate steep, unpaved gradients fully loaded without stalling or overheating.
Commercial Bus Power Packs
While famous in the trucking world, this platform also serves as a reliable ISZ525-40 bus engine. Large intercity passenger coaches require smooth, vibration-free power delivery. The electronic control modules within the ISZ525-40 vehicle engine can be calibrated to prioritize passenger comfort while maintaining the torque needed for mountain passes.
Cummins ISZ525-40 Replacement Engine and Maintenance Tips
Sourcing a DCEC truck engine ISZ525-40 replacement is a major investment. Proper installation and maintenance are required to protect that investment and ensure a long service life.
When preparing for an ISZ525-40 engine replacement for a heavy truck, always verify the communication protocols of your existing vehicle. The engine control module (ECM) on the new Cummins 13L replacement engine must properly sync with your chassis control systems. As an experienced Cummins ISZ525-40 engine assembly supplier, HekoPower can help verify compatibility using your original engine serial number.
Maintenance of the XPI fuel system is the most critical aspect of engine longevity. The ultra-high pressures of the XPI system mean the fuel injectors are highly sensitive to contamination. Always use high-quality, genuine fuel filters with proper micron ratings. Fleet operators must ensure that fuel-water separators are drained regularly, as water passing into the XPI system will cause catastrophic injector failure.
Additionally, when installing your new DCEC ISZ525-40 replacement engine assembly, completely flush the vehicle's cooling system and intercooler piping. Debris left behind from a previous engine failure can easily be ingested by the new turbocharger, causing immediate damage.
Addressing Common Misconceptions
There are several misunderstandings regarding high-horsepower 13-liter engines in the commercial transport sector.
A very common misconception is that a 525HP Cummins heavy truck engine will always consume more fuel than a 450HP engine. In reality, fuel consumption depends heavily on the route and the load. If a truck is hauling maximum weight through mountainous terrain, an underpowered engine will burn excessive fuel because it is constantly operating at maximum throttle in lower gears. The Cummins ISZ525-40 high torque engine can pull the same load in a higher gear at lower RPMs, frequently resulting in better overall fuel economy.
Another misconception is that the ISZ platform is simply a downsized version of the North American ISX. The Dongfeng Cummins ISZ525-40 is a unique platform specifically engineered by the DCEC joint venture. It features distinct block casting, cooling galleys, and accessory drives optimized for global commercial vehicle markets.
Explore the Complete DCEC Heavy Truck Engine Range
For fleet buyers and wholesale distributors, securing the exact power rating for your specific vehicle application is critical. While the 525HP variant offers exceptional heavy-haul capabilities, HekoPower supplies the entire spectrum of Dongfeng Cummins power units to ensure perfect chassis matching. If your operational requirements call for different horsepower outputs or specific regional emission standards, we carry a comprehensive inventory of related 13-liter platforms.
DCEC ISZ Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISZ425-40, ISZ450-40, ISZ480-40, ISZ525-40.
Frequently Asked Questions (FAQs)
Is this an original Cummins ISZ525-40 engine?
Yes. HekoPower is a direct DCEC ISZ525-40 engine supplier. Every engine we provide is a genuine, factory-original product from the Dongfeng Cummins joint venture, complete with verifiable engine serial numbers.
What is included in the Cummins ISZ525-40 complete engine assembly?
A complete engine assembly includes the fully dressed cylinder block and head, XPI fuel system, turbocharger, air compressor, starter motor, alternator, electronic control module, and standard engine wiring harnesses.
What is the typical Cummins ISZ525-40 lead time?
For standard configurations, the lead time for factory processing and preparation is generally around 10 business days. Shipping times will vary based on your selected freight method and destination port.
How can I get a Cummins ISZ13 525HP engine price quote?
Because commercial shipping rates and wholesale order volumes vary, we provide custom quotes. You can contact our sales team directly for the most current Cummins ISZ525-40 engine price, freight costs, and bulk Cummins ISZ525-40 wholesale engine discounts.
