Details

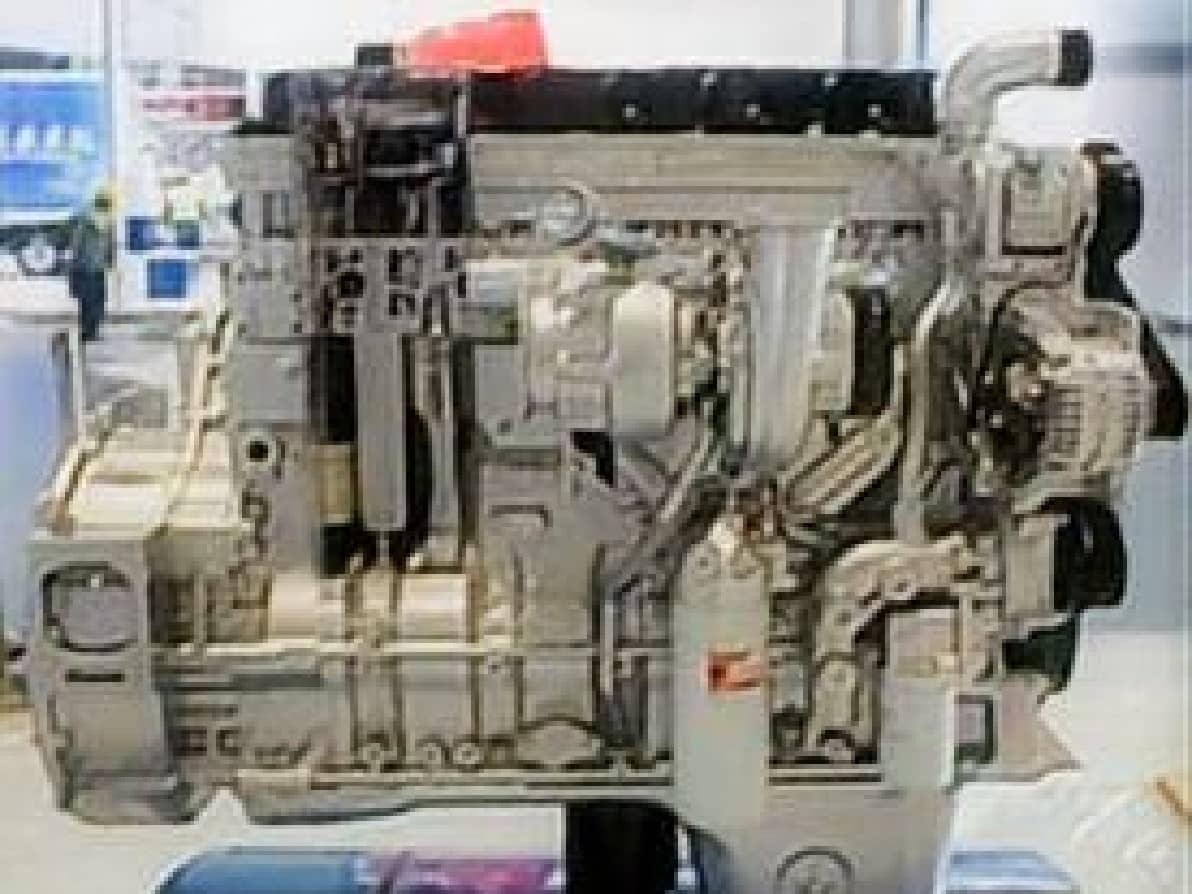

Genuine DCEC Cummins ISZ425-40 Diesel Engine Assembly
The Cummins ISZ425-40 represents the pinnacle of heavy-duty power for long-haul logistics and extreme commercial applications. Manufactured by the Dongfeng Cummins Engine Co., Ltd. (DCEC) joint venture, this 13-liter, inline 6-cylinder diesel engine is engineered to deliver unyielding reliability under heavy payloads. Rated at 317 kW (425 horsepower) at 2100 RPM, it has become the standard replacement engine for fleet operators demanding durability and fuel efficiency.
As a trusted global engine supplier and exporter, HekoPower provides the genuine Cummins ISZ425-40 complete engine assembly for heavy-duty trucks, offering a true plug-and-play repower solution. Rather than piecing together aftermarket components, sourcing a complete engine ensures that all factory tolerances, ECU calibrations, and emission controls operate precisely as designed.
Tech Specs of Cummins ISZ425-40
General Engine Data
Engine Model: Cummins ISZ425-40
Type: 6 Cylinders in Line
Displacement: 13 L
Bore * Stroke: 130 * 163
Net Weight (with flywheel & alternator): 1195 Kg
Overall Dimension: 1389mm*1016mm*1233mm
Key Performance Data
Rated Power: 317 kW/425 HP
Rated Speed: 2100 rpm
Idle Speed: 600-800 rpm
Max. Altitude For Continuous Running: 5200 m
Torque/Rated Speed: 1441 N.m @ 2100 rpm
Max. Torque/Speed: 1966 N.m @ 1200 rpm
Max. No-Load Speed: 2300 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins XPI Fuel System/ECM
Compression Radio: 17:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Real Application Scenarios for the ISZ425-40
This 13-liter Cummins engine is not a general-purpose motor; it is specifically calibrated for heavy-duty operational environments.
Long-Haul Commercial Fleets
The primary application for the ISZ425-40 is in heavy-duty highway trucks, most notably the Dongfeng Kinland (Tianlong) series and similar 6x4 tractor units. Fleet operators prefer this model because the XPI fuel system maximizes fuel economy over long distances, directly improving freight profitability.
Mining and Heavy Construction
Beyond highway logistics, the ISZ425-40 heavy truck engine is frequently installed in mining dump trucks and heavy construction material transporters. The robust engine block and high-capacity cooling system are built to withstand the continuous stress, heavy dust, and thermal loads associated with pulling maximum gross combination weights out of steep open-pit mines.
Fleet Repowering
Many logistics companies choose to buy the complete Cummins ISZ425-40 engine assembly to extend the life of their existing truck chassis. Dropping a brand-new factory-tested assembly into an older truck is often more cost-effective and faster than attempting a full in-frame overhaul of a severely worn engine, drastically reducing fleet downtime.
Technical Comparisons: Understanding ISZ 13L Variants
When sourcing a replacement engine, buyers frequently encounter different suffixes and model numbers within the DCEC ISZ 13L family. Selecting the exact match is critical for vehicle compatibility.
Cummins ISZ425-40 vs. ISZ425-40A and ISZ425-40B
While the ISZ425-40, ISZ425-40A, and ISZ425-40B all produce 425HP at 2100 RPM, the differences lie in their Electronic Control Module (ECM) calibrations and chassis integration. The "A" and "B" designations typically indicate specific torque curve calibrations mapped for different transmission gear ratios or specific OEM truck models. They may also feature slight variations in flywheel housing dimensions or accessory drive placements. Attempting to swap a standard 40 with a 40A without verifying chassis compatibility can result in electronic communication errors between the engine and the vehicle's transmission computer.
Cummins ISZ425-40 vs. ISZ450-40
The distinction between these two models is power output. The ISZ450-40 uses the same 13-liter block but is tuned via the ECM and fuel delivery maps to output 450 horsepower. While it may be tempting to upgrade to the higher horsepower model during a replacement, doing so requires verifying that your truck's transmission, driveshaft, and cooling system can handle the increased thermal output and torque loads.
Cummins ISZ425-40 vs. ISZ425-41
The numerical suffix indicates the emission standard pathway. The ISZ425-40 is built to Euro IV standards. Conversely, the ISZ425-41 achieves Euro V compliance. This usually means the "41" variant utilizes a more complex SCR (Selective Catalytic Reduction) aftertreatment system and altered injection timing. You cannot simply install an ISZ425-41 in a truck programmed for a Euro IV ISZ425-40 without major wiring harness and exhaust system overhauls.
Maintenance and Replacement Tips
To ensure your new genuine Cummins ISZ425-40 engine achieves maximum longevity, strict adherence to maintenance protocols is required.
Engine Serial Number (ESN) Identification
Never order a replacement engine based on the truck model alone. You must identify your current Engine Serial Number, located on the metallic data plate bolted to the engine block. Providing this ESN to your supplier ensures the replacement assembly has the correct oil pan configuration, dipstick location, and ECM programming to match your vehicle perfectly.
Protecting the XPI Fuel System
One of the most common misconceptions is that modern heavy-duty engines can process low-quality diesel fuel. The XPI common rail fuel system is highly sensitive to water and microscopic particulates. A failure to maintain the primary fuel-water separator and secondary micro-filters will cause premature wear to the high-pressure injectors. Always prime the fuel system completely after a filter change; running the high-pressure pump dry, even for a few seconds, can cause catastrophic internal scoring.
Cold Weather Operation
The DCEC ISZ425-40 is rated for unaided cold starts down to -15°C. However, for continuous operation in extreme winter conditions, ensure the engine block heater is functioning and that winterized diesel (to prevent fuel gelling) is utilized.
Finding the Right Engine for Your Fleet
Whether you are repowering a single heavy-duty truck or sourcing engines for a massive commercial fleet, understanding the exact specifications of the 13L platform guarantees operational success.
To help you navigate our inventory and find the exact match for your vehicle's ESN, we categorize our engines by their exact model variants. DCEC ISZ Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISZ425-40, ISZ450-40, ISZ480-40, ISZ525-40.
FAQ – Cummins ISZ425-40 Engine
What is the standard lead time and shipping method for the ISZ425-40?
Because HekoPower operates as a high-volume exporter, the standard lead time for preparing a genuine ISZ425-40 complete engine assembly is approximately 10 business days. Engines are securely bolted to heavy-duty export pallets and crated in treated wood to prevent any transit damage during ocean or air freight.
Can I upgrade my ISZ425-40 to 450HP just by changing the ECM?
While the 13L block is identical, horsepower upgrades are not just software-based. Changing the ECM alone to reach 450HP can lead to excessive exhaust gas temperatures, risking turbocharger or piston failure. Factory 450HP variants often use different injectors or cooling piston cooling nozzles.
What is the warranty on the DCEC ISZ425-40 wholesale engine?
HekoPower provides a standard 12-month warranty on genuine DCEC engine assemblies, covering manufacturing defects and internal component failures under normal operating conditions.
