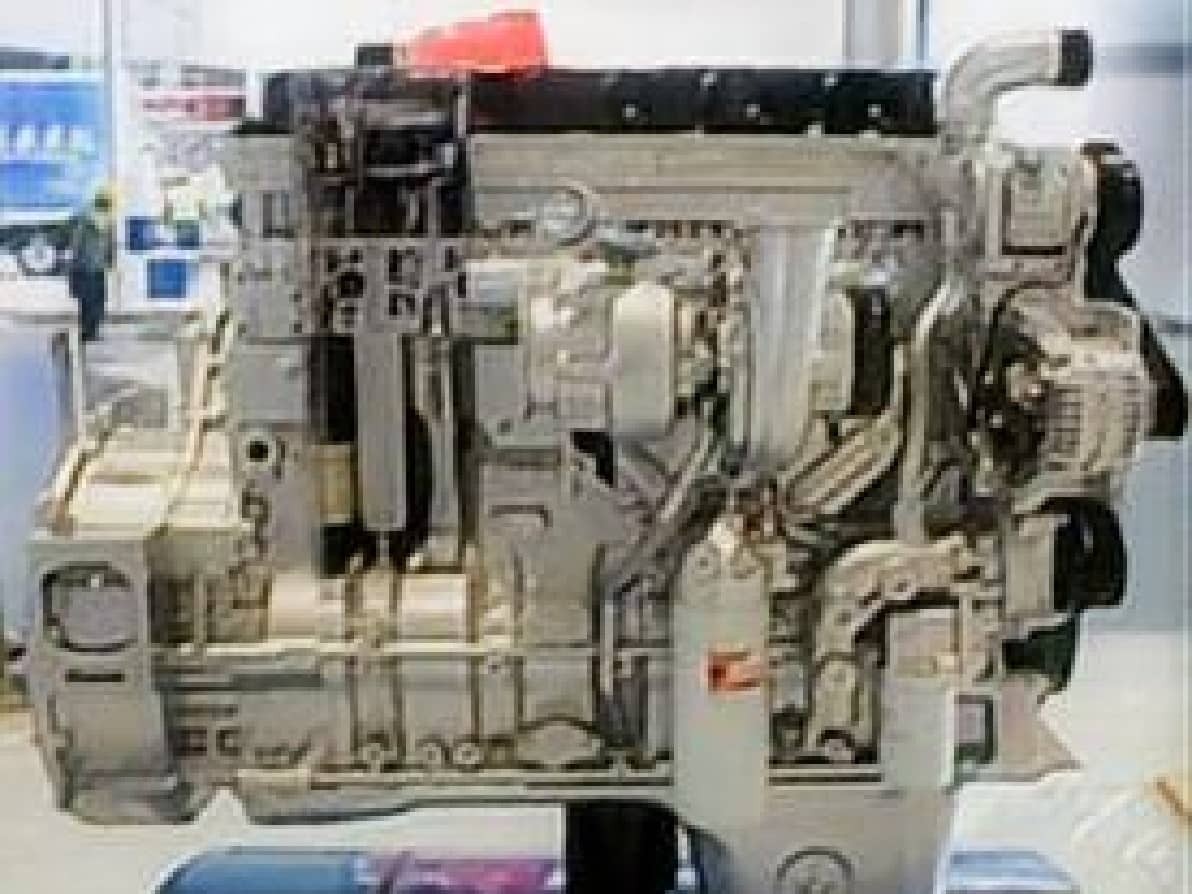

Genuine Dongfeng Cummins ISZ450-40 Engine Assembly & Repower Solutions
The Dongfeng Cummins (DCEC) ISZ450-40 is a heavy-duty 13-liter, 6-cylinder inline diesel engine engineered for long-haul commercial freight, heavy chassis repowering, and demanding intercity transport. Delivering 450 horsepower (335 kW) at 2100 rpm and a peak torque of 2237 Nm at 1200 rpm, this powertrain combines high displacement efficiency with robust structural design. Equipped with the Cummins XPI extra-high-pressure common rail fuel system and Euro 4 emission architecture, the ISZ450-40 delivers immediate throttle response, low fuel consumption per ton-kilometer, and long service intervals across harsh operating environments.
As an authorized engine exporter, HekoPower supplies factory-fresh complete engine assemblies, short/long blocks, and genuine service parts directly from DCEC manufacturing facilities. Every unit undergoes rigorous dynamometer bench testing and CPL (Control Parts List) verification before shipment, ensuring direct drop-in replacement for vehicle owners and commercial fleet operators worldwide.
Tech Specs of DCEC ISZ450
General Engine Data
Engine Model: Cummins ISZ450-40
Type: 6 Cylinders in Line
Displacement: 13 L
Bore * Stroke: 130 * 163
Net Weight (with flywheel & alternator): 1195 Kg
Overall Dimension: 1389mm*1016mm*1233mm
Key Performance Data
Rated Power: 335 kW/450 HP
Rated Speed: 2100 rpm
Idle Speed: 600-800 rpm
Max. Altitude For Continuous Running: 5200 m
Torque/Rated Speed: 1525 N.m @ 2100 rpm
Max. Torque/Speed: 2237 N.m @ 1200 rpm
Max. No-Load Speed: 2300 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins XPI Fuel System/ECM
Compression Radio: 17:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Model Comparisons & Selection Guidance
Choosing the correct engine configuration requires an understanding of how sub-models differ in peripheral dressing, electronic control calibration, and core internal components.
Complete Engine Assembly vs. Long Block Configuration
A complete engine assembly from HekoPower arrives as a fully dressed unit. It includes the cylinder block, cylinder head, rotating assembly, XPI high-pressure fuel pump, fuel injectors, common rail assembly, turbocharger, intake and exhaust manifolds, water pump, 24V starter motor, charging alternator, wiring harness, and engine control module (ECM). This option is ideal for emergency vehicle repowering or total engine swaps where the existing engine suffered catastrophic failure or fire damage, minimizing installation time down to a single shift.
In contrast, an ISZ450-40 long block consists of the machined block, crankshaft, main bearings, connecting rods, pistons, cylinder head, valves, and camshaft assembly. It excludes the fuel system, turbocharger, electrical components, and outer manifolds. The long block is the cost-effective choice when the original engine's block or crank has suffered mechanical failure, but the existing turbocharger, ECM, and XPI fuel injectors remain in verified working condition.
Comparing Model Variants: ISZ450-40 vs. ISZ450-40A, ISZ450-40B, and ISZ450-41
Understanding the precise suffix code on a DCEC engine tag prevents costly installation delays. The standard ISZ450-40 is the base 450HP Euro 4 truck engine designed for standard heavy-duty chassis configurations with standard rear flywheel housing setups and front accessory drive alignments.
The ISZ450-40A and ISZ450-40B designations typically signify OEM-specific factory calibrations and physical mounting variations for specialized vehicle platforms. For instance, variant A may feature a modified oil pan depth and pickup tube angle designed for low-bed tractor units or specialized construction chassis. Variant B often carries altered ECM pinout configurations or specific throttle pedal sensor protocols tailored to non-Dongfeng commercial chassis.
The ISZ450-41 represents a slight revision in ECM software mapping and minor auxiliary sensor layout, updated primarily to match newer vehicle telemetry systems and vehicle control units (VCU). While the internal mechanical components—such as pistons, rods, and valves—remain interchangeable across these variations, replacing an engine requires matching the exact CPL code to ensure the ECM talks seamlessly to the vehicle's dashboard and transmission interface.
Power Output Steps: ISZ425-40 vs. ISZ450-40 vs. ISZ480-40
The DCEC 13-liter engine family spans several horsepower ratings within the same physical block dimensions. The ISZ425-40 produces 425 horsepower and 2100 Nm of torque, targeting regional distribution trucks prioritizing maximum fuel economy over top-end pulling power.
The ISZ450-40 occupies the mid-range sweet spot, outputting 450 HP and 2237 Nm of torque. It provides the ideal ratio of torque density to fuel efficiency for fully loaded 40-to-49-ton tractor-trailers operating across varied terrain.
The ISZ480-40 pushes output to 480 horsepower and 2300 Nm of torque. While sharing the same cylinder block, the 480HP variant utilizes distinct turbocharger trim sizes, modified ECU fuel maps, and reinforced wrist pin bearings to sustain higher peak cylinder pressures. Upgrading a vehicle from 425HP or 450HP to 480HP requires checking transmission torque limits and cooling package capacity to handle the increased heat rejection.
Industry Misconceptions & Buyer Checklist
Navigating heavy-duty diesel acquisitions involves avoiding common industry missteps that result in mismatched parts or premature engine wear.
Misconception 1: "All DCEC 13L 450HP engines are direct drop-in replacements for any chassis."
While the core block structure is uniform, Dongfeng, Shacman, and Foton utilize different flywheel housings (SAE 1 vs. SAE 2), engine mount bracket positions, and oil sump configurations. Installing an engine sourced for a Dongfeng Tianlong directly into a Shacman tractor without verifying the CPL number can cause bellhousing misalignment and wiring harness conflicts. Always cross-reference the Engine Serial Number (ESN) with HekoPower prior to ordering.
Misconception 2: "The XPI fuel system is overly sensitive and prone to sudden failure."
Early common rail systems suffered in markets with variable fuel quality. However, the current generation XPI system on the ISZ450-40 incorporates hardened ceramic pump plungers and multi-stage filtration. Failures are rarely caused by the system itself, but rather by skipping fuel-water separator maintenance or using non-genuine 2-micron primary fuel filters.
Misconception 3: "A Euro 4 engine can run indefinitely without AdBlue / DEF without consequence."
The Euro 4 emission system on the ISZ450-40 relies on Selective Catalytic Reduction (SCR). Operating the engine with an empty AdBlue tank or using bypassed emulator modules triggers ECM torque derate modes, reducing engine output by up to 40%. Additionally, dry SCR injectors can clog permanently from crystallized urea deposits, leading to expensive exhaust system repairs.
Real Application Scenarios & Heavy-Duty Fleet Compatibility
The DCEC ISZ450-40 is a primary powerplant choice across global heavy transport sectors, valued for its high low-end torque and structural longevity.
Long-Haul Freight Tractor Repowering (Dongfeng Tianlong Series)
The primary factory installation for the ISZ450-40 is the Dongfeng Tianlong (KX and KL series) heavy tractor truck. Operating in long-haul cross-country logistics, these trucks require sustained cruising speed at low engine speeds. The engine's 2237 Nm torque reserve at 1200 rpm enables trucks to climb long highway gradients without downshifting, preserving momentum and reducing driver fatigue.
Multi-Brand Engine Swaps (Shacman, Foton & FAW Repowering)
In international markets where specialized heavy trucks operate in mining, logging, or regional haulage, the ISZ450-40 serves as a popular replacement engine for aging or damaged powerplants in Shacman F3000/X3000 and Foton Auman chassis. HekoPower provides custom adapter matching, ensuring the 24V electrical connections and cooling duct angles line up with the target vehicle's engine bay.
Commercial Intercity Bus & Coach Applications
High-deck intercity passenger coaches requiring quiet operation and high electrical output utilize the ISZ450-40. The engine's high torque output at low rpm allows smooth acceleration from passenger stops without excessive engine noise, while the high-capacity charging system easily supports heavy onboard HVAC loads.
Comprehensive Engine Lineup
To help fleet managers organize maintenance schedules and source identical replacements across mixed equipment fleets, HekoPower maintains a comprehensive inventory of DCEC power units.
DCEC ISZ Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISZ425-40, ISZ450-40, ISZ480-40, ISZ525-40.
Frequently Asked Questions (FAQs)
What is the oil pan capacity and coolant volume for the Cummins ISZ450-40?
The standard oil pan capacity for the ISZ450-40 engine is approximately 45 liters, depending on the specific sump shape fitted for your chassis. Total engine coolant capacity (excluding vehicle radiator piping) is roughly 25 liters. Always use API CK-4 or CI-4 grade 15W-40 heavy-duty engine oil and fully formulated organic acid technology (OAT) coolant.
How do I locate my CPL code and Engine Serial Number (ESN)?
The Engine Serial Number (an 8-digit numerical code) and CPL code are stamped on the metallic engine dataplate affixed to the rocker lever cover. The ESN is also permanently stamped directly onto the upper edge of the cylinder block near the oil cooler housing. Provide this 8-digit number to HekoPower to guarantee 100% component matching.
Can the ISZ450-40 Euro 4 engine be converted to Euro 3 for regions without AdBlue?
Technically, engine calibrations can be modified via ECM re-flashing to alter injection timing and disable SCR sensor inputs. However, running a Euro 4 engine without AdBlue without modifying the exhaust catalyst can lead to catalyst face plugging. HekoPower offers factory-built Euro 3 or Euro 4 compliant configurations designed specifically for your target destination's fuel quality and emissions laws.
What is the lead time for a brand-new complete engine assembly?
Standard stocked configurations with popular CPL codes ship within 3 to 5 business days from our export warehouse. Customized engine builds requiring non-standard flywheel housings, specialized oil pans, or unique electrical harnesses carry a factory assembly lead time of 10 to 15 business days.
