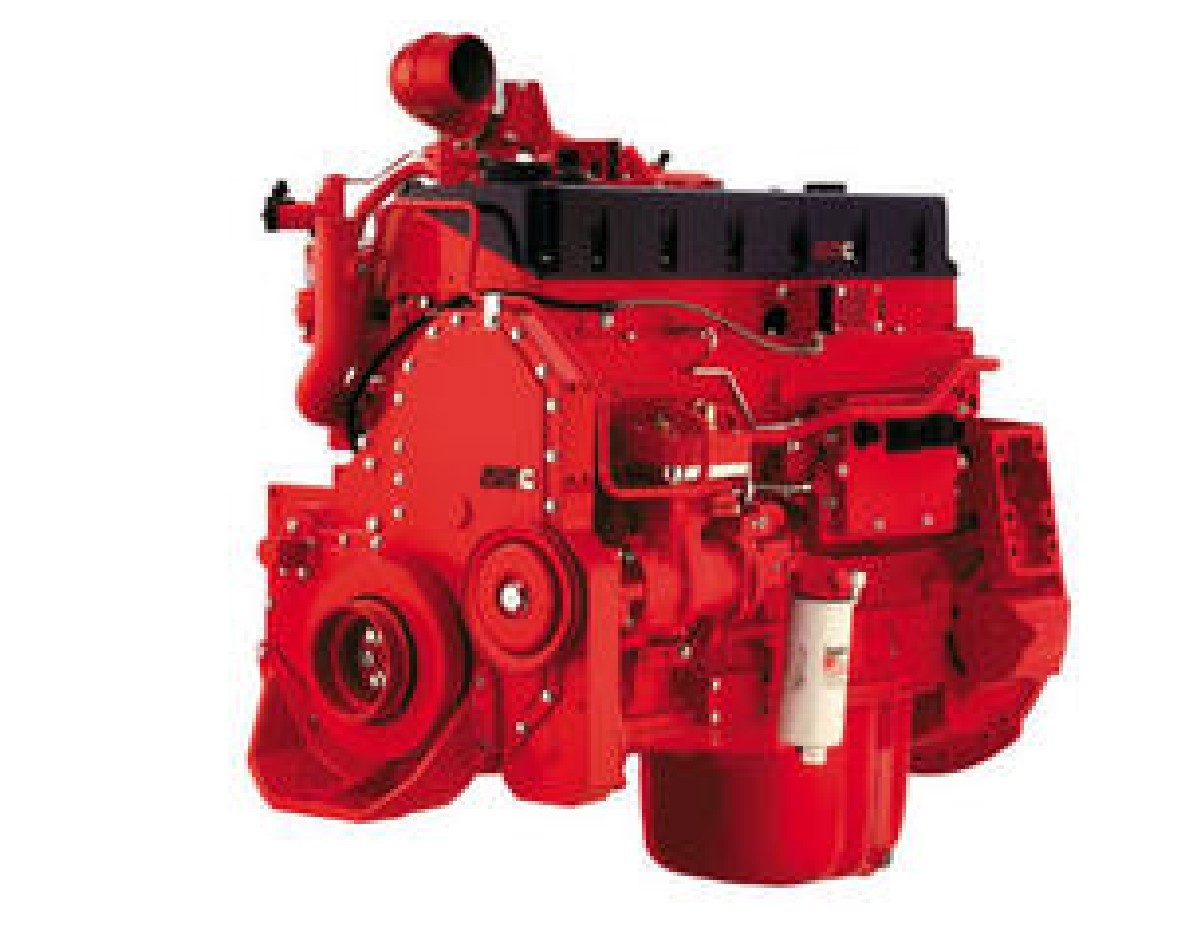

XCEC Cummins ISM11E5-420 Complete Engine Assembly
HekoPower supplies the original XCEC Cummins ISM11E5-420 engine assembly for global fleet operations and heavy-duty transport networks. This 10.8L 420HP Cummins diesel engine stands as a cornerstone for commercial vehicles, delivering strict Euro 5 emissions compliance without sacrificing mechanical durability. Designed specifically as a Cummins ISM11E5-420 truck engine, it provides an optimized balance of payload capacity and fuel efficiency.
The Cummins ISMe Euro 5 Engine architecture relies on advanced combustion technology. Engineers have tuned the Cummins ISM11E5-420 horsepower and torque curves specifically for demanding inclines and high-gross-weight operations. This results in a robust Cummins ISM11E5-420 2000 Nm torque peak, providing exceptional pulling power. Operating efficiently as a Cummins ISM11E5-420 1900 RPM engine, the power plant minimizes internal stress while maximizing the lifespan of the cylinders and valvetrain. Whether you are sourcing a single Cummins ISM11E5-420 replacement engine or outfitting an entire commercial fleet, this genuine Cummins ISM11E5-420 replacement engine offers a direct drop-in solution to minimize vehicle downtime.
Tech Specs of Cummins ISM11E5-420
General Engine Data
Engine Model: Cummins ISM11E5 420
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 114 * 144.5
Net Weight (with flywheel & alternator): 940 Kg
Overall Dimension: 1135mm*825mm*1159mm
Key Performance Data
Rated Power: 306 kW/420 HP
Rated Speed: 1900 rpm
Torque/Rated Speed: 2000 N.m @ 1900 rpm
Max. Torque/Speed: 2000 N.m @ 1200 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins Fuel System/EMC876
Compression Radio: 16.2:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Firing Order: 1-5-3-6-2-4
Technical Comparisons Within the ISM11 Series
Selecting the right replacement engine for Cummins ISM11 420HP applications requires a thorough understanding of the subtle engineering differences across the XCEC product line. Engine variations often dictate different electronic control modules, exhaust aftertreatment configurations, and fuel delivery methods.
ISM11E5-420 vs ISM11E4-420
The transition from Euro 4 to Euro 5 emission standards marks the primary distinction between the ISM11E5-420 vs ISM11E4-420. The Cummins ISM11E5 420 engine utilizes a highly calibrated Selective Catalytic Reduction (SCR) system requiring Diesel Exhaust Fluid (DEF) to neutralize nitrogen oxides. The Euro 4 iteration relies on an older emissions strategy with different thermal management requirements. Installing an ISM11E5-420 into a Euro 4 chassis requires upgrading the exhaust sensors, dosing modules, and the vehicle's diagnostic wiring to accommodate the newer emissions control protocol.
ISM11E5-420 vs ISM11E5-385 and ISM11E5-440
When evaluating the ISM11E5-420 vs ISM11E5-385 or the ISM11E5-420 vs ISM11E5-440, the physical Cummins ISM11E5-420 10.8L engine specifications remain largely identical. The block, crankshaft, and piston bore share the exact same metallurgy. The core differences lie in the turbocharger geometry and the Cummins ISM11E5-420 ECM calibration. The 420HP heavy-duty engine provides the optimal middle ground, offering more aggressive gradeability than the 385HP model while consuming less fuel under a standard load than the 440HP variant.
ISM11E5-420 vs ISME420-30 and ISMe420
Comparing the modern ISM11E5-420 vs ISME420-30 or the ISM11E5 420 vs ISMe420 highlights the evolution of the Cummins ISM11E5-420 fuel system. Legacy ISMe engines primarily met Euro 3 standards, utilizing older mechanical or early-generation electronic unit injectors. The XCEC ISM11E5 420 engine utilizes a refined high-pressure injection system that delivers multiple precise fuel bursts per combustion cycle. This advancement drastically improves the XCEC ISM11 fuel consumption and performance curve, resulting in quieter operation, reduced vibration, and lower fuel costs over long-haul routes.
Cummins ISM11E5-420 Truck Engine Replacement and Maintenance Tips
Ensuring a successful engine swap and long-term reliability requires strict adherence to OEM identification protocols and preventative maintenance schedules.
Verifying the Cummins ISM11E5-420 CPL Number and ESN Identification
Before authorizing a Cummins ISM11E5-420 truck engine replacement, technicians must physically verify the Cummins ISM11E5-420 ESN identification (Engine Serial Number) and the Cummins ISM11E5-420 CPL number (Control Parts List). The CPL is the definitive blueprint of the engine. It dictates the exact turbocharger mounting angle, the flywheel housing dimensions, and the accessory drive pulley arrangement. Ordering an XCEC ISM11E5-420 replacement engine with a matching CPL ensures seamless Cummins ISM11E5-420 engine compatibility with your existing transmission, radiator hoses, and chassis mounts.
ECM Programming and Fuel System Maintenance
When installing a Cummins ISM11E5-420 complete engine assembly, the ECM must be flashed to communicate properly with the truck's anti-lock braking system, transmission control unit, and dashboard gauge cluster. Routine maintenance is equally critical. The advanced Euro 5 fuel system is highly sensitive to water and particulate contamination. Fleet managers must mandate regular replacement of fuel-water separators and primary fuel filters to protect the high-pressure injection components and maintain the intended Cummins ISM11E5-420 fuel consumption metrics.
Real-World Applications for the 10.8L Cummins 420HP Engine
The XCEC Cummins ISM11E5 420 delivers exceptional versatility across a wide spectrum of industrial and commercial transport sectors. The relatively compact Cummins ISM11E5-420 engine dimensions allow it to fit into tighter engine bays than heavier 13-liter alternatives, maximizing chassis payload capabilities.
Cummins ISM11E5 Engine for Long Haul Truck and Tractor Truck Use
In interstate freight operations, the Cummins ISM11E5 engine for tractor truck and long-haul configurations excels due to its flat torque curve. Drivers can maintain highway cruising speeds at lower RPMs, reducing driver fatigue and mechanical wear. The Cummins ISM11E5 engine for long haul truck applications provides enough reserve power to overtake slower vehicles safely, even when hauling maximum legally permitted gross combination weights.
Heavy Duty Dump Trucks, Concrete Mixers, and Buses
Off-highway and vocational vehicles demand immediate low-end grunt. The Cummins ISM11 420HP engine for dump truck applications provides the necessary rotational force to pull fully loaded bins out of steep, unpaved quarry pits. Similarly, the Cummins ISM11E5 engine for concrete mixer vehicles ensures that the power take-off (PTO) unit receives consistent hydraulic pressure to keep the mixing drum rotating without stalling the vehicle in traffic. Furthermore, its smooth operation and low noise profile make the Cummins ISM11E5-420 engine for bus and passenger coach applications a highly preferred option for intercity transit authorities.
Common Misconceptions Regarding Engine Compatibility
A prevalent and costly misunderstanding in the commercial repair industry is confusing the ISM11E5-420 CPL vs engine model. Many buyers assume that any Cummins 420HP replacement diesel engine bearing the ISM11 nameplate will automatically fit their vehicle. This is inaccurate. Two engines can share the exact same Cummins ISM11E5-420 specifications on paper, but if they have different CPL numbers, the oil pan sump might hit the front axle, or the exhaust manifold might route directly into the steering shaft.
Another frequent misconception regarding Cummins ISM11E5-420 replacement compatibility involves the ECM software. Purchasing an original XCEC ISM11E5-420 engine assembly from a different truck brand (for example, attempting to install an engine programmed for a Foton chassis into a Shacman chassis) will result in CAN-bus communication failures. The engine hardware is identical, but the digital communication language requires professional reprogramming by an authorized supplier to ensure the dashboard warning lights function correctly.
Exploring the Complete ISMe Series Catalog
As a dedicated supplier of heavy-duty power solutions, HekoPower provides comprehensive support for the entire XCEC engine lineup. We assist fleet operators in matching the precise horsepower, torque, and emission requirements to their specific vocational needs. By offering a broad inventory of genuine components and complete assemblies, we ensure that your maintenance operations remain efficient and cost-effective.
Cummins ISMe Series, original products from Xi’an Cummins Joint Venture Plant (XCEC), since 1986, 50% owned by Cummins USA, under Cummins Technical & Product Line. This series mainly includes ISME308-30, ISM11E4 308, ISME335-30, ISME345-30, ISM11E4 345, ISM11E5 345, ISME 360-30, ISME 380-30, ISME 385-30, ISM11E4 385, ISM11E5 385, ISM405E-20, ISME 420-30, ISM11E4 420, ISM11E5 420, ISM11E4 440, ISM11E5 440.
Frequently Asked Questions (FAQs) About the Cummins ISM11E5 420
How much does a Cummins ISM11E5 420 engine assembly price typically run?
The Cummins ISM11E5-420 engine assembly price varies based on the exact configuration required. A fully dressed Cummins ISM11E5-420 engine assembly for truck installations, which includes the starter, alternator, air compressor, and turbocharger, will be priced differently than a bare long block. To obtain an exact quote, provide your engine's ESN and CPL number to our sales team, and we will configure a genuine Cummins ISM11E5-420 replacement engine matched to your budget and technical requirements.
Can I install this Cummins ISM11E5-420 engine for commercial vehicle use in an older chassis?
Installing a Cummins ISM11E5-420 engine for heavy truck applications into an older Euro 3 or Euro 4 chassis is mechanically possible, but electronically and legally complex. You must retrofit the complete diesel exhaust fluid tank, SCR catalyst, and all associated wiring harnesses. Without these components, the Euro 5 ECM will immediately trigger fault codes and derate the engine's power output.
What are the standard Cummins ISM11E5-420 engine weight and dimension constraints?
While exact figures depend slightly on the specific accessory drives mounted to the block, the base Cummins ISM11E5-420 engine weight sits at approximately 940 kilograms (2,072 lbs) dry. The compact Cummins ISM11E5-420 engine dimensions make it an ideal Cummins 10.8L 420HP engine for aerodynamic cab-over-engine (COE) truck designs where space beneath the cab is strictly limited.
