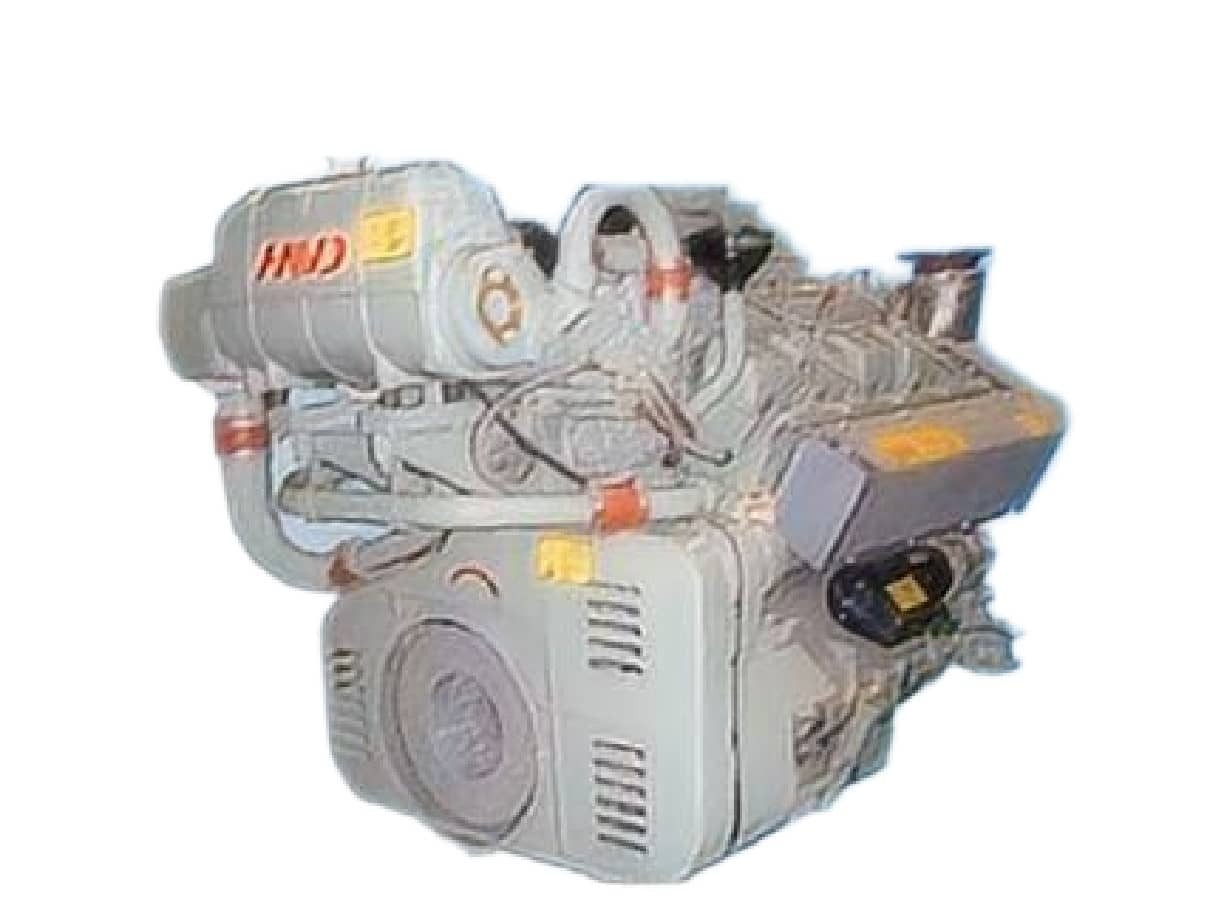

Deutz TBD604BL6 600kW Marine Auxiliary Engine
When marine architects and shipyard procurement teams require reliable electrical power generation at sea, the HND Deutz TBD604BL6 600kW marine auxiliary engine stands as a primary solution. Manufactured by the Henan Diesel Engine Plant (HND) under original Deutz technology, this unit is engineered exclusively to drive heavy-duty marine alternators. HekoPower operates as a dedicated supplier of these robust diesel engines, providing commercial vessel operators with complete repower units, factory-tested replacement engines, and genuine overhaul components.
Tech Specs of Deutz TBD604BL6
General Engine Data
Engine Model: Deutz TBD604BL6-600KW
Type: 6 Cylinders in Line, 4 Stroke
Displacement: 26.58 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 2550 Kg
Overall Dimension: 2242mm*1143mm*1953mm
Key Performance Data
Rated Power/Speed: 600 kW @ 1800 rpm
Standby Power/Speed: 660 kW @ 1800 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption: 200 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 14:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Technical Comparisons: Evaluating the TBD604BL6 600kW Model
To understand the true capability of this engine, it is necessary to examine how it compares to other configurations within the marine diesel sector. Evaluating power curves, operational intent, and application design reveals why this specific model is selected for critical auxiliary power.
Auxiliary Power vs. Propulsion Demand
The most fundamental comparison lies between auxiliary power and main propulsion applications. A marine propulsion engine drives a propeller. It follows a variable load curve where the engine works harder as the vessel speed increases. The Deutz TBD604BL6 600kW marine auxiliary engine operates entirely differently. It is coupled to an alternator and runs at a fixed speed to generate electricity. Because it does not experience the gradual torque increase associated with pushing water, its internal components—such as the turbocharger match, the charge-air cooler capacity, and the governor tuning—are heavily modified to absorb sudden, massive electrical load spikes without dropping RPM.
1800 RPM vs 1500 RPM Operational Intent
Another critical technical comparison involves engine rotational speed. The TBD604BL6 is available in configurations that run at 1500 RPM to generate 50Hz electricity. However, the 1800 RPM version detailed here is specifically required for 60Hz marine power grids. Running at 1800 RPM increases the mean piston speed, which translates to a higher power density and greater electrical output from the exact same engine block footprint. The fuel injection timing on the 1800 RPM marine auxiliary diesel engine is slightly advanced to optimize the Deutz TBD604BL6 1800 RPM fuel consumption rate. This careful calibration ensures that the engine does not sacrifice thermal efficiency or increase exhaust gas temperatures despite the higher rotational speed.
Real Application Scenarios for Marine Generator Engines
The true value of a marine auxiliary diesel engine is proven in the environments where it operates. HekoPower supplies the HND TBD604BL6 600kW model to a wide variety of commercial maritime sectors, each with unique operational demands.
Cargo Ships and Container Vessels
On long trans-oceanic voyages, a Deutz TBD604 auxiliary engine for cargo ships acts as the primary lifeline for the vessel's hotel loads and operational systems. Container ships transporting refrigerated goods require immense, uninterrupted electrical power to keep thousands of reefer units at exact temperatures. The 600kW output is ideal for running parallel generator sets, ensuring redundant power is always available to protect highly valuable cargo.
Offshore Support and Dynamic Positioning
Offshore vessels serving the oil, gas, and renewable energy sectors frequently utilize dynamic positioning systems to hold the ship perfectly stationary against wind and currents. These systems rely on electrically driven azimuth thrusters that require massive bursts of power. The TBD604BL6 600kW engine for offshore vessels provides the rapid transient response needed to spin up these thrusters instantly, preventing the ship from drifting off coordinate. Furthermore, its CCS/IMO2 certified status ensures compliance with strict international maritime emissions regulations.
Overcoming Common Misconceptions About the TBD604BL6
Misunderstandings regarding engine design can lead to improper purchasing decisions or maintenance failures. A prevalent misconception is that operating a 600kW 1800 RPM marine diesel engine at a lower speed will save fuel and extend its life. In reality, an engine governed and calibrated for 1800 RPM synchronous generator operation will suffer severe mechanical distress if forced to run slowly under load. Lowering the speed disrupts the turbocharger boost threshold, leading to incomplete combustion, heavy carbon buildup on the valves, and hazardous wet-stacking in the exhaust manifold.
Another common misunderstanding involves parts compatibility between propulsion and auxiliary variants of the 170 x 195 mm diesel engine. While the core block and crankshaft are often similar, the fuel delivery systems, camshaft profiles, and turbocharger turbine housings are distinctly different. Attempting to overhaul a TBD604BL6 marine generator engine using parts designated for a propulsion unit will result in erratic frequency output and potential alternator damage.
Maintenance Protocols and Overhaul Strategies
Maintaining absolute reliability in the middle of the ocean requires strict adherence to factory maintenance schedules. The TBD604BL6 26.58L marine diesel engine is designed for durability, but proactive care is essential.
Routine Inspections and Fuel Consumption Management
Daily operational checks should focus on the cooling and lubrication systems. Monitoring the differential pressure across the heat exchanger will indicate if marine growth or debris is restricting raw water flow. Maintaining the Deutz TBD604BL6 600kW fuel consumption at its optimal baseline—approximately 200 g/kW.h—requires keeping the fuel injectors clean and properly calibrated. Any sudden increase in fuel burn typically points to degrading injector nozzles or restricted air intake filters.
Major Overhaul and Replacement Guidelines
When the engine reaches its major overhaul interval, utilizing genuine TBD604BL6 600kW marine engine parts is non-negotiable. HekoPower supplies comprehensive overhaul kits that include matched cylinder liners, piston rings, and main bearings. If a vessel is undergoing a rapid drydock period, sourcing a complete Deutz TBD604BL6 replacement engine supplier is often more economical than a full teardown. Dropping in a factory-tested 600kW 1800 RPM engine minimizes yard time and instantly restores the ship's auxiliary power grid to zero-hour reliability.
TBD604 Series Overview
Integrating a heavy-duty marine engine requires understanding how it fits within the broader operational fleet. Operators often utilize multiple engines from the same family to standardize their spare parts inventory and simplify crew training. The 600kW model is just one configuration within a highly versatile lineup of HND Deutz engines engineered for the maritime industry.
Deutz TBD604-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD604BL6-450KW, TBD604BL6-540KW, TBD604BL6-550KW, TBD604BL6-600KW.
Frequently Asked Questions
Is the Deutz TBD604BL6 600kW engine compliant with international shipping regulations?
Yes. The TBD604BL6 600kW CCS marine engine meets the strict environmental and safety standards required for international operation. It is an IMO Tier II marine engine, ensuring compliance with global nitrogen oxide (NOx) emission limits.
What is the primary difference between the TBD604BL6 600kW marine engine for sale and standard land-based generators?
Marine auxiliary engines like the TBD604BL6 are built with specialized raw-water heat exchangers, double-walled high-pressure fuel lines, and marine-grade classification society approvals (such as CCS). Land-based engines utilize standard air-to-air radiators and lack the necessary safety redundancies required by maritime law.
Where can I find the TBD604BL6 600kW wholesale price and parts availability?
As a dedicated industrial engine distributor, HekoPower provides transparent pricing for both complete replacement units and overhaul components. We supply the HND TBD604BL6 600kW price directly to shipyards, fleet operators, and maritime procurement officers upon review of the specific vessel requirements.
Does this 6-cylinder marine genset engine require specialized tools for maintenance?
While the engine features a large 170x195 bore stroke design, it is engineered for serviceability. Most routine maintenance, including valve lash adjustments and fuel pump timing, can be performed using standard heavy-duty marine engineering tools. However, specialized pulling tools are recommended for replacing the wet cylinder liners during a major overhaul.
