Details
ISME335-30
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
ISME335-30 could be widely used on Dongfeng Truck, Heavy truck, Bus, Van, Commercial vehicle, and Vechicle power pack.
Technical Specifications
General Engine Data

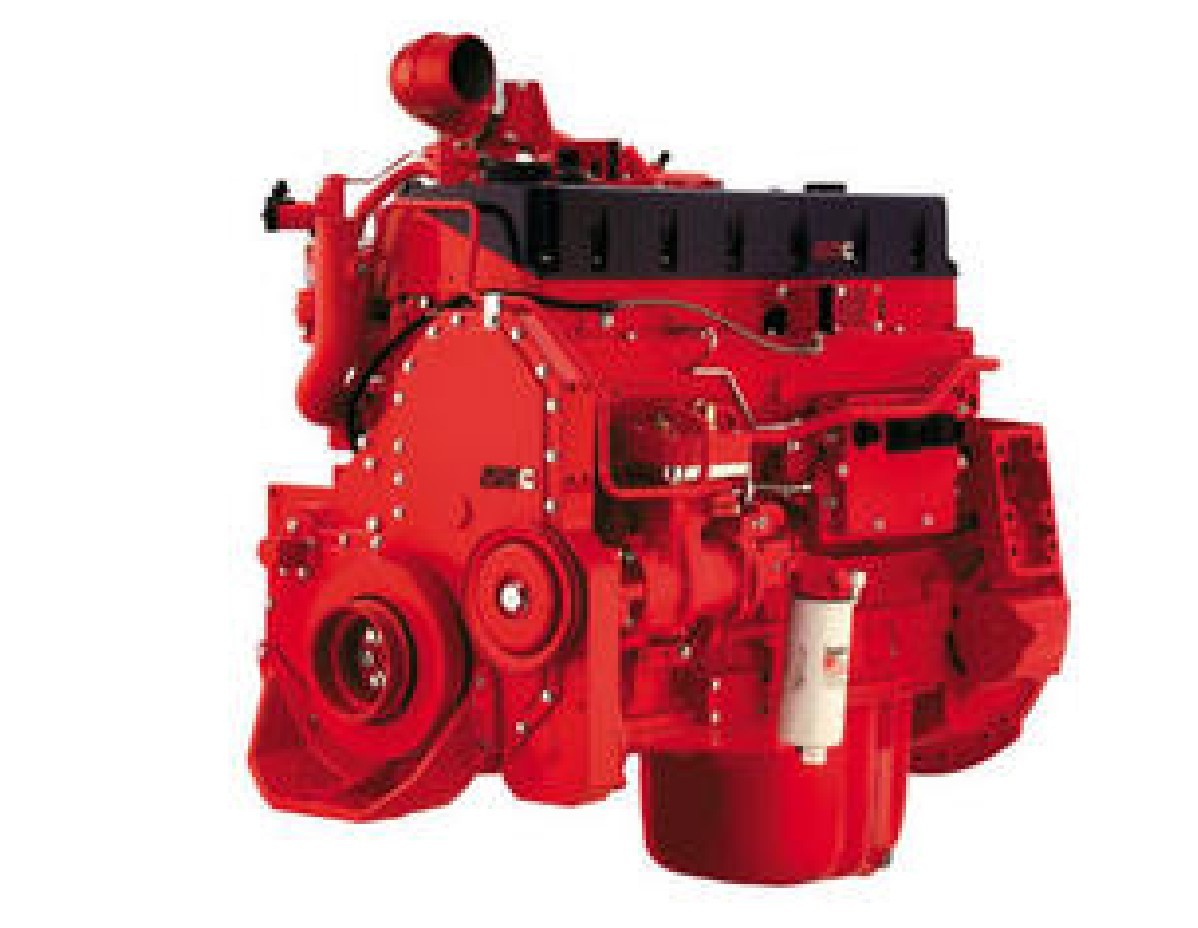

Engine Model: Cummins ISME335-30
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 114 * 144.5
Net Weight (with flywheel & alternator): 940 Kg
Overall Dimension: 1135mm*825mm*1159mm
Key Performance Date
Rated Power: 246 kW/335HP
Rated Speed: 1900 rpm
Torque/Rated Speed: 1230 N.m @ 1900 rpm
Max. Torque/Speed: 1410 N.m @ 1200 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins Fuel System/EMC876
Compression Radio: 16.2:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Firing Order: 1-5-3-6-2-4
Cummins ISMe Series
Cummins ISMe Series, original products from Xi’an Cummins Joint Venture Plant (XCEC), since 1986, 50% owned by Cummins USA, under Cummins Technical & Product Line. This series mainly includes ISME308-30, ISM11E4 308, ISME335-30, ISME345-30, ISM11E4 345, ISM11E5 345, ISME 360-30, ISME 380-30, ISME 385-30, ISM11E4 385, ISM11E5 385, ISM405E-20, ISME 420-30, ISM11E4 420, ISM11E5 420, ISM11E4 440, ISM11E5 440.
Cummins HX55 Turbocharger
Electronically controlled wastegate turbo delivers ideal air flow across the operating range by preventing overboost.
Articulated Pistons
With forged steel crown and aluminum skirt for exceptional durability.
Camshaft
hardened cast iron for improved wear tolerance.
Advanced Combustion Technology
Optimised injector tips and a reshaped steel piston bowl improve fuel economy and emissions control with longer oil change intervals.
Fuel Injectors
Electronically controlled with fully variable timing ideally matched to engine configuration.
Electronic Integration
Industry standard data-link accepts inputs from all powertrain components including electronic transmissions, ABS brakes and ASR anti-slip. Creates a seamless flow of information shared along a high speed network.
High Power
Up to 445 ps delivers great performance with a high power to weight ratio.
Electronic Protection
Sensors throughout the engine continually send data back tothe ECM for self diagnosis and protection. Rapid diagnostics and data downloading are available, helping to ensure maximum uptime for vehicles.
High Torque
Up to 2100 Nm at low revs for excellent responsiveness.
Emissions Technology
Meets Euro 4 and Euro 5 requirements using Selective Catalytic Reduction (S.C.R.) exhaust aftertreatment technology developed by Cummins Emission Solutions. This integrated system provides significant reductions in fuel consumption and extended service intervals.
