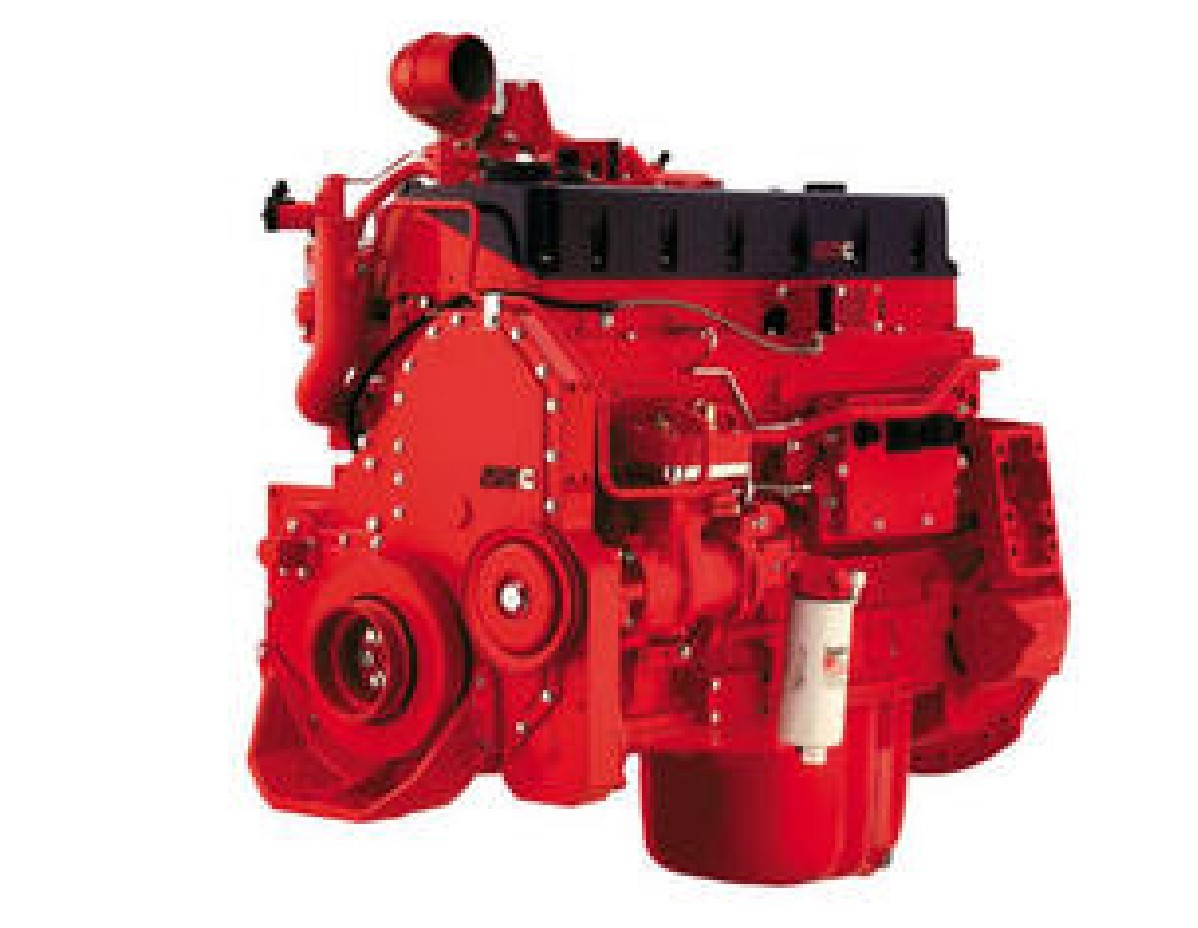

Cummins ISM11E4-345 Diesel Engine – 10.8L 345HP Heavy-Duty Truck Power Solution
The Cummins ISM11E4-345 diesel engine is a high-performance 10.8L heavy-duty power unit developed by Xi’an Cummins (XCEC) for demanding commercial vehicle applications. With a rated output of 345HP and strong low-speed torque, this engine is widely used in heavy-duty trucks, mining dump trucks, and long-haul logistics vehicles.
As a professional engine supplier, HekoPower provides genuine Cummins ISM11E4-345 engine assemblies with strict quality inspection, competitive wholesale pricing, and global delivery support. This model complies with Euro IV emission standards and is engineered for durability, fuel efficiency, and stable operation under high-load conditions.
Tech Specs of Cummins ISM11E4-345
General Engine Data
Engine Model: Cummins ISM11E4 345
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 114 * 144.5
Net Weight (with flywheel & alternator): 940 Kg
Overall Dimension: 1135mm*825mm*1159mm
Key Performance Data
Rated Power: 254 kW/345 HP
Rated Speed: 1900 rpm
Torque/Rated Speed: 1250 N.m @ 1900 rpm
Max. Torque/Speed: 1699 N.m @ 1200 rpm
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins Fuel System/EMC876
Compression Radio: 16.2:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Firing Order: 1-5-3-6-2-4
Technical Excellence: Cummins 10.8L ISM11 Engine Specs
The XCEC ISM11E4-345 10.8L 345HP engine is designed with a focus on durability and efficiency. It utilizes advanced combustion technology to meet Euro IV emission standards while maintaining high power density.
Torque and Power Delivery
A standout feature is the ISM11E4-345 engine peak torque, which reaches 1669 N.m at 1200RPM. This low-end torque is critical for heavy-duty trucks starting under full load or navigating steep inclines. Compared to the lighter M11 series, the ISM11 series offers a more rigid block and improved cooling jackets for sustained high-load operations.
Advanced Fuel System and ECM Control
The ISM11E4-345 fuel system HPCR (High-Pressure Common Rail) performance ensures precise fuel atomization. Controlled by the sophisticated ECM 2220, the engine dynamically adjusts fuel timing based on load, which significantly reduces the Cummins ISM11E4-345 fuel consumption per hour in 8x4 truck configurations.
Unmatched Reliability in Harsh Conditions
The Cummins 345HP heavy-duty truck engine is built to survive. With a B10 design life reaching up to 2 million kilometers, it is the preferred choice for mining dump trucks and long-haul logistics. It features a robust cooling system and can operate in altitudes up to 5000 meters with automatic power compensation.
Superior Braking Performance
Safety is paramount. The ISM11 series is compatible with the Jacobs (engine brake) system, providing up to 326 HP of braking power. This reduces wear on your service brakes, making it ideal for steep downhill gradients often found in mining or mountainous construction sites.
Applications: From Shacman Trucks to Mining Equipment
The versatility of the DCEC ISM11 345HP diesel engine assembly makes it a universal choice for heavy machinery.
- Heavy-Duty Logistics: It is the genuine XCEC ISM11E4-345 replacement for Shacman trucks and Dongfeng tractors.
- Construction & Mining: Frequently used in mining dump trucks and Sany SRT33 rigid haulers due to its high dust tolerance.
- Specialized Vehicles: Ideal for concrete mixers and heavy-duty cranes where consistent PTO (Power Take-Off) performance is required.
ISM11E4-345 vs ISM11E4-385 vs ISM11E5
Power and Application Differences
- ISM11E4-345 → balanced power and fuel efficiency
- ISM11E4-385 → higher horsepower for heavier loads
- ISM11E5 series → upgraded emissions and fuel economy
Emission and Technology Comparison
- ISM11E4 → Euro IV, simpler system, lower cost
- ISM11E5 → improved emissions, advanced ECU control
Reliability, Maintenance and Operating Cost
The Cummins ISM11E4-345 engine is designed for long service life and stable performance in harsh environments.
Maintenance Features
- Extended oil change intervals
- Durable cylinder block and components
- Easy access for servicing
Spare Parts and Support
HekoPower supplies:
- Genuine ISM11 spare parts catalog
- ECM modules and sensors
- Full engine overhaul kits
Regular maintenance helps reduce downtime and ensures optimal performance across the engine lifecycle.
Buying Guide – Is ISM11E4-345 Right for You?
This engine is ideal for:
- Heavy-duty truck fleets
- Mining and construction applications
- Long-haul transportation
It may not be suitable for:
- Light-duty vehicles
- Low-load urban transport
Buy Genuine ISM11E4-345 from HekoPower
Don't risk your operations with refurbished or counterfeit parts. HekoPower supplies brand new ISM11E4-345 engine assemblies directly from authorized production lines.
Why buy from HekoPower?
- Genuine Quality: 100% Original XCEC/Cummins parts.
- Warranty: We offer a comprehensive 12-month warranty on all engine assemblies.
- Fast Shipping: Wholesale orders are processed with a 10-15 day lead time.
- Flexible Payment: We accept T/T and L/C for your convenience.
Contact us today for the latest Cummins ISM11E4-345 price FOB Shanghai and secure a reliable power source for your business.
Cummins ISMe Series, original products from Xi’an Cummins Joint Venture Plant (XCEC), since 1986, 50% owned by Cummins USA, under Cummins Technical & Product Line. This series mainly includes ISME308-30, ISM11E4 308, ISME335-30, ISME345-30, ISM11E4 345, ISM11E5 345, ISME 360-30, ISME 380-30, ISME 385-30, ISM11E4 385, ISM11E5 385, ISM405E-20, ISME 420-30, ISM11E4 420, ISM11E5 420, ISM11E4 440, ISM11E5 440.
FAQ
What is the fuel consumption of ISM11E4-345?
Typically 28–32 L/hour depending on working conditions.
What trucks use ISM11E4-345?
Commonly used in Dongfeng, Shacman, and heavy-duty logistics trucks.
What is the price of ISM11E4-345 engine?
Pricing depends on configuration, quantity, and delivery terms.
