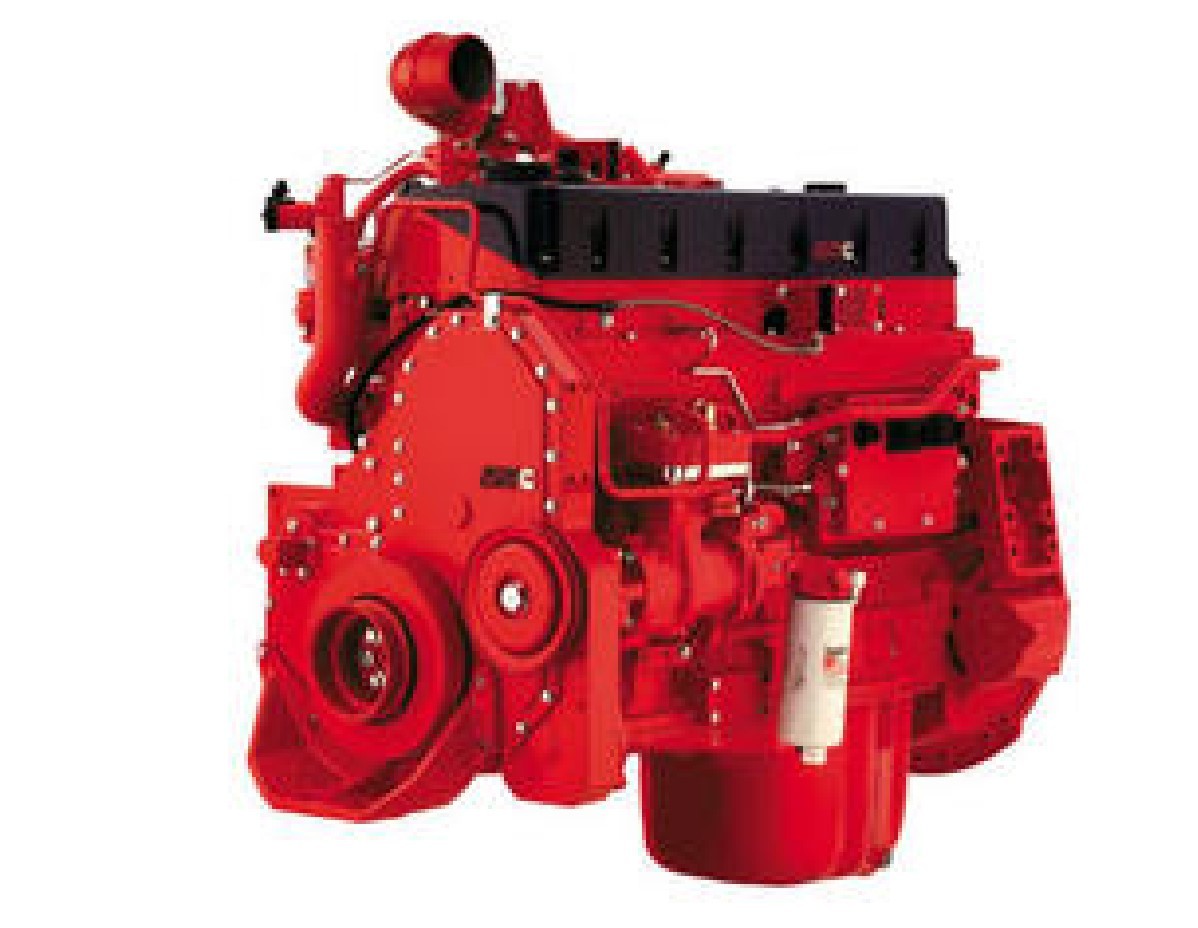

Cummins ISM11E5-345 Diesel Engine – 10.8L 345HP Euro V Heavy-Duty Power Solution
The Cummins ISM11E5-345 diesel engine is a Euro V compliant 10.8L heavy-duty power unit developed by Xi’an Cummins (XCEC) for modern commercial vehicles. With a rated output of 345HP and strong low-speed torque, this engine is widely used in heavy-duty trucks, mining dump trucks, and long-distance logistics fleets.
Compared with earlier ISM11E4 models, the ISM11E5-345 integrates an advanced SCR (Selective Catalytic Reduction) system, enabling reduced emissions and improved fuel efficiency. As a professional supplier, HekoPower provides genuine Cummins ISM11E5-345 engine assemblies with strict quality inspection, competitive pricing, and global delivery support.
Tech Specs of Cummins ISM11E5-345
General Engine Data
Engine Model: Cummins ISM11E5 345
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 114 * 144.5
Net Weight (with flywheel & alternator): 940 Kg
Overall Dimension: 1135mm*825mm*1159mm
Key Performance Data
Rated Power: 254 kW/345 HP
Rated Speed: 1900 rpm
Torque/Rated Speed: 1250 N.m @ 1900 rpm
Max. Torque/Speed: 1699 N.m @ 1200 rpm
More Technical Data
Certification: Euro V
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Cummins Fuel System/EMC876
Compression Radio: 16.2:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Firing Order: 1-5-3-6-2-4
Technical Superiority
Torque Curve and Performance Review
The ISM11E5-345 engine torque curve at 1200 RPM allows for exceptional "lugging" capability. This means drivers can maintain higher gears on inclines, directly reducing Cummins ISM11E5-345 fuel consumption per hour. Compared to the ISM11E5-385, the 345HP variant offers a more balanced fuel-to-power ratio for 20-ton to 40-ton vehicle configurations.
SCR System and AdBlue Consumption
A critical part of the ISM11E5-345 emission standard Euro V compliance is the Selective Catalytic Reduction (SCR) system. Users often ask about the Cummins ISM11E5-345 AdBlue consumption per 100km; typically, it ranges from 5% to 7% of fuel consumption. This system, managed by the ECM control system, ensures the engine meets strict NOx limits without sacrificing raw torque.
Applications: From Sany SRT33 to Dongfeng Trucks
What trucks use the Cummins ISM11E5-345 engine? Its versatility is unmatched:
- Mining: The standard ISM11E5-345 in Sany SRT33 mining trucks and other off-highway power packs.
- Logistics: Primary XCEC ISM11E5-345 engine for Dongfeng trucks and Shacman X3000 series.
- Marine & Power: Also adaptable as a Cummins ISM11 345HP marine propulsion engine or for high-output generator sets.
ISM11E5-345 vs ISM11E4-345 vs ISGe5-345
Emission and Technology Differences
- ISM11E4 → Euro IV, simpler system, lower cost
- ISM11E5 → Euro V, SCR system, cleaner emissions
- ISGe5 → newer platform, improved fuel efficiency
Emission and Technology Differences
- ISM11E5-345 → balanced performance and emissions
- ISM11E5-385 → higher torque for heavier loads
Direct Replacement & Seamless Integration
Perfect Fit for Leading Chinese Truck Brands
The ISM11E5-345 is a direct and reliable replacement for Euro 5 Shacman dump trucks and is widely used in Dongfeng truck models. If you're considering an engine swap, our technical support team can provide a comprehensive compatibility check and guide you through the process.
Beyond Trucks
Versatile Power Applications While dominant in the heavy-duty truck segment, this robust 10.8L engine is also a top choice for mining dump trucks, commercial buses, and even as a prime mover in specialized vehicle power packs. Its reliability makes it suitable for continuous operation in various industrial settings.
SCR System and Maintenance Guide
The SCR system in the Cummins ISM11E5-345 reduces NOx emissions using AdBlue.
Maintenance Tips
- Regular AdBlue refilling
- Periodic SCR system inspection
- Proper regeneration cycles
Common Issues and Solutions
- Overheating → check cooling system
- Injector wear → replace at scheduled intervals
- ECM reset after regeneration may be required
Reliability, Maintenance and Operating Cost
The ISM11E5-345 engine is designed for durability in harsh working environments.
Maintenance Highlights
- Optimized oil change intervals
- Robust cylinder block design
- Easy serviceability
Spare Parts Support
HekoPower supplies:
- Genuine spare parts catalog
- ECM modules and sensors
- Injector and turbocharger components
Buying Guide – Is ISM11E5-345 Right for You?
This engine is ideal for:
- Euro V compliant truck fleets
- Mining and construction equipment
- Long-haul transportation
Not recommended for:
- Light-duty vehicles
- Low-load urban applications
Why Choose HekoPower as Your Supplier
- Genuine XCEC Cummins engine assembly
- Competitive wholesale pricing
- Fast delivery (10–15 working days)
- Flexible payment terms (T/T, L/C)
- 12-month warranty support
Cummins ISMe Series, original products from Xi’an Cummins Joint Venture Plant (XCEC), since 1986, 50% owned by Cummins USA, under Cummins Technical & Product Line. This series mainly includes ISME308-30, ISM11E4 308, ISME335-30, ISME345-30, ISM11E4 345, ISM11E5 345, ISME 360-30, ISME 380-30, ISME 385-30, ISM11E4 385, ISM11E5 385, ISM405E-20, ISME 420-30, ISM11E4 420, ISM11E5 420, ISM11E4 440, ISM11E5 440.
FAQ
What is AdBlue consumption for ISM11E5-345?
Typically 3–5% of diesel consumption.
What trucks use ISM11E5-345?
Commonly used in Dongfeng, Shacman, and mining trucks.
What is the price of ISM11E5-345 engine?
Depends on configuration, quantity, and delivery terms.
