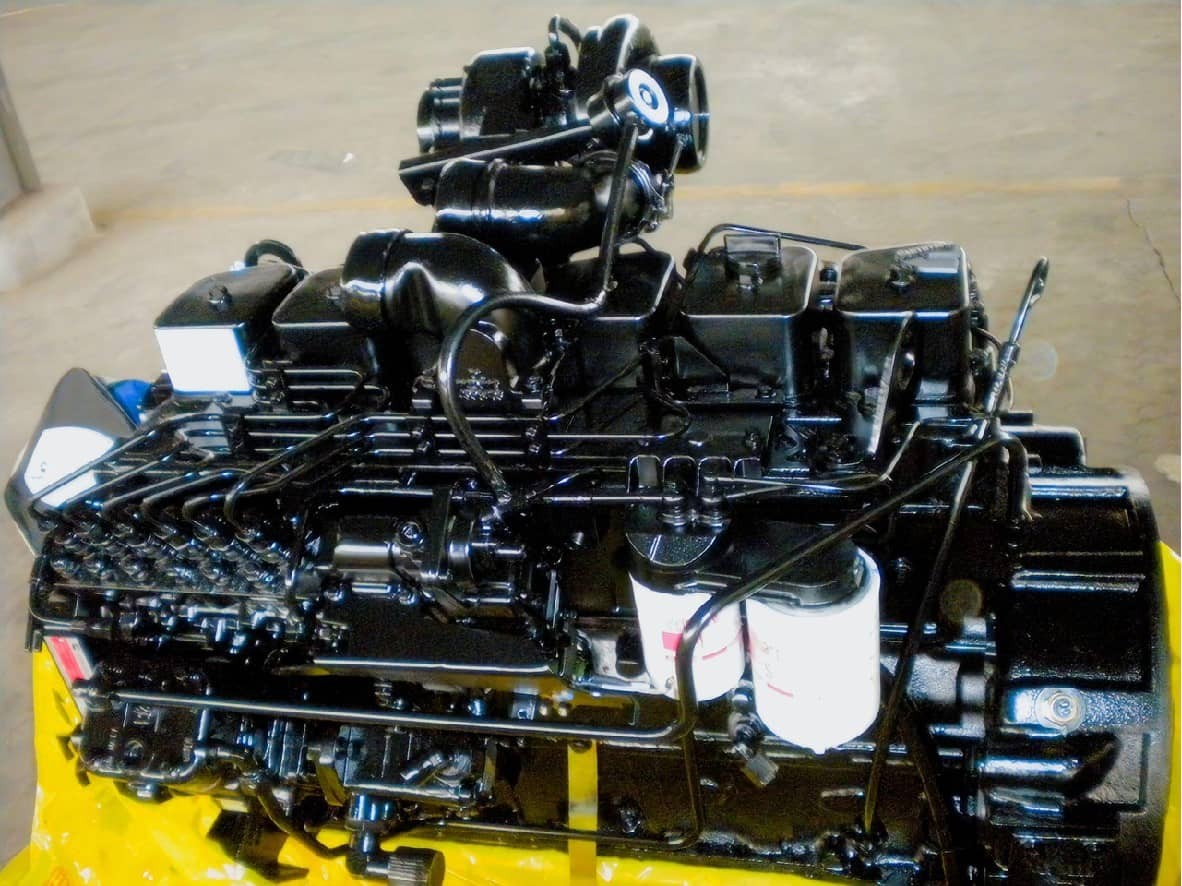

DCEC Cummins EQB210-20 Complete Engine Assembly
Procuring the right commercial powertrain requires precision. The DCEC Cummins EQB210-20 complete engine assembly is engineered specifically for heavy-duty commercial demands, offering a proven balance of durability and fuel efficiency. As a 5.9L, inline 6-cylinder diesel engine, it delivers a rated output of 155 kW (210HP) at 2500 RPM. This configuration provides the necessary muscle for medium-duty trucks and passenger buses operating under demanding regional logistics routes.
At HekoPower, we supply the genuine Cummins EQB210-20 engine to fleet managers, repair facilities, and distributors globally. We understand that downtime directly impacts profitability. Securing a reliable replacement engine ensures your vehicles return to the road quickly without compromising on original manufacturing standards.
Tech Specs of EQB210-20
General Engine Data
Engine Model: Cummins EQB210-20
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 413 Kg
Overall Dimension: 1026mm*699mm*912mm
Key Performance Data
Rated Power: 155 kW/210HP
Rated Speed: 2500 rpm
Max Torque/Speed: 700 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 249 g/Kw.h
Max. No-load Governed Speed: 2850 rpm
Idle-Speed: 750 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.0 L
Understanding the 6BT 5.9L EQB210-20 Diesel Engine Architecture
The architecture of the EQB210-20 is built upon the globally recognized Cummins 6BT5.9 platform. It integrates advanced design elements from the United States, utilizing an integrated cylinder block and head design. This structural choice effectively eliminates common engine leak pathways and oil seepage issues. Furthermore, this streamlined engineering approach results in nearly forty percent fewer total parts compared to competing engines in the same displacement category. Fewer parts mean fewer potential points of failure, directly lowering comprehensive maintenance and repair costs over the engine's lifecycle.
This model is compliant with Euro II emission standards, utilizing a turbocharged and air-to-air intercooled aspiration method. Depending on specific operational requirements, the engine is typically equipped with either a robust Bosch P7100 or a Weifu PW2000 fuel injection pump. The mechanical reliability of these fuel systems makes the EQB210-20 highly tolerant of varying fuel qualities found in different global regions.
Technical Comparisons Across the Cummins EQB Series
Selecting the correct horsepower rating within the EQB family is critical for optimal vehicle performance. The EQB210-20 occupies a strategic middle ground when compared directly to its series counterparts.
When evaluating the EQB210-20 against the lower-tier EQB190-20, the primary distinction lies in load-handling capability. While both share the 5.9L displacement, the 210HP variant generates a substantial 700 Nm of peak torque at 1500 RPM, compared to the 640 Nm produced by the 190HP model. This extra 60 Nm of torque is crucial for vehicles frequently carrying maximum payloads in mountainous or steep-grade environments, preventing engine lugging and premature drivetrain wear.
Conversely, comparing the EQB210-20 against the higher-output EQB235-20 reveals a trade-off between absolute power and fuel economy. The 210HP engine maintains a leaner minimum fuel consumption rate, making it the preferred choice for volume logistics fleets where operational range and fuel budget take precedence over rapid acceleration under heavy loads. Compared to the legacy non-emission-regulated 6BT5.9 engines, the Euro II compliant EQB210-20 offers a heavily refined exhaust bypass valve design. This enhancement significantly improves low-speed dynamic performance, providing drivers with smoother initial acceleration from a complete stop.
Real Application Scenarios for the Cummins EQB210-20
The EQB210-20 engine for commercial trucks is highly versatile. It serves as the primary factory power plant for numerous Dongfeng commercial vehicles. When an aging fleet requires powertrain revitalization, the Dongfeng truck replacement engine EQB210-20 is a direct, drop-in solution that minimizes fabrication and retrofitting delays.
Beyond standard logistics trucks, the DCEC EQB210-20 bus engine is frequently installed in medium-sized city transit and intercity coach applications. The 2500 RPM rated speed provides smooth highway cruising capabilities, while the 700 Nm of low-end torque ensures smooth stop-and-go performance in dense urban traffic without passenger discomfort.
For commercial fleet operators, standardizing on the 5.9L Cummins engine for commercial vehicle replacements simplifies parts inventory and mechanic training. Sourcing an original Cummins EQB210-20 engine assembly through a certified wholesale supplier like HekoPower ensures that your fleet replacement program maintains strict quality control and predictable operational lifespans.
Maintenance and Replacement Engine Tips
Maximizing the lifespan of your Cummins 5.9L EQB210-20 engine requires adherence to strict maintenance protocols. A common buyer pitfall is assuming that all 6BT parts are universally interchangeable. While the core block is similar, using generic aftermarket components, particularly concerning the Bosch or Weifu fuel pump systems, often leads to uneven fuel delivery, increased exhaust temperatures, and rapid piston wear. Always source genuine replacement parts.
Lubrication is the lifeblood of this engine. For mechanical B-series engines, the lubricating oil quality must meet or exceed API CF-4/SG standards. The standard viscosity recommendation is 15W-40. However, the EQB210-20 is renowned for its excellent cold start performance. Equipped with an air suction electric preheater, it can start reliably in temperatures as low as -25 degrees Celsius. In these arctic climates, switching to a 10W-30 or 5W-20 viscosity is mandatory to prevent dry starts and severe internal scoring.
Coolant system neglect is another frequent cause of premature failure. Operators must use an antifreeze anti-rust solution, typically a 50/50 mixture of high-quality water and composite antifreeze, checking the fluid levels daily and replacing the liquid at scheduled mileage intervals to prevent cavitation within the water pump.
Explore More Within the Cummins EQB Series
Selecting the ideal powertrain requires understanding the full scope of available configurations to perfectly match your commercial requirements. While the EQB210-20 offers an exceptional balance of 210HP and Euro II compliance, your fleet's needs might dictate slightly different specifications, emission standards, or horsepower ratings. To accommodate diverse operational demands across different vehicle weight classes, we offer a comprehensive lineup of related power solutions.
DCEC WQB Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes EQB125-20, EQB140-20, EQB160-20, EQB170-20, EQB180-20, EQB190-20, EQB210-20, EQB235-20.
Frequently Asked Questions (FAQs)
What is the weight and dimension of the EQB210-20 engine?
The net weight of the EQB210-20, inclusive of the flywheel and alternator, is approximately 437 kilograms. The overall dimensions measure 1006mm in length, 872mm in width, and 972mm in height, allowing it to fit comfortably within standard medium-duty truck engine bays.
Can I upgrade my 190HP Dongfeng truck to the 210HP EQB210-20?
Yes, replacing a 190HP engine with the 210HP Cummins truck engine replacement is highly common. Because the block dimensions and mounting points are identical within the 5.9L family, the physical swap is straightforward. However, operators should verify that their existing transmission and cooling package are rated to handle the increased 700 Nm torque output.
What fuel injection system does this engine use?
This specific DCEC EQB210-20 diesel engine utilizes reliable mechanical fuel injection, predominantly featuring either an EQB210-20 Weifu fuel pump or an EQB210-20 Bosch fuel pump, depending on the exact factory build specification. This mechanical setup avoids the complex electronics found in later Euro III and Euro IV engines.
Is this engine suitable for high-altitude operations?
Yes, the turbocharged and intercooled aspiration system allows the engine to maintain a maximum continuous running altitude of up to 3,000 meters before experiencing significant power deration.
