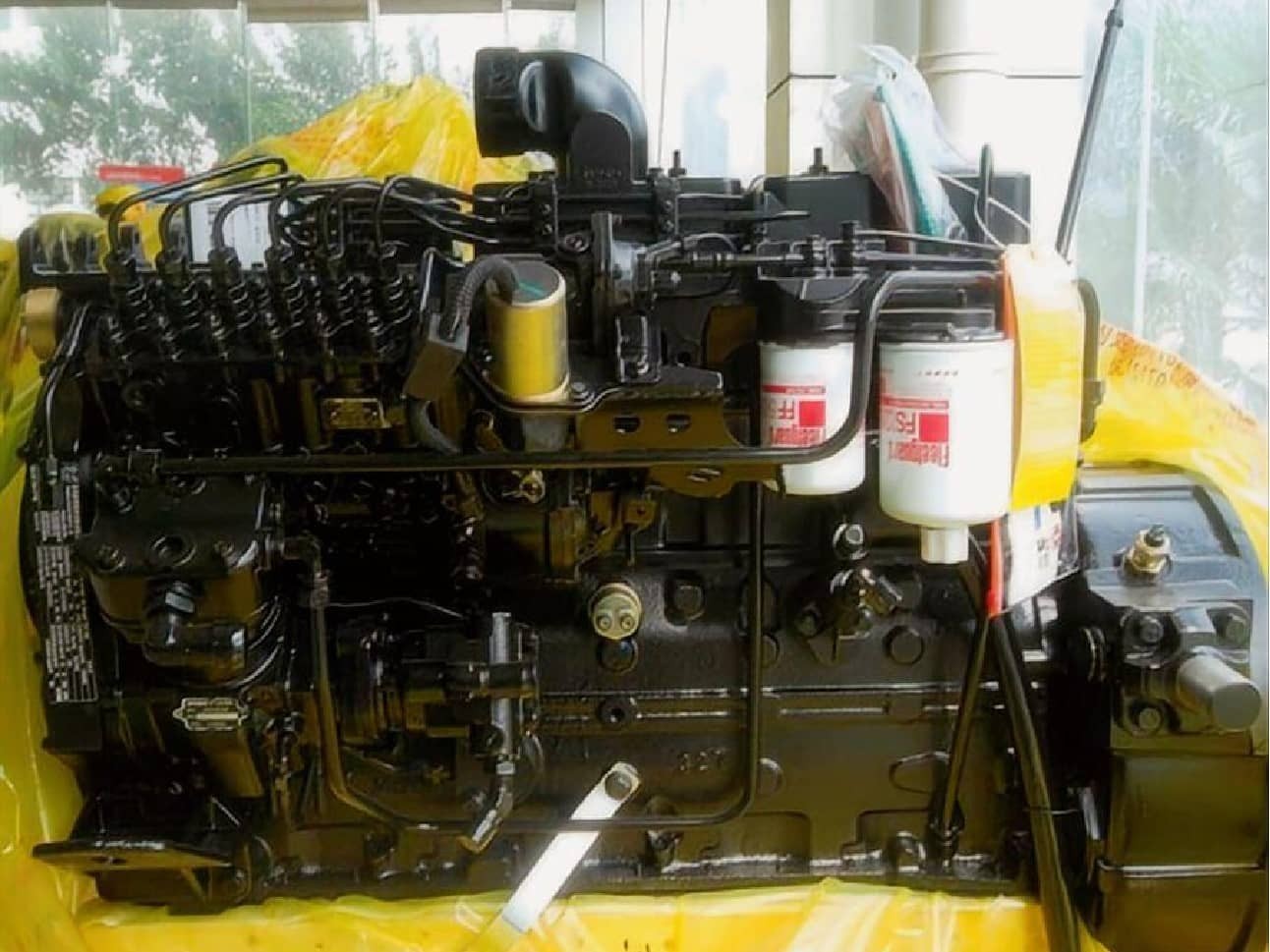

Genuine DCEC Cummins EQB160-20 160HP Diesel Engine Assembly for Dongfeng Commercial Vehicles
Finding an exact matching powertrain for medium-duty fleet operations requires filtering through identical technical specifications sheet tables that do not address real-world installation variances. At HekoPower, we provide complete, factory-fresh DCEC Cummins EQB160-20 engine assembly units directly from the production lines in China. If you need a reliable Cummins EQB160-20 truck engine replacement to restore your commercial vehicle to full duty, understanding the precise configuration of this B-series variation prevents expensive field conversion mistakes.
The Dongfeng Cummins 160HP automotive engine remains a highly trusted mechanical platform across global logistics and public transport fleets. Because it avoids complex, sensitive common-rail electronics, the Cummins Euro II diesel engine line delivers unmatched uptime in regions with variable fuel quality.
Tech Specs of Cummins EQB160-20
General Engine Data
Engine Model: Cummins EQB160-20
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 413 Kg
Overall Dimension: 1026mm*699mm*912mm
Key Performance Data
Rated Power: 118 kW/160HP
Rated Speed: 2500/2600 rpm
Max Torque/Speed: 570 N.m @ 1500-1600 rpm
Torque/Rated Speed: 550 N.m @ 1600 rpm
Fuel Consumption @ Rated Power: 242 g/Kw.h
Max. No-load Governed Speed: 2750±50 rpm
Idle-Speed: 750±100 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.0 L
Technical Performance Breakdown and System Settings
To make an informed procurement choice, global distributors must analyze the core engineering variables of the Cummins B series vehicle engine rather than relying on generic power ratings. The basic footprint centers on the proven inline 6-cylinder layout with a 5.9-liter displacement, using a 102 mm bore and a 120 mm stroke.
Torque Curve Dynamics and Operating Limits
The structural design delivers its peak performance of 118 kW at an operating speed of 2500 RPM. However, the critical metric for heavy fleet logistics is the low-end pulling force. The EQB160-20 vehicle diesel engine generates its maximum torque of 560 Nm consistently across an operational window of 1400 to 1600 RPM. This narrow, low-speed torque peak allows medium trucks to launch reliably under capacity loads without excessive clutch wear.
Cummins EQB160-20 Fuel System Configuration
Unlike modern electronically managed engines, the EQB160-20 engine uses a fully mechanical fuel management architecture. The system relies on a premium BYC P7100 mechanical injection pump paired with a responsive Holset wastegate turbocharger. The mechanical governor controls fuel delivery directly based on boost pressure and throttle input. This design avoids the sensors and wiring harnesses that often cause failures in humid or rough off-road environments.
Real Application Scenarios and Fleet Integration
A common issue on commercial vehicle listing sites is treating every 160HP engine as a universal fit. The specific internal tuning, flywheel housing dimensions, and accessory layouts make the Cummins 5.9L truck engine distinct from industrial or marine engine variants.
Cummins EQB160-20 Engine for Dongfeng Truck Installations
The most frequent application for this specific power package is within the medium-duty commercial chassis families built by Dongfeng Motor Corporation. It serves as the primary factory engine configuration for cargo vehicles such as the Dongfeng Kingrun, EQ1141, and DFL1120 series flatbeds. The front motor supports, fan pulley height, and oil pan clearance are tailored to clear the front axle crossmembers of these specific trucks.
Performance as a Cummins EQB160-20 Bus Engine
Beyond point-to-point freight hauling, this powertrain is widely deployed in regional passenger transit. In city buses and intercity coaches ranging from 7 to 9 meters, the mechanical B-series engine provides a predictable power profile. The stable 560 Nm torque output allows transit operators to sustain stable average speeds on hilly terrain while carrying full passenger loads.
Comparative Engineering Analysis
When selecting a replacement powertrain, fleet managers often weigh the mechanical EQB160-20 against newer electronic architectures or lower horsepower configurations within the same DCEC production lines.
EQB160-20 vs. Common Rail ISDe 160 Engines
The primary difference between the classic EQB mechanical series and the modern ISDe series involves emission compliance and fuel sensitivity. The ISDe 160 uses a high-pressure common rail system to meet stricter emissions standards, but requires pristine, ultra-low sulfur diesel fuel. In contrast, the EQB160-20 Euro II configuration features large-orifice mechanical injectors that tolerate higher fuel sulfur levels and trace moisture without triggering electronic limp-mode codes. This makes the mechanical engine the standard choice for remote construction, mining, and export markets.
Upgrading from the Cummins EQB140-20 Engine Variant
While both engines use the same 5.9L engine block and share body dimensions, the EQB160-20 uses a different turbocharger match and modified injection nozzle spray profiles to gain a 20HP advantage. Upgrading an older EQB140-20 truck to the 160HP version offers immediate benefits for routes involving steep terrain or increased payload demands, without requiring modifications to the chassis mounts.
Maintenance Profiles and Engine Replacement Tips
To ensure a long service life, installing a new EQB160-20 complete engine assembly requires adhering to precise mechanical commissioning practices rather than simply bolting the unit into place.
Addressing Fuel Consumption and BYC P7100 Timing
The mechanical efficiency of the BYC P7100 injection pump depends entirely on precise spill-timing alignment. Over years of heavy vibration, minor slippage in the pump drive gear can cause advanced or retarded injection timing. If your truck shows signs of black smoke or increased fuel consumption, a technician should check the static timing mark against the engine cylinder block reference point. Maintaining precise mechanical timing keeps fuel consumption within the factory design limits of 210 grams per kilowatt-hour.
Checking EQB160-20 Engine Dimensions and Weight
Before ordering a replacement block for a non-standard vehicle frame, ensure your shop has the right handling equipment. The complete dry engine weight is approximately 435 kilograms. The physical package measures 1024 mm long, 672 mm wide, and 981 mm high. Check the rear flywheel housing structure; the standard package utilizes an SAE 2 or SAE 3 configuration, which dictates whether your existing transmission bellhousing will bolt up directly without an adapter plate.
HekoPower Global Supply Chain and Ordering Support
As an established wholesale supplier and export distributor based in China, HekoPower manages the entire logistical process to minimize vehicle downtime for global fleets.
Cummins EQB160-20 Lead Time and Price Advantages
We reduce procurement layers by sourcing original engine components directly from authorized production channels. This structural advantage allows us to offer competitive bulk pricing to repair facilities and fleet operations. Our logistics team provides clear lead time estimates based on shipping requirements, ensuring your components are securely crated in sea-freight standard wooden boxes with anti-corrosion protective coatings.
DCEC WQB Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes EQB125-20, EQB140-20, EQB160-20, EQB170-20, EQB180-20, EQB190-20, EQB210-20, EQB235-20.
Frequently Asked Questions
Can I buy the Cummins EQB160-20 engine price with transmission assembly combined?
Yes. HekoPower can deliver the engine as a complete vehicle power pack, pre-matched with compatible manual transmissions from brands like Dongfeng, Fast, or ZF. This approach avoids alignment issues between the clutch pressure plate and the input shaft during field replacement.
Where can I download the Cummins EQB160-20 datasheet PDF?
You can request the complete technical specifications sheet and accessory drawing layouts by contacting our sales department. We provide verified documentation covering water pump inlet diameters, electrical alternator output configurations, and structural installation bolt paths.
What components are included in a new complete engine assembly from HekoPower?
Our complete assemblies come ready for installation, including the cylinder block, cylinder head, fully timed BYC P7100 injection pump, fuel injectors, turbocharger, exhaust manifold, water pump, alternator, and starter motor.
