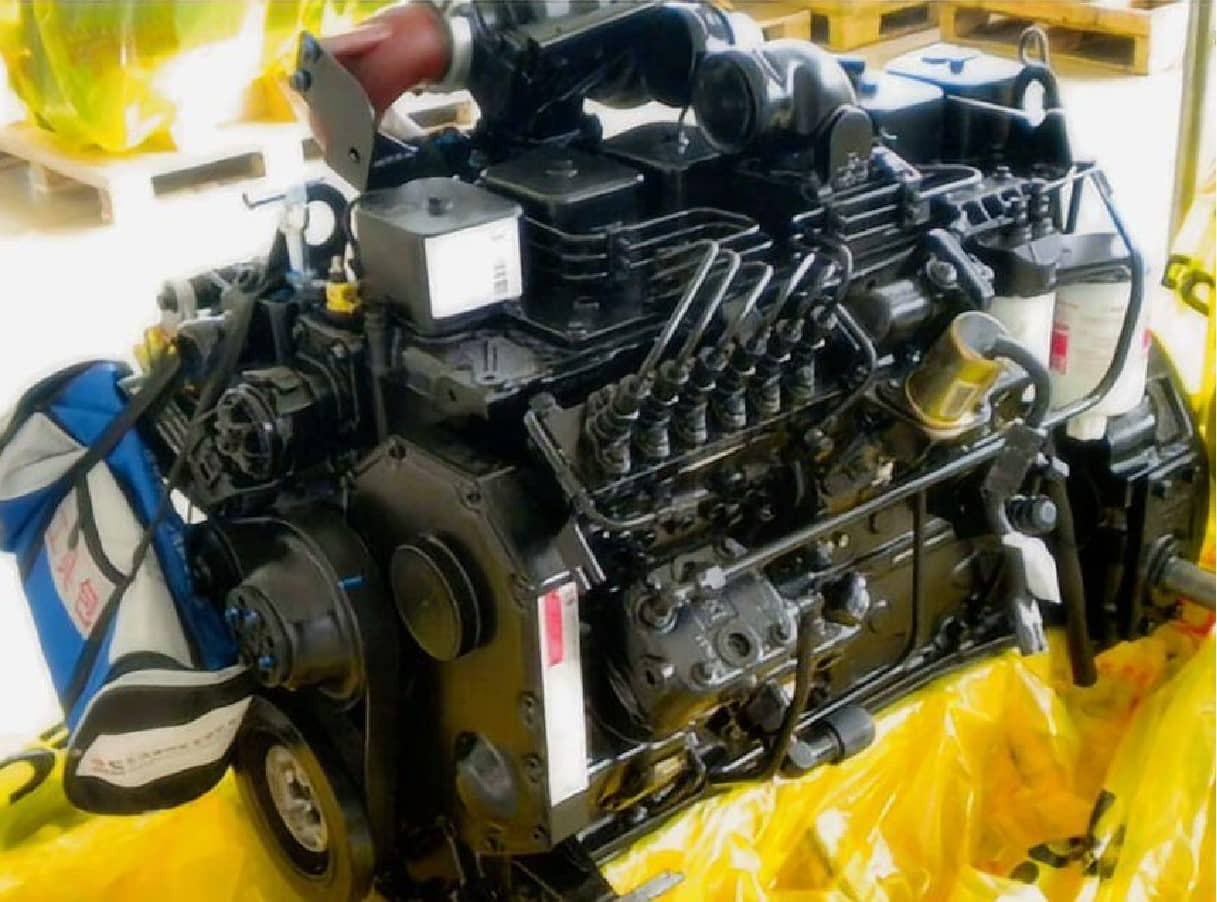

Understanding the Cummins EQB180-20 5.9L Engine
The DCEC Cummins EQB180-20 engine is a robust workhorse designed specifically for medium-duty commercial vehicles. Operating as a 5.9L inline six-cylinder engine, it delivers a consistent 132 kW (180 HP) at a rated speed of 2500 rpm. What sets this exact model apart from standard industrial setups is its calibration for road-going dynamics, particularly its ability to generate 610 Nm of torque at a low 1500 rpm. This low-end torque band is crucial for getting heavily loaded trucks and coaches moving efficiently from a standstill.
Featuring a 102 × 120 mm bore and stroke, this turbocharged intercooled diesel engine utilizes forced induction to maximize air density, resulting in cleaner combustion that meets Euro II emissions specifications. It strikes an excellent balance between raw pulling power and acceptable fuel consumption at rated power, making it a highly requested unit for fleet operations needing reliable replacements.
Tech Specs of EQB180-20
General Engine Data
Engine Model: Cummins EQB180-20
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 413 Kg
Overall Dimension: 1026mm*699mm*912mm
Key Performance Data
Rated Power: 132 kW/180 HP
Rated Speed: 2500 rpm
Max Torque/Speed: 610 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 248 g/Kw.h
Max. No-load Governed Speed: 2850 rpm
Idle-Speed: 750 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.0 L
Technical Positioning: EQB180-20 vs. Similar Cummins Models
Many fleet operators struggle to identify the correct Cummins EQB180-20 replacement engine when comparing it to closely related variants. While they share the foundational 5.9-liter block, the fueling and turbo mapping create distinct operational differences.
When looking at the Cummins EQB180-20 vs EQB160-20 power and torque comparison, the 180HP version utilizes a slightly larger turbocharger housing and adjusted fueling parameters to achieve its higher 610 Nm torque peak, whereas the 160HP limits fueling to optimize for lighter inner-city delivery routes.
Comparing the Cummins EQB180-20 vs EQB190-20 engine specifications reveals an even tighter margin. The 190HP model pushes the 5.9L block closer to its thermal limits for highway-speed coach applications, requiring a more aggressive cooling system. The EQB180-20 sits perfectly in the middle, offering maximum durability without over-stressing the internal components.
A common question involves the EQB180-20 vs 6BT5.9 engine model differences. The 6BT is the mechanical predecessor. The EQB series represents the evolution for automotive applications, incorporating an air-to-air intercooler and optimized injection timing to meet Euro II standards, which the standard 6BT often does not.
Commercial Truck and Coach Applications
The EQB180-20 replacement engine for commercial truck applications is engineered to handle high-mileage, high-load cycles. You will commonly find this engine powering medium-sized distribution trucks, regional logistics vehicles, and 30-40 passenger intercity coaches.
Because the EQB180-20 engine dimensions, weight, and installation requirements are standardized within the DCEC footprint, it drops seamlessly into chassis designed for the 5.9L family. The engine flywheel housing and accessory configuration are typically set up for standard manual or automated manual transmissions common in Chinese and international commercial chassis.
When replacing an engine in a mixed fleet, compatibility across the powertrain is vital. To ensure you have the exact match for your chassis, you can explore other options in this family. DCEC WQB Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes EQB125-20, EQB140-20, EQB160-20, EQB170-20, EQB180-20, EQB190-20, EQB210-20, EQB235-20.
Fuel System Configurations: Bosch vs. Wuxi Weifu
One of the most critical aspects of ordering a DCEC EQB180-20 replacement engine is matching the fuel injection system. The engine is offered with different fuel pump configurations depending on the production run and original vehicle specification.
The choice often comes down to a Cummins EQB180-20 Bosch pump vs Wuxi Weifu pump. The Bosch P7100 inline injection pump is globally renowned for its ruggedness and ability to handle poor fuel quality. However, the Wuxi Weifu fuel pump is extremely common on domestic DCEC builds, offering excellent performance and significantly lower replacement costs for the Asian market.
Understanding how fuel-pump configuration affects EQB180-20 engine replacement is vital. If your original engine used a Bosch pump, you must either specify a Bosch-equipped replacement or ensure your throttle linkages and fuel lines can adapt to the Wuxi Weifu layout. A mismatch here is the most common reason for installation delays.
Maintenance and Replacement Strategy
Deciding between a Cummins EQB180-20 engine replacement versus an engine overhaul often comes down to downtime. While rebuilding an engine with a genuine Cummins EQB180-20 genuine engine spare parts catalog is possible, sourcing individual components, machining the block, and reassembly can keep a truck off the road for weeks.
Sourcing a DCEC Cummins EQB180-20 complete engine assembly for sale from a trusted Cummins EQB180-20 engine export supplier like HekoPower reduces downtime to mere days. You receive a factory-tested unit ready to drop in.
To maximize the lifespan of your new engine, strict adherence to the EQB180-20 fuel injection pump maintenance requirements is necessary. Changing fuel filters at the prescribed intervals prevents abrasive wear in the pump plungers. Additionally, respecting the EQB180-20 cooling system and coolant capacity specifications ensures the intercooled system operates efficiently, preventing the cylinder head cracking associated with overheating. Always consult the specific Cummins EQB180-20 engine operation manual and service information for exact fluid capacities and torque specs.
What to Check Before Ordering a DCEC EQB180-20 Engine
To utilize our Cummins EQB180-20 replacement compatibility checklist, please gather the following before requesting a Cummins EQB180-20 engine quotation and delivery time:
Nameplate Data: The DCEC EQB180-20 engine identification and nameplate details (Engine Serial Number - ESN) dictate the exact build sheet.
Pump Type: Confirm whether you currently have a Bosch or Wuxi Weifu fuel pump.
Accessories: Note if your current setup requires specific air compressor or power steering pump mounting locations.
Frequently Asked Questions (FAQ)
What is the standard EQB180-20 engine delivery time for overseas buyers?
As a dedicated DCEC EQB180-20 engine export supplier for overseas buyers, HekoPower typically dispatches standard configurations within 10 to 15 business days. EQB180-20 complete engine assembly shipping and export documentation are handled entirely by our logistics team to ensure smooth customs clearance.
What is the difference between EQB180-20 and 6BT?
The EQB180-20 is a specific configuration within the 6BT platform.
Are 132KW Euro II Cummins EQB180-20 spare parts easy to find globally?
Because the 5.9L B-series architecture is one of the most widely produced engine platforms globally, consumable parts (filters, belts, gaskets) are universally accessible, minimizing long-term maintenance hurdles.
