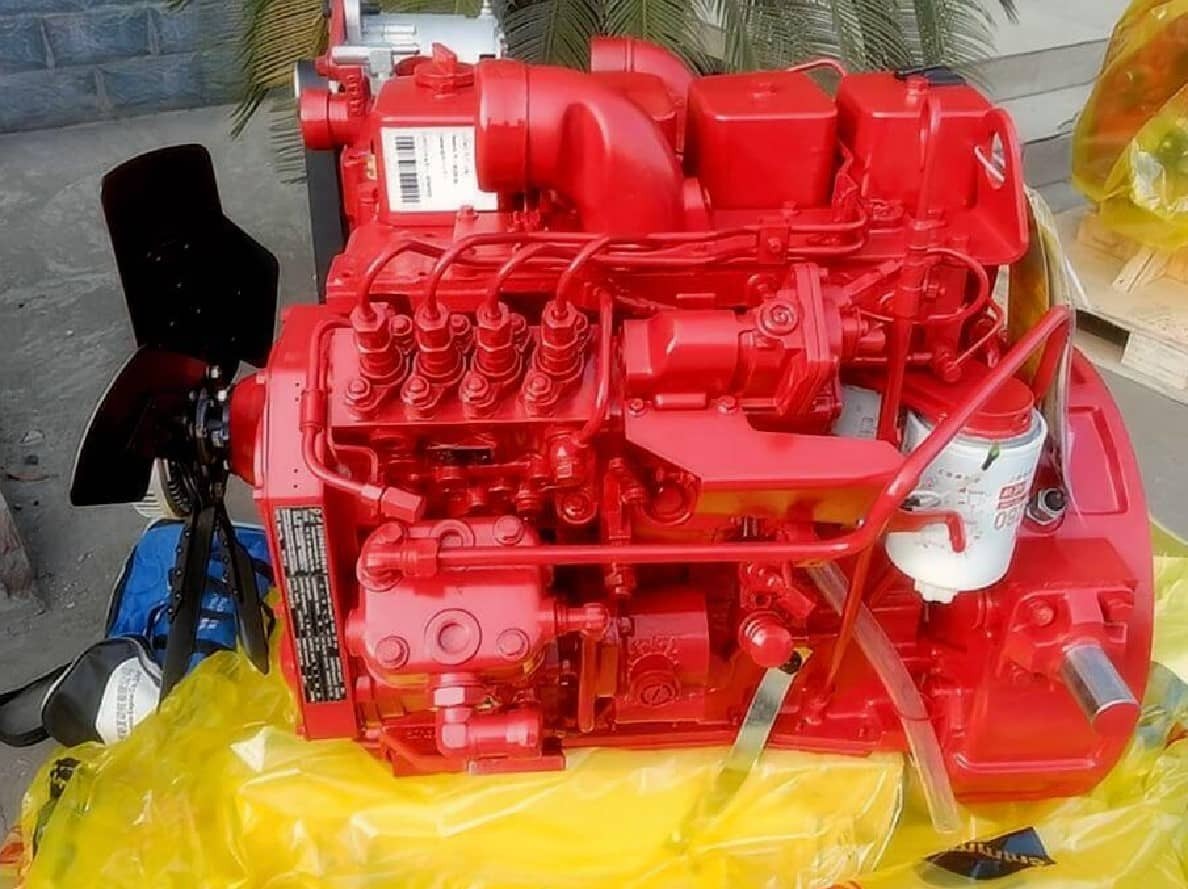

Genuine Cummins EQB140-20 Engine Assembly for Trucks and Commercial Vehicles
The Cummins EQB140-20 engine assembly is a proven 140HP diesel power unit developed by Dongfeng Cummins Engine Co., Ltd. (DCEC) for medium-duty trucks, buses, municipal vehicles and logistics transportation applications. Featuring a 3.9L turbocharged design, mechanical fuel injection system and Euro II emissions compliance, the EQB140-20 offers dependable performance, straightforward maintenance and competitive operating costs.
As an experienced engine supplier, HekoPower provides genuine Cummins EQB140-20 complete engines for customers seeking reliable replacement engines, fleet maintenance solutions and export projects. Each engine is supplied with factory identification and can be delivered together with maintenance parts and overhaul kits according to project requirements.
Tech Specs of Cummins EQB140-20
General Engine Data
Engine Model: Cummins EQB140-20
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 362 Kg
Overall Dimension: 778mm*634mm*912mm
Key Performance Data
Rated Power: 102 kW/140HP
Rated Speed: 2700 rpm
Max Torque/Speed: 520 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 234 g/Kw.h
Max. No-load Governed Speed: 3050 rpm
Idle-Speed: 750 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.0 L
Technical Performance and Deep Engine Specifications
The core architecture of the Cummins EQB140-20 relies on a robust 4-cylinder inline mechanical design engineered for mid-duty transportation. When studying the official Cummins EQB series 103kw engine data sheet, the balance between mechanical reliability and thermal efficiency becomes clear.
Power Curves and Rotational Speed Dynamics
The Cummins EQB140-20 rated speed 2700 rpm indicates a high-speed diesel design built to sustain highway speeds in light commercial configurations. At its peak output of 103 Kilowatts (140 Horsepower), the engine delivers strong torque recovery across its mid-range power band. This 140HP output profile is ideal for regional distribution routes where constant stop-start conditions demand instant throttle response without soaring exhaust gas temperatures.
Fuel Injection Infrastructure and Pump System
Unlike newer electronic common-rail variants, this version relies on a dependable mechanical governor system. The DCEC EQB140-20 fuel injection pump type utilizes an inline mechanical design, predominantly equipped with a premium Cummins EQB140-20 Weifu fuel pump. This mechanical setup provides two massive advantages for operators in developing regions: high tolerance for variable diesel fuel quality and simple, cost-effective field repairs without requiring complex electronic diagnostic scanners.
Application Profiles: What Vehicles Use Cummins EQB140-20?
Understanding where this power plant belongs prevents costly procurement mistakes. The Cummins EQB140-20 commercial vehicle engine is built specifically for medium-duty transportation frameworks. It is not designed for heavy industrial mining excavators or marine vessels, but excels in stop-and-go city logistics and regional cargo distribution networks.
Integration as a Dedicated Truck Engine
The primary footprint for this assembly is found within the regional logistics sector. The Cummins EQB140-20 truck engine serves as the standard power plant for a massive array of 4-to-8 ton medium duty rigid cargo carriers. It is the factory-original installation for many regional variants of the Dongfeng Kingrun and Dongfeng Duolika cargo trucks. Commercial bodybuilders frequently choose this 3.9L assembly for municipal waste vehicles, street sweepers, and light-duty flatbed towing trucks due to its compact length and easily serviceable layout.
Public Transport and Bus Applications
Beyond moving freight, the unit serves reliably in urban public transit. The EQB140-20 bus engine configuration is frequently deployed in 6-to-8 meter regional passenger buses, school transport vehicles, and employee shuttle coaches. The low vibrational signature of the 4-cylinder layout, combined with standard sound-dampening valve covers, ensures a comfortable cabin environment for passengers while retaining excellent fuel economy during stop-start city operation.
Model Variations: EQB140-20 vs. EQB125-20 vs. EQB160-20
When managing a fleet update, choosing the wrong horsepower variant within the DCEC product catalog can lead to transmission mismatching or premature clutch wear. The entire Cummins EQB series shares a similar 3.9L mechanical block, but their internal tunings, turbocharger configurations, and fuel delivery rates vary significantly.
Choosing Between the 140HP and 125HP Variations
When reviewing the EQB140-20 vs EQB125-20, the structural differences appear minor, but the operational outputs are distinct. The 125HP model runs at a slightly higher rated speed but provides less low-end torque. Upgrading to the 140HP version delivers a substantial 92 Newton-meters of additional torque. This makes the 140HP model far more capable at handling full cargo payloads up steep inclines without forcing the driver to constantly downshift.
High Output Evaluation: 140HP vs. 160HP
Comparing the EQB140-20 vs EQB160-20 highlights the upper limits of the 3.9L mechanical design. The 160HP version pushes more fuel via a larger injection nozzle tip profile and higher turbocharger boost pressures. While the extra power is useful for maximum-capacity trucks, the 140HP engine remains the preferred sweet spot for operators who prioritize long-term piston crown longevity and lower overall fuel consumption profiles over raw horsepower.
Professional Fleet Maintenance and Component Lifespan
Is the Cummins EQB140-20 reliable? Yes, this mechanical platform is widely considered one of the most durable medium-duty blocks ever designed, provided it is maintained according to factory schedules. Because it lacks complex electrical wiring harnesses, sensors, or particulate filters, common failure points are completely eliminated.
Critical Overhaul and Replacement Guidelines
When treating this unit as an EQB140-20 4-cylinder truck engine replacement, never drop a new long block onto an old, dirty radiator. Overheating is the primary killer of mechanical diesel heads. When installing your new engine assembly, always replace the water pump thermostat and flush the charge air intercooler. Ensure the Weifu fuel injection pump is timed accurately to the flywheel markings to prevent rough idling and black exhaust smoke.
Warehouse Supply and Component Longevity
HekoPower ensures long-term operational security by maintaining robust Cummins EQB140-20 spare parts availability right alongside our complete engine inventory. We stock genuine replacement oil filters, cylinder head gaskets, injector nozzles, and turbocharger rebuild kits. Keeping these consumables ready for immediate dispatch means our wholesale buyers can confidently deploy these engines into remote service fields without worrying about local parts shortages.
Global Procurement and Export Logistics with HekoPower
Buying an engine internationally requires more than just picking a model number; it demands clear supply chain coordination. As a dedicated Cummins EQB140-20 exporter based in China, HekoPower manages the entire verification, packaging, and customs clearance pipeline to guarantee your freight arrives completely undamaged.
Secure Anti-Corrosion Export Packaging
Engines are heavy, precision-machined steel items that are highly vulnerable to salt air corrosion during long ocean transits. Every Original Cummins EQB140-20 Complete Engine we sell is thoroughly drained of test fluids, sprayed with an anti-rust inhibitor coating, wrapped in heavy-duty vapor-barrier plastic sheeting, and securely bolted inside an ISPM-15 certified fumigated wooden crate. This prevents any shifting or structural damage during rough maritime handling.
Streamlined Customs Documentation
We handle the complete shipping paperwork trail to ensure smooth entry at your destination port. Our export documentation provides clean bills of lading, certified certificates of origin from China, accurate commercial invoices, and itemized packing lists matching the factory-stamped engine serial numbers. This meticulous administrative process minimizes customs delays, helping you avoid costly port demurrage fees.
DCEC WQB Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes EQB125-20, EQB140-20, EQB160-20, EQB170-20, EQB180-20, EQB190-20, EQB210-20, EQB235-20.
Frequently Asked Questions Regarding the EQB140-20
What vehicles use Cummins EQB140-20 engines as factory standard?
This engine is mostly found in Dongfeng light and medium trucks, specifically the Duolika and Kingrun series. It is also a very common factory option for various Chinese 6-to-8 meter passenger buses, municipal service vehicles, and medium-duty airport support equipment.
What are the precise dimensions of a complete EQB140-20 engine assembly?
A fully dressed 4-cylinder EQB140-20 engine assembly typically measures roughly 850mm in length, 700mm in width, and 950mm in height. The dry weight of the complete assembly sits at approximately 370 kilograms, though final shipping weights will vary slightly depending on your specific flywheel housing and alternator choices.
How does HekoPower verify that an engine is a genuine DCEC unit?
Every single engine assembly we supply features a permanent, factory-riveted metallic data plate directly on the gear housing cover. This plate includes a unique, traceable 8-digit Cummins engine serial number (ESN). This number can be fully cross-referenced through the global Cummins database to verify its authentic production origin at the DCEC plant.
