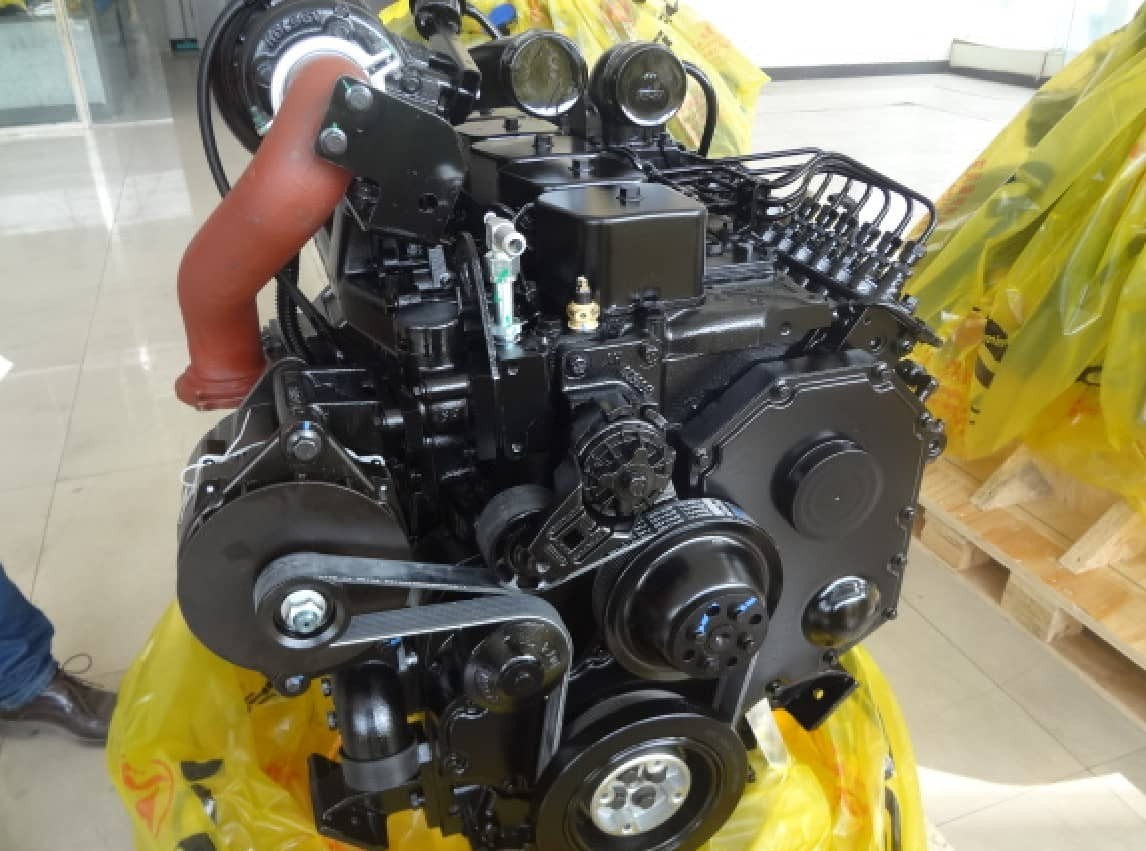

EQB235-20
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
EQB235-20 could be widely used on Dongfeng Truck, Heavy Truck, Bus, Van, Commercial Vehicle.
Technical Specifications
General Engine Data
Engine Model: Cummins EQB235-20
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 413 Kg
Overall Dimension: 1026mm*699mm*912mm
Key Performance Date
Rated Power: 173 kW/235HP
Rated Speed: 2500 rpm
Max Torque/Speed: 800 N.m @ 1600 rpm
Fuel Consumption @ Rated Power: 251 g/Kw.h
Max. No-load Governed Speed: 2800 rpm
Idle-Speed: 750±100 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.0 L
DCEC EQB Series
DCEC WQB Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes EQB125-20, EQB140-20, EQB160-20, EQB170-20, EQB180-20, EQB190-20, EQB210-20, EQB235-20.
