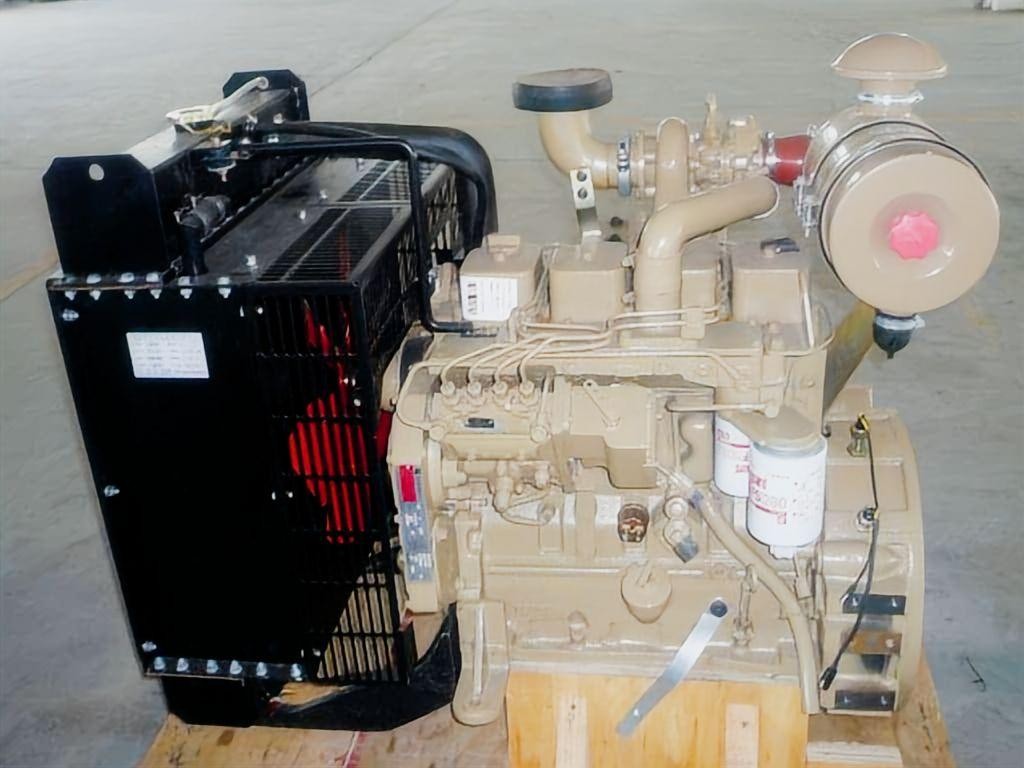

DCEC Cummins 4BT3.9-G1 Generator Engine
As a dedicated engine supplier, HekoPower provides the DCEC Cummins 4BT3.9-G1 generator engine for demanding power applications worldwide. This 3.9L 4-cylinder diesel engine is specifically engineered for constant-speed 1500 RPM operation. It serves as the primary power unit for 36kW prime and 40kW standby 50Hz generator sets. We supply the complete Cummins 4BT3.9-G1 bare engine & assembly to OEMs building new gensets, as well as businesses requiring a direct drop-in replacement power unit.
Tech Specs of Cummins 4BT3.9-G1
General Engine Data
Engine Model: Cummins 4BT3.9-G1-36kw
Type: 4 Cylinders in Line, 4 Stroke Diesel
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Net Weight: 321 Kg
Overall Dimension: 867mm*544mm*988mm
Key Performance Data
Rated Power/Standby Power: 36 kW/48HP, 40 kW/54HP
Rated Speed: 1500 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption @ Running: ≤ 244 g/kW.hr
More Technical Data
Aspiration: Turbocharged
Fuel System: BYC A Pump/RSV Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.2 L
Governor Type: Electronic, Regulation ≤5%
Real Application Scenarios for the 4BT3.9-G1
The Cummins 4BT3.9-G1 36kW diesel engine thrives in environments requiring continuous, uninterrupted power. Because it features a highly resilient 102 x 120 mm diesel engine block, it handles variable loads exceptionally well. We frequently supply this specific model for telecom backup generators. Cell towers require immediate power restoration, and the mechanical fuel injection engine design ensures rapid start-up without relying on complex, voltage-sensitive electronic control modules.
This model is also widely utilized as an agricultural generator engine. Farms and remote irrigation systems often operate in dusty, high-vibration conditions. The 4BT3.9-G1 water cooled diesel engine design, paired with a robust cooling system, prevents overheating during extended summer operation.
For commercial power generation, achieving the correct alternator pairing is critical for voltage stability. We regularly see the 4BT3.9-G1 Stamford alternator pairing used in commercial standby setups. When coupled effectively, it delivers a clean 45kVA output suitable for retail backup, remote construction sites, and medical clinics operating off the main grid. HekoPower ensures that every Cummins 4BT3.9-G1 engine supplied is tested and ready for immediate coupling.
Technical Comparisons & Engineering Nuances
Selecting the right G-drive engine requires understanding the mechanical nuances that separate similar models.
4BT3.9-G1 vs 4BT3.9-G2-A
A frequent challenge for procurement teams is choosing between the 4BT3.9-G1 and the 4BT3.9-G2-A. Both are 3.9-liter turbocharged diesel engines, but they are tuned for different power nodes. The 4BT3.9-G1 delivers a prime output of 36 kW (48 HP) and a standby output of 40 kW (54 HP). It is optimized for standard 40kVA standby generator builds. The G2-A model is tuned higher to support larger alternators. If you are replacing an existing engine, you must verify the alternator size. Upgrading to a G2-A when your alternator is only rated for 36kW will lead to inefficient fuel burn and potential wet stacking.
Mechanical vs Electronic Governor Systems
The defining characteristic of the 4BT3.9-G1 mechanical governor diesel engine is its reliance on physical weights and springs to manage engine speed. It utilizes the highly regarded BYC A pump combined with an RSV mechanical governor.
When comparing a mechanical vs electronic governor, the RSV mechanical governor offers unmatched durability in harsh environments. It does not require advanced diagnostic software for troubleshooting. Mechanics can adjust the mechanical fuel injection engine with standard hand tools, making it ideal for remote power generation where specialized technicians are scarce. While electronic governors provide slightly tighter frequency control, the BYC A pump setup on the 4BT3.9-G1 guarantees rugged reliability and lower long-term maintenance costs.
Common Misconceptions About the 4BT3.9-G1
A major misconception surrounding this engine is its application flexibility. Buyers sometimes assume a 36kW Cummins 4 cylinder diesel engine specs sheet means it can be used for variable speed applications like water pumps or marine propulsion. The 4BT3.9-G1 is strictly a 1500 rpm generator engine. Its fuel delivery and governor are locked for 50Hz power generation. Using this exact part number for a variable speed application will result in poor performance and voided warranties. If you need a DCEC 4BT3.9-G1 water pump engine equivalent, HekoPower can supply the industrial variable-speed counterpart.
Another misunderstanding involves the engine weight and dimensions. Buyers often assume all 4BT engines share identical footprints. However, the generator-drive variant includes specific cooling fans, radiators, and flywheel housings that alter the final 4BT3.9-G1 engine dimensions. Always verify your skid base measurements with our sales team before ordering a replacement.
Maintenance, Fuel Consumption, and Replacement Guide
Maximizing the lifespan of your Cummins 4BT3.9-G1 requires strict adherence to its operational limits and maintenance schedules.
Fuel Consumption Profile
Understanding the Cummins 4BT3.9-G1 fuel consumption per hour is vital for sizing fuel tanks for remote sites. Based on the 4BT3.9-G1 Cummins engine performance curve, fuel efficiency peaks when operating between 75% and 100% of its rated 36kW load. Running the engine at low idle for extended periods reduces cylinder temperatures, leading to unburned fuel and carbon buildup. HekoPower advises operators to maintain a minimum 30% load to ensure optimal fuel consumption and engine health.
Routine Maintenance Schedule
The Cummins 4BT3.9-G1 maintenance schedule is straightforward due to its mechanical simplicity. The lubrication capacity is carefully engineered to support 250-hour oil change intervals under standard operating conditions. Primary maintenance involves changing the oil, replacing the fuel-water separator, and inspecting the BYC A pump linkages. Because the 4BT3.9-G1 cooling system relies on a belt-driven fan, regular inspection of belt tension is critical to prevent overheating during prime power operation.
Engine Replacement and Compatibility
When an old unit suffers catastrophic failure, sourcing a complete Cummins 4BT3.9-G1 replacement engine is often more cost-effective than a deep overhaul. HekoPower is a premier Cummins 4BT3.9-G1 replacement engine supplier. We provide complete 4BT3.9-G1 replacement power unit assemblies that drop directly into your existing generator canopy.
For 4BT3.9-G1 engine replacement compatibility, we cross-reference your original engine serial number. This ensures the flywheel housing, starter motor position, and exhaust manifold perfectly align with your existing setup. We also supply all necessary Cummins 4BT3.9-G1 replacement parts and filters to support your fleet long after the initial purchase.
Explore the Cummins B3.9-G Series
When selecting a G-drive engine, it helps to view the broader family to ensure you are sourcing the correct power output for your specific alternator. The B3.9-G lineup offers varying power bands built on the same reliable 3.9-liter platform, making fleet maintenance highly standardized.
Cummins B3.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4B3.9-G1-24kw, 4B3.9-G2-24kw, 4BT3.9-G1-36kw, 4BT3.9-G2-36kw, 4BTA3.9-G2-50kw, 4BTA3.9-G2-58kw, 4BTA3.9-G11-70kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
What is the continuous power rating of the Cummins 4BT3.9-G1?
The continuous prime power rating is 36kW (48 HP) at a locked speed of 1500 RPM. It can provide a 10% overload capacity for one hour every twelve hours, reaching its 54HP standby power limit.
Can I run the Cummins 4BT3.9-G1 at 1800 RPM for 60Hz power generation?
The standard G1 model is balanced for 1500 RPM (50Hz applications). Running it at 1800 RPM requires a different fuel injection pump calibration and governor weight configuration to ensure safe operation at higher speeds. Please specify your target operating frequency during your initial inquiry.
Where can I find 4BT3.9-G1 engine interchange information?
If you need to replace a damaged engine, contact HekoPower directly. We maintain comprehensive 4BT3.9-G1 engine interchange information to ensure your new engine seamlessly matches your alternator and control panel.
Can I convert this 50Hz diesel generator engine to 60Hz?
While the base 4BT3.9 block is versatile, the G1 variant is calibrated explicitly for 1500 RPM (50Hz) operation via its mechanical governor. Modifying the BYC A pump and RSV governor for 1800 RPM requires specialized recalibration. We recommend purchasing the correct 60Hz model directly from our inventory.
