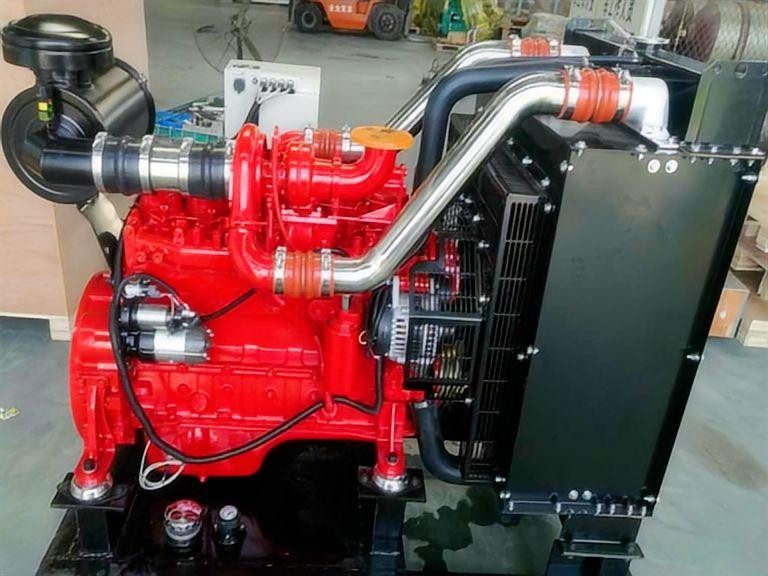

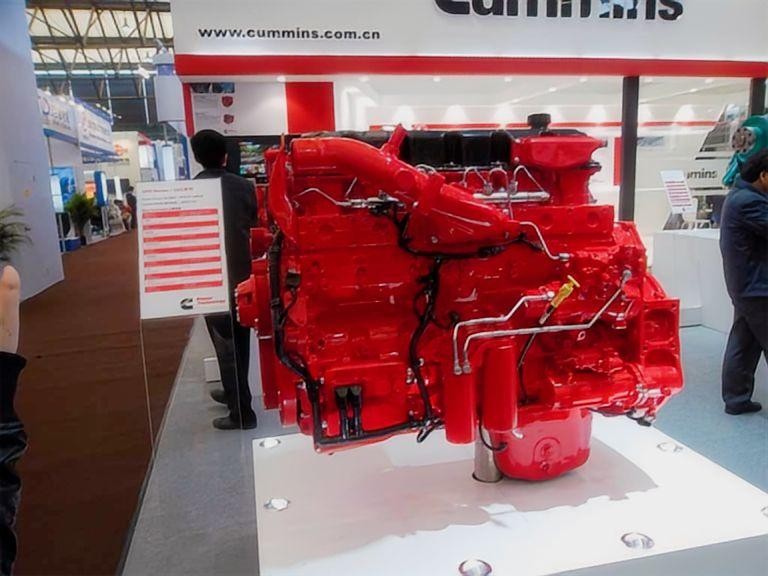

Dongfeng Cummins 6ZTAA13-G2 (390kW / 523HP) G-Drive Diesel Engine
The Dongfeng Cummins 6ZTAA13-G2 is a heavy-duty, 13-liter inline six-cylinder G-Drive diesel engine engineered specifically for prime and standby power generation. Delivering a rated output of 390kW (523HP) at 1500 rpm, this platform combines high power density with reliable mechanical fuel injection control. As a specialized Cummins engine supplier, HekoPower exports the genuine DCEC 6ZTAA13-G2 to generator set assemblers, industrial plant operators, and field service contractors across global markets.
Built on the robust Z-series engine block, the 6ZTAA13-G2 features a 130x163mm bore and stroke design with a total displacement of 13.0 liters. Its turbocharged charge air-cooled (TAA) aspiration system ensures efficient combustion under fluctuating electrical loads. Whether integrated into a new 390kW / 487kVA standby diesel engine package or deployed as a replacement power unit, the 6ZTAA13-G2 offers the durability required for continuous industrial duty.
Tech Specs of Cummins 6ZTAA13-G2
General Engine Data
Engine Model: Cummins 6ZTAA13-G2-390KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 13 L
Bore * Stroke: 130 * 163
Net Weight: 1195 Kg
Overall Dimension: 2180mm*1360mm*1605mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 390 kW/523HP, 415 kW/557HP
Continuous Output/Speed (1500 rpm): 350 kW/470HP @ 1500 rpm
Rated Power/Standby Power(1800 rpm): 390 kW/523HP, 415 kW/557HP
Continuous Output/Speed (1800 rpm): 350 kW/470HP @ 1800 rpm
Rated Speed: 1500/1800 rpm
Low Idle Speed: 800-1000 rpm
Fuel Consumption @ Running: ≤ 235 g/kW.h
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC PD Pump/ GAC Governor
Electrical System (Starter Motor/Alternator): 24V/900CCA
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Governor Type: Electronic, Regulation ≤3%
Compression Ratio: 17:1
Technical Performance Analysis: Power, Fuel System & Duty Cycles
Understanding the core combustion dynamics of the 13L Cummins G-Drive engine 6ZTAA13-G2 is essential for proper generator pairing. The engine utilizes a heavy-duty cast-iron block with a 17:1 compression ratio, optimizing thermal efficiency while keeping cylinder pressures safely within long-life operational thresholds.
Speed Ratings and Frequency Calibration
The 6ZTAA13-G2 engine operates seamlessly across dual frequency requirements:
- 50Hz Operations (1500 rpm):** Delivers a prime rating of 390kW (523HP) and a standby capacity reaching up to a 6ZTAA13-G2 415kW standby engine limit. This configuration is standard for European, Asian, and African power grids.
- 60Hz Operations (1800 rpm):** Operates at higher rotational speeds to meet North and South American frequency standards, yielding a 6ZTAA13-G2 350kW continuous power engine profile or supporting emergency standby duty up to 430kW.
Fuel Consumption Metrics
Fuel efficiency remains a key factor for prime power installations. The 6ZTAA13-G2 fuel consumption at 1500 rpm averages approximately 198 g/kWh at 100% prime load. At 75% load, specific fuel consumption drops to optimal economy ranges, reducing hourly fuel consumption per hour under standard operational cycles.
Technical Comparison: 6ZTAA13-G2 vs. Parallel 13L Variants
Navigating the Dongfeng Cummins 6Z13 product lineup requires comparing tuning levels, fuel setups, and application intent rather than just displacement. While the 6ZTAA13-G2 shares its basic physical block structure with the 6ZTAA13-G3 and 6ZTAA13-G4 variants, its internal calibration serves a distinct operational segment.
Comparing the G2 rating against the lower-output G3 model reveals key differences in turbocharging match and fuel delivery profiles. The G3 variant delivers 340kW prime power, making it suitable for smaller 400kVA generator builds. Selecting the 390kW 6ZTAA13-G2 provides an extra 50kW of margin. This extra headroom allows the engine to handle higher motor-starting currents and heavier resistive loads without thermal overload.
When evaluating the 6ZTAA13-G2 against the higher-output G4 model rated at 400kW, the core advantage of the G2 lies in its thermal balance and fuel pump tuning. The G2 runs lower peak cylinder pressures, which translates to reduced stress on head gaskets, main bearings, and turbocharger turbines during extended prime power runs.
Frequency requirements also influence performance differences between 1500 rpm and 1800 rpm applications. Operating the engine at 1500 rpm for 50Hz equipment reduces mechanical component wear and lowers noise emissions. Running the engine at 1800 rpm for 60Hz systems increases airflow through the turbocharged charge air-cooled system, improving transient response at the cost of slightly higher linear piston speed.
Real-World Industrial & Standby Power Scenarios
The power output and governor characteristics of the DCEC 6ZTAA13-G2 390kW unit make it a versatile choice across demanding industrial applications.
Hospital Backup Power Infrastructure
In emergency standby roles, a 390kW Cummins engine for hospital backup power must accept 100% single-step block loading within 10 seconds of a utility outage. The combination of the 13L displacement, 17:1 compression ratio, and BYC PD pump electronic governor ensures rapid frequency recovery, keeping critical life-support networks, operating theaters, and HVAC cooling units fully powered.
Continuous Industrial and Mining Operations
For off-grid continuous power applications, such as remote mining camps or crushing plants, the 6ZTAA13-G2 functions as a prime power driver. Its robust mechanical fuel infrastructure withstands varying fuel qualities better than delicate high-pressure common-rail systems, making it easier to maintain in isolated regions.
Optimal Alternator Matching
Achieving rated performance requires precise alternator pairing for the Cummins 6ZTAA13-G2 390kW engine. For 50Hz applications generating 390kW prime output, HekoPower recommends matching this engine with double-bearing or single-bearing SAE 1/14 flange alternators, such as the Stamford S4L1D-F41 or Leroy Somer TAL-A46-E. These alternators match the engine’s rotational torque curve and prevent thermal overload in high-ambient-temperature environments.
Maintenance, CPL 3715, and Replacement Guidelines
Maintaining peak performance over a typical 10,000-hour overhaul cycle requires following the official 6ZTAA13-G2 maintenance schedule and installing correct, genuine replacement parts.
CPL Identification and Fuel System Servicing
Every Dongfeng Cummins 6ZTAA13-G2 engine built for generator applications carries a Control Parts List (CPL) designation on its dataplate, with **CPL 3715** representing the standard production specification. When requesting a genuine DCEC 6ZTAA13-G2 replacement engine or ordering components from a Cummins 6ZTAA13-G2 replacement parts list, always reference CPL 3715 to guarantee exact matches for fuel injectors, turbochargers, and ECU speed controller units.
Key Maintenance Intervals
- Every 250 Hours: Replace primary and secondary fuel filters, drain water separators, and change engine oil using high-performance 15W-40 diesel lubricants.
- Every 500 Hours: Inspect and clean the charge air cooler fins, verify belt tension, and replace air filter elements if differential pressure gauges indicate restriction.
- Every 1,500 Hours: Calibrate the BYC PD fuel pump governor, inspect fuel injector spray patterns, and adjust valve clearances across all twelve valves.
When sourcing a replacement engine for an existing generator frame, confirm that the flywheel housing dimensions (typically SAE 1) and drive disc parameters match your existing generator end to avoid alignment vibration issues.
Product Misconceptions Regarding the 6ZTAA13-G2
Several common industry misconceptions surrounding the 6ZTAA13-G2 engine often lead to incorrect engine selection or misconfigured maintenance routines.
Misconception 1: "The BYC PD Fuel Pump is Completely Mechanical"
While the body of the BYC PD pump relies on mechanical plungers, the speed governing mechanism integrated on the G2 model is electronic. Attempting to adjust idle speed or load droop manually without setting the electronic controller board will cause unstable speed hunting or engine overspeed trips.
Misconception 2: "390kW Rating Applies Equally to Prime and Standby Duty"
The 390kW figure designates the engine’s **Prime Power** rating under ISO 8528 conditions with variable load profiles. Running the engine continuously at 415kW for extended periods exceeds its thermal limits. Standby ratings allow 415kW operation for the duration of a utility outage, but sustained operation at this ceiling accelerates valve and turbocharger wear.
Dongfeng Cummins 6Z13 Series Overview
To streamline complete fleet maintenance and power planning, HekoPower supplies the full range of Dongfeng Cummins 13-liter generator power units.
Cummins 6Z13-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6ZTAA13-G2-390KW, 6ZTAA13-G3-340KW, 6ZTAA13-G4-400KW. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions Regarding the Cummins 6ZTAA13-G2
Where to buy authentic Dongfeng Cummins 6ZTAA13-G2?
You can purchase genuine certified engines directly through HekoPower. We are an established Cummins engine supplier in China, verifying every engine serial number through the official factory database before shipment. This guarantees you receive authentic products rather than cheap counterfeit assemblies.
What is the exact fuel consumption of the Cummins 6ZTAA13-G2 at full load?
At 100% prime power load (390kW at 1500 rpm), the 6ZTAA13-G2 consumes approximately 92 to 95 liters of diesel fuel per hour, depending on ambient operating temperatures, altitude, and fuel density.
Is the 6ZTAA13-G2 compliant with international emissions standards?
This specific model satisfies standard Euro II industrial emissions levels. This makes it an ideal, cost-effective option for regions like Africa, South America, Southeast Asia, and Middle Eastern markets that do not require complex Tier 4 Final exhaust treatment systems.
What type of cooling radiator does this engine require?
The engine comes standard with a 50°C ambient-rated, belt-driven radiator assembly. This setup provides excellent cooling performance during hot summer months without robbing excessive mechanical horsepower from the flywheel.
Can the 6ZTAA13-G2 engine be converted from 50Hz (1500 rpm) to 60Hz (1800 rpm)?
Yes. The BYC PD pump electronic governor can be recalibrated for 1800 rpm operation. However, generator builders must adjust alternator windings and cooling fan ratios to match the increased rotational speed and changed output frequency.
