Details

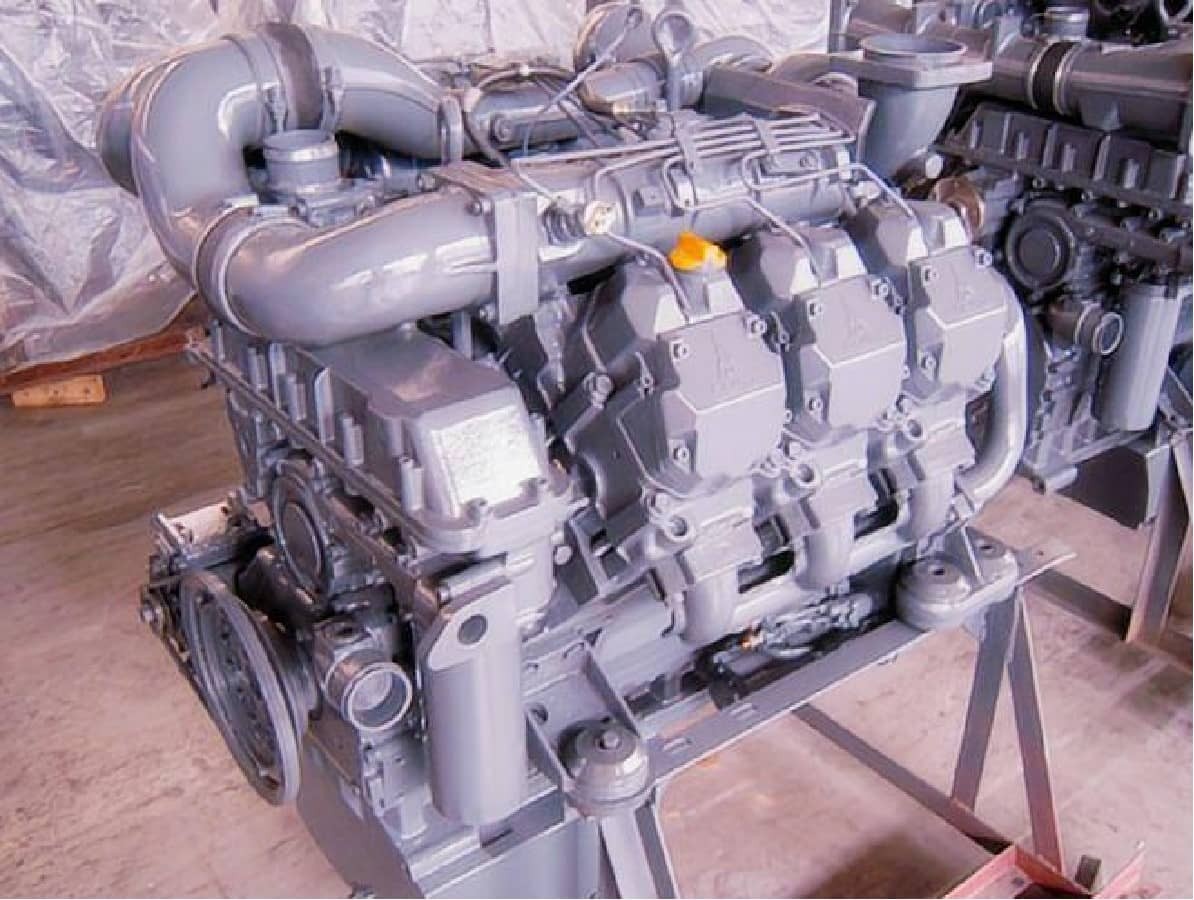

BF6M1015C-Vehicle Diesel Engine
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
BF6M1015C-Vehicle Diesel Engine could be widely used on Truck, Bus, Coach, Van, Commercial vehicles, Motor power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz BF6M1015C-Vehicle Diesel Engine
Type: 6 Cylinders, V Type
Displacement: 11.906 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 850 Kg
Overall Dimension: 1043mm*932mm*1174mm
Key Performance Date
Adversed Power 1: 240 kW @ 2100 rpm
Adversed power 2: 279 kW @ 2100 rpm
Adversed Power 3: 300 kW @ 2100 rpm
Rated Speed: 1900/2100 rpm
Max. Torque/Rated Speed: 1978 N.m @ 1200 rpm
Idle Speed: 600 rpm
Min. Fuel Consumption @ Full-load: 200 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Compression Ratio: 17:1
Starting System: Electronic Starting (24V/6.6 kw)
Cooling Method: Water Cooled
Alternator: 3 phrase, 28V/55A
Deutz BFM1015-Vehicle Diesel Engine Series
Deutz BFM1015-Vehicle Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes BF6M1015-Vehicle Diesel Engine, BF6M1015C-Vehicle Diesel Engine, BF6M1015CP-Vehicle Diesel Engine, BF6M1015GCP-Vehicle Diesel Engine, BF8M1015C-Vehicle Diesel Engine, BF8M1015CP-Vehicle Diesel Engine.
