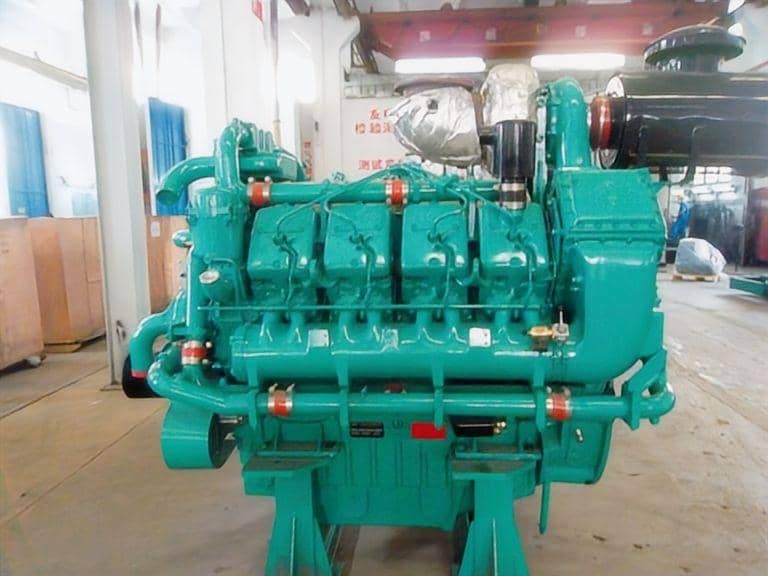

Deutz HND TBD620L6 Marine Propulsion Engine: 970HP Power Pack
Commercial vessel operators require propulsion systems that deliver consistent torque without monopolizing engine room space. The Deutz HND TBD620L6 marine diesel engine is engineered specifically for these demands. Delivering 720kW (970HP) at 1650 RPM, this inline-6 power plant offers a rugged, high-displacement solution for heavy-duty marine applications. As an authorized supplier, HekoPower provides this complete engine assembly to fleets needing reliable continuous power.
Tech Specs of Deutz HND TBD620L6
General Engine Data
Engine Model: Deutz TBD620L6-970HP
Type: 6 Cylinders in Line, 4 Stroke
Displacement: 26.58 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 3150 Kg
Overall Dimension: 2395mm*1378mm*2038mm
Key Performance Data
Rated Power: 720 kW/970 HP
Rated Speed: 1650 rpm
Lubricant Oil Consumption: ≤1.4 g/kW.h
Low Idle Speed: 650 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Governor Type: Electronic/Mechanical
Real-World Application Scenarios
The operational profile of the TBD620L6 makes it highly versatile across the commercial marine sector. It is not a light-duty recreational engine; it is built for continuous, heavy-duty cycles.
Tugboats and Heavy-Duty Workboats
Tugboats rely entirely on sustained bollard pull. The TBD620L6 provides massive low-end torque, allowing tug operators to move heavy barges against strong currents. The 1650 rpm rating is particularly advantageous here, as it pairs exceptionally well with deep-reduction marine gearboxes to turn large-diameter propellers efficiently.
Cargo and Commercial Fishing Vessels
Cargo vessels and large trawlers spend thousands of hours at cruising speed. For these applications, fuel economy dictates profitability. The TBD620L6 fuel consumption sits at a highly competitive 205 g/kWh at rated power. The integration of an EUP (Electronic Unit Pump) injection system ensures precise fuel atomization, minimizing waste and extending operational range during long fishing expeditions or coastal cargo runs.
Passenger and Ferry Operations
Passenger vessels demand strict adherence to safety and emission standards. Because the TBD620L6 is an IMO and CCS certified marine engine, it meets the rigorous regulatory requirements for commercial passenger transport. The turbocharged intercooled design keeps exhaust temperatures manageable and emissions within compliance, ensuring uninterrupted ferry routes.
Why 1650 RPM and 970HP Matter for Vessel Repowering
Vessel repowering is rarely as simple as dropping in a new motor. Fleet managers must carefully balance power requirements with existing hull constraints. The 970HP output hits a sweet spot for mid-sized commercial boats. It provides enough power to handle adverse weather conditions without requiring a massive upgrade to the vessel's fuel storage capacity.
Engine speed interacts directly with reduction gearbox selection. A 1650 rpm marine engine allows for more flexible gearbox matching compared to high-speed 2000+ rpm engines. Lower shaft speeds reduce cavitation at the propeller, improving thrust efficiency. HekoPower routinely assists clients with TBD620L6 marine gearbox compatibility to ensure the entire propulsion package operates harmoniously.
Space and weight are equally critical during repowering. The TBD620L6 engine dimensions form a compact 2395 × 1378 × 2038 mm envelope. This allows the unit to slide through standard access hatches on older vessels. The 3150 kg wet weight is substantial enough to absorb internal vibrations but light enough that it will not negatively alter the draft or center of gravity of a standard 30-meter workboat.
Technical Comparisons: Inline-6 vs. V-Configuration Engines
Many fleet managers debate between installing a large inline-6 or a smaller-displacement V8 or V12 engine to achieve 720kW. The TBD620L6 utilizes a massive 26.58 L displacement distributed across just six cylinders in an inline configuration.
This inline architecture offers distinct advantages in narrow engine rooms. V-engines spread their footprint horizontally, often making routine service on the outboard cylinder banks difficult in tight spaces. The TBD620L6 keeps all fuel lines, injection pumps, and valvetrain components easily accessible from the top and sides.
Furthermore, having six large 170 × 195 mm cylinders rather than eight or twelve smaller ones means fewer moving parts. There are fewer valves to adjust, fewer injectors to replace, and a simpler water-cooled engine block design. This simplicity directly translates to reduced downtime and lower long-term maintenance costs for fleet operators.
Maintenance Schedule and Replacement Tips
Maximizing the lifespan of your Deutz TBD620L6 970HP marine engine requires strict adherence to its maintenance schedule. HekoPower supplies all necessary Deutz TBD620L6 marine engine parts to keep your vessel in peak condition.
Routine service heavily revolves around the fuel and cooling systems. The TBD620L6 EUP fuel system operates under immense pressure. Fuel filter replacement must occur precisely on schedule, as microscopic debris will quickly score the unit pumps, leading to poor fuel consumption and power loss. TBD620L6 injection pump replacement is a straightforward process due to the inline block design, but it requires genuine HND replacement parts to maintain the 205 g/kWh efficiency rating.
The marine cooling system also requires diligent oversight. Inspect the zinc anodes in the heat exchanger monthly. Operating in highly saline environments accelerates galvanic corrosion. Replacing these sacrificial anodes is inexpensive, whereas replacing a corroded turbocharged intercooled system is costly. When planning a top-end rebuild, always source complete TBD620L6 overhaul parts kits to ensure all gaskets and seals are perfectly matched.
Common Misconceptions About the TBD620L6
Buyers often carry a few misconceptions when sourcing commercial marine engines. The most common myth is that engines manufactured by Henan Diesel Engine Plant (HND) differ fundamentally from European-built Deutz engines. In reality, the HND TBD620L6 is built under an official Deutz technology license. The block casting, EUP injection, and metallurgical standards are identical. HekoPower guarantees that our original HND TBD620L6 marine engines deliver the exact same reliability and technical specifications as any unit globally.
Another misconception involves engine control systems. Some operators believe they must use a complicated electronic governor. While electronic control provides maximum fuel efficiency, HekoPower also supplies the TBD620L6 with a mechanical governor for vessels operating in extremely remote regions where electronic diagnostics are unavailable. Both configurations maintain full CCS and IMO compliance.
TBD620 Series Overview
As a dedicated HND marine engine supplier, HekoPower offers complete propulsion solutions tailored to your fleet's exact needs. While the 970HP inline-6 represents a premier choice for mid-sized workboats, varying hull sizes often require different power outputs or configurations. We maintain a comprehensive catalog of power pack assemblies to accommodate diverse repowering projects.
Deutz TBD620-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V6-970HP, TBD620V8-1120HP, TBD620V12-1680HP, TBD620V12-1850HP, TBD620V16-2240HP, TBD620V16-2500HP.
Frequently Asked Questions
What is the current TBD620L6 970HP wholesale price?
Engine pricing fluctuates based on your required configuration, such as EUP versus mechanical injection, and chosen gearbox matching. As a primary supplier, HekoPower offers highly competitive wholesale pricing for commercial fleets. Please contact our sales engineering team with your vessel specifications for a precise, customized quote.
Does HekoPower provide the TBD620L6 as a complete marine power pack?
Yes. We supply the TBD620L6 complete marine engine assembly. This propulsion engine package can include the engine, matched reduction gearbox, heat exchangers, control panels, and all necessary mounting hardware for immediate engine-room installation.
Are parts readily available for the HND TBD620L6?
Absolutely. HekoPower stocks a massive inventory of TBD620L6 spare parts. Whether you need routine consumable filters, a replacement electronic governor, or heavy overhaul parts for a mid-life rebuild, we dispatch components globally to minimize your vessel's downtime.
Can this engine replace an older, heavier 720kW unit?
The TBD620L6 is a highly popular marine propulsion engine replacement. Its 3150 kg weight and compact mounting dimensions allow it to easily replace older, bulkier engines while delivering superior fuel economy. Our engineers will review your existing engine beds and advise on any minor modification requirements for seamless installation.
