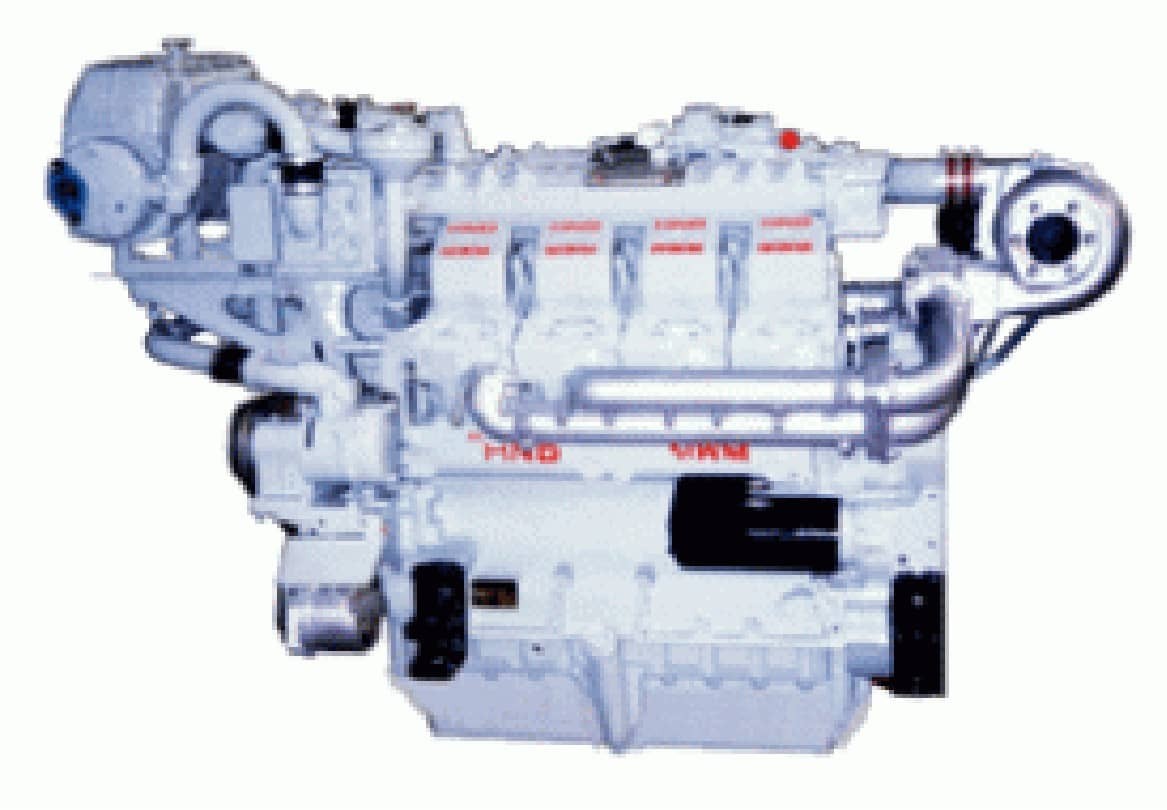

Deutz TBD234V8-400HP Marine Propulsion Diesel Engine Overview
When selecting a heavy-duty prime mover for commercial maritime operations, vessel operators require a power plant that balances thermal efficiency, structural durability, and high torque output at lower RPMs. The Deutz TBD234V8 engine engineered for marine propulsion meets these rigorous demands. Operating at a rated power of 296KW (400HP) at 1800 RPM, this V8 cylinder powerhouse is designed specifically to withstand the punishing duty cycles encountered in marine environments. As an established global engine supplier, HekoPower delivers factory-inspected units ready for immediate integration into commercial vessels.
Tech Specs of Deutz TBD234V8-400HP Marine Propulsion Diesel Engine
General Engine Data
Engine Model: Deutz TBD234V8-400HP
Type: 8 Cylinders, V Type, 4 Stroke
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1500 Kg
Overall Dimension: 1810mm*988mm*1637mm
Key Performance Data
Rated Power: 296 kW/400 HP
Rated Speed: 1800 rpm
Lubricant Oil Consumption: ≤1.4 g/kW.h
Low Idle Speed: 650 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Max. Combustion Pressure: 15 MPa
Compression Ratio: 15:1
Starting Method: Electrical Start (24V)
Cooling Method: Water Cooled
Technical Comparisons: Deutz TBD234V8 vs. Alternative Series
Evaluating how the Deutz TBD234V8 400HP engine stacks up against competing models helps naval architects and vessel operators make informed purchasing decisions.
Unlike inline six-cylinder engines in a similar horsepower bracket, the V8 architecture of the Deutz TBD234V8 provides a significantly shorter overall engine block length. This compact footprint allows for easier integration into restricted engine rooms on tugboats and fishing vessels where longitudinal space is at a premium.
When compared to lower-tier or legacy mechanical-injection power plants, the HND Deutz TBD234 series diesel engine offers superior fuel atomization control. This results in reduced smoke emissions during cold starts and cleaner combustion across variable throttle ranges. While some high-speed electronic engines require complex diagnostic tooling and clean power sources to run, the TBD234V8 retains a mechanical-governing pedigree that simplifies troubleshooting in remote ports where digital infrastructure is limited.
Real Application Scenarios for the Deutz TBD234V8
The versatility of the Deutz marine main propulsion engine 400HP makes it a preferred choice across several commercial maritime sectors.
Commercial fishing boats operating in deep-sea environments rely on this engine for its steady continuous power output during trawling operations. The ability to maintain stable RPMs under heavy net drag reduces mechanical stress on the gearbox and shaft line.
Coastal workboats and harbor utility vessels utilize the Deutz TBD234V8 engine for its immediate throttle response and high bollard pull capability. Maneuvering in tight dock spaces requires dependable low-end torque, which the V8 configuration delivers reliably.
Beyond primary propulsion, variations of this platform serve effectively as a robust auxiliary engine for vessel power generation or hydraulic deck machinery drives when configured with appropriate PTO (Power Take-Off) attachments.
Maintenance, Troubleshooting, and Replacement Tips
Maximizing the operational lifespan of a Deutz TBD234V8 400HP engine requires strict adherence to preventative maintenance protocols.
Routine Fluid and Filter Management
Operators must check engine oil levels, coolant condition, and fuel water separators daily before startup. Marine environments accelerate fluid contamination due to high humidity and salt spray intrusion. Fuel filters should be replaced every 250 operating hours, while lubricating oil and full-flow filters require replacement at 500-hour intervals using specified high-grade marine diesel engine oils.
Cooling System Descaling
Because raw water circulation cools the freshwater heat exchanger, marine growth and mineral scaling can accumulate within the tube bundles. Flushing the raw water circuit with an approved descaling solution every 1,000 hours prevents overheating and premature failure of the water pump impeller and intercooler core.
Common Misconceptions Regarding the TBD234V8
A widespread misconception is that running a marine diesel engine at low idle for extended periods saves fuel and reduces wear. In reality, prolonged idling on a high-output V8 diesel causes incomplete combustion, carbon buildup on the valve seats, and cylinder glazing. Operators should ensure the engine reaches proper operating temperatures and is periodically loaded according to manufacturer guidelines. Another common myth is that any generic aftermarket filter will suffice; using non-genuine filtration components often compromises oil pressure stability and accelerates fuel injector wear.
Replacing an Existing Power Plant
When executing a marine propulsion engine replacement with a Deutz TBD234V8, technicians must verify alignment tolerances between the flywheel housing and the marine reduction gear. Ensuring precise angular and parallel alignment prevents excessive vibration and premature failure of the transmission input shaft bearings.
Deutz TBD234-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TBD234V6-250HP, Deutz TBD234V6-300HP, Deutz TBD234V8-340HP, Deutz TBD234V8-400HP, Deutz TBD234V12-500HP, Deutz TBD234V12-600HP.
Frequently Asked Questions
What is the exact fuel consumption profile of the Deutz TBD234V8 at rated output?
Specific fuel consumption varies slightly depending on ambient water temperature and propeller loading, but under standard continuous operating conditions at 1800 RPM, it operates efficiently within the expected parameters of a heavy-duty mechanical marine diesel. Detailed consumption curves are available upon direct request from our technical sales team.
Is this engine compliant with modern marine emission standards?
The Deutz TBD234V8 is engineered to meet established international marine emission thresholds depending on the specific tier certification required for your operating region. Compliance documentation can be verified prior to dispatch.
Can HekoPower supply matching marine reduction gearboxes and control panels?
As a comprehensive engine supplier, HekoPower provides complete propulsion packages, including compatible marine reduction gears, remote throttle control linkages, and instrumentation panels tailored to your vessel specifications.
What is the typical lead time for ordering a Deutz TBD234V8 replacement engine?
Standard delivery timelines range between 15 to 30 business days, depending on custom preparation, factory testing protocols, and global shipping destination requirements.
