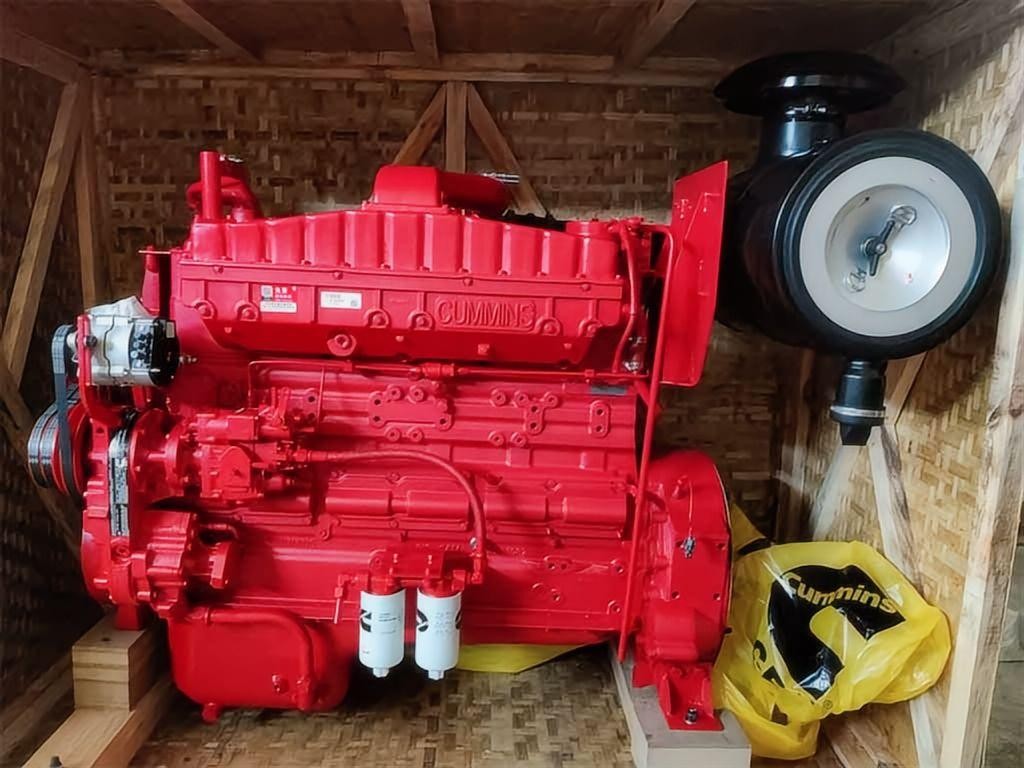

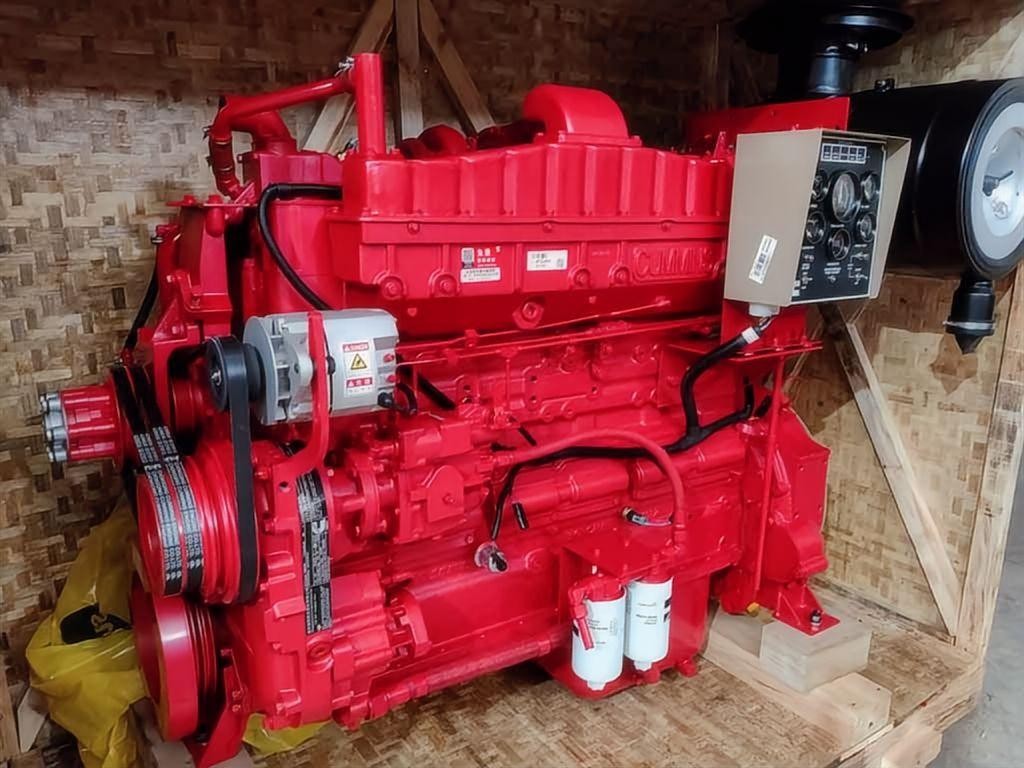

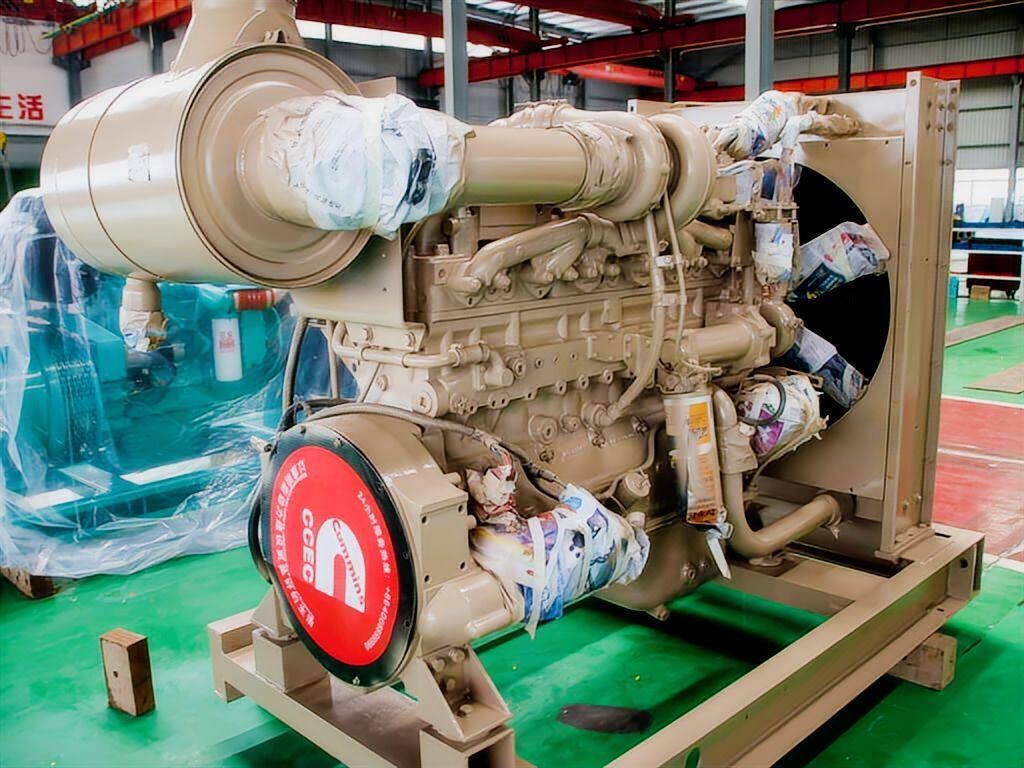

Genuine Cummins NTA855-C335 Industrial Engine: The Powerhouse for Heavy Duty Performance
The Cummins NTA855-C335 engine is a heavy-duty 14-liter inline 6-cylinder diesel engine designed for demanding construction, mining, and industrial applications. As part of the well-known Cummins NTA855 series developed by Cummins Inc., this model is widely recognized for its durability, torque output, and long service life under extreme working conditions.
At HekoPower, we supply the CCEC-produced Cummins NTA855-C335 engine assembly as a complete industrial power solution, ensuring compatibility with excavators, wheel loaders, bulldozers, drilling rigs, and mining trucks.
Tech Specs of Cummins NTA855-C335
General Engine Data
Engine Model: Cummins NTA855-C335
Type: 6 Cylinders in Line
Displacement: 14 L
Bore * Stroke: 140 * 152
Overall Dimension: 1389mm*914mm*1298mm
Net Weight (with flywheel & alternator): 1348 Kg
Key Performance Data
Rated Power: 250 kW/335HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1363 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 232g/Kw.h
Idle Speed: 600 rpm
Torque/Rated Speed: 1137 N.m @ 2100 rpm
Output/Max Torque: 214 kW/287HP @ 1500 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 15.0:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 20.8 L
Deep Dive into the Cummins PT Fuel System
Unlike modern common-rail systems that rely heavily on sensitive electronics, the NTA855-C335 utilizes the classic Cummins PT (Pressure-Time) Fuel System.
Mechanical Reliability in Harsh Environments
In remote mining sites or offshore drilling platforms, electronic sensors can become points of failure. The PT fuel system is primarily mechanical, making it:
- Fuel Quality Resilient: More tolerant of varying diesel qualities found in international markets.
- Field Serviceable: Can be adjusted and maintained by experienced mechanics without specialized diagnostic software.
Maintenance Tips for the PT Pump and Injectors
To maximize the lifespan of your NTA855-C335, HekoPower recommends a strict 250-hour interval for fuel filter replacement. Ensure that the STC (Step Timing Control) is periodically checked to maintain optimal injection timing during cold starts and high-load operations.
Application Analysis: Where the NTA855-C335 Excels
Through years of supplying engines to the global market, HekoPower has identified the most common high-performance applications for this 335HP unit.
Earthmoving and Mining: The Bulldozer Specialist
The NTA855-C335 is the primary choice for 220-320HP class bulldozers (such as the Shantui SD22 series). Its ability to handle sudden load surges without stalling makes it superior to smaller displacement engines.
Stationary Power: Industrial Power Packs
Beyond mobile machinery, this engine is frequently configured as a Cummins Industrial Power Unit. We supply these for:
- Large-scale water pumps for irrigation.
- Air compressors for mining ventilation.
- Hydraulic power packs for specialized offshore equipment.
Performance Comparison: NTA855-C335 vs. NTA855-C360
A common question our technical team receives is whether to opt for the 335HP or the 360HP variant.
- NTA855-C335: Optimized for continuous duty and fuel economy. Best for applications where the engine runs at 70-80% load for extended periods.
- NTA855-C360: Provides that extra 25HP needed for high-climb mining trucks or extreme-depth drilling, but with a slightly higher fuel consumption curve.
Why Source Your NTA855-C335 from HekoPower?
As an expert Cummins export supplier, HekoPower doesn't just sell an engine assembly; we provide a complete power solution.
Genuine CCEC Quality Assurance
Every Original Cummins NTA855-C335 engine assembly we ship comes with a verifiable CCEC serial number. We ensure that every component—from the Holset turbocharger to the Fleetguard filters—is genuine.
Global Logistics and Support
We understand the complexities of exporting heavy machinery. HekoPower handles the specialized seaworthy packaging (2160mm x 1100mm x 1900mm) and provides all necessary documentation for customs clearance in your home country.
Cummins NTA855-C/P Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NTA855-C250, NTA855-C280, NTA855-C310, NTA855-C335, NTA855-C360, NTA855-C400, NTA855-C450, NTA855-P300, NTA855-P360, NTA855-P400, NTA855-P470.
