Details

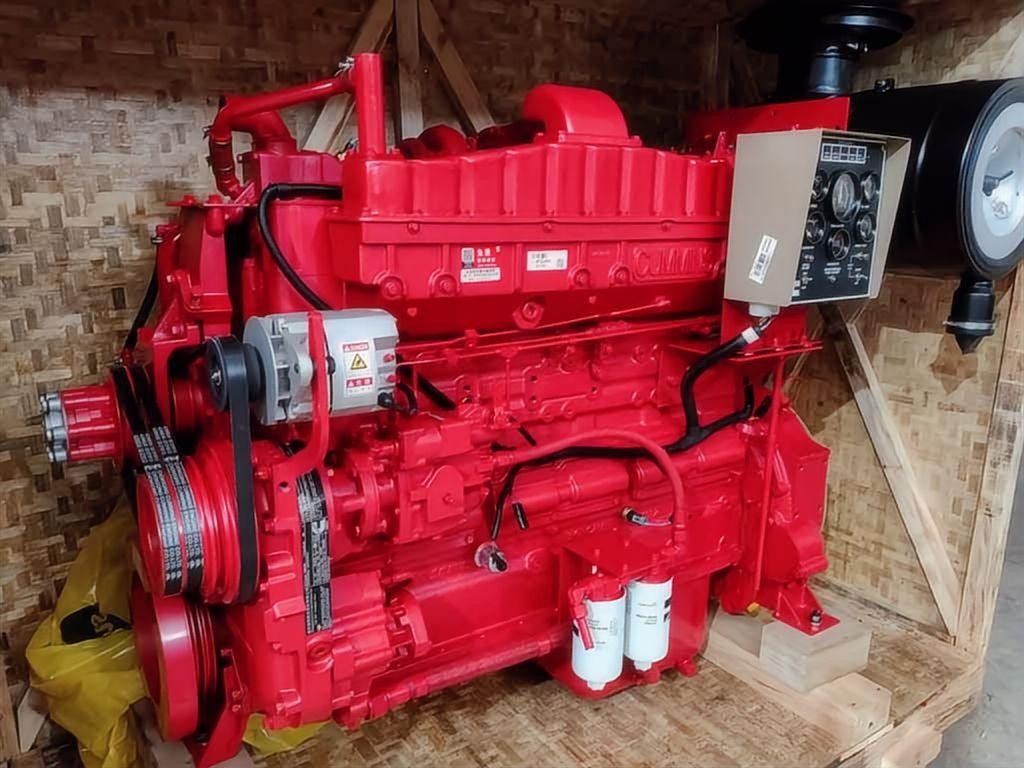

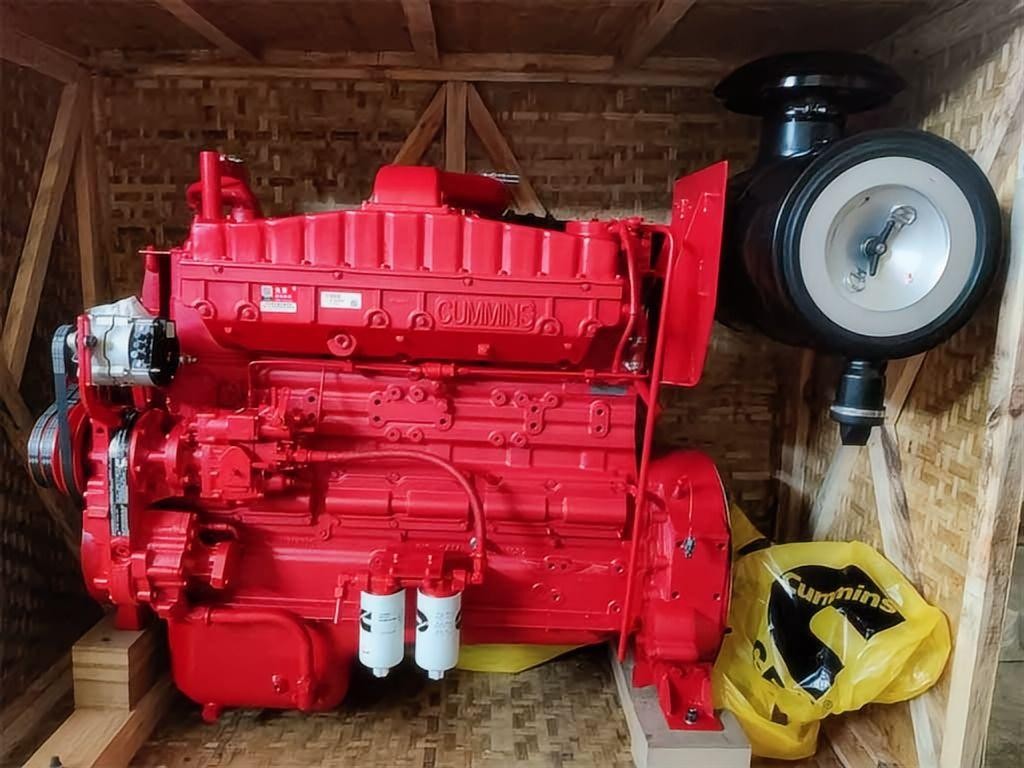

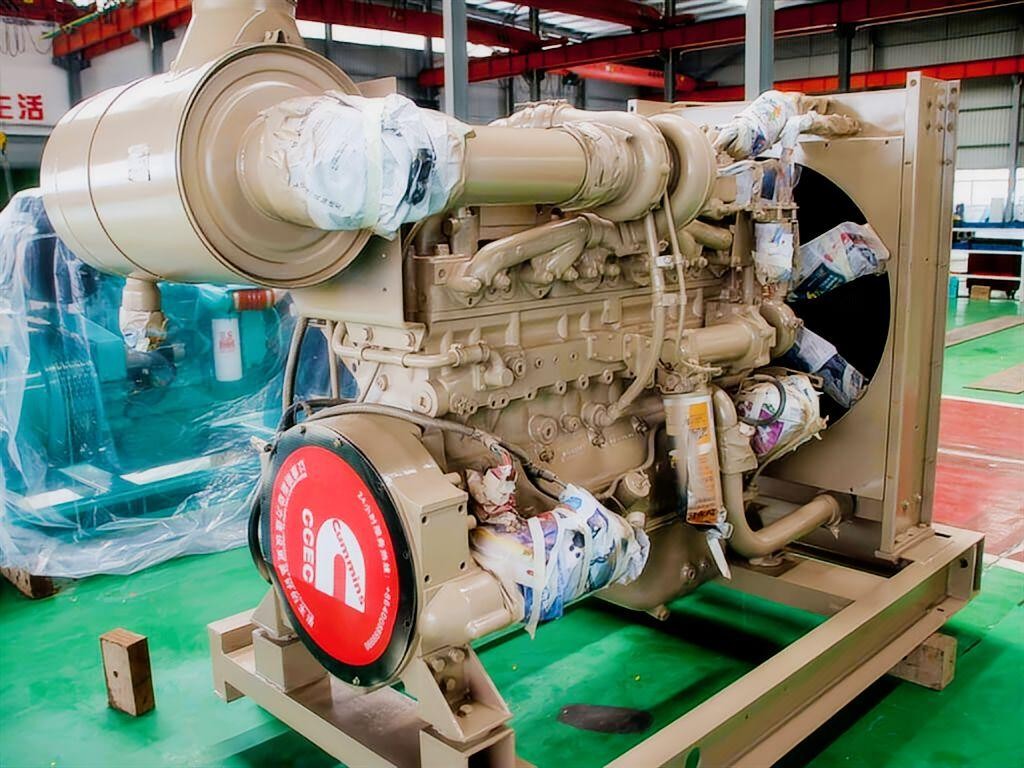

Genuine CCEC Cummins NTA855-C280 Construction Engine
When heavy machinery demands relentless power in punishing environments, the CCEC Cummins NTA855-C280 diesel engine delivers. Built specifically for industrial and construction applications, this 14L construction engine is engineered to sustain high loads without compromise. As a dedicated Cummins NTA855-C280 wholesale supplier, HekoPower provides this complete engine assembly to keep your critical earthmoving equipment operational.
Unlike generic powerplants, the NTA855-C280 280HP construction engine is purpose-built for the dirt, dust, and continuous strain of modern job sites. It operates at a rated 2100 rpm while generating a formidable peak torque, ensuring your machinery powers through the toughest resistance.
Tech Specs of Cummins NTA855-C280
General Engine Data
Engine Model: Cummins NTA855-C280
Type: 6 Cylinders in Line
Displacement: 14 L
Bore * Stroke: 140 * 152
Overall Dimension: 1389mm*914mm*1298mm
Net Weight (with flywheel & alternator): 1320 Kg
Key Performance Data
Rated Power: 209 kW/280HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1139 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 217g/Kw.h
Idle Speed: 600 rpm
Torque/Rated Speed: 950 N.m @ 2100 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 15.0:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 20.8 L
Technical Comparisons: NTA855-C280 vs NT855-C280 and Beyond
Navigating the Cummins 855 series can be complex, and fleet managers frequently ask us about the differences between similar models. A common inquiry is the comparison between the NTA855-C280 vs NT855-C280. The critical distinction lies in the letter "A". The NT855-C280 is a standard turbocharged engine. The NTA855-C280 adds the crucial aftercooling system. For continuous heavy-duty cycles, the aftercooled "NTA" version runs significantly cooler, offering better fuel consumption and prolonged component life under heavy loads.
Another frequent comparison is the NT855-C280 240HP vs 280HP variants, as well as the NTA855-C280 vs NT855-C280B specifications. The "B" designation typically indicates a structural revision in the engine block or a specific tuning profile for different emissions standards or load acceptance profiles. When replacing an older 240HP unit with the 280HP CCEC engine for construction equipment, you must verify the drivetrain capacity. The jump to 209kW (280HP) provides noticeably faster cycle times for loaders and excavators, provided your transmission can handle the increased torque transfer.
Real Application Scenarios for the 280HP Cummins Engine
The true value of this 14L Cummins NTA855-C280 industrial engine becomes apparent in the field. It is not a static power unit; it is designed for dynamic, fluctuating loads.
As a dedicated Cummins NTA855-C280 bulldozer engine, it excels at lugging. When a bulldozer blade hits a dense rock shelf, the RPMs naturally drop. The NTA855-C280 mechanical governor reacts instantly, opening the fuel rail to prevent stalling and allowing the machine to power through the obstruction.
When configured as a Cummins NTA855-C280 excavator engine or a wheel loader engine, the priority shifts to hydraulic response. The engine's ability to rapidly spool its turbocharger ensures that hydraulic pumps receive immediate rotational force. This guarantees fast boom lifts and rapid bucket curls. Furthermore, we frequently supply this model as a Cummins NTA855-C280 drilling rig engine and mining equipment engine. In these stationary but extreme-load applications, the robust cast-iron block and advanced cooling system prevent overheating during continuous 24-hour drilling operations.
Maintenance and Replacement Tips for the NTA855-C280
Keeping this original Cummins 280HP construction engine running at peak efficiency requires adherence to strict maintenance protocols. Proper management of the fuel and air systems will dictate the lifespan of the equipment.
Managing the PT Fuel Pump and STC System
The heart of this engine is the NTA855-C280 PT fuel pump. The Pressure-Time (PT) fuel system is legendary for its mechanical reliability. However, proper NTA855 fuel injector and PT pump replacement is critical when wear eventually occurs. Always ensure that fuel lines are bled correctly during replacement to prevent air locks.
Many of these models feature the NTA855-C280 STC fuel system. Step Timing Control adjusts fuel injection timing based on engine load and temperature. During cold starts or light loads, the STC system advances the timing to reduce white smoke and improve fuel economy. Under heavy loads, it retards the timing to reduce peak cylinder pressures and prevent structural damage. If your engine is running rough or blowing excessive smoke, checking the hydraulic tappets and oil pressure feeding the STC valve should be your first diagnostic step.
Clearing Up Common Misconceptions
There is a persistent misconception that older mechanical engines are obsolete compared to modern electronic counterparts. For remote construction machinery engines, this is entirely false. The NTA855-C280 mechanical governor is a massive advantage in harsh environments. It contains no fragile electronic control modules (ECMs) or complex wiring harnesses that can fail due to extreme vibration, moisture, or dust. It provides raw, reliable mechanical linkage that any trained field mechanic can adjust or repair on-site.
Another common error involves Cummins C280 engine model identification. Buyers often order replacement parts based solely on the horsepower rating. You must always use the NTA855-C280 CPL number (Control Parts List). The CPL identification stamped on the engine data plate dictates the exact internal components, injector sizes, and timing profiles used in your specific build. Never assume parts are universally compatible across all 280HP models without verifying the CPL.
Exploring the Complete Engine Series
Finding the exact power tier and configuration for your specific fleet requires access to a comprehensive inventory. While the 280HP unit is a cornerstone of heavy construction, different machinery demands different power outputs. As your trusted CCEC 280HP engine supplier and global exporter, HekoPower ensures you have access to the exact configuration you need.
Cummins NTA855-C/P Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NTA855-C250, NTA855-C280, NTA855-C310, NTA855-C335, NTA855-C360, NTA855-C400, NTA855-C450, NTA855-P300, NTA855-P360, NTA855-P400, NTA855-P470.
Frequently Asked Questions (FAQ)
How do I determine the exact NTA855-C280 replacement engine price?
The NTA855-C280 engine price varies based on whether you require a bare long block, a complete NTA855-C280 engine assembly with all accessories, or just a short block. Shipping logistics for a heavy 14L engine also impact the final cost. Contact HekoPower with your machinery details for a precise wholesale quote.
What is the standard NTA855-C280 fuel consumption rate?
Fuel consumption is highly dependent on the load factor. At full load (209kW / 2100 rpm), consumption is inherently higher than at idle. However, the turbocharged aftercooled design makes it highly efficient for its class. We can provide specific fuel consumption curves based on your machinery's typical duty cycle.
Where can I find the NTA855-C280 engine specifications for weight and dimensions?
The exact NTA855-C280 engine dimensions and engine weight can fluctuate slightly based on the specific oil pan, flywheel housing, and accessory drives attached. Generally, the dry weight of this 14L block is substantial, reflecting its heavy-duty cast-iron construction. Please refer to our detailed technical data table below for exact dimensional metrics.
Is it difficult to source a genuine CCEC NTA855-C280 engine for sale?
While the market is flooded with aftermarket rebuilds, sourcing a genuine original unit requires a verified supplier. As a direct Cummins NTA855-C280 engine exporter, HekoPower guarantees authentic CCEC manufacturing, ensuring factory-level reliability and warranty support for your replacement engine. Ensure you have your CPL number ready to expedite your order.
