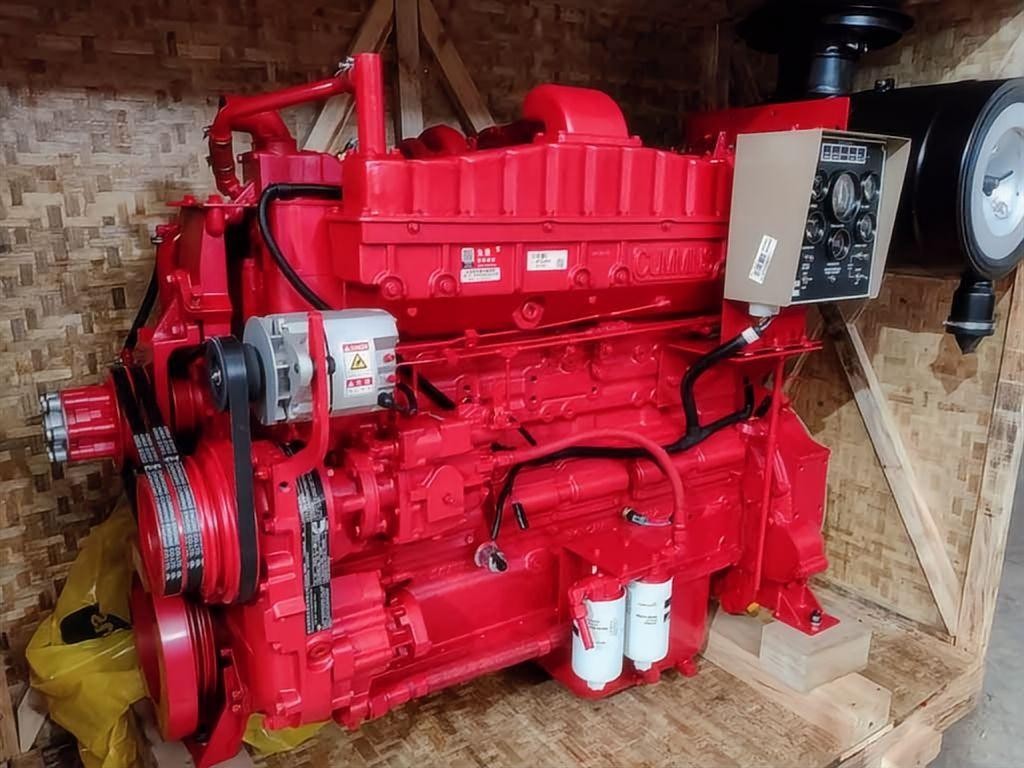

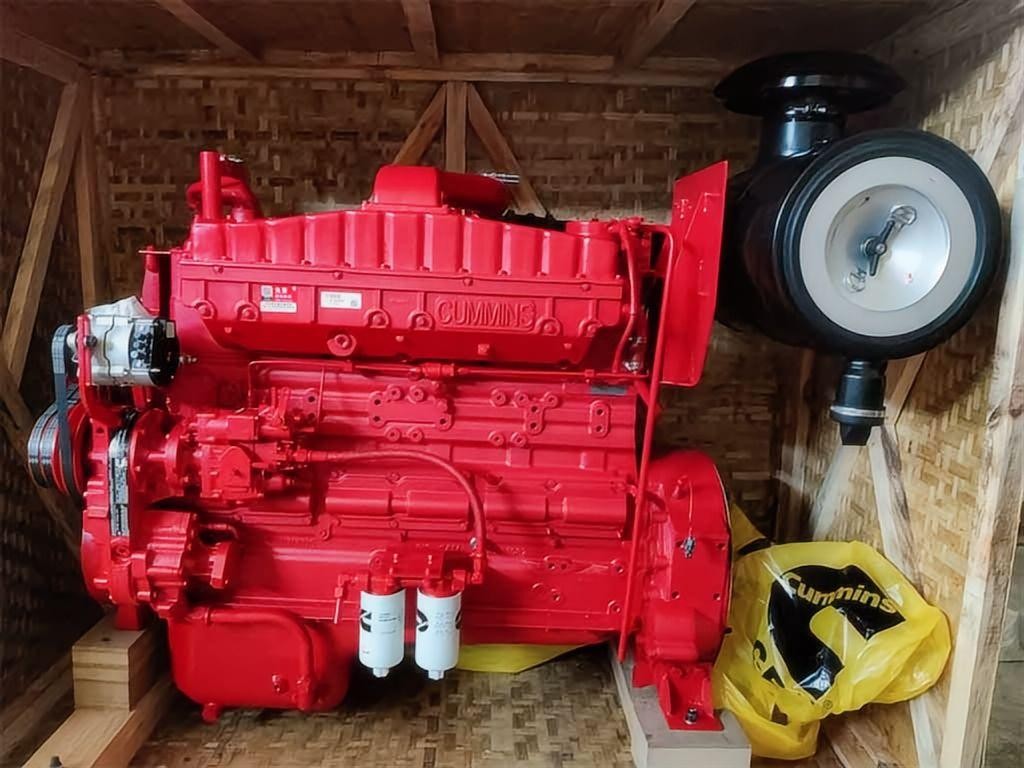

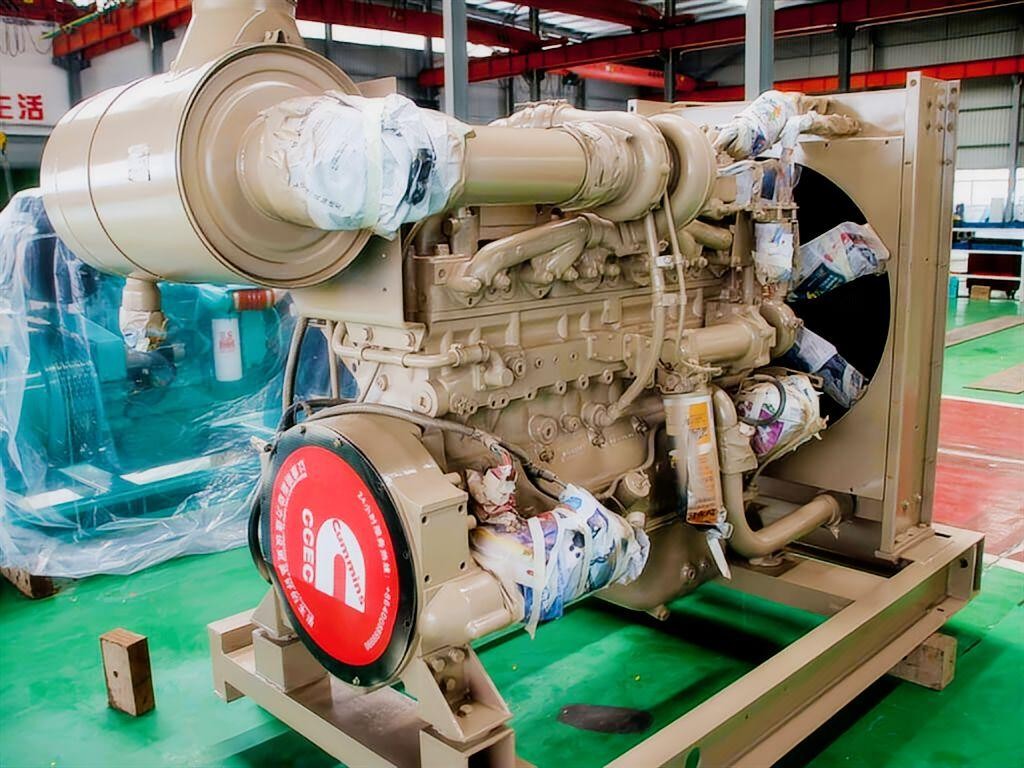

Original CCEC Cummins NTA855-P400 Pump Drive Engine (400HP / 299kW)
Industrial fluid transfer demands relentless mechanical reliability. As an authorized Cummins NTA855-P400 engine supplier, HekoPower delivers the complete NTA855-P400 engine assembly directly from the Chongqing factory. This 14L 6-cylinder diesel engine produces a steady 299kW (400HP) and is specifically calibrated for demanding continuous-duty applications. Unlike standard vehicle engines, the Cummins NTA855-P400 pump drive engine is engineered to sustain high torque against constant water head pressure, making it the premier choice for heavy-duty industrial pump configurations.
Tech Specs of Genuine CCEC NTA855-P400
General Engine Data
Engine Model: Cummins NTA855-P400
Type: 6 Cylinders in Line
Displacement: 14 L
Bore * Stroke: 140 * 152
Overall Dimension: 1389mm*914mm*1298mm
Net Weight (with flywheel & alternator): 1350 Kg
Key Performance Data
Rated Power: 299 kW/400HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1710 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 215 g/Kw.h
Idle Speed: 600 rpm
Torque/Rated Speed: 1586 N.m @ 1800 rpm
Output/Max Torque: 269 kW/360HP @ 1500 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 14.0:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 20.8 L
Overcoming Demanding Environments: Real Application Scenarios
The NTA855-P400 water pump power unit excels across three primary demanding sectors. Each environment requires a different operational approach, but all rely on the engine's robust cast-iron block and Euro II emissions simplicity.
Mining operators heavily utilize the NTA855-P400 dewatering pump engine. Deep open-pit mines and underground shafts require pumps to run continuously for weeks without shutting down. The Cummins 400HP mining pump engine maintains maximum fluid displacement without overheating, easily handling the dense, abrasive slurry water typical in quarry environments.
In the safety sector, the Cummins NTA855-P400 fire pump engine serves as a critical last line of defense. A 400HP diesel engine for a fire pump might sit dormant for months. However, when system pressure drops, the 24V diesel engine electrical system ensures an instant start. It ramps up to maximum operating speed within seconds to feed massive sprinkler networks in commercial facilities and oil terminals.
Agricultural operators also favor this model. A 400HP diesel engine for an irrigation pump must endure seasonal abuse. During dry months, the NTA855-P400 irrigation pump engine runs constantly under direct sun, driving massive pivot irrigation networks. Its localized cooling systems and high-capacity oil pans prevent thermal breakdown during these grueling seasonal peaks.
Technical Comparisons and Configuration Mechanics
When engineering a pump station, specifying the right power band prevents both catastrophic failure and wasted fuel. Buyers frequently ask how to select a Cummins NTA855-P400 pump engine compared to lighter models.
When reviewing the NTA855-P400 vs NTA855-P300 pump engine spec comparison, the differences extend beyond the 100-horsepower gap. The P400 is heavily fortified. It features enhanced NTA855-P400 engine installation dimensions to accommodate larger cooling packs and a heavier flywheel housing compatibility rating. The NTA855-P400 turbocharged aftercooled engine forces denser, cooler air into the 140 x 152 mm engine cylinders, achieving a massive 1710 Nm torque peak. The P300 simply cannot sustain that twisting force against high-head municipal water systems.
Engineers evaluating the Chongqing CCEC NTA855-P400 performance curve FR-11033 will notice how flat the torque delivery remains across the RPM range. This stability is critical for NTA855-P400 water pump engine sizing. Depending on the impeller design of your pump, HekoPower can supply this engine configured as a standard 1500 RPM NTA855-P400 water pump engine or calibrated specifically for CCEC NTA855-P400 299kW 2100RPM operation. Despite this massive power, the NTA855-P400 fuel consumption at rated power remains highly economical at just 215 g/kWh.
Common Misconceptions About the NTA855-P400
Many buyers mistakenly believe that modern electronic common-rail engines are superior for all pump applications. In reality, complex electronics are a liability in remote, wet, or dusty environments. The NTA855-P400 PT fuel pump engine relies entirely on mechanical pressure. The Cummins NTA855-P400 fuel pump 3075525 PT injection system regulates fuel based on purely physical principles, making it immune to electrical sensor failures that plague newer models in harsh conditions.
Another misconception involves operating speeds. Buyers often assume a Cummins 299kW water pump engine must always run at maximum RPM to do its job. In truth, a properly engineered NTA855-P400 pump power unit configuration hits its peak efficiency well below maximum redline, significantly reducing NTA855-P400 engine wear and extending the time between major overhauls.
Long-Term Reliability: Maintenance and Replacement Tips
Downtime in industrial pumping translates directly to lost revenue. Effective NTA855-P400 engine maintenance starts with understanding the PT fuel system specifications. Because the fuel acts as a lubricant for the pump and injectors, maintaining clean fuel filters is non-negotiable.
If you encounter NTA855-P400 black smoke troubleshooting scenarios, the issue is rarely a catastrophic failure. Black smoke typically indicates air starvation from a clogged intake, or a worn NTA855-P400 injector delivering a poor spray pattern. Routine valve lash adjustments and periodic injector testing will eliminate this issue entirely.
When it is time for an rebuild, never compromise on parts. HekoPower is a direct Chongqing Cummins NTA855-P400 supplier, meaning we provide the exact CCEC NTA855-P400 overhaul kit and replacement parts your block requires. Using aftermarket or mismatched NTA855-P400 overhaul parts can alter the compression ratio and destroy the engine under load. Always specify NTA855-P400 genuine parts to ensure your replacement compatibility matches the original factory FR-11033 curve.
Selecting Your Specific Pump Power Solution
Matching the right displacement and horsepower to your specific fluid dynamic requirements is the key to an efficient operation. If your project demands different head pressure or flow rates, you may need to step up or down within the CCEC product family.
Cummins NTA855-C/P Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NTA855-C250, NTA855-C280, NTA855-C310, NTA855-C335, NTA855-C360, NTA855-C400, NTA855-C450, NTA855-P300, NTA855-P360, NTA855-P400, NTA855-P470.
Frequently Asked Questions
What are the NTA855-P400 engine dimensions and weight?
Because the NTA855-P400 14 litre pump engine features a heavy-duty cast-iron block and industrial-grade cooling components, the NTA855-P400 engine weight typically sits around 1,300 to 1,400 kilograms for the bare engine. Dimensions vary slightly based on the selected radiator and exhaust configuration, but it is universally designed to fit standard industrial skid bases.
Are you a genuine CCEC NTA855-P400 engine supplier?
Yes. HekoPower operates directly as a CCEC NTA855-P400 engine supplier and exporter. We provide the original Cummins NTA855-P400 engine straight from the Chongqing manufacturing facility, ensuring complete warranty coverage and verified factory performance data.
How do I get an accurate NTA855-P400 engine price?
Because every NTA855-P400 complete engine can be customized with different PTO clutches, control panels, and cooling systems, pricing varies. We offer competitive NTA855-P400 wholesale engine pricing for OEMs and single-unit quotes for end-users. Contact our team with your required RPM and application type for a precise quote.
Can this engine be used as a replacement engine for older equipment?
Absolutely. The NTA855-P400 replacement engine is a highly sought-after drop-in solution. The standardized NTA855-P400 flywheel housing compatibility means it easily bolts up to existing industrial water pumps, transmissions, and gearboxes that were originally fitted with legacy 14-liter Cummins power units.
