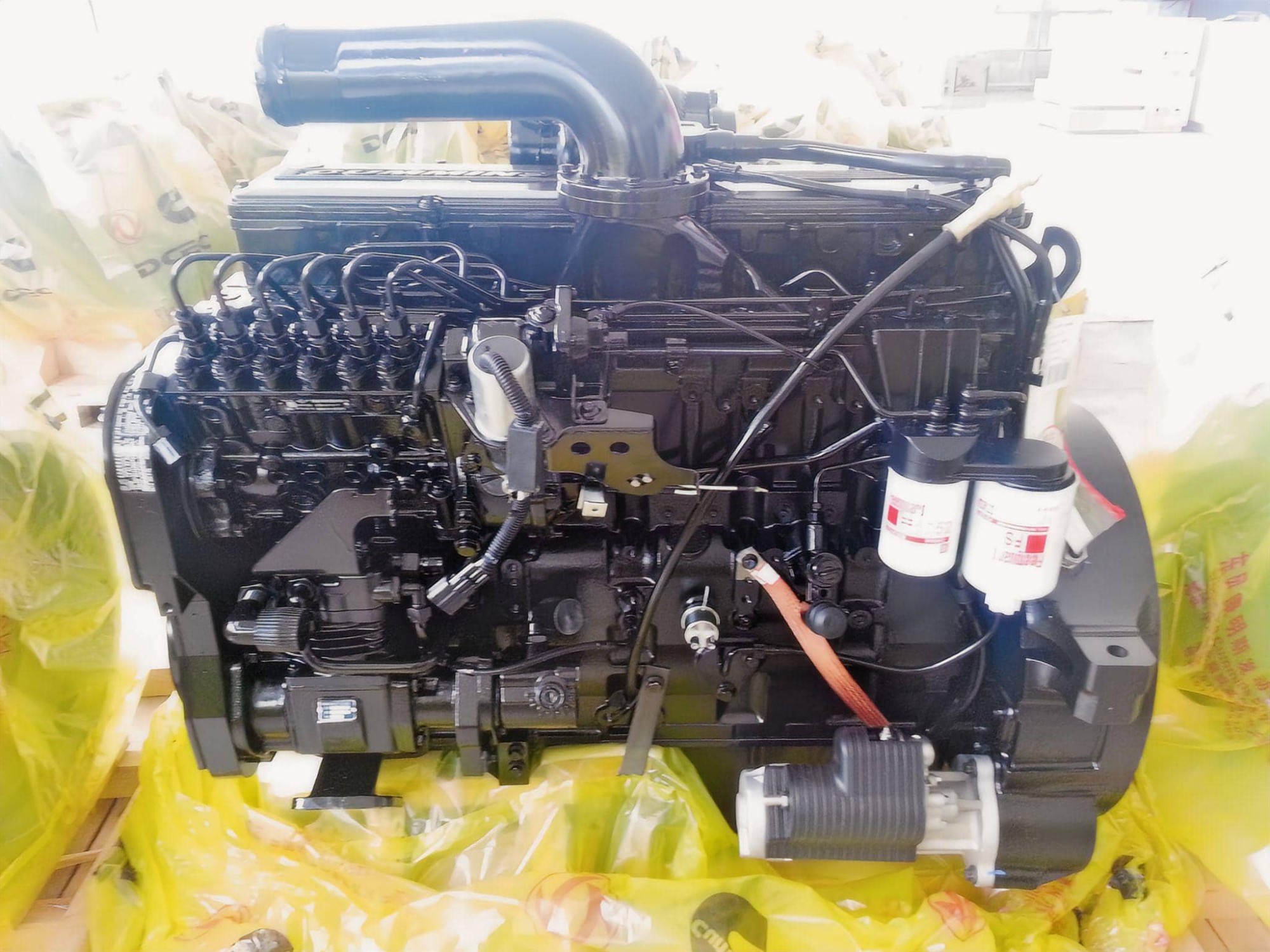

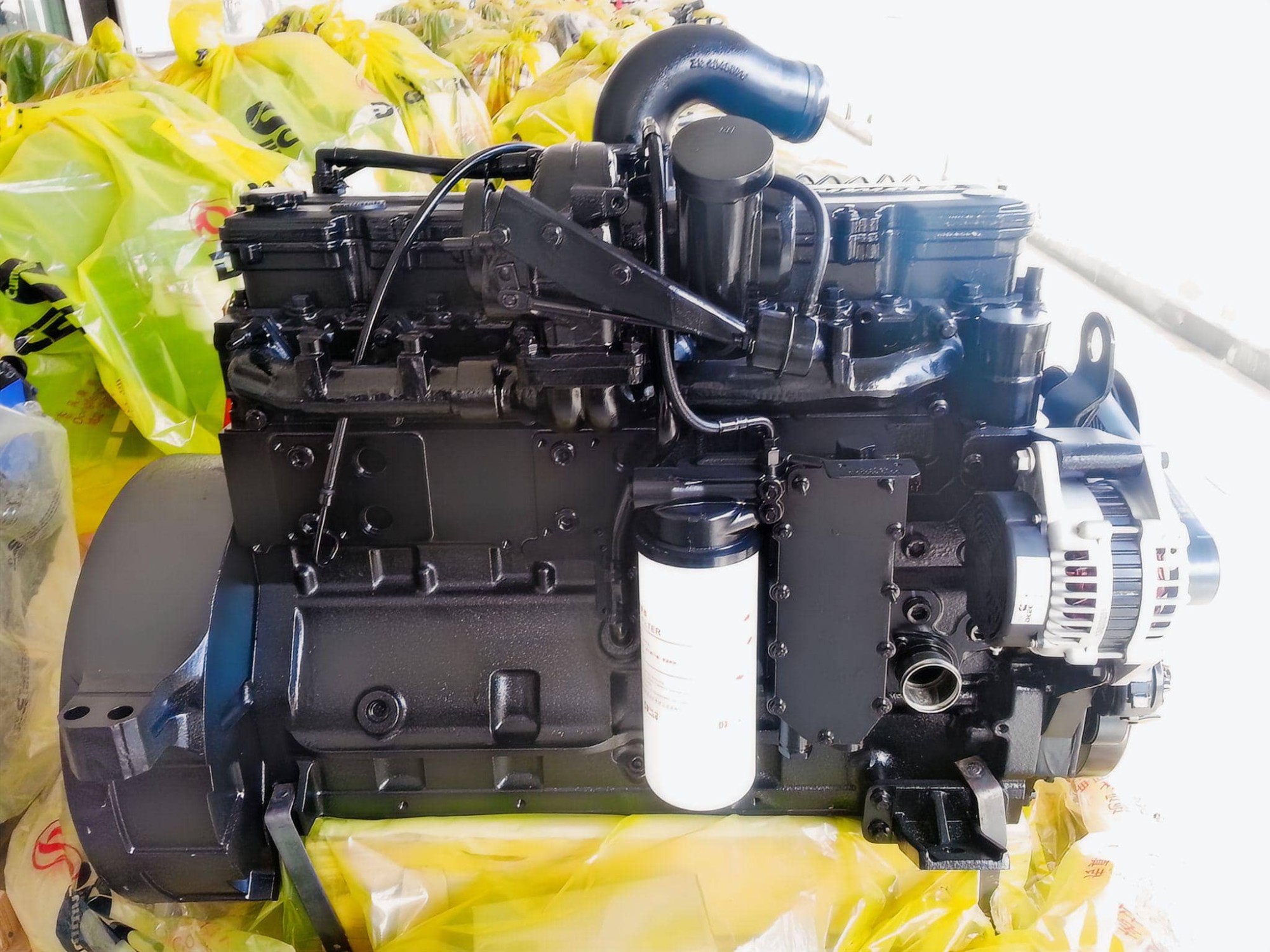

Buy Cummins 8.9L L360-30 Vehicle Diesel Engine
The DCEC Cummins L360-30 is a highly reliable 8.9-liter, 6-cylinder inline engine designed for heavy-duty commercial vehicles. Balancing mechanical simplicity with rugged power, this Euro III emission engine delivers 360 horsepower. As a direct Cummins L360-30 exporter and wholesaler, HekoPower provides original, complete engine assemblies directly from the factory floor to global fleet operators.
Tech Specs of Cummins L360-30
General Engine Data
Engine Model: Cummins L360-30
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight (with flywheel & alternator): 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Key Performance Data
Rated Power: 264 kW/360HP
Rated Speed: 2200 rpm
Max. Torque/Speed: 1480 N.m @ 1400 rpm
Max. No-load Governed Speed: 2500 rpm
Idle-Speed: 700±100 rpm
Max Continuous Running Altitude: 2000 m
Fuel Consumption @ Rated Power: 228 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Air-Air Intercooled
Fuel System: BOSCH P7100 Pump/RVQ-K Governor
Compression Radio 16.6:1
Electrical System (Starter Motor/Alternator): 12V(500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Technical Performance and Fuel Efficiency Analysis
When evaluating the Cummins L360-30 wholesale price, fleet buyers must calculate total cost of ownership. The underlying mechanics of the L360-30 impact daily operations.
Understanding the L360-30 Weifu PH Fuel Pump Engine
Unlike later electronic common-rail systems, the Cummins L360-30 diesel engine utilizes a mechanical inline fuel injection system featuring a Weifu PH fuel pump paired with an RQV-K governor. This mechanical setup makes the engine exceptionally resilient to varying diesel fuel qualities across international markets. The mechanical pump ensures precise fuel metering without relying on delicate electronic sensors that frequently fail in high-heat or high-vibration environments.
Cummins L360-30 Torque and Fuel Consumption Details
The L360-30 produces a maximum torque of 1480 N.m at a low 1400 RPM. This low-end torque allows heavy trucks to launch smoothly under full load. The average DCEC L360-30 fuel consumption rate per kwh rests at approximately 195 grams. Efficiency peaks when operating within the 1300 to 1500 RPM power band. Maintaining speeds inside this sweet spot reduces fleet fuel overhead by up to 8% compared to over-revved smaller engines.
Technical Comparisons: Choosing the Right 360HP Engine
Selecting an engine by horsepower alone leads to costly vehicle integration mistakes. Buyers frequently confuse the L360-30 with similar models.
Cummins L360-30 vs ISME360-30
The core choice between these two units comes down to mechanical versus electronic architecture. The mechanical L360-30 vs electronic ISME360-30 debate is centered on maintenance capability. The ISME360-30 utilizes an electronic control module (ECM) to meet Euro III standards, which provides excellent diagnostics but requires specialized computer tools. The L360-30 uses mechanical injection. For operations in remote logging, mining, or construction sites lacking advanced electronic diagnostic infrastructure, the mechanical L360-30 is the better choice.
Cummins L360-30 vs L375-30
Both units belong to the rugged Cummins L series engine family and share the identical 8.9L displacement block. The primary distinction lies in the fuel pump calibration and internal governor settings. The L375-30 squeezes out an extra 15 horsepower for extreme mountain hauling. However, the L360-30 runs at a slightly lower thermal load, extending the operational lifespan of internal components like cylinder liners and piston rings under continuous duty cycles.
Cummins L360-30 vs ISME385-30
The ISME385-30 is a larger 11-liter engine. While it provides higher peak torque, it requires a significantly larger engine bay footprint and adds over 300 kg to the vehicle's front axle weight. The L360-30 provides a more compact, fuel-efficient 360HP solution for fleets that need high power without sacrificing payload capacity.
Real Application Scenarios for the L Series
The L360-30 is the primary powertrain choice across specific industrial and logistics sectors worldwide.
Cummins L360-30 Engine for Dongfeng Truck Models
This engine is the factory-standard configuration for several heavy-duty vehicles produced by the Dongfeng Motor joint venture. It serves as the core power pack for the Dongfeng Kinland series. The mounting brackets, flywheel housings, and air compressor ports are designed to match the Dongfeng chassis perfectly, eliminating the need for custom fabrication during retrofits.
Heavy Duty Cargo Truck and Dump Truck Duty Cycles
In regional logistics, a Cummins L360-30 engine for heavy duty cargo truck configurations easily manages a gross vehicle weight (GVW) of up to 40 tons. For mining or municipal construction, the Cummins L360-30 engine for dump truck applications relies on its high torque to climb out of deep excavation pits without stalling out or overheating under heavy loads.
Construction Vehicles and Commercial Power Packs
Beyond logistics, the L360-30 functions as a stationary or mobile power pack. It drives heavy construction machinery, including large concrete mixing pumps, mobile cranes, and specialized industrial air compressors where reliable, continuous mechanical output is mandatory.
Maintenance and Replacement Tips for Fleet Managers
Proactive maintenance safeguards your investment. When an engine reaches its terminal hours, swapping the complete assembly minimizes downtime.
Critical Component Inspections
To maintain peak performance, mechanics must service the Weifu PH fuel pump every 50,000 kilometers. Fuel filters require strict replacement intervals. Using low-grade fuel filters allows fine particulate matter to enter the fuel injectors, which erodes the nozzle spray pattern and leads to incomplete combustion, black smoke, and reduced power output.
Using the Cummins L360-30 Replacement Engine for Fleet Upgrades
When an older fleet truck suffers a major block failure, performing an in-frame overhaul often takes weeks while waiting for individual engine parts. Choosing a complete original Cummins L360-30 assembly for sale allows for a fast swap. A professional workshop can pull a failed engine and drop in a fresh complete engine assembly in less than 48 hours, returning the truck to active service immediately.
Cummins L Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes L270-30, L290-30, L300-20, L315-30, L325-20, L340-20, L360-20, L360-30, L375-20, L375-30.
Frequently Asked Questions Regarding the L360-30 Engine
Is the Cummins L360-30 engine mechanical or electronic?
The L360-30 is a fully mechanical engine. It uses a mechanical inline Weifu PH fuel pump rather than an electronic common rail system. This makes it highly reliable in regions with low-quality diesel fuel.
Where can I find genuine Cummins L360-30 maintenance manual information?
HekoPower provides comprehensive maintenance manuals, including torque specifications, valve clearance clearances, and wiring schematics, with every complete engine assembly shipped.
Can this engine be retrofitted into non-Dongfeng trucks?
Yes. While it is standard for Dongfeng trucks, the industry-standard SAE dimensions used on the flywheel housing and engine mounts allow it to fit into various international commercial vehicle chassis.
What is included in a complete engine assembly from HekoPower?
Our complete engine assembly includes the cylinder block, cylinder head, fuel pump, injectors, turbocharger, water pump, alternator, starter motor, and air compressor. It arrives fully built and ready to install.
