Details

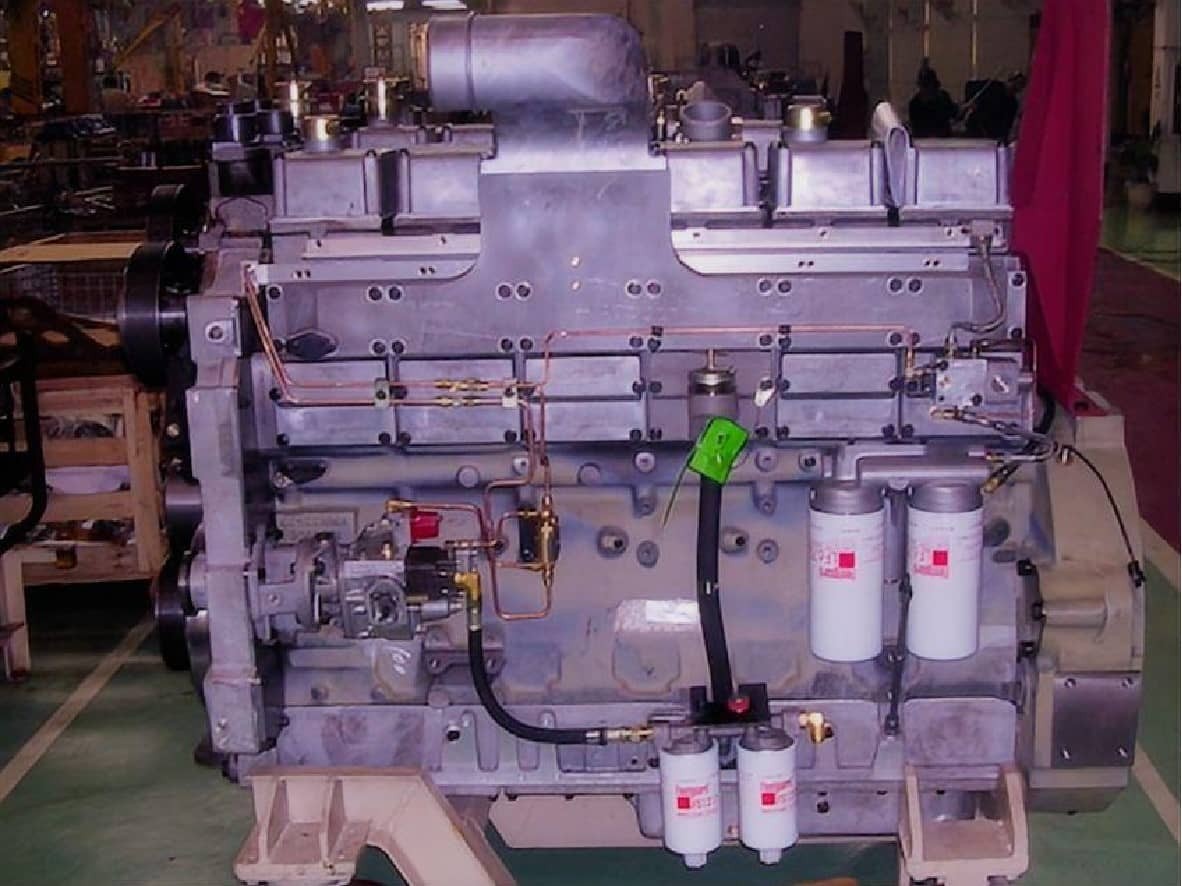

CCEC Cummins KTAA19-G6A 610kW Standby Engine: Industrial Power Solutions
The Genuine CCEC Cummins KTAA19-G6A engine is widely used in heavy-duty standby generator systems that require stable power output under demanding industrial conditions. Compared with many smaller displacement generator engines, the KTAA19-G6A is designed for long operating life, reliable transient response and stable operation during sudden load changes.
As part of the Cummins K19 series heavy duty genset engine platform, this model is commonly selected for 50Hz generator systems operating at 1500RPM. The engine combines a high-strength cylinder block, PT fuel system technology and turbocharged air-to-air aftercooling to maintain efficient combustion performance under continuous standby conditions.
Unlike many low-cost generator engines on the market, the KTAA19-G6A is frequently used in applications where downtime can create significant operational losses. Typical installations include data centers, hospitals, mining projects, telecom infrastructure and industrial manufacturing facilities.
HekoPower supplies original CCEC KTAA19-G6A diesel engines for customers requiring export-ready generator drive engines with worldwide delivery support and replacement parts service.
Tech Specs of Cummins KTAA19-G6A
General Engine Data
Engine Model: Cummins KTAA19-G6A-610KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight: 1927 Kg
Overall Dimension: 1324mm*835mm*1183mm
Key Performance Data
Standby Power: 610 kW/818HP
Engine Type: Standby Output
Rated Speed: 1500 rpm
Low Idle Speed: 675-775 rpm
Fuel Consumption @ Rated Power: 127.8 L/Kw.h
More Technical Data
Engine Exhaust Manifold: Wet Exhaust manifold
Aspiration: Turbocharged/Charge Air Cooled
Compression Radio: 13:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control
Technical Advantages of the KTAA19-G6A 610kW Standby Engine
Stable Power Output for Critical Backup Systems
One of the main advantages of the Cummins KTAA19-G6A 610kW standby engine is its ability to maintain stable frequency and voltage performance during sudden load acceptance. This characteristic is especially important for emergency standby generator systems used in hospitals and data centers.
The engine’s turbocharged aftercooled air intake system improves combustion efficiency and helps reduce power loss in high ambient temperature environments. Compared with naturally aspirated industrial engines, the K19 platform provides stronger low-speed torque and improved transient response.
PT Fuel System Design
The PT fuel system Cummins KTAA19-G6A configuration remains one of the most recognised fuel delivery systems in industrial diesel engine applications. The system is valued for its simple mechanical structure and dependable fuel pressure control.
For generator operators in remote regions, this design offers several practical benefits:
- simplified maintenance procedures
- stable fuel delivery
- reduced sensitivity to fuel quality variation
- easier troubleshooting during field operation
This is one reason why the KTAA19-G6A engine for continuous industrial power supply remains popular in mining, oilfield and infrastructure projects.
Cooling Performance in Tropical Climate Regions
Many standby generator installations operate in high-temperature environments where cooling performance directly affects engine reliability. The Cummins K19 engine cooling system specification includes a heavy-duty radiator configuration designed for tropical climate operation.
Compared with smaller generator engines operating close to maximum thermal limits, the KTAA19-G6A maintains more stable coolant temperature during prolonged standby operation.
This makes the engine suitable for:
- Southeast Asia generator projects
- Middle East infrastructure installations
- African mining operations
- coastal industrial facilities
Technical Comparison Between KTAA19-G6A and Other K19 Generator Engines
KTAA19-G6A vs KTAA19-G5
The KTAA19-G5 and KTAA19-G6A belong to the same K19 engine family but are designed for different standby power requirements.
The KTAA19-G6A provides higher standby output and improved load response performance for larger industrial generator systems. It is more suitable for facilities requiring higher emergency backup capacity or increased reserve margin.
Customers upgrading from older K19 generator systems often select the G6A model because of its stronger performance under fluctuating electrical loads.
KTAA19-G6A vs Electronic Control Engines
Some modern generator engines rely heavily on electronic control systems. While electronic engines can provide advanced monitoring functions, many industrial customers still prefer mechanically controlled K19 engines for remote-area projects.
The Genuine KTAA19-G6A diesel engine offers several practical advantages:
- easier field maintenance
- lower electronic system complexity
- simplified spare parts management
- reliable operation in harsh environments
For customers operating in regions with unstable maintenance resources, this remains an important purchasing consideration.
Operational Mechanics & High-Demand Application Scenarios
The unique mechanical balance of the Cummins KTAA19-G6A engine for backup power systems makes it a preferred choice for infrastructure configurations requiring zero power interruption.
Cummins KTAA19-G6A Engine for Data Center Backup Power
Data centers require instant power synchronization within seconds of a utility grid failure. The KTAA19-G6A configuration D193108GX03 datasheet confirms a transient response rate designed to handle massive load steps without experiencing voltage sag. The physical stiffness of the 19L block reduces structural harmonics, protecting adjacent electrical switchgear from operational vibration.
610kW Cummins Diesel Engine for Hospital Standby Generator Use
Life-safety applications demand unmatched operational uptime. The integrated PT fuel system Cummins KTAA19-G6A relies on uses simple mechanical lines rather than complex common-rail electronics. This setup eliminates the risk of unexpected digital control failure during critical runs, ensuring the unit starts reliably in all emergency situations.
Heavy Duty K19 Generator Engine for Mining Projects
For remote installations, ambient conditions pose a significant challenge to engine performance. This CCEC Cummins engine for tropical climate generators operates comfortably up to 40°C without power derating. Its specialized wet, replaceable cylinder liners ensure consistent heat dissipation across all 6 cylinders, even when exposed to airborne dust and high-temperature environments.
Maintenance Architecture & Field Replacement Protocols
To preserve the factory warranty on your original CCEC Cummins engine with warranty protection, maintenance tracking must target key sub-systems.
PT Fuel System Management & Settings
The Cummins Pressure-Time (PT) injection loop operates via mechanical pressure variations regulated by fuel pump velocity.
- Lubrication Boundaries: High-sulfur fuel variations can cause internal injector deposits over time. Maintain a strict 250-hour interval for primary fuel filter swap-outs.
- Return-Line Pressure: Ensure the injector return line does not exceed a backpressure limit of 22 kPa to avoid fuel stagnation and rough idling.
Cummins K19 Engine Cooling System Specification Controls
The KTAA19-G6A turbocharger and air-to-air aftercooled specification requires careful coolant chemistry management.
- Cavitation Defense: Always monitor the concentration of Supplemental Coolant Additives (SCA) like DCA4. Lacking proper additives allows air bubbles to erode the outer surfaces of the wet cylinder liners, eventually causing catastrophic oil-to-coolant contamination.
- Thermostat Operational Range: The dual modulating thermostats are designed to open between 82°C and 93°C. If your engine runs consistently below 80°C, replace the thermostats immediately to prevent incomplete combustion and fuel dilution in the oil pan.
Parts Sourcing & Identification
When ordering from a parts catalog for Cummins KTAA19-G6A components, always cross-reference the CPL 3959 number. Using generic aftermarket parts will compromise the balancing tolerances of the 19L crankshaft and void your supplier warranty protection.
Global Sourcing, Logistical Framework & Procurement
HekoPower functions as a direct OEM Cummins generator engine exporter and global commercial partner. We manage complex international freight operations to deliver heavy machinery safely to your job site.
- Wholesale Logistics & Transport Protections: Every machine block leaves our staging facility secured to a heavy-steel shipping skid, fully wrapped in anti-corrosive film, and packed inside an export-grade wooden crate. The overall dry shipping footprint measures approximately1573 X 796 X 1343 mm with a gross weight of roughly 1,970 kg.
- Global Shipping Capabilities: Whether managing port-to-port maritime freight or handling trans-continental overland delivery, HekoPower manages all export clearances and provides complete CCEC documentation upon dispatch.
- Transparent Procurement Plans: We supply project builders with competitive KTAA19-G6A Cummins engine wholesale price points by eliminating intermediary broker markups. Every power unit includes an official factory warranty matching global CCEC compliance structures.
Cummins K19-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-G2-336KW, KTA19-G3-403kW, KTA19-G3A-448kW, KTA19-G4-448KW, KTAA19-G5-502KW, KTAA19-G6-570KW, KTAA19-G6A-610KW, KTAA19-G7-610KW, KTA19-G2-392KW, KTA19-G3-463KW, KTA19-G3A-507KW, KTA19-G4-507KW, KTAA19-G5-555KW, KTAA19-G6-620KW, KTAA19-G6A-664KW, KTAA19-G7-664KW, KTAA19-G8-575KW.
Frequently Asked Questions
What is the exact Cummins KTAA19-G6A fuel consumption at 1500RPM?
At its standard 50Hz application speed of 1500RPM, the KTAA19-G6A fuel consumption at 100% standby load is approximately 149.5 liters per hour. Under a 75% load configuration, fuel consumption drops to roughly 112 liters per hour, making it an incredibly efficient choice for continuous standby power security.
What are the installation limitations regarding altitude and temperature?
The factory-certified CCEC technical curves guarantee that this engine delivers its full 610kW standby output at altitudes up to 1,500 meters (5,000 feet) and ambient temperatures up to 40°C (104°F) without needing any derating. If operating above those parameters, apply a standard power derating of 4% per additional 300 meters and 2% per additional 11°C.
How does the KTAA19-G6A handle variable standby load patterns?
Per ISO 8528-1 guidelines, the standby power rating is engineered to supply emergency power during utility grid outages for up to 200 hours per year. The average load factor across a 24-hour operational cycle should not exceed 70% of the maximum standby capacity, and continuous overload operation is not permitted on standby-configured models.
Are replacement parts available long term?
Yes. The K19 platform has been widely used globally for many years, and replacement parts availability remains strong in most industrial markets.
