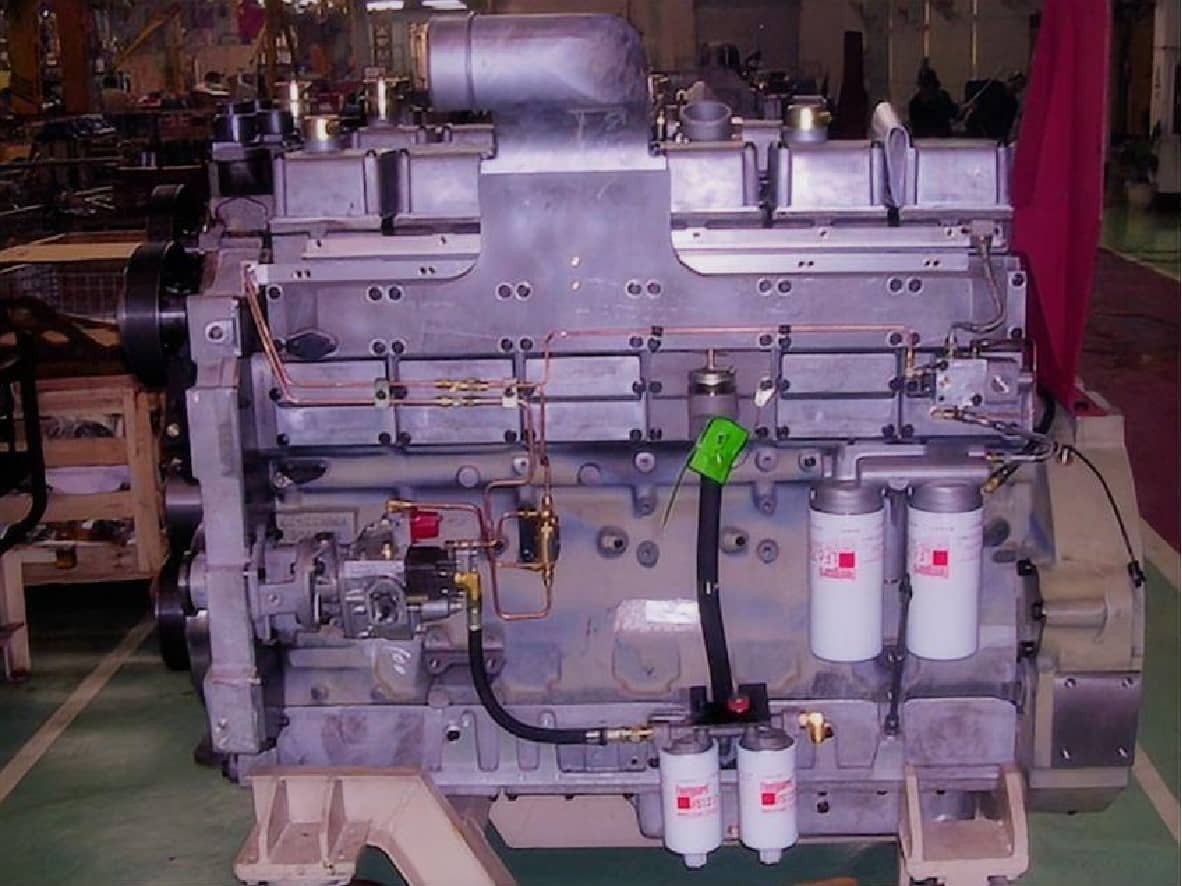

Cummins KTAA19-G7 610kW Generator Engine
The Cummins KTAA19-G7 610kW engine is a heavy-duty powerhouse designed specifically for high-demand electrical generation. As a premier genuine CCEC KTAA19-G7 engine supplier, HekoPower provides this robust 6-cylinder, inline diesel engine to power both prime and standby generator sets worldwide. This 610kW / 818HP Cummins diesel engine features a massive 18.9L displacement and leverages advanced engineering to deliver uncompromising reliability in harsh industrial environments. Whether you require a KTAA19-G7 prime power engine for continuous remote operations or a 610kW standby diesel generator engine CCEC KTAA19-G7 for critical facility backup, this model stands out for its exceptional load acceptance and mechanical durability.
Tech Specs of Cummins KTAA19-G7
General Engine Data
Engine Model: Cummins KTAA19-G7-610KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight: 1927 Kg
Overall Dimension: 1324mm*835mm*1183mm
Key Performance Data
Standby Power: 610 kW/818HP
Engine Type: Standby Output
Rated Speed: 1500 rpm
Low Idle Speed: 675-775 rpm
Fuel Consumption @ Rated Power: 127.8 L/Kw.h
More Technical Data
Engine Exhaust Manifold: Wet Exhaust manifold
Aspiration: Turbocharged/Aftercooled
Compression Radio: 13:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control
Real Application Scenarios for the KTAA19-G7
The CCEC KTAA19-G7 generator engine is highly versatile, serving as the backbone for numerous critical infrastructure projects. Because the KTAA19-G7 air-to-air aftercooled engine operates exceptionally well under sudden heavy loads without overheating, it is the preferred choice for massive data centers that require instantaneous backup power. In these environments, the electronic KTAA19-G7 governor type ensures rapid synchronization and highly stable frequency output, preventing catastrophic data loss during grid failures.
Beyond data centers, this Cummins 818HP generator engine thrives in the mining and heavy construction sectors. Continuous prime operations in remote quarries demand a resilient power plant. The 18.9L Cummins KTAA19-G7 delivers exactly that, operating flawlessly through extreme temperature fluctuations thanks to its heavy-duty cast iron block and wet, replaceable cylinder liners. Furthermore, as a replacement engine for 600kW-650kW diesel gensets, it offers a seamless and highly economical retrofit for aging power plants looking to upgrade their reliability without overhauling their entire facility infrastructure.
Technical Insights and Engine Specifications
Understanding the precise KTAA19-G7 air-to-air aftercooled engine specifications is crucial for facility managers and purchasing agents tasked with procurement. The physical footprint of this unit is substantial, with the dry KTAA19-G7 engine weight coming in at approximately 1,905 kg. The block features a precise KTAA19-G7 bore and stroke of 159 mm by 159 mm, culminating in a total KTAA19-G7 displacement of 18.9 liters.
One of the standout features of this Cummins K19 610kW generator engine is its advanced fuel delivery mechanism. It utilizes the proprietary Cummins KTAA19-G7 PT(G)-EFC fuel system. This unique KTAA19-G7 PT fuel pump engine design ensures highly precise direct injection, atomizing fuel at extreme pressures via step timing control. This KTAA19-G7 direct injection engine setup directly improves combustion efficiency and reduces thermal waste. Consequently, the Cummins KTAA19-G7 fuel consumption remains highly competitive within its horsepower class. The typical KTAA19-G7 fuel consumption per hour at 100% load is efficiently managed, ensuring long run times between refueling events. Facility operators and fleet managers frequently review the CCEC KTAA19-G7 610kW engine performance curve PDF to meticulously optimize their fuel logistics based on these exact load consumption rates.
Liquid capacities are generous to support prolonged high-load operation. The KTAA19-G7 coolant capacity ensures the engine block and advanced Holset turbocharger remain at optimal operating temperatures, while the deep-sump KTAA19-G7 oil capacity allows for extended maintenance intervals. The KTAA19-G7 compression ratio of 13.0:1 perfectly balances cold-start capabilities with peak thermal efficiency. Paired with a robust 24V KTAA19-G7 starting system, the unit provides reliable cranking power, ensuring the engine fires up within seconds of a grid failure.
Technical Comparisons: Understanding the K19 Series Differences
A frequent challenge for procurement teams is navigating complex technical specification searches to find the exact model required. It is vital to understand how this KTAA19-G7 turbocharged diesel engine stacks up against others in the Cummins industrial series.
When analyzing the KTAA19-G7 vs KTAA19-G6, the primary difference lies in the maximum power output capabilities and advanced air handling optimizations. The G7 model provides a distinctly higher kilowatt rating, making it suitable for larger capacity alternators where the G6 would be severely strained. If you compare the KTAA19-G7 vs KTA19-G8, the distinctions often come down to specific prime versus standby capability bands and the heavy-duty demands of continuous baseload generation. A comparison between the KTAA19-G7 vs KTAA19-G6A reveals similar nuances, where the specific aspiration tuning dictates the final mechanical output.
Another very common comparison is the Cummins KTAA19-G7 610kW vs 664kW rating. This directly relates to the operating speed of the alternator it drives. The KTAA19-G7 1500rpm vs 1800rpm distinction is critical for global compatibility. The Cummins KTAA19-G7-A 610kW engine runs precisely at 1500 RPM to produce standard 50Hz power, outputting 610kW. In contrast, the 1800 RPM variant produces 60Hz power and pushes the mechanical output up to 664kW. Specifically, the KTAA19-G7-A vs KTAA19-G7-B nomenclature denotes these exact speed and frequency differences, with the CCEC KTAA19-G7-A explicitly designed as a KTAA19-G7-A 610kW 1500rpm engine for 50Hz markets.
Maintenance Schedule and Replacement Tips
To maximize the lifespan of your Cummins KTAA19-G7 19L diesel engine, strict adherence to a preventative maintenance routine is non-negotiable. Your Cummins KTAA19-G7 maintenance schedule and spare parts list should prioritize the high-wear items associated with fuel delivery. The PT system requires exceptionally clean diesel; therefore, changing fuel filters and servicing the check valves in the fuel tube at factory intervals is the single most important action you can take.
When sourcing replacement parts, always insist on genuine OEM components. Proper oil viscosity and regular fluid analysis will dictate exactly when the internal lubricants need flushing. Because this is an air-to-air aftercooled unit, you must also routinely inspect the intake plumbing for leaks; even a minor pressure drop can spike exhaust temperatures and negatively impact the KTAA19-G7 fuel consumption at 100% load.
If you are looking to buy a Cummins KTAA19-G7 610kW engine as a complete drop-in replacement, you must verify the engine data plate. Conducting a KTAA19-G7 engine CPL verification guarantees that the new block matches the emissions profile and physical mounting points of your old unit. As a leading KTAA19-G7 engine export supplier and dedicated Cummins KTAA19-G7 engine wholesale distributor, HekoPower always provides a KTAA19-G7 engine with warranty, ensuring your capital investment is fully protected from day one.
Common Misconceptions About the KTAA19-G7
A significant misunderstanding in the industrial power sector surrounds the Cummins 19L generator engine emissions standard. Many buyers assume that modern heavy-duty industrial engines automatically meet strict on-highway vehicular emission standards. In reality, this KTAA19-G7 replacement engine is typically engineered to meet Tier 2 or Euro II stationary generator emissions. This is perfectly compliant for most global standby power applications, but facility owners must always verify local stationary source regulations before installation.
Another common misconception involves the difference between the KTAA19-G7 610kW standby engine rating and its prime continuous rating. The 610kW figure represents the absolute maximum standby rating, strictly meant for emergency use during unpredictable grid outages. If you intend to use the engine for continuous, 24/7 prime power, the rated output is mechanically derated to ensure longevity and prevent thermal fatigue. Always consult your KTAA19-G7 610kW engine price quote from HekoPower to confirm whether the engine is calibrated for your specific duty cycle.
Explore the K19-G Generator Engine Series
Understanding the specific capabilities of the Cummins KTAA19-G7 1500 RPM generator engine is just the beginning of optimizing your facility's power infrastructure. The entire 19-liter family offers a broad spectrum of power bands to suit various heavy industrial demands. To explore alternative configurations or to find the perfect mechanical match for different power requirements, we invite you to review our broader catalog.
Cummins K19-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-G2-336KW, KTA19-G3-403kW, KTA19-G3A-448kW, KTA19-G4-448KW, KTAA19-G5-502KW, KTAA19-G6-570KW, KTAA19-G6A-610KW, KTAA19-G7-610KW, KTA19-G2-392KW, KTA19-G3-463KW, KTA19-G3A-507KW, KTA19-G4-507KW, KTAA19-G5-555KW, KTAA19-G6-620KW, KTAA19-G6A-664KW, KTAA19-G7-664KW, KTAA19-G8-575KW.
Frequently Asked Questions (FAQ)
What is the difference between Cummins KTA19-G6 and KTAA19-G7?
The primary difference is overall power output and the implementation of advanced cooling technology. While both are part of the heavy-duty K19 series, the KTAA19-G7 utilizes a highly efficient air-to-air aftercooled system (denoted by the "AA" in KTAA) which dense-packs much cooler air into the engine cylinders. This thermal advantage allows it to safely produce the 610kW standby rating compared to the lower limits of the standard water-cooled G6 model.
What is the best alternator for Cummins KTAA19-G7 610kW?
Pairing this CCEC 610kW generator engine requires an industrial-grade alternator. Industry standards typically recommend premium brands like Stamford or Marathon. Specifically, you should seek models rated for 750kVA to 800kVA at 1500 RPM to perfectly match the 610kW mechanical output of the engine without causing electrical saturation.
Is the KTAA19-G7-A 610kW 818HP diesel engine available directly from HekoPower?
Yes. As an established, genuine CCEC KTAA19-G7-A 610kW generator engine supplier, HekoPower provides complete, factory-new units. We handle complex global logistics and supply the KTAA19-G7 G-Drive engine configured exactly to your site's frequency and voltage requirements.
