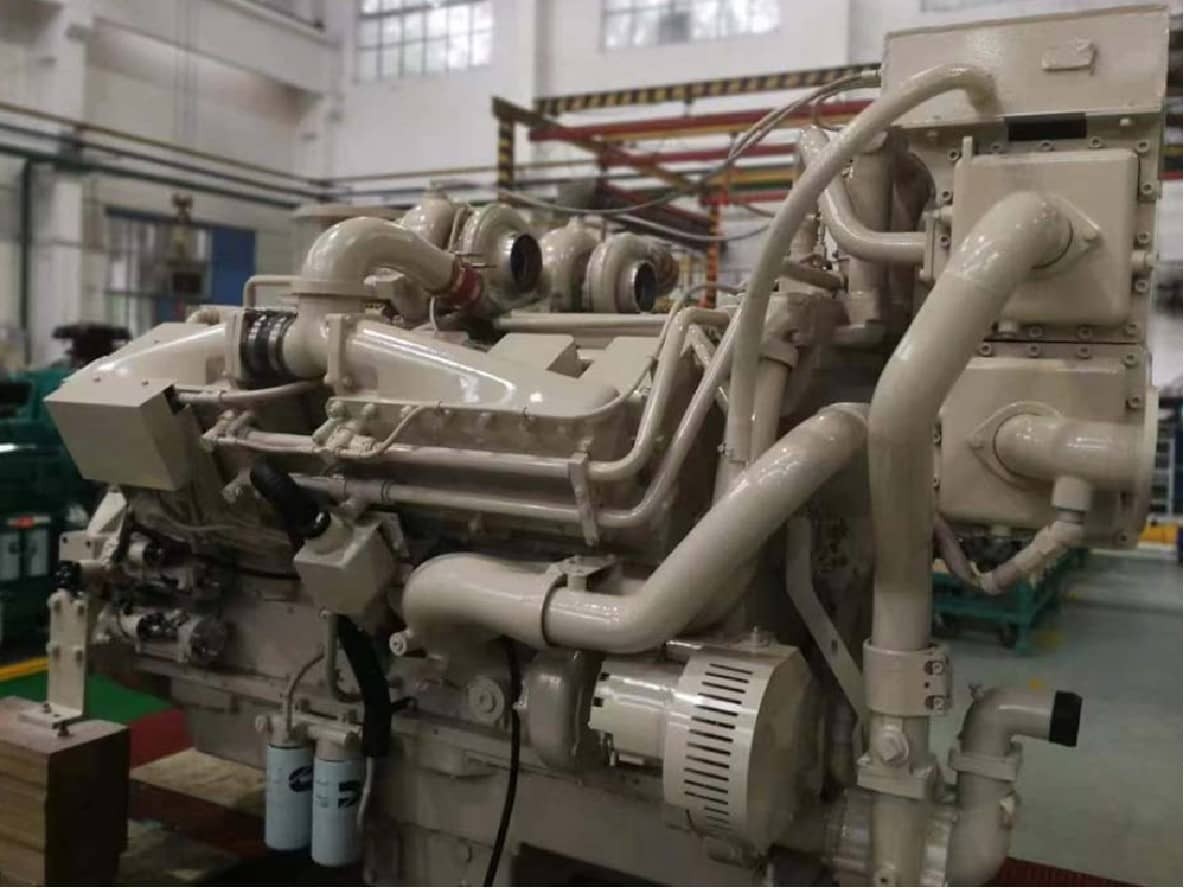

Cummins KTA38-M2 545HP Commercial Marine Propulsion Engine
The Cummins KTA38-M2 is a 38-liter V12 marine diesel engine built for high-hour, continuous-duty commercial vessels. Delivering 545HP (407kW) at 1,800 RPM, this mechanical powertrain is manufactured by Chongqing Cummins Engine Co., Ltd. (CCEC). It is engineered specifically for operators who prioritize mechanical reliability, straightforward servicing, and steady torque under heavy sea conditions.
This specific configuration features CPL 1542 (Configuration D233034MX02) and operates on the M-657 performance curve. Built with a 159mm bore and 159mm stroke, the 38-liter V12 architecture offers heavy displacement power without pushing thermal limits. HekoPower supplies complete, genuine CCEC engine assemblies, export-ready power packages, and direct replacement units for commercial marine fleets worldwide.
Tech Specs of KTA38-M2 545HP
General Engine Data
Engine Model: Cummins KTA38-M2 (545 HP)
Type: 12 Cylinders, V Type, 4 strokes
Displacement: 38 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 4358 Kg
Overall Dimension: 2152mm*1462mm*2083mm
Engine Configuration No.: D233034MX02
Key Performance Data
Rated Power: 407 kW/545HP
Rated Speed: 1800 rpm
Low Idle Speed: 575-650 rpm
High Idle Speed: 1815-2016 rpm
Rating Type: Continuous Running
Fuel Consumption (Running Speed): 106 L/hr
More Technical Data
Certification: CCS/IMO Certificates
Governor Type: Mechanical Control
Aspiration: Turbocharged/Aftercooled
Compression Radio: 13.9:1
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical Start (24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Real-World Commercial Application Scenarios
The 545HP Cummins KTA38-M2 is engineered for heavy displacement hulls where engines run at full throttle for days without interruption. Its torque curve suits vessels pushing or pulling substantial loads through variable currents.
Commercial Tugboats and Workboats
Harbor tugboats and coastal pushboats rely on the KTA38-M2 for sustained bollard pull. The mechanical PT fuel system responds reliably to sudden load increases when maneuvering barges in tight waterways.
Deep-Sea Trawlers and Fishing Vessels
Commercial trawlers operating in remote waters require simplicity. The 1,800 RPM continuous duty rating allows deep-sea fishing crews to haul nets for extended periods without risking exhaust temperature spikes.
Cargo Vessels, Barges, and Inland Waterway Shipping
For bulk carriers, sand dredgers, and river transport barges navigating inland waterways, fuel efficiency at continuous cruising speed is critical. The KTA38-M2 delivers constant output while maintaining low wear rates on cylinder liners and main bearings.
Technical Architecture & Comparative Analysis
Choosing between marine propulsion engines requires analyzing mechanical design, fuel delivery, and cooling options rather than looking at peak horsepower numbers alone.
Mechanical PT Fuel System vs. Electronic Common Rail
Modern electronic marine engines use common-rail fuel injection to meet strict urban emission standards. However, the KTA38-M2 utilizes Cummins’ pressure-time (PT) mechanical fuel pump system. In remote offshore operations or regions with inconsistent diesel fuel quality, mechanical PT systems outperform common-rail engines in endurance. They tolerate higher fuel contaminants, require no complex ECU wiring harnesses, and can be serviced by vessel mechanics without proprietary diagnostic software.
KTA38-M2 Mechanical Simplicity vs. QSK38 Electronics
While the electronic QSK38 series offers computerized fuel mapping, the mechanical KTA38-M2 remains the preferred choice for vessel repowering. Installing a KTA38-M2 avoids the cost of retrofitting electronic control modules, sensor networks, and digital throttle interfaces into older engine rooms.
Keel Cooling vs. Heat Exchanger Configurations
The KTA38-M2 supports both keel cooling and sea-chest heat exchanger cooling system layouts. Keel cooling isolates raw seawater from the engine block, making it ideal for shallow-water dredgers and river barges exposed to mud and debris. Heat exchanger cooling offers a compact footprint for offshore workboats where engine room space is tightly constrained.
Gearbox and Propeller Matching Considerations
Pairing the 545HP 1800RPM rating with the correct marine gearbox ratio is critical to achieving full rated speed without overloading the engine. The M-657 performance curve requires a matched propeller pitch that allows the engine to reach 1,800 RPM under maximum vessel displacement. Under-pitching leads to engine overspeeding, while over-pitching causes heavy exhaust smoke and elevated pyrometer readings.
Maintenance, Overhaul, and Repowering Guide
Proper maintenance keeps the Cummins 38-liter V12 engine operating efficiently over tens of thousands of service hours.
Fuel Injector and PT Pump Calibration
Inspect and adjust mechanical PT injectors and valve clearances according to CCEC factory intervals. Incorrect injector overhead settings cause uneven cylinder loading, leading to elevated exhaust gas temperatures on individual cylinders.
Cylinder Liner and Piston Care
The 159mm bore wet cylinder liners require correct DCA4 coolant additive concentration to prevent cavitation erosion. Cavitation causes microscopic pitting on the outer liner wall, which can eventually breach the cooling jacket if left untreated.
Repowering and Engine Room Installation Tips
When replacing an older K38 unit or repowering a vessel from a different engine brand, verify foundation alignment and exhaust backpressure. The physical footprint of the KTA38-M2 requires rigid mounting beds to prevent crankshaft misalignment. Ensure the exhaust piping diameter matches factory specifications to prevent excessive backpressure on the twin turbochargers.
Industry Misconceptions Regarding the KTA38-M2 545HP
Navigating marine engine specifications often involves clearing up common technical misunderstandings among vessel owners and shipyards.
Misconception 1: "Higher RPM always delivers better performance"
Some operators assume that a 2,100 RPM engine rated at a higher nominal horsepower is superior to an 1,800 RPM engine. In reality, lower operating speeds reduce piston speed and bearing wear. The 1,800 RPM continuous duty (M2) rating of the KTA38-M2 provides significantly longer overhaul intervals than high-speed engines operating near their thermal thresholds.
Misconception 2: "CCEC Cummins engines differ in quality from USA-built units"
Chongqing Cummins Engine Co., Ltd. (CCEC) operates under strict Cummins Inc. global manufacturing standards. CCEC KTA38 engines use identical material specifications, casting tolerances, and quality control protocols as North American production facilities.
Misconception 3: "Electronic engines are always more reliable than mechanical engines"
While electronic management improves emissions, saltwater environments are hostile to sensors, wiring harnesses, and control units. In salt-spray conditions, a mechanical V12 diesel engine eliminates electrical failure points that can cause unexpected power loss at sea.
Cummins KTA38 Marine Engine Series Lineup
The 545HP KTA38-M2 model represents one specific power node within the broader CCEC K38 marine propulsion family. Depending on your hull design, speed requirements, and duty cycle, other horsepower configurations are available within the same physical V12 engine block.
Cummins K38-M Series (K38 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-M600, KT38-M780, KT38-M800, KT38-M850, KT38-M900, KTA38-M1 (1000 HP), KTA38-M1 (1100 HP), KTA38-M2 (545 HP), KTA38-M2 (1050 HP), KTA38-M2 (1200 HP), KTA38-M2 (1300 HP), KTA38-M2 (1350 HP). All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions (FAQ)
What is the exact output rating of the Cummins KTA38-M2 545HP engine?
The engine produces 545 horsepower (407 kW) at a governed speed of 1,800 RPM. This rating follows the continuous duty (M2) commercial profile, designed for applications requiring unvarying power output over extended operational periods.
What emissions certifications are available for this CCEC marine engine?
Depending on the specific vessel build and flag state requirements, CCEC KTA38-M2 engines can be supplied with CCS (China Classification Society) certification and IMO Tier II compliant documentation for commercial international shipping.
Can HekoPower supply a complete marine power package with a matching gearbox?
Yes. HekoPower supplies complete propulsion packages including the CCEC KTA38-M2 545HP engine, matched marine gearboxes (Advance, Masson, or ZF), cooling systems, local control panels, and shafting accessories.
What is the lead time for a genuine CCEC KTA38-M2 engine assembly?
Standard production and testing at the CCEC factory typically take 20 to 30 business days. Export packaging, sea freight preparation, and custom documentation are handled directly by the HekoPower logistics team.
