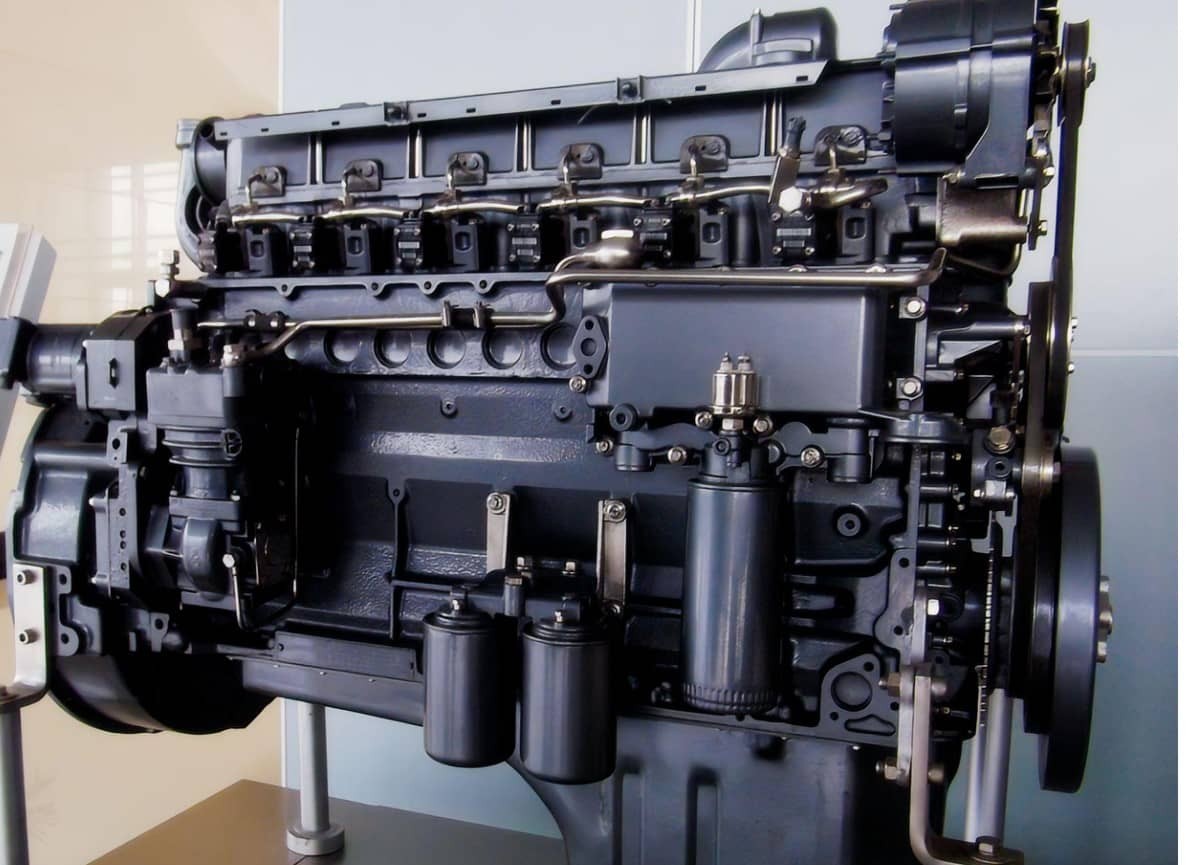

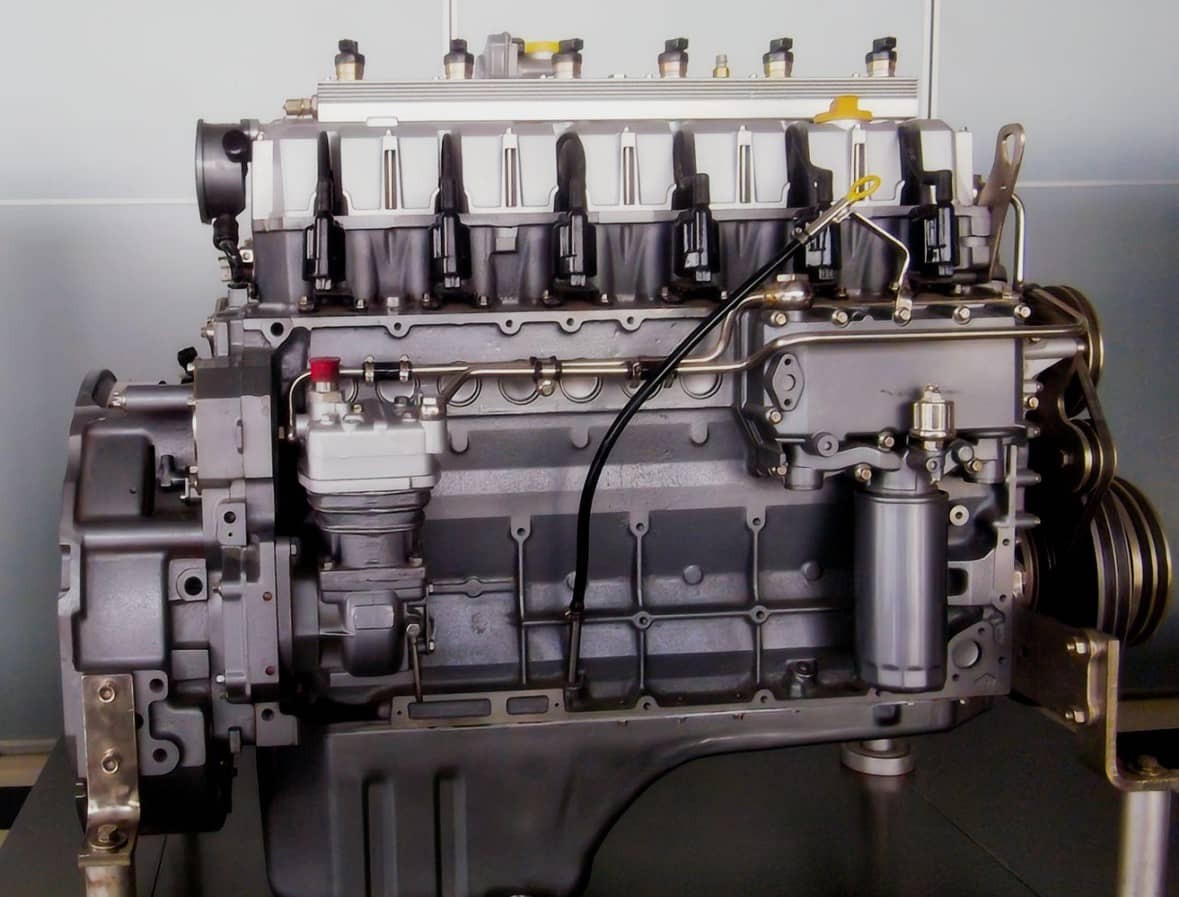

Deutz BF6M1013-26E3 192kW Vehicle Engine
At HekoPower, we supply complete propulsion solutions for demanding commercial transport sectors. The Dalian Deutz BF6M1013-26E3 assembly is engineered specifically for heavy-duty on-highway applications requiring reliable power delivery under varied operational conditions. As a 192kW water-cooled inline 6-cylinder truck engine, this model represents a highly durable powertrain choice for fleet operators upgrading or replacing aging equipment.
With a displacement of 7.146L, this direct injection diesel engine generates 950Nm of torque. The BF6M1013-26E3 diesel engine balances robust mechanical engineering with precise electronic controls, making it an ideal candidate for operators who require a reliable Deutz replacement engine for heavy duty truck fleets or transit vehicles operating in regions with Euro III emission requirements.
Tech Specs of Deutz BF6M1013-26E3
General Engine Data
Engine Model: Deutz BF6M1013-26E3
Type: 6 Cylinders, in Line
Displacement: 7.146 L
Bore * Stroke: 108 * 130
Overall Dimension: 1266mm*600mm*952mm
Net Weight (with flywheel & alternator): 520 Kg
Key Performance Data
Rated Power: 192 kW
Max. Torque/Speed: 950 N.m @ 1400 rpm
Rated Speed: 2300 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 216.11 g/kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Aftercooled
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18:1
Engine Cooling Fluid Volume: 23 L
Real Application Scenarios for the 26E3 Configuration
Commercial vehicle operators face distinct challenges depending on their routes and payloads. We consistently supply the Deutz BF6M1013-26E3 truck engine to fleets that manage regional freight and long-haul logistics. The 260HP rating provides the necessary pulling power for 18-ton to 30-ton gross vehicle weight applications, maintaining momentum on inclines without excessive fuel consumption.
Beyond freight transport, this motor is a highly sought-after Deutz BF6M1013-26E3 drop-in replacement engine for intercity buses. Passenger transport requires smooth acceleration and low vibration to ensure commuter comfort. The six cylinder diesel engine for commercial vehicle applications achieves this through a finely tuned firing order and acoustically optimized engine block design.
For operators of heavy-duty transit networks, the Deutz BF6M1013-26E3 coach engine provides reliable service life in environments where stop-and-go traffic places immense thermal stress on the powertrain. As a water cooled diesel engine, it manages these temperature fluctuations effectively, preventing the overheating issues common in poorly ventilated rear-engine bus configurations.
Technical Comparisons: EUP vs. Common Rail Systems
When sourcing a BF6M1013 commercial vehicle diesel engine, procurement managers often compare this Euro III unit against later Euro IV or Euro V variants. The defining difference lies in the fuel injection architecture. The BF6M1013-26E3 utilizes an Electronic Unit Pump (EUP) setup rather than a high-pressure common-rail system.
For operators in export markets or regions with fluctuating fuel quality, the Electronic Unit Pump (EUP) diesel engine for varying fuel quality is a significant advantage. Common-rail systems are highly sensitive to high sulfur content and water contamination in diesel, which can cause catastrophic injector failure. In contrast, the EUP system on this Deutz Euro III 192kW diesel engine is far more robust. It tolerates lower-grade fuels while still meeting Euro III compliance, making this Deutz Euro III commercial fleet engine for export the preferred choice for cross-border logistics routes in developing regions.
Additionally, when comparing this 7.14L commercial vehicle diesel engine to smaller displacement engines boosted to reach 192kW, the BF6M1013-26E3 offers a flatter torque curve. Reaching its peak 950Nm torque early in the rev range means drivers do not have to constantly shift gears in urban environments. This reduces wear on the transmission and lowers driver fatigue compared to higher-revving, smaller-block alternatives.
Overcoming Common Engine Misconceptions
A frequent misunderstanding in the commercial transport sector is that purchasing a Euro III engine means sacrificing fuel economy for reliability. This is incorrect. The Deutz BF6M1013 turbocharged aftercooled engine maximizes thermal efficiency by forcing dense, cooled air into the combustion chamber. This ensures complete fuel burn, meaning the Deutz 192kW vehicle diesel engine delivers fuel consumption figures that closely rival more complex, newer generation engines, but with significantly lower lifetime maintenance costs.
Another misconception is that the BF6M1013-26E3 is strictly an industrial motor repurposed for vehicles. While the core block is shared across Deutz platforms, the BF6M1013-26E3 vehicle engine features distinct oil pan configurations, specific turbocharger mounting positions, and automotive-grade ECU mapping designed specifically for the varying load demands of road transport, not stationary continuous power.
Maintenance and Repower Installation Requirements
Executing a successful engine swap requires precise engineering alignment. As an experienced BF6M1013 complete engine supplier, HekoPower advises all clients to carefully verify the BF6M1013-26E3 flywheel housing configuration before purchase. Different transmission pairings dictate specific SAE housing sizes, and matching this correctly prior to shipping prevents costly installation delays.
When planning a Deutz diesel engine for bus repowering, technicians must also account for the BF6M1013-26E3 engine installation requirements regarding the cooling pack. Because this is a high-torque 192kW engine, the existing radiator and intercooler matrix must be inspected. If you are upgrading from a naturally aspirated or lower-output engine, the vehicle's cooling capacity must be upgraded to match the heat rejection rates of this specific turbocharged model.
Routine maintenance on the BF6M1013-26E3 complete engine assembly is straightforward due to the accessible service points. The EUP system allows for individual pump replacement without removing the entire injection rail, drastically reducing downtime during fuel system servicing.
Related BFM1013 Series Engines
Our inventory at HekoPower extends beyond a single specification to ensure we meet the exact repowering demands of any commercial fleet. If your vehicle requires a different power output, varied RPM rating, or alternative emission standard within the same physical footprint, we supply the complete range of related engine block assemblies.
Deutz BFM1013-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M1013-16E3, Deutz BF4M1013-18E3, Deutz BF4M1013-19E3, Deutz BF6M1013-22E3, Deutz BF6M1013-24E3, Deutz BF6M1013-26E3, Deutz BF6M1013-28E3, Deutz BF6M1013-24E4, Deutz BF6M1013-26E4, Deutz BF6M1013-28E4, Deutz BF6M1013-30E3.
Frequently Asked Questions
What is the lead time for a wholesale Deutz BF6M1013-26E3 engine block and assembly?
HekoPower maintains a streamlined supply chain for commercial fleet operators. Standard lead times for the Deutz BF6M1013-26E3 for sale typically range from 15 to 20 business days. For bulk wholesale orders or urgent repower projects, please contact our sales team to confirm immediate warehouse availability.
How do I verify BF6M1013-26E3 engine compatibility with my current truck?
To ensure a perfect fit, provide our technical team with your current engine serial number, the required SAE flywheel housing size, and the vehicle's transmission model. We will verify the configuration of the BF6M1013 vehicle engine repower solution to ensure seamless integration into your specific chassis.
Are you a direct Deutz 192kW diesel engine supplier?
Yes, HekoPower operates as a comprehensive engine supplier. We provide genuine, fully assembled BF6M1013-26E3 replacement engine units ready for installation. We support our clients with comprehensive technical documentation and dedicated after-sales parts support for the lifetime of the engine.
Does the BF6M1013-26E3 engine price include the ECU and wiring harness?
When you purchase a complete engine assembly from HekoPower, we clearly outline the scope of supply. Generally, a complete BF6M1013-26E3 wholesale engine includes the engine control unit (ECU) and necessary wiring harnesses, but we can customize the shipment based on whether you are doing a full repower or a basic block replacement.
