Details
ISLe290-30
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.

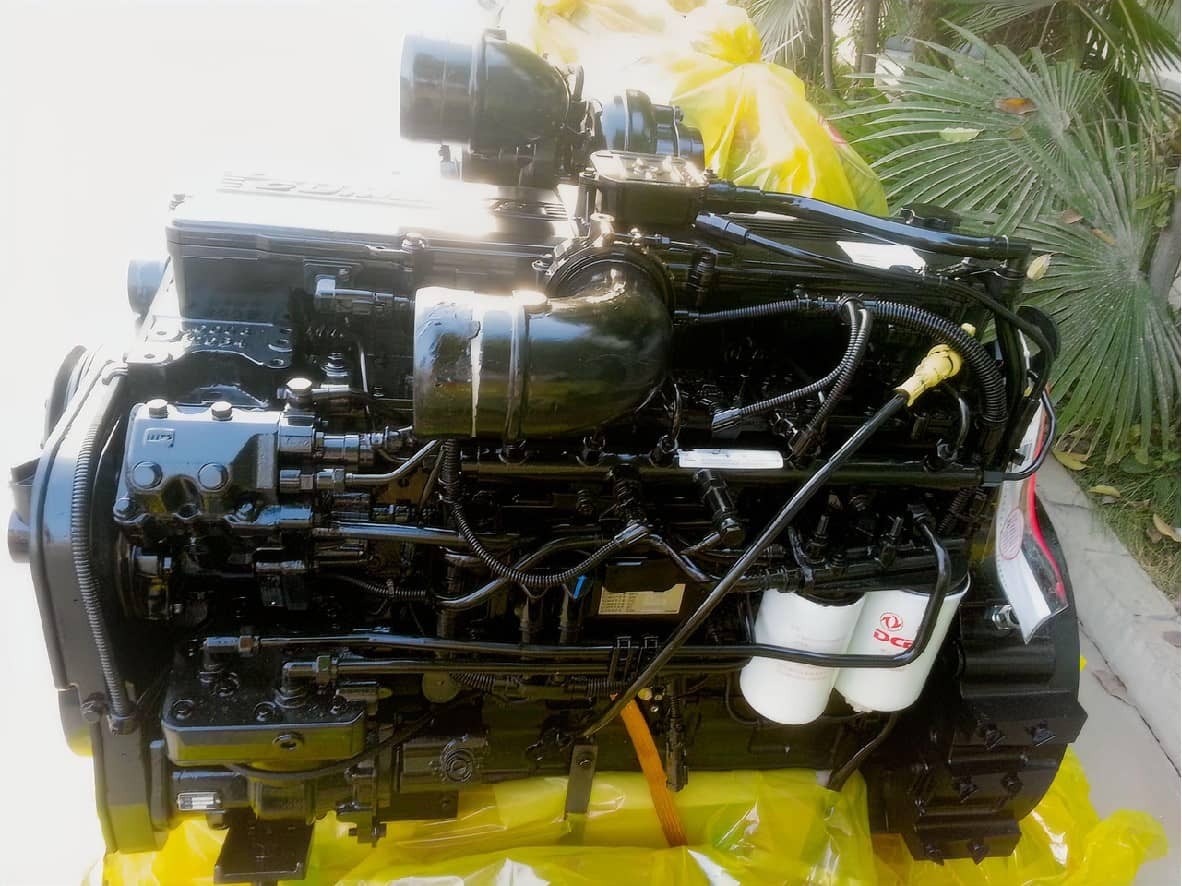

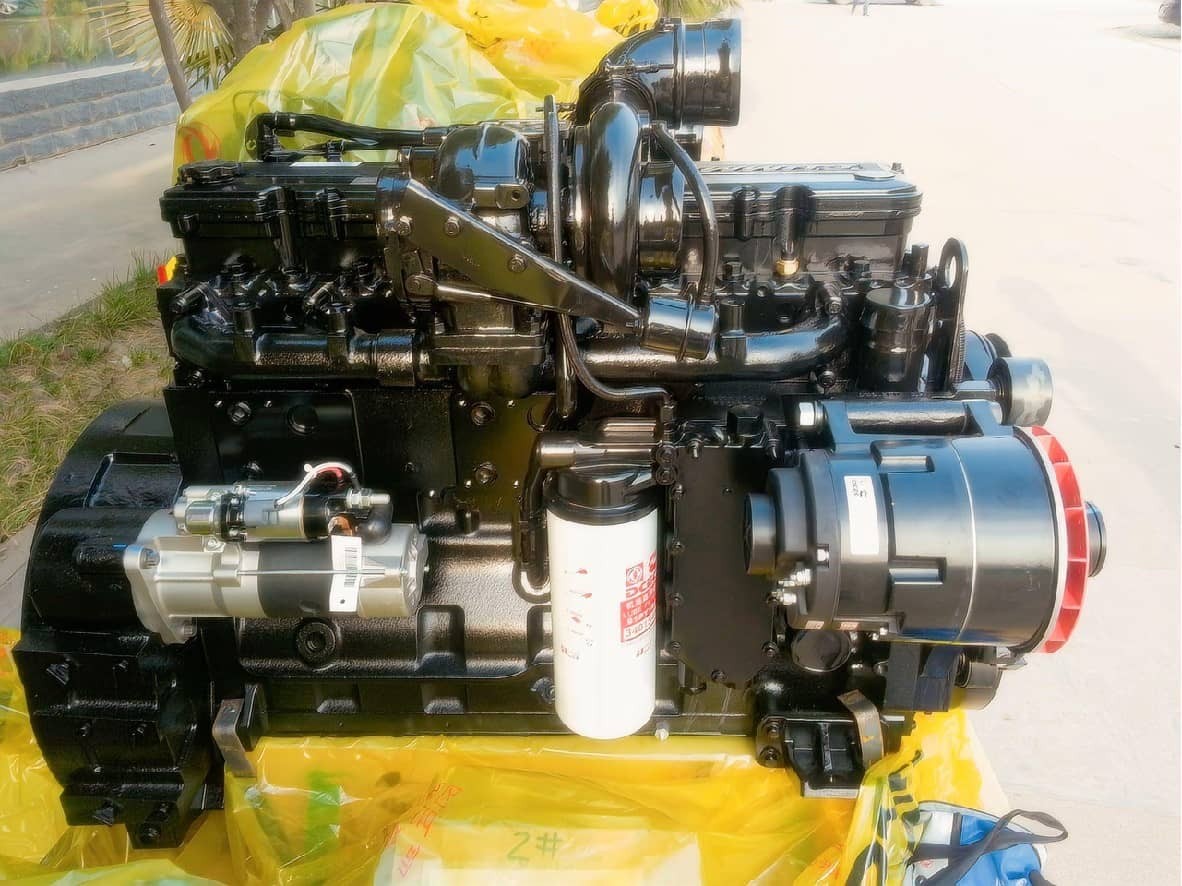

The Cummins ISLe 290-30 is a 6-cylinder inline diesel engine with a displacement of 8.9L, designed for heavy-duty applications such as Dongfeng trucks, buses, vans, and commercial vehicles. It delivers 290 hp (213 kW) at a rated speed of 2100 rpm and produces a maximum torque of 1050 N.m between 1100-1900 rpm. The product's fuel consumption rate of 210 g/kW.h demonstrates its efficiency, while its maximum continuous running altitude of 4500 m is a testament to its performance capabilities. The engine is equipped with advanced features such as turbocharging with charge air cooling, a Bosch common rail fuel system, and a 16.6:1 compression ratio, ensuring optimal performance and reliability. The vehicle is certified to Euro III standards, equipped with a 24V electrical starting system, and features a water-cooled system with an 11.1 L coolant volume. The engine weighs 706 kg and can start at temperatures as low as -12°C without an auxiliary system.
Specs - Technical standard
General Engine Data
Engine Model: Cummins ISLe290-30
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 144.5
Net Weight (with flywheel & alternator): 706 Kg
Overall Dimension: 1147mm*767mm*1104mm
Key Performance Date
Rated Power: 213 kW/290 HP
Rated Speed: 2100 rpm
Idle Speed: 600-800 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 4500 m
Torque/rated Speed: 970 N.m @ 2100 rpm
Max. Torque/Speed: 1050 N.m @ 1100-1900 rpm
Max. No-load Governed Speed: 2330 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Common rial (CCR)/ECM Governor
Compression Radio: 16.6:1
Starting System: Electrical Starting Motor 24V(750A)
Lowest Starting Temp Without auxiliary system: -12℃/-33℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
DCEC ISLe Series
DCEC ISDe Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISLe270-30, ISLe290-30, ISLe300-30, ISLe310-30, ISLe325-30, ISLe340-30, ISLe350-30, ISLe375-30.
High Pressure Common Rail system
Works at higher pressure and provides more precise control of the combustion process. Capable of generating up to 1800 bar injection pressures for refined and rapid power delivery, reduced noise, and improved cold start.
Premium Engineering
Cylinder block with integrated fluid lines, high strength tensile steel forged crankshaft, high durability pistons and special surface finish mid-stop cylinder liners support the overhaul durability goal.
Electronic Control Module (ECM)
Has a higher processing capacity than the previous model. It maintains an optimum balance between load demands, fuel efficiency and emissions control. It is designed to be isolated from detrimental thermal and vibration loading for extreme reliability and durability.
Waste-gated Turbocharger
Developed by Cummins Turbo Technologies to provide excellent performance across the rpm range as well as improved response through higher low-end torque.
