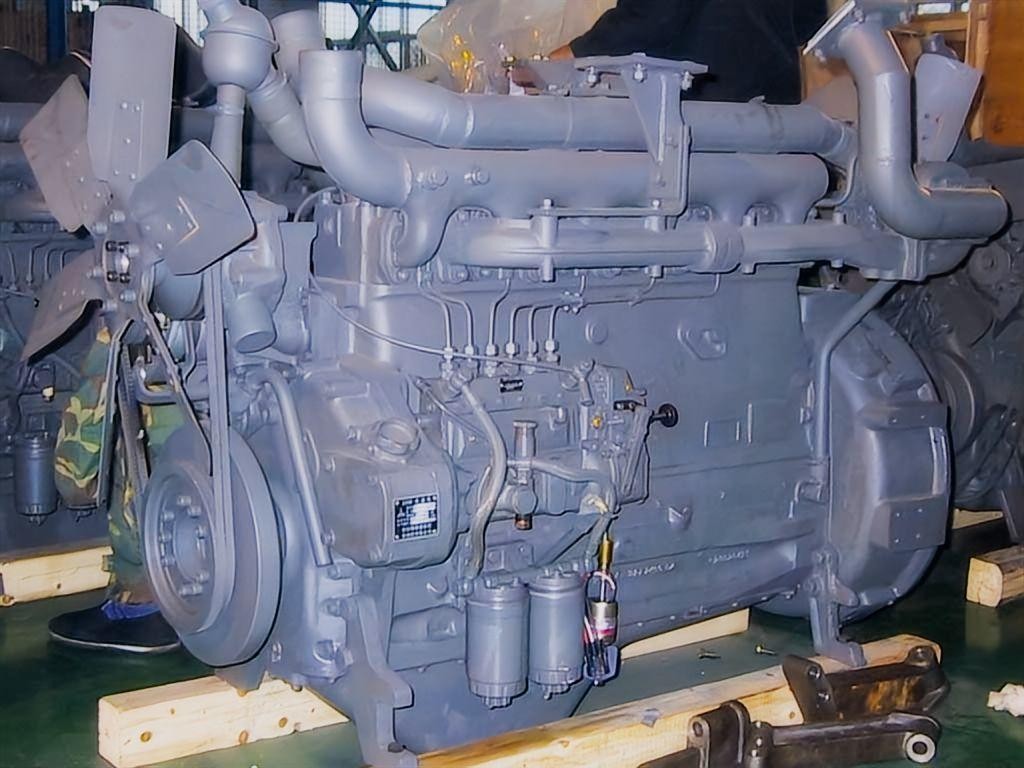

Deutz TBD226B-6D Generator Engine: 120kW Prime Power Diesel Motor
The Deutz TBD226B-6D is a water-cooled, 6-cylinder inline diesel engine engineered specifically for continuous and standby power generation. Operating at 1500rpm for 50Hz applications, it delivers a steady prime power of 120kW and a standby power of 132kW. For 60Hz markets, the engine runs at 1800rpm, pushing power output to 135kW prime.
HekoPower supplies the complete Deutz TBD226B-6D engine assembly directly to genset assemblers and end-users needing a robust replacement. This turbocharged and aftercooled engine provides excellent load acceptance and stable frequency control, making it a reliable prime power generator engine for industrial sites, hospitals, and commercial facilities.
Tech Specs of Deutz TBD226B-6D Generator Engine
General Engine Data
Engine Model: Deutz TBD226B-6D
Type: 6 Cylinders, in Line
Displacement: 6.23 L
Bore * Stroke: 105 * 120
Overall Dimension: 1469mm*781mm*1385mm
Key Performance Data
Rated Power/Standby Power(1500 RPM): 120 kW, 132kW
Rated Power/Standby Power(1800 RPM): 132 kW, 145.2kW
Rated Power/Standby Power(2100 RPM): 135 kW, 148.5kW
Rated Speed: 1500/1800/2100 rpm
Specific Fuel Consumption: 208 g/kW.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Aftercooled
Governor Type: Mechanical/Electrical
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Flywheel Casing: SAE1, SAE2
Deutz TBD226B-6D vs. Weichai 226B-6D: Clarifying the Heritage
Many buyers ask about the difference between the Huachai Deutz TBD226B-6D, Weichai 226B-6D, and standard European Deutz engines. The 226B series was originally developed through a joint venture in China. As a result, the core architecture of the engine is identical whether branded under the joint venture name or as a standalone OEM product.
However, sourcing the genuine Deutz TBD226B-6D engine assembly through HekoPower ensures you receive export-grade quality control, complete documentation, and global warranty support. This specific "TBD" model includes an intercooler (aftercooler), which cools the compressed air from the turbocharger before it enters the intake manifold. This cooling process increases air density, allowing the TBD226B-6D to achieve 120kW, compared to the naturally aspirated or non-intercooled TD226B models that max out at around 90kW.
Real-World Generator Applications
The versatility of the Deutz 226B-6D diesel engine for genset applications makes it highly adaptable to various operational environments.
Alternator Matching
The engine features a standard SAE 3 or SAE 2 flywheel housing, making it universally compatible with major alternator brands. HekoPower frequently pairs this Deutz engine for Stamford alternators (such as the UCI274 series), Leroy Somer, and Marathon units. When matching the alternator, ensure the continuous kVA rating of the alternator aligns with the engine’s 120kW prime mechanical output to prevent overheating during prolonged use.
Open vs. Silent Type Generator Sets
For indoor mechanical rooms or remote mining sites, an open type generator engine configuration provides maximum airflow to the radiator. However, in residential areas, hospitals, or events, noise compliance is mandatory. The TBD226B-6D functions perfectly as a silent generator engine. Its water-cooled design and standard exhaust manifold allow for easy integration with heavy-duty residential silencers and soundproof acoustic enclosures without suffering from dangerous heat buildup.
Governor Options for Load Management
Generator applications require strict engine speed control to maintain a stable 50Hz or 60Hz frequency. The TBD226B-6D governor options include both mechanical and electronic variants. HekoPower recommends the electronic governor for standby generator applications where sudden, large step-loads occur (such as starting large industrial motors or HVAC chillers), as it provides faster recovery times and tighter frequency regulation.
Maintenance and Genset Engine Replacement Tips
Keeping an industrial generator diesel engine running at peak efficiency requires adherence to a strict maintenance schedule. Because HekoPower is a leading OEM Deutz diesel engine supplier, we stock all necessary Deutz TBD226B-6D generator overhaul spare parts.
Cooling System Care
The Deutz TBD226B-6D cooling system utilizes a heavy-duty water pump and a thermostat operating between 75°C and 90°C. For prime power applications, coolant should be flushed every 2,000 hours or two years. Neglecting the coolant mixture can lead to cavitation on the wet cylinder liners. Always use a proper 50/50 mix of ethylene glycol and distilled water with supplemental coolant additives (SCA).
Engine Replacement Integration
When utilizing this model for a generator set diesel engine replacement, verify the footprint. The Deutz TBD226B-6D dimensions are compact, but you must ensure your existing skid base mounts align. Our technical team can supply transition plates if you are replacing an older engine block of a different brand. Upgrading to a new Deutz TBD226B-6D engine assembly is often more cost-effective than attempting a complete rebuild of a heavily damaged engine, resulting in zero hours on the clock and renewed reliability.
Deutz 226B-Generator Engine Series, original products from Weichai Power Engine Plant. This series mainly includes Deutz D226B-3D, Deutz TD226B-3D, Deutz D226B-4D, Deutz TD226B-4D, Deutz TD226B-6D, Deutz TBD226B-6D. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
What is the exact Deutz TBD226B-6D fuel consumption?
At a 100% full load, the engine consumes ≤208 g/kWh. For a 120kW load, this translates roughly to 29.5 liters of diesel per hour, depending on fuel density and ambient temperature. Running the engine at a 75% load significantly improves fuel economy, dropping the hourly consumption rate while keeping exhaust temperatures high enough to prevent wet stacking.
Can I use this engine for a 60Hz 1800rpm generator?
Yes. The Deutz TBD226B-6D 1800rpm generator engine configuration outputs 135kW prime power. The governor and fuel injection pump are calibrated at the HekoPower facility prior to shipping to lock the engine speed at 1800rpm for 60Hz power generation.
Where can I download the Deutz TBD226B-6D engine specification sheet PDF?
HekoPower provides complete technical documentation to all clients. When you request a quote for the Deutz TBD226B-6D complete engine assembly, our sales engineers will attach the official performance curves, wiring diagrams, and the full Deutz TBD226B-6D engine specification sheet PDF directly to your email.
What is included in a new Deutz TBD226B-6D engine assembly?
When you buy the engine from HekoPower, the assembly is delivered ready for generator integration. It includes the cylinder block, fuel injection pump, turbocharger, intercooler, starter motor (12V or 24V), charging alternator, cooling fan, radiator (optional), and standard mechanical or electronic governor.
How do I purchase wholesale Deutz TBD226B-6D units?
As a dedicated Deutz engine exporter, HekoPower handles single-unit orders for immediate replacement and wholesale volume orders for genset manufacturers. Contact our sales department with your required quantity, target destination, and required SAE flywheel housing size to receive a customized CIF or FOB price.
