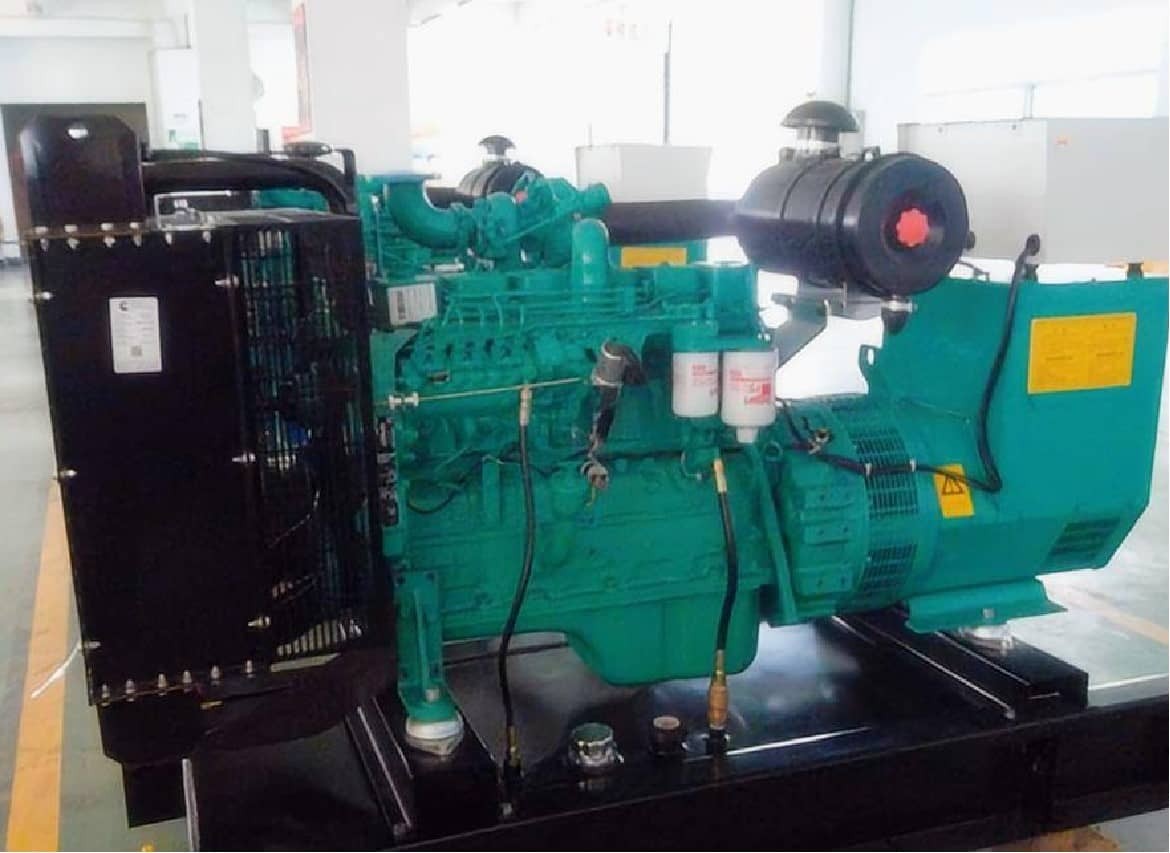

Genuine DCEC Cummins 6BTA5.9-G2 Generator Engine
The Cummins 6BTA5.9-G2 is a cornerstone of mid-range power generation. Manufactured by Dongfeng Cummins (DCEC), this 6-cylinder Cummins genset engine is specifically engineered to deliver a reliable 106kW of standby power. When paired with a quality alternator, it forms the perfect heartbeat for a 125kVA Cummins generator engine setup.
Unlike lighter commercial motors, the Cummins B5.9-G Series engine is built on a heavy-duty cast-iron block designed for extreme durability. Running at a steady 1500 RPM, it provides the precise frequency control required for sensitive electronics while maintaining the ruggedness needed for prime industrial power. Whether you are assembling a new backup power system or replacing a tired motor, buying an original Cummins 6BTA5.9-G2 ensures decades of dependable service.
Tech Specs of Cummins 6BTA5.9-G2
General Engine Data
Engine Model: Cummins 6BTA5.9-G2-106kw
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight: 453 Kg
Overall Dimension: 1110mm*750mm*988mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 106 kW/142 HP, 116 kW/155 HP
Rated Power/Standby Power(1800 rpm): 120 kW/161 HP, 132 kW/177 HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 750-850 rpm
Fuel Consumption @ Running: ≤ 248 g/kW.hr
Torque @Rated/Standby Power: 675/739 N.m @ 1500 rpm
More Technical Data
Aspiration: Turbocharged/Aftercooled
Fuel System: BYC A Pump/GAC Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 10 L
Governor Type: Electronic, Regulation ≤5%
Compression Ratio: 17.5:1
Why the 106kW Cummins Diesel Engine Dominates the 125kVA Market
Matching an engine to a generator end requires precise load acceptance capabilities. The DCEC Cummins 6BTA5.9-G2 achieves its 106kW output through a highly efficient turbocharged and aftercooled air intake system. This forced induction allows the 5.9-litre displacement to punch above its weight class.
Many engine builders attempt to extract 106kW from smaller 4-cylinder blocks, resulting in high thermal stress and shortened lifespans. By utilizing a 6-cylinder water-cooled generator engine layout, the 6BTA5.9-G2 distributes the combustion heat across a larger surface area. This significantly lowers operating temperatures and guarantees stable continuous output, making it the best Cummins engine for backup generator applications in harsh environments.
This model features a highly reliable mechanical governor. While electronic fuel injection is popular, a mechanical governor Cummins engine remains the preferred choice for remote industrial standby power. It is immune to complex electrical faults, simple to troubleshoot in the field, and highly tolerant of variable diesel fuel quality found in global export markets.
Real-World Application Scenarios
Understanding where to deploy the Dongfeng Cummins 6BTA5.9-G2 is critical for maximizing your investment. Because of its specific 142HP output, it occupies a strategic sweet spot in the commercial sector.
Commercial Real Estate and Retail
A 125kVA genset powered by this engine is perfectly sized to support medium-sized supermarkets, multi-story office clinics, or regional bank branches. The low fuel consumption generator engine design ensures that facility managers can sustain operations through multi-day grid failures without requiring massive, expensive on-site fuel storage.
Agricultural and Irrigation Power
Farmers rely heavily on this industrial Cummins diesel engine to drive heavy-duty water pumps and climate-controlled poultry houses. The mechanical simplicity of the B5.9 industrial engine means local farm technicians can perform routine servicing without requiring proprietary diagnostic software.
Telecommunications Infrastructure
Cellular towers and remote data hubs require absolute reliability. The 106kW rating provides enough overhead to power both the transmission equipment and the high-draw HVAC cooling systems simultaneously.
Technical Comparison: 6BTA5.9-G2 vs. Similar Generator Engines
To help our wholesale clients make informed decisions, it is important to understand how this specific model compares to other units within the Cummins family.
If your power requirement is under 80kW, the 4-cylinder 4BTA3.9 is often sufficient. However, for loads approaching 100kW, pushing a 4-cylinder engine to its maximum limit results in poor transient response. The 6BTA5.9-G2 absorbs sudden electrical load spikes far better due to the increased rotational mass of its 6-cylinder crankshaft.
Conversely, if you need 150kW or more, you would need to step up to the larger Cummins 6CTA8.3. The 6BTA5.9-G2 remains the most cost-effective solution for the 106kW threshold. It offers a much smaller installation footprint and significantly lower shipping weights than the 8.3L series, reducing your total freight and canopy manufacturing costs.
6BTA5.9-G2 vs 4BTA3.9-G2
Compared with the smaller 4BTA3.9-G2 engine, the 6BTA5.9-G2 offers:
- higher standby power capacity
- smoother 6-cylinder operation
- improved heavy-load capability
- better long-duration stability
The 4-cylinder platform is often selected for smaller commercial generators, while the 6BTA5.9-G2 is more suitable for medium industrial power demands.
6BTA5.9-G2 vs 6BTAA5.9-G2
The 6BTAA5.9-G2 version typically includes upgraded air handling and higher power output. However, many buyers still prefer the 6BTA5.9-G2 because it offers:
- lower procurement cost
- simpler maintenance
- reliable mechanical operation
- practical fuel efficiency for standby systems
For projects prioritising cost control and maintenance simplicity, the 6BTA5.9-G2 remains a competitive option.
Expert Maintenance and Replacement Tips
Maximising the lifespan of your heavy-duty Cummins generator motor requires strict adherence to factory maintenance protocols. At HekoPower, we do not just sell engines; we want to ensure they run flawlessly for thousands of hours.
Managing Fuel and Lubrication
The Cummins 6BTA5.9-G2 fuel consumption specs are highly efficient, but this efficiency relies on clean fuel delivery. Always use high-quality primary and secondary fuel water separators. Water in the diesel will quickly score the rotary fuel injection pump. For lubrication, utilize a premium 15W-40 heavy-duty diesel oil. During the initial break-in period, oil should be changed at 50 hours, followed by strict 250-hour replacement intervals for prime power applications.
Cooling System Care
The turbocharged 5.9L diesel engine generates significant heat under full load. Inspect the water pump weep hole every 500 hours for signs of coolant leakage, which indicates a failing internal seal. Always use the specified pre-mixed heavy-duty coolant with supplemental coolant additives (SCA) to prevent cylinder liner cavitation. Never use plain tap water, as mineral deposits will quickly insulate the water jackets and lead to catastrophic overheating.
Valve Lash Adjustments
Over time, the constant pounding of the valvetrain will cause the clearances to drift. We recommend a complete valve lash adjustment by a qualified technician every 1,500 operating hours. Proper clearance ensures optimal airflow, maintains the engine's 142HP rating, and prevents excessive black smoke during startup.
HekoPower: Your Genuine DCEC Cummins 6BTA5.9-G2 Supplier
Finding a reliable China Cummins 6BTA5.9-G2 factory partner is challenging. Many suppliers re-paint used engines or utilize substandard aftermarket internals. HekoPower operates strictly as an OEM Cummins generator engine supplier.
When you source your backup power Cummins engine from us, you receive a brand-new, factory-tested original Dongfeng Cummins engine assembly. We provide transparent Cummins 6BTA5.9-G2 wholesale prices to global genset assemblers, ensuring you can build competitive, high-quality generator sets. As a dedicated Cummins diesel engine exporter, our logistics team handles all international freight documentation, delivering export-quality diesel engines safely to your port of choice.
Cummins B5.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-G1-86kw, 6BT5.9-G2-86kw, 6BTA5.9-G2-106kw, 6BTAA5.9-G2-120kw, 6BTAA5.9-G12-140kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
How do I buy an original Cummins 6BTA5.9-G2 engine?
You can request a direct quote through the HekoPower contact page. As a major Cummins 6BTA5.9-G2 wholesale supplier, we offer flexible shipping options and can accommodate both single-unit replacement orders and bulk container shipments for generator manufacturers.
What are the precise 6BTA5.9-G2 Dongfeng Cummins engine dimensions?
While exact dimensions can vary slightly based on the specific radiator and air cleaner configuration you choose, the standard bare engine block is renowned for its compact profile. It easily fits into standard sound-attenuated canopies designed for 125kVA generator sets. Please contact our engineering team for detailed CAD drawings based on your specific accessory requirements.
What is the expected DCEC 6BTA5.9-G2 106kW engine price?
Pricing fluctuates based on global steel costs, shipping rates, and order volume. However, because HekoPower sources directly from the factory, our Cummins 6BTA5.9-G2 wholesale price remains highly competitive. Reach out to our sales team today for an accurate, up-to-date proforma invoice.
Can this engine be upgraded to an electronic governor?
Yes. While this specific model is heavily favored as a mechanical governor Cummins engine for its rugged simplicity, it can be retrofitted. If your project requires parallel synchronization with other generators or strict emission compliance, we can supply a Cummins genset engine with an electronic governor module installed.
