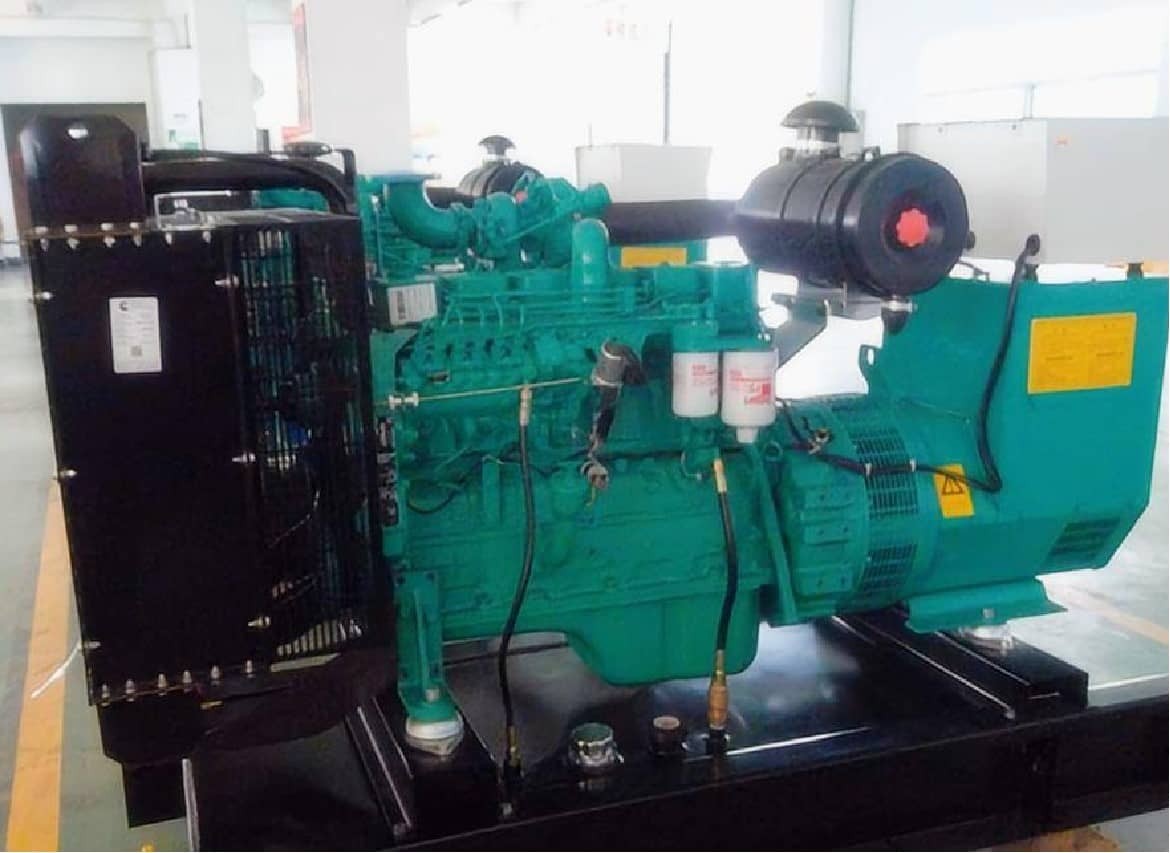

Cummins 6BTAA5.9-G12 Generator Engine: 140kW G-Drive Power Asset
Selecting a reliable prime or standby power source for industrial operations requires analyzing more than just basic specification tables. The DCEC Cummins 6BTAA5.9-G12 generator engine stands out as a highly resilient mechanical workhorse. It delivers a nominal 140kW output engineered specifically for mid-scale commercial power generation systems.
As an established global engine supplier, HekoPower provides this authentic Cummins B series 5.9L generator engine assembly. We back every unit with verified factory tracking, comprehensive quality testing, and robust international logistics support.
Tech Specs of Cummins 6BTAA5.9-G12
General Engine Data
Engine Model: Cummins 6BTAA5.9-G12-140kw
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight: 411 Kg
Overall Dimension: 1110mm*750mm*988mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 140 kW/187 HP, 155 kW/207 HP
Rated Power/Standby Power(1800 rpm): 150 kW/200 HP, 165 kW/220 HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption @ Running: ≤ 244 g/kW.hr
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC P7100 Pump
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Governor Type: Electronic, Regulation 1%-5%
Compression Ratio: 17.5:1
Technical Blueprint and Performance Metrics
The foundation of the Cummins 6BTAA5.9-G12 engine relies on a legacy mechanical design. This configuration prioritizes high thermal efficiency, simple mechanical maintenance, and extreme durability in harsh environments. Unlike modern, overly complex electronic common-rail systems that often fail in remote areas due to poor fuel quality, this 5.9-liter platform uses a rugged, time-tested inline fuel system.
Injection Systems and Turbocharging Dynamics
A key technical advantage of this specific 140kW standby power diesel engine configuration is its high-pressure fuel system. It features a genuine BYC P7100 inline fuel pump paired with a mechanical governor. The 6BTAA5.9-G12 with BYC P7100 fuel pump specifications ensure exact fuel metering directly to the combustion chambers. This mechanical setup maintains steady engine speed regulation even under sudden block load changes.
The engine relies on an exhaust-driven turbocharger and a high-efficiency charge-air aftercooler (air-to-air cooling system). This combination forces dense, cooled air into the cylinders, promoting complete fuel combustion. This design significantly lowers emissions while optimizing overall thermal output. This mechanical configuration makes the engine highly resilient against erratic fuel quality, giving it a clear advantage over sensitive electronic engines.
Power Curve Variations: 1500rpm vs 1800rpm
Engine speed directly controls the electrical frequency of a generator set. Understanding the performance changes across different operating speeds is essential before committing to a purchase.
The DCEC Cummins 6BTAA5.9-G12 1500rpm vs 1800rpm power rating analysis highlights its versatility. At a constant 1500rpm, the unit functions as a premier 50Hz industrial G-Drive power unit Cummins engine. It outputs a reliable 140kW of prime power to run 150 kVA generator units continuously.
When configured for 1800rpm operations, the engine profile adjusts to serve 60Hz power grids, which are common across North and South American industrial facilities. At 1800rpm, the internal kinetic timing shifts, increasing air velocity and boosting standby ratings. This matches the demands of rapid-response emergency backup power networks perfectly.
Industrial Application Profiles
The Cummins 5.9L 140kW diesel generator engine is carefully engineered to handle varying load demands across diverse environments. Its heavy-duty cast-iron cylinder block absorbs operational vibrations, extending the lifespan of surrounding generator components.
Continuous Duty in Commercial Systems
For facilities running continuous-duty operations, fuel economy and durability determine long-term profitability. The Cummins 5.9L generator engine for continuous duty application excels in remote locations, such as isolated mining camps, agricultural irrigation hubs, and processing plants.
The engine handles continuous thermal stress by using targeted piston-cooling oil jets and replaceable wet-type cylinder liners. These features ensure efficient heat dissipation during extended, multi-day operations.
Emergency Standby Power Deployments
In backup power setups, a Cummins diesel engine for industrial backup power 50Hz 1500rpm must start reliably and accept a full load within seconds of a grid failure.
Critical facilities like medical clinics, cold-storage warehouses, and data centers rely on this engine for immediate emergency power. Its clean mechanical layout allows simple integration with standard automatic transfer switches (ATS), making it an ideal choice for emergency power infrastructure.
Engineering Matching and Replacement Guide
Replacing an aging power plant requires precise technical alignment to avoid long downtime or expensive structural modifications. The OEM Cummins generator engine assembly serves as a direct drop-in replacement for worn-out units in existing 140kW gensets.
Genset Component Integration
When sourcing a Cummins engine replacement for 140kW generator set frameworks, engineers must verify key interface dimensions. The 6BTAA5.9-G12 features a standard SAE3 flywheel housing and an 11.5-inch flywheel connection. This standard sizing allows straightforward mechanical pairing with major alternator brands, including Stamford, Marathon, and Leroy Somer.
Proper configuration also requires matching the radiator’s cooling capacity with the engine's heat rejection rate. The integrated water pump must deliver consistent coolant flow through the core to prevent thermal derating during high-temperature operations.
Step-by-Step Replacement Checklist
To ensure a smooth swap when executing a 140kw diesel generator drive engine replacement, follow this technical process:
- Isolate the electrical system and safely drain all remaining engine fluids.
- Unbolt the old engine block from the common structural steel base skid.
- Disconnect the flexible fuel supply lines, exhaust bellows, and DC control wiring harnesses.
- Align the new engine shaft center with the single-bearing alternator using precise dial indicators.
- Fasten the engine to anti-vibration rubber mounts to prevent structural harmonic resonance.
- Refill the system with premium heavy-duty cooling fluids and high-grade 15W-40 lubricating oil.
- Purge the fuel lines to remove trapped air bubbles before initiating the first test start.
Life-Cycle Maintenance Protocols
Sticking to a strict preventive maintenance schedule protects your investment and ensures the engine achieves its target operational lifespan of over 15,000 hours before requiring a major overhaul.
Critical Fluid Management
The Cummins 6BTAA5.9 high pressure fuel system turbocharged engine requires clean fuel to function efficiently. Regularly draining the primary water separator protects the mechanical fuel injection pump from internal corrosion and premature wear.
Change the lubricating oil and replace the spin-on oil filters every 250 operating hours when operating under heavy industrial loads. Always verify that the air intake filter restriction indicator remains clear to ensure unobstructed airflow to the turbocharger.
Managing Cold Starts and Thermal Loads
Extended idling can cause unburnt fuel to accumulate in the exhaust system—a issue known as "wet stacking." To prevent this, run the engine under at least a 30% electrical load during weekly maintenance test runs.
Allow the engine to idle without load for 3 to 5 minutes before complete shutdown. This cool-down period allows the turbocharger casing to shed residual heat, protecting the internal bearings from thermal stress.
Commercial Procurement and Logistics Strategy
Sourcing industrial machinery globally requires dependable supply chain management, clear product authentication, and transparent pricing structures. HekoPower eliminates purchasing risks by managing every stage of the procurement process directly.
Global Supply Chain Operations
As an authorized wholesale Cummins 6BTAA5.9-G12 140kW generator engine supplier, HekoPower maintains deep factory connections to offer verified original Cummins 140kW diesel engine factory prices. We buy in volume to help clients bypass middlemen, passing the savings directly to international genset manufacturers and engineering firms.
Every engine undergoes thorough dyno-testing at our facility before final packaging, ensuring it arrives fully operational and ready for immediate installation.
Strategic Packaging and Global Shipping
Industrial engines require specialized handling to prevent damage during long ocean transit. HekoPower ships every engine assembly in heavy-duty, export-grade wooden cases that protect against moisture and rust.
We manage all export documentation, customs clearance forms, and freight forwarding arrangements. This comprehensive approach ensures your equipment arrives safely and on schedule at any major international port.
Cummins B5.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-G1-86kw, 6BT5.9-G2-86kw, 6BTA5.9-G2-106kw, 6BTAA5.9-G2-120kw, 6BTAA5.9-G12-140kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
What is the exact fuel consumption of the Cummins 6BTAA5.9-G12 engine at full load?
The Cummins 6BTAA5.9-G12 fuel consumption at 100% load averages approximately 34 liters per hour when running at a steady 1500rpm. Operating fuel efficiency depends partly on local fuel quality, ambient operating temperatures, and the cleanliness of the air intake system.
How can I verify that my engine from China is a genuine Cummins product?
Every authentic Cummins engine assembly carries a unique, permanent metal data plate stamped with an individual 8-digit Cummins Engine Serial Number (ESN). HekoPower provides this ESN to buyers prior to shipping, allowing global service networks to verify the build documentation and origin.
Can this mechanical engine be updated to meet strict regional emissions standards?
The 6BTAA5.9-G12 is primarily designed for regions that accept Tier 2 or unregulated mechanical engines. For regions with strict emission laws, it works well as a stationary emergency standby unit, or it can be fitted with after-treatment systems like diesel particulate filters (DPF) to meet local environmental codes.
What warranty coverage comes with a new engine assembly?
HekoPower provides a comprehensive 12-month or 1,000-operating-hour international warranty coverage on all new assemblies, tracking from the initial date of delivery. This warranty covers all component defects caused by material faults or assembly errors during production.
