Details

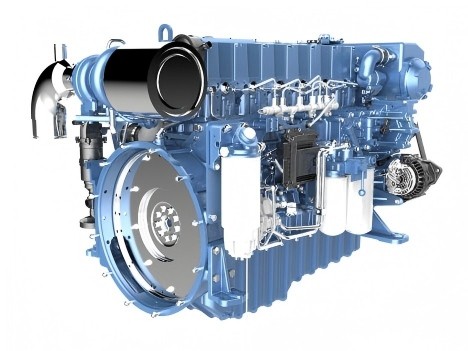

Weichai WP7C278-21E120 Marine Engine: The Ultimate 278 HP Propulsion Solution for Commercial Vessels
The Weichai WP7C278-21E120 marine engine is a high-performance propulsion solution developed for commercial marine applications requiring dependable power, fuel efficiency, and long service life. Rated at 278 horsepower (205kW) at 2100RPM, this engine belongs to the proven Weichai WP7 Series marine engine platform and is widely used in fishing vessels, passenger boats, patrol craft, coastal transportation vessels, and various workboats.
As an authorized engine supplier, HekoPower provides genuine Weichai WP7C278-21E120 marine engines with export support, technical consultation, spare parts supply, and worldwide logistics services. Whether you are replacing an existing propulsion unit or building a new vessel, the WP7C278-21E120 offers an excellent balance of power output, operating economy, and reliability.
Tech Specs of Weichai WP7C278-21E120
General Engine Data
Engine Model: Weichai WP7C278-21E120
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 7.47 L
Bore * Stroke: 108×136 (mm)
Dimensions L×W×H): 1398×865×980 (mm)
net weight: 850 kg
Key Performance Data
Rated Power: 205 kW / 278 HP
Rated Speed: 2100 RPM
Idle Speed: 700±50 RPM
Minimum fuel consumption rate: 192 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
Torque reserve: 20-35%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤97 dB(A)
Technical Blueprint and Performance Architecture
The foundation of the WP7C278 Weichai diesel engine rests on a highly successful 7.47-liter platform. This displacement ensures that the cylinders handle high thermal loads gracefully, extending the overall lifecycle of internal components under continuous duty operations.
Understanding the 7.47L Six-Cylinder Platform
The Weichai six cylinder marine engine utilizes an inline configuration that simplifies routing for maintenance while offering inherent mechanical balance. This balance reduces structural vibrations throughout the hull of your vessel. With a bore and stroke profile measuring 108 mm by 136 mm, the combustion chamber is optimized for complete flame propagation.
This mechanical design means the engine builds torque rapidly across its entire operational RPM band. For operators navigating volatile coastal currents, this instant torque response provides critical control when maneuvering heavy loads or maintaining position in rough chop.
Bosch Common Rail Fuel Injection and IMO II Compliance
At the heart of the engine's efficiency is a genuine Bosch common rail marine diesel fuel loop. Driven by a specialized, marine-calibrated Weichai ECU, the system achieves precise multi-stage fuel injection pressures up to 2200 bar. This hyper-fine atomization of diesel fuel is exactly how the engine hits a remarkably low fuel consumption rate of 192g/kW·h at its optimal load point.
Beyond saving thousands of dollars in annual bunkering costs, this precise fuel management ensures the Weichai high speed marine engine fully satisfies IMO II marine diesel engine emission standards. It delivers cleaner exhaust outputs, helping your fleet comply with modern environmental regulations across global ports.
Weichai WP7 Marine Engine Comparison: Finding the Right Power Band
Selecting the correct commercial engine requires analyzing subtle differences in power curves and operational ratings. The WP7 series spans several models, and selecting the wrong configuration can lead to an under-powered vessel or premature engine wear.
WP7C278-21E120 vs WP7C268-18E120
The choice between the WP7C278-21E120 vs WP7C268-18E120 mostly comes down to your hull design and required operating speed. The 268 HP variant tops out at 1800 RPM, meaning it is geared heavily toward pure, slow-speed displacement towing and heavy pushing.
By contrast, the WP7C278-21E120 pushes up to 2100 RPM to deliver its 278 HP. This extra 300 RPM makes a massive difference for semi-displacement hulls or vessels that need an extra burst of speed when returning to port with a full hold. The 278 HP engine provides a wider active power band, making it the best Weichai WP7 marine engine for captains who operate across changing maritime duties.
WP7C278-21E120 vs WP7C300-22.5E120
Looking higher up the power scale, we find the WP7C300-22.5E120 model. While the 300 HP engine offers a slight bump in raw output, it requires running the engine up to 2250 RPM to achieve it. This higher rating shifts the engine into a different duty class, typically reducing the total number of continuous, uninterrupted hours you can run at wide-open throttle.
The WP7C278-21E120 remains firmly anchored as a Weichai P1 continuous duty marine engine. It is built to run 24 hours a day, 7 days a week, with almost zero power degradation. For true commercial endurance where downtime costs thousands of dollars a day, the 278 HP configuration represents a safer, more durable long-term investment.
Real-World Maritime Application Scenarios
The unique power-to-weight profile of this 900 kg bobtail engine makes it highly versatile across several commercial marine sectors. It provides the sustained thrust required for working hulls without adding excessive deadweight to the engine room.
Commercial Fishing Vessel Propulsion
In the commercial fishing industry, a marine diesel engine for fishing boat operations must handle two radically different phases: sprinting to the fishing grounds before competitor fleets, and then transitioning to slow, high-load trawling or hauling. The 205kW marine propulsion engine for commercial vessel layouts perfectly matches these needs.
It delivers stable torque at low idle to power hydraulic winches and onboard refrigeration pumps smoothly. When the holds are full of fish and it is time to return to the dock, the 2100 RPM capability ensures you maintain optimal hull speed against heavy tides.
Workboats, Passenger Ferries, and Coastal Patrol Hulls
For fleet operators managing a Weichai engine for workboat or high-speed passenger boat applications, reliability over thousands of operating hours is the only metric that matters. Coastal passenger vessels running fixed schedules rely on the predictable thermal performance of the WP7C278-21E120 marine engine to prevent unexpected schedule cancellations.
The engine block’s compact footprint—measuring roughly 1398mm in length—allows for clean installation in narrow twin-engine catamaran hulls or tight engine compartments on coastal patrol craft. This space-saving design leaves ample room for shipboard technicians to perform daily inspections safely.
Marine Gearbox Matching and Propulsion System Integration
An engine is only as good as the transmission system bolted to its flywheel housing. To unlock the full potential of the Weichai WP7C278-21E120 specifications, proper gearbox matching is critical.
HekoPower routinely pairs this specific engine with industry-standard marine gearboxes from leading brands like Advance Gearbox (models such as the HC138 or HCD138A series) or Twin Disc equivalents. Selecting the correct reduction ratio ensures that the 2100 RPM output matches the ideal rotational speed of your propeller shaft.
For a heavy workboat, a deeper reduction ratio like 3.5:1 or 4:1 allows the vessel to turn a larger, high-pitch propeller for maximum pulling power. For lighter, faster hulls, a shallower ratio helps maximize cruise efficiency. Our engineering team at HekoPower handles these torque calculations directly, ensuring your entire drivetrain arrives fully aligned and ready to drop into place.
Maintenance Strategies and Genuine Parts Sourcing
Preventative maintenance is what separates an engine that lasts for 20,000 hours from one that suffers premature failure. Because the WP7 series relies on advanced electronic management, maintaining clean fuel and oil systems is absolutely critical.
Fuel System Integrity and Common Rail Longevity
The high operating pressures of the common rail loop mean that even tiny dirt particles or water contamination can cause severe wear on your fuel injectors. It is highly recommended to install a high-capacity primary fuel-water separator with an integrated heating element ahead of the factory fuel filters.
Replacing both the primary and secondary fuel filter elements every 250 operating hours is a cheap insurance policy that protects your expensive Bosch common rail Weichai WP7 marine engine parts from damage. If you notice a sudden drop in fuel pressure or irregular idling, check the fuel rail pressure regulating valve immediately.
Critical Wear Component Replacement Intervals
Technicians should carefully monitor the sacrificial zinc anodes inside the raw water heat exchanger every month, replacing them once they are 50% consumed to prevent internal galvanic corrosion. The engine oil and oil filters must be changed every 250 to 300 hours using high-grade marine lubricant formulated for common rail diesel engines.
Additionally, the valve clearances should be inspected and adjusted according to the official Weichai WP7C278-21E120 datasheet guidelines after the initial 50-hour break-in period, and then every 1000 running hours thereafter to maintain perfect cylinder sealing and optimal fuel efficiency.
Sourcing Your Weichai Engine Worldwide Through HekoPower
When you are looking to buy a Weichai WP7C278-21E120 engine, working with a verified China Weichai marine engine supplier ensures you receive an authentic, factory-fresh product complete with valid marine classification certifications. HekoPower serves as a trusted Weichai WP7C278-21E120 export supplier, managing everything from complex customs documentation to heavy-duty maritime crating.
Every single genuine Weichai WP7C278-21E120 engine we export undergoes rigorous factory testing before being cleared for ocean freight. We provide complete transparency through our technical data packages, offering the official Weichai WP7C278 spec sheet pdf hekopower documentation alongside full maintenance schedules. Contact our sales department today to request a current Weichai WP7C278-21E120 price quote, verify component availability, or discuss custom gearbox configurations tailored to your specific hull requirements.
Weichai WP7 series marine diesel engine, original products from Weichai. This series mainly includes WP7C150-15E120, WP7C240-18E120, WP7C268-18E120, WP7C278-21E120, WP7C300-22.5E120.
Frequently Asked Questions
What is the exact dry weight and physical size of this engine?
The bobtail dry weight of the engine is approximately 900 kg. Its physical dimensions are roughly 1398 mm in length, 865 mm in width, and 980 mm in height. These compact dimensions make it highly suitable for repowering older vessels with tight engine rooms.
Can I get CCS or international marine class certificates for this model?
Yes. As an authorized Weichai WP7C278-21E120 supplier, HekoPower can deliver engines complete with China Classification Society (CCS) certification. We can also coordinate with other major international maritime classification societies depending on your specific regional registry needs.
Where can I download the complete Weichai WP7C278-21E120 engine PDF manual?
Registered commercial clients can request the official Weichai WP7C278-21E120 datasheet and comprehensive workshop manuals directly through the HekoPower portal. Simply contact our support team with your project details to receive the download links.
