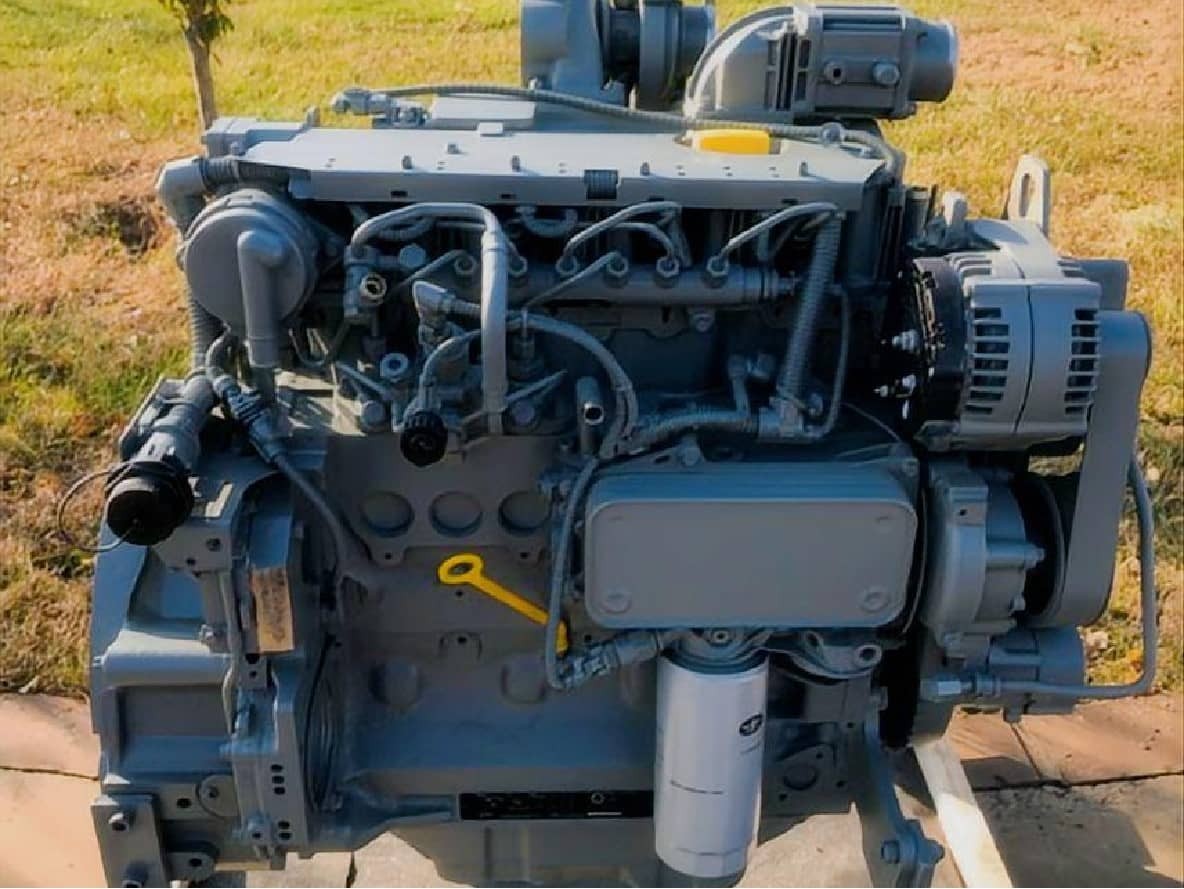

Deutz TCD2012 L6 Construction Engine Assembly (188kW / 252.1HP)
The Deutz TCD2012 L6 is a robust 6.06L 6-cylinder diesel engine specifically engineered for heavy-duty mobile machinery. Delivering 188kW (252.1HP) at 2100 RPM, this water-cooled engine is designed to handle extreme load variations typical in modern construction environments.
As a specialized Deutz construction engine supplier, HekoPower provides complete replacement engine assemblies built to original factory standards, ensuring minimal downtime for your heavy equipment fleet.
Tech Specs of Deutz TCD2012 L6
General Engine Data
Engine Model: Deutz TCD2012-L6 -252.1HP
Type: 6 Cylinders in Line
Displacement: 6.06 L
Bore * Stroke: 101*126
Net Weight (with flywheel and alternator): 620 Kg
Overall Dimension: 1082mm*678mm*946mm
Key Performance Data
Rated Power: 188 kW/252.1HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1134 N.m @ 1500 rpm
Min Fuel Consumption @ Full Load: 210 g/Kw.h
Idle Speed: 600 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charged Air Cooling
Fuel System: Common Rail Injection System, EMR4
Cooling Method: Water Cooled
Exhaust System: EAT/DPF
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Radio: 18.1:1
Understanding the Deutz TCD2012 L6 EMR4 Common Rail System
One of the defining features of the TCD2012 L6 is its integration of the Deutz EMR4 electronic engine management system paired with high-pressure common rail injection. This is not a legacy mechanical engine.
The common rail system allows for precise fuel delivery regardless of engine speed. This results in an exceptionally flat torque curve, peaking at 1134Nm. For the operator, this means maximum lugging power is available even at lower RPMs, which is critical when a machine hits a sudden heavy load, such as an excavator bucket striking dense clay.
Furthermore, this electronic management is what enables the engine to meet Euro III emissions standards without relying on overly complex exhaust aftertreatment systems. It maintains a highly efficient fuel consumption profile while delivering consistent industrial power.
Real-World Application Scenarios for the TCD2012-L6
This 188kW Deutz construction diesel engine is not a general-purpose unit; it is highly specialized for specific classes of mobile machinery. We frequently supply this Deutz TCD2012 L6 replacement engine for the following applications.
20 to 30-Ton Class Excavators
Excavators demand rapid transient response. When the operator engages the hydraulics, the engine must immediately spool up to maintain hydraulic pressure without stalling. The turbocharged intercooled Deutz construction engine design provides the necessary airflow to prevent bogging down under these sudden loads, making it an ideal repower option for mid-to-large excavators.
Heavy Vibratory Road Rollers and Soil Compactors
Road rollers require continuous, steady high-torque output to drive both the hydraulic tramming motors and the vibratory drum mechanisms. The 6-cylinder inline construction engine architecture of the TCD2012 L6 excels here, providing smooth, balanced power delivery that prevents hydraulic surging during precision compaction tasks.
Mobile Cranes and Bulldozers
For mobile cranes and mid-size bulldozers, reliability under sustained heavy loads is paramount. The water-cooled Deutz 6-cylinder engine ensures optimal thermal management, preventing overheating during prolonged lifting operations or extended dozing pushes in high ambient temperatures.
Technical Comparison: Deutz TCD2012 L6 vs. BF6M1013
A common question we receive from fleet managers is whether to source a Deutz TCD2012 L6 or the older BF6M1013 engine, as they occupy similar power nodes. Understanding the differences is crucial for selecting the correct replacement power pack.
While both are 6-cylinder industrial diesel engines, they utilize fundamentally different fuel delivery technologies. The BF6M1013 relies on a mechanical unit pump system. It is a proven, highly durable design, but it cannot match the precision of the TCD2012 L6.
The TCD2012 L6 utilizes the advanced EMR4 common rail system. This translates directly to better fuel economy and stricter emissions compliance (Euro III). If your equipment operates in regions with strict emission regulations, or if minimizing long-term fuel costs is your primary goal, the TCD2012 L6 is the superior choice.
Conversely, if you are operating in extremely remote areas where diagnostic laptops are unavailable and fuel quality is consistently poor, the mechanical simplicity of the BF6M1013 might seem appealing. However, for modern, efficiency-focused fleets, the electronic TCD2012 L6 represents a significant technological upgrade.
Common Misconceptions About Common Rail Engines
There is a persistent misconception that common rail construction engines are too fragile for harsh environments. This is false. The Huachai Deutz TCD2012 L6 is built specifically for high-dust, high-vibration environments. The key to longevity is simply maintaining strict fuel filtration standards.
Maintenance and Engine Replacement Guide
Deciding between a major overhaul and purchasing a complete Deutz engine replacement assembly is a critical operational decision.
When to Replace a Construction Diesel Engine
Overhauling an engine involves significant labor costs, prolonged equipment downtime, and the risk of underlying block fatigue that a rebuild cannot fix. If a TCD2012 L6 has suffered catastrophic failure—such as a thrown rod, severe block scoring, or main bearing failure—a complete Deutz TCD2012-L6 complete engine assembly is often more economical.
Purchasing a new assembly from a Deutz industrial engine exporter like HekoPower ensures you receive a factory-tested unit. This minimizes downtime from weeks to mere days, getting your 252HP heavy construction equipment back to work generating revenue.
Common Rail System Maintenance Tips
The lifespan of the Deutz TCD2012 L6 is heavily dependent on fuel quality. The high-pressure injectors operate at extreme tolerances. Water or particulate contamination in the diesel will cause premature injector wear, leading to poor starting, smoke, and reduced 1134Nm torque output.
We strongly advise adhering strictly to the factory recommended fuel filter replacement intervals. Do not attempt to extend these intervals, even if the equipment sees low hours, as condensation can build up in the fuel tanks of mobile machinery.
Integrating with the Broader TCD Series
The Deutz TCD2012 L6 is part of a larger family of advanced industrial power solutions. Understanding where it fits within the broader product lineup can help you ensure you are selecting the precise displacement and power output required for your specific chassis.
Deutz TCD-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes TCD2015V06, TCD2015V08, TCD2012-L4 (138HP), TCD2012-L4 (160.9HP), TCD4.1-L4, TCD2012-L6 (208HP), TCD2012-L6 (252.1HP), TCD6.1-L6.
Frequently Asked Questions (FAQs)
What is the typical lead time for a Deutz TCD2012-L6 engine?
As a major China Deutz construction engine supplier, HekoPower typically maintains a lead time of 15 to 20 business days for a complete engine assembly, depending on current stock levels and specific configuration requirements.
Are spare parts compatible between the Huachai Deutz and German Deutz versions?
Yes. The Huachai Deutz TCD2012 L6 diesel engine is manufactured under strict licensing and quality control agreements. The core engine components, including the EMR4 system and common rail parts, maintain high compatibility with original Deutz TCD2012-L6 spare parts, making global servicing straightforward.
Does the 188kW replacement engine come fully assembled?
Yes, when you buy a Deutz TCD2012 L6 188kW replacement power pack from HekoPower, it is supplied as a complete assembly. This typically includes the fuel injection system, turbocharger, water pump, and essential sensors, designed for a direct drop-in replacement to minimize installation time.
How do I troubleshoot low power on this engine?
Deutz construction engine troubleshooting on the TCD2012 series should always begin with the fuel system. Because it is an EMR4 common rail diesel engine, low power is most frequently caused by restricted fuel filters, air in the fuel lines, or a failing high-pressure pump. Always verify fuel supply pressure before suspecting internal engine wear.
