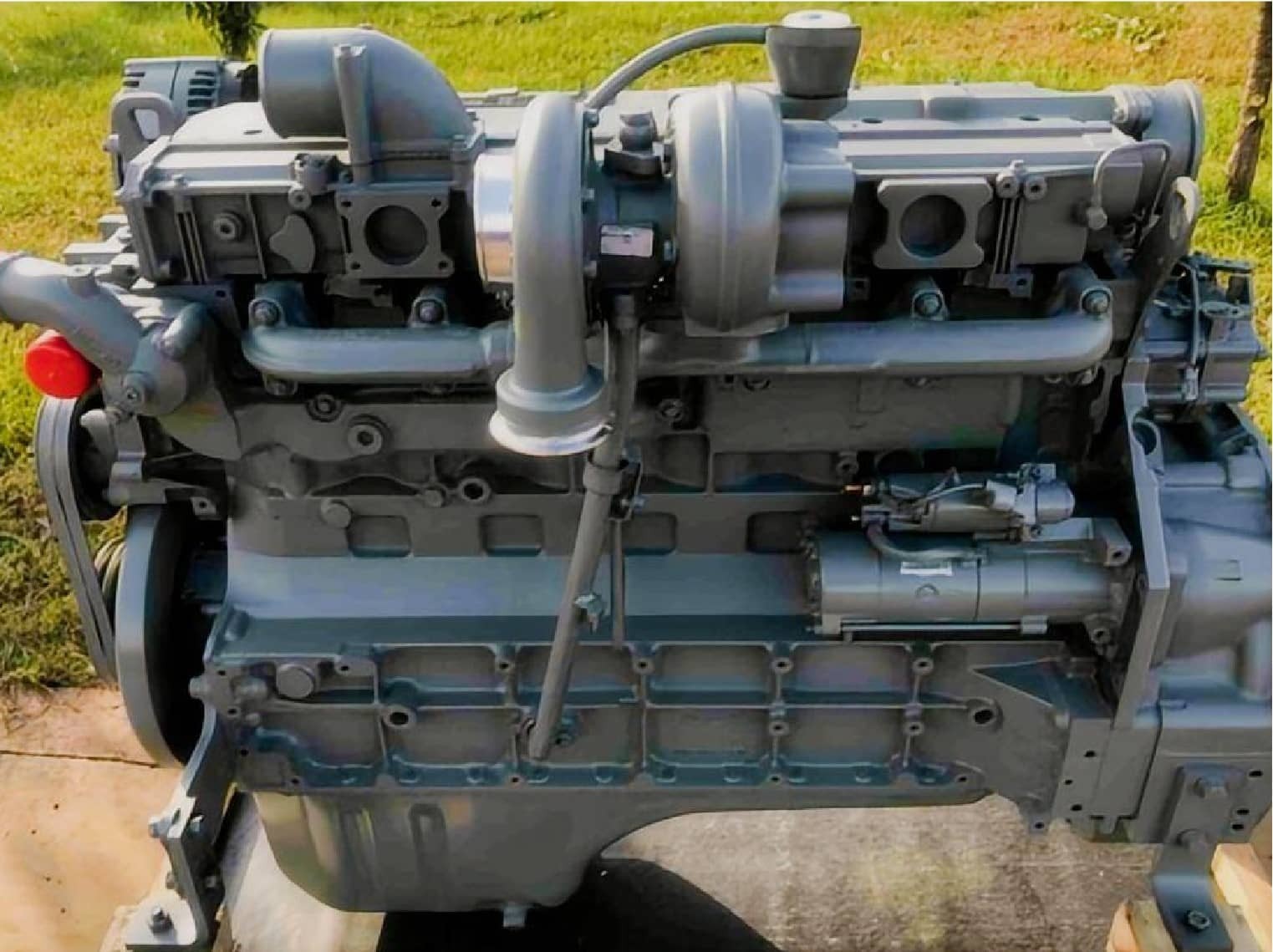

Deutz BF6M1013FC-G3 Generator Engine: 201kW Prime Power Solution
The Deutz BF6M1013FC-G3 generator engine is engineered to deliver unwavering power for continuous and standby energy applications. As a dedicated BF6M1013FC-G3 diesel engine supplier, HekoPower provides this robust 201 kW diesel engine to meet the demanding requirements of modern power generation. Rated for continuous operation at 1500 rpm, this model forms the reliable mechanical heart of standard 50 Hz gensets worldwide.
Procuring a completely new BF6M1013FC-G3 engine ensures your operations face minimal downtime. We supply the BF6M1013FC-G3 complete engine ready for integration. This reduces the mechanical complexities often associated with piecemeal rebuilds. Facilities relying on consistent base-load power or emergency backup trust this specific Deutz BFM1013 Series G-Drive engine for its sustained torque output and rugged block design.
Tech Specs of Deutz BF6M1013FC-G3 Generator Engine
General Engine Data
Engine Model: Deutz BF6M1013FC-G3
Type: 6 Cylinders, in Line
Displacement: 7.146 L
Bore * Stroke: 108 * 130
Overall Dimension: 1971mm*1054mm*1373mm
Net Weight: 770 Kg
Key Performance Data
Rated Power: 201 kW
Max. Torque/Speed: 1279 N.m @ 1500 rpm
Rated Speed: 1500 rpm
Specific Fuel Consumption: 226 g/kW.h
Net Frequency: 50Hz
Noise db(A): ≤ 113
More Technical Data
Certification: Tier II
Aspiration: Turbocharged & Intercooling
Fuel System: Mechanical Unit Pump in Line
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 18:1
Engineering Profile: 201kW / 1500rpm Deutz Engine for 200kVA Generator Sets
Understanding the exact physical and output parameters is crucial when matching a diesel drive engine to an alternator. This 201kW Deutz engine for generator set applications perfectly aligns with the mechanical requirements of a 200 kVA generator. It also provides the necessary mechanical headroom to function efficiently as an engine for 220 kVA genset configurations under specific load conditions.
This model is a dedicated 1500 rpm generator engine. Running at a fixed 1500 rpm ensures a stable 50Hz frequency output, which is mandatory for most industrial equipment, commercial real estate infrastructure, and sensitive telecom towers. Power fluctuations can damage sensitive downstream electronics. The steady state rotation of the BF6M1013FC-G3 50Hz genset engine prevents these damaging harmonic variations.
At its core, this is a BF6M1013FC-G3 7.146 liter diesel engine. The substantial displacement allows it to accept sudden block loads without stalling or dipping below acceptable frequency limits. The BF6M1013FC-G3 inline 6 cylinder diesel engine utilizes a meticulously balanced crankshaft to reduce vibration. Minimized vibration extends the life of the engine mounts, the coupled alternator, and the base frame of the entire genset assembly.
Technical Comparison: BF6M1013FC-G3 vs. Standard 6-Cylinder Alternatives
Buyers often evaluate multiple prime movers when designing a new canopy or skid. We frequently help engineers compare this model against other engines in the same displacement category.
One of the most defining characteristics of the BF6M1013FC-G3 is its mechanical fuel injection engine architecture. Many modern alternatives use complex electronic common rail systems. While electronic systems offer precise emissions control, they are notoriously sensitive to poor fuel quality and require advanced diagnostic laptops for simple field repairs. The BF6M1013FC-G3 mechanical unit pump engine operates completely differently. Each cylinder features its own high-pressure injection pump driven directly by the camshaft. This mechanical simplicity means the engine tolerates lower-grade diesel found in remote areas and can be serviced by field mechanics using standard hand tools.
Air handling is another critical differentiator. This is a BF6M1013FC-G3 turbocharged intercooled engine. By forcing compressed, cooled air into the combustion chamber, volumetric efficiency increases significantly compared to naturally aspirated models. This results in the high 201 kW output from a relatively compact 108 x 130 mm engine cylinder dimension. The 108 mm bore and 130 mm stroke provide excellent low-end torque, which is the exact physical characteristic required for a prime power generator engine recovering from transient load impacts.
Furthermore, this is a water cooled diesel engine. Standby generator engines often sit in sound-attenuated enclosures where ambient temperatures rise rapidly during operation. The dedicated liquid cooling jacket surrounding the cylinders ensures thermal stability even when the engine runs at full 201 kW capacity in high-temperature environments. It reliably meets Tier II diesel engine emissions standards without needing fragile after-treatment systems like DPF or SCR.
Common Misconceptions Regarding the BF6M1013FC-G3
A frequent misconception in the power generation industry is that mechanical unit pump engines suffer from excessive fuel consumption. In reality, the Deutz BF6M1013FC-G3 fuel consumption and maintenance manual outlines highly competitive fuel burn rates. Because the unit pumps generate extremely high injection pressures right at the injector nozzle, fuel atomization is excellent. This ensures complete combustion, maximizing power stroke efficiency.
Another misconception involves the electrical architecture. Some buyers assume a fully mechanical engine lacks modern electrical starting reliability. However, the BF6M1013FC-G3 24V starting system is exceptionally robust. Designed for heavy industrial use, the 24V starter motor cranks the 7.146-liter block quickly and reliably, even in low ambient temperatures, making it a highly dependable standby generator engine.
Real-World Application Scenarios
The versatility of the BF6M1013FC-G3 generator drive engine makes it suitable for diverse industrial landscapes.
In prime power applications, this engine often runs off-grid mining camps and remote agricultural processing facilities. These locations demand a Deutz 201 kW generator drive engine that can operate continuously for days or weeks. The mechanical fuel system’s tolerance for varying diesel grades prevents unexpected shutdowns in these isolated areas.
In standby scenarios, the engine protects commercial data centers, hospitals, and manufacturing plants from grid failures. When utility power drops, the BF6M1013FC-G3 replacement for diesel generator systems fires up within seconds. Because it is engineered as a dedicated Deutz 200 kVA class generator engine, it easily shoulders the initial surge of heavy HVAC compressors and large industrial motors spinning up simultaneously.
Maintenance and Replacement Tips for Your Engine Assembly
Prolonging the life of your equipment requires strict adherence to scheduled maintenance. Always consult your factory manual for precise service intervals. Regularly inspect the water cooling circuit for proper coolant concentration to prevent cavitation erosion on the cylinder liners. Because it is a turbocharged intercooled engine, regularly checking the charge air cooler piping for secure connections prevents boost leaks that can lead to high exhaust gas temperatures.
Eventually, all engines reach the end of their operational lifecycle. When rebuild costs exceed the value of the asset, procuring a BF6M1013FC-G3 replacement engine is the most cost-effective solution. Trying to overhaul a severely worn block often leads to extended downtime and unpredictable secondary failures.
As a trusted Deutz BF6M1013FC-G3 supplier, HekoPower streamlines this process. We provide the BF6M1013FC-G3 engine assembly replacement fully built and tested. Swapping out a fatigued unit with a complete replacement engine drastically cuts labor hours. When you replace BF6M1013FC-G3 generator engine assemblies entirely, you reset the lifecycle of the equipment, instantly restoring factory-rated load acceptance and fuel efficiency.
When searching for a Deutz BF6M1013FC-G3 OEM supplier or a reliable Dalian Deutz replacement engine source, buyers must verify lead times and logistical support. We actively manage inventory to ensure the BF6M1013FC-G3 lead time meets the urgent demands of our B2B clients, minimizing operational losses during critical power outages.
Deutz BFM1013 Series G-Drive Engine Family
Selecting the right engine often involves evaluating multiple power nodes within a single product family. The BFM1013 series is highly modular, allowing fleet managers to standardize their parts inventory across different generator sizes. While the BF6M1013FC-G3 dominates the 200 kVA sector, you may require different outputs for other projects. We supply the complete range of these robust water-cooled diesels.
Deutz BFM1013-Generator Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M1013EC, Deutz BF4M1013FC, Deutz BF6M1013EC, Deutz BF6M1013FC, Deutz BF6M1013FC-G3. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
What is the standard BF6M1013FC-G3 lead time for bulk orders?
Lead times vary based on global logistics and exact order volume. Because HekoPower operates directly in the wholesale distribution network, we can often expedite the BF6M1013FC-G3 engine assembly for urgent replacement projects. Contact our sales engineering team for precise timeline estimates to your facility.
Do you offer wholesale Deutz BF6M1013FC-G3 pricing for OEM packagers?
Yes. As an established BF6M1013FC-G3 engine supplier, we provide structured volume pricing. If you are an OEM building generator sets or a procurement manager seeking a Deutz BF6M1013FC-G3 wholesale partner, we can offer competitive terms on bulk shipments. Submit a request with your annual volume requirements for an accurate BF6M1013FC-G3 price quote.
Is this engine suitable as a direct drop-in replacement?
Yes. The BF6M1013FC-G3 complete replacement engine matches the footprint, mounting points, and flywheel housing dimensions of your original unit. This makes the BF6M1013FC-G3 engine for genset replacement highly efficient, allowing your technicians to unbolt the old unit, drop in the new block, and reconnect the alternator with minimal fabrication or modification.
What documentation comes with the BF6M1013FC-G3 replacement generator engine?
Every new BF6M1013FC-G3 engine ships with comprehensive factory documentation. This includes the Deutz BF6M1013FC-G3 technical datasheet and performance curve, necessary testing certificates, and the standard fuel consumption and maintenance guidelines. This documentation is essential for properly configuring your genset controller during commissioning.
